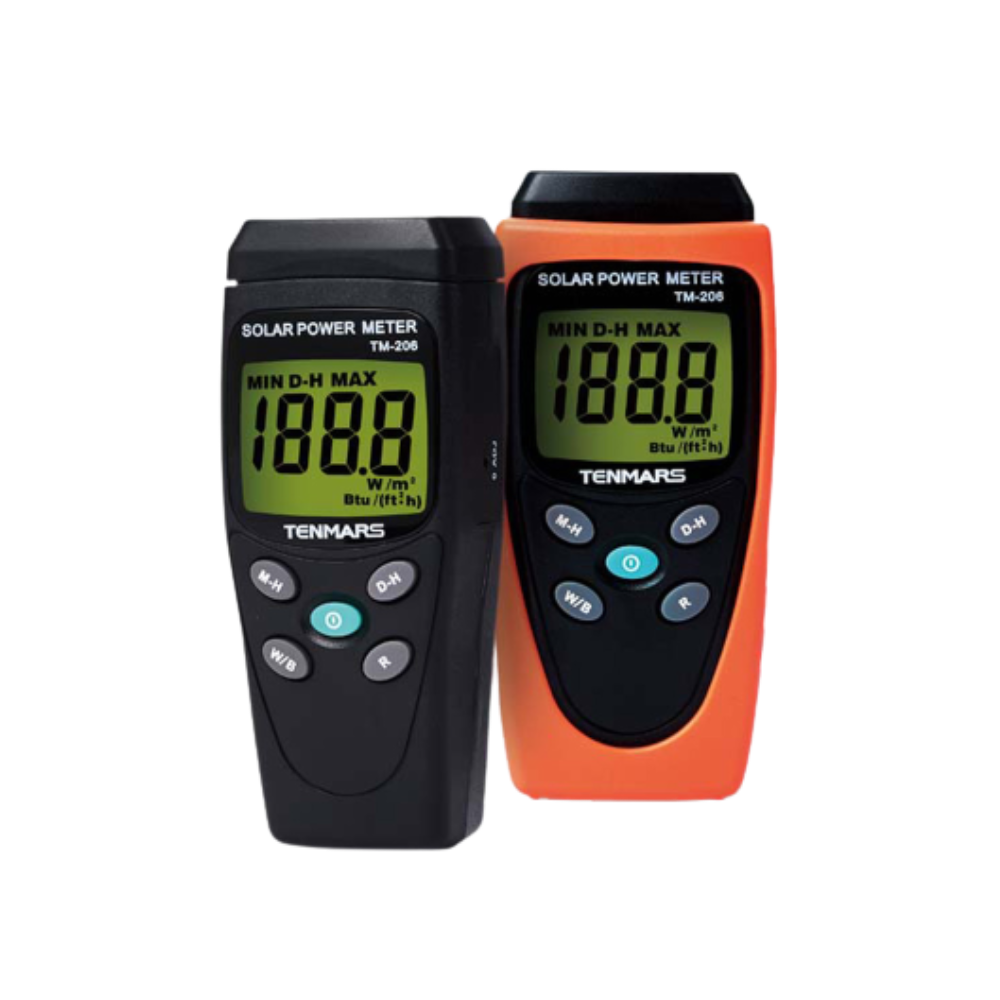

TM-206
Solar Power Meter

Measurement: Expressed by W/m² or BTU (ft² *h)

Kategoriler
  • Mekanik (745)
  • PRO-AV (1140)
  • Test ve Ölçü (971)
    • Çevresel Ölçüm (244)
      • Anemometre (16)
      • Basınç Ölçüm Cihazı (3)
      • Desibelmetre (Ses Ölçümü) (19)
      • Gaz Ölçüm Cihazı (14)
      • Hava Durumu İstasyon Cihazları (48)
      • Infrared Termometre (13)
      • Lazer Mesafe Ölçüm Cihazı (6)
      • Lüksmetre (Işık Ölçüm Cihazı) (27)
      • Lüminansmetre (Aydınlık Ölçüm Cihazı) (12)
      • Nem Ölçüm Cihazı (38)
      • Partikül Ölçüm Cihazı (1)
      • pH Ölçüm Cihazı (1)
      • Solar Güç Ölçüm Cihazı (4)
      • Termal Kamera (27)
      • Termometre (53)
    • Elektriksel Ölçüm (269)
    • Fiber Optik Ölçüm (4)
    • Gelişmiş Ölçüm (478)
  • APPLICATION
  • FEATURES
  • SPECIFICATIONS
  • ACCESSORIES
  • DOWNLOADS
  • DESCRIPTION

APPLICATION

  • Transmission measurement is most suitable for measuring the effectiveness of the solar film.
  • Solar radiation measurement.
  • Car windows light intensity measurement.
  • Optimal incident angle for the solar panel.
  • Measurement of the sun’s transmission through transparent and film glass
  • Convenient, no need to adjust, data displayed clearly.

FEATURES

  • Super low price, high precision.
  • Measurable light sources, including all visible light.
  • Overload display OL.
  • Select either W/m2 or BTU / (ft2*h) units1
  • Stable for long use.

SPECIFICATIONS

  • DISPLAY:3½ digits LCD with maximum reading 1999.
  • Dimensions:132x60x38mm(length x width x height).
  • Weight: Approximately 150 grams.
ELECTRIC SPECIFICATION
 Resolution
 1W/m2、1 BTU / (ft2*h)
 Accuracy
 < ±3/year
 Over-input
 Display shows” OL”.
 Range
 1999W/m2、634 BTU /(ft2*h).
 Accuracy
 typically within ± 10W/m2 [ ±3 BTU / (ft2*h) ] or ±5% , whichever is greater in sunlight;
 Additional temperature induced error
±0.38W/m2/ °C [±0.12BTU/(ft2*h)/°C] from 25°C
 EMC
  this instrument is EMC-compliant and
  has undergone compatibility tests according
  to EN61326 (1997) + A1 (1998) + A2 (2001)

ACCESSORIES

  • Manual
  • 9V alkaline battery
  • Carrying case

DOWNLOADS

TM-206 Datasheet

TM-206 UserManual
