GLS
Portable gloss measurement for all surface finishes

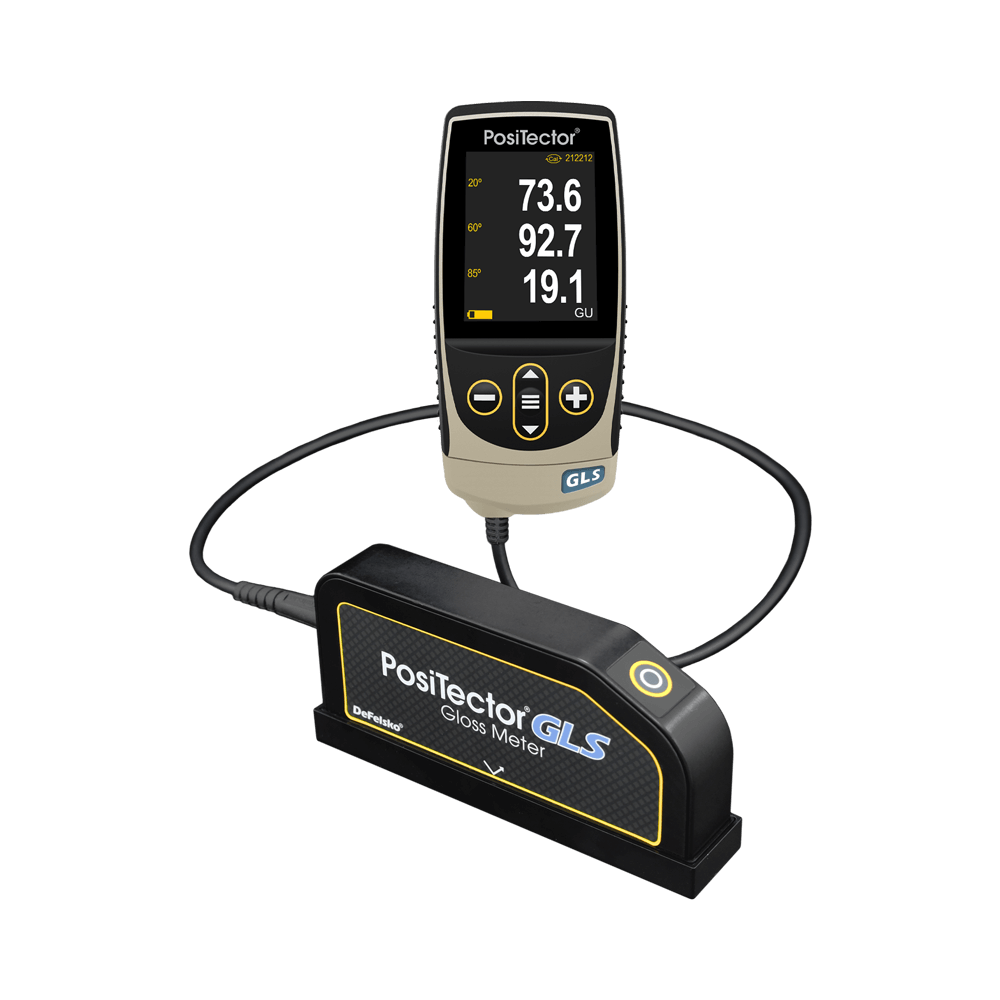

The PosiTector GLS measures GU (gloss units) and percent reflectance. Innovative technology and factory calibration in the PosiTector GLS mean that it arrives ready-to-measure – usually, there is no need to perform a calibration adjustment. If the probe is resting in the included protective base plate and the Power-On Cal feature is enabled, the probe will automatically perform a check and calibration using the certified gloss standard (tile) incorporated in the base plate.

The PosiTector GLS measures GU (gloss units) and percent reflectance. Innovative technology and factory calibration in the PosiTector GLS mean that it arrives ready-to-measure – usually, there is no need to perform a calibration adjustment. If the probe is resting in the included protective base plate and the Power-On Cal feature is enabled, the probe will automatically perform a check and calibration using the certified gloss standard (tile) incorporated in the base plate.

Conforms to ASTM C584/D523/D4039, ISO 2813/7668, JIS Z 8741, AS/NZS 1580.602.2

Select from 3 probe models:GLS 60 – suitable for most gloss applications, preferred angle for semi-gloss

GLS 20/60 – suitable for high- to semi-gloss applications. Calculates Haze (Haze Index)

GLS 20/60/85 – suitable for high-, semi-, and matte- gloss applications and also calculates Haze (Haze Index)

Range Guide

Gloss Range 60° value Measure wıth
High Gloss > 70 GU 20°
Semi Gloss 10 – 70 GU 60°
Low/Matte < 10 GU 85°

FEATURES

  • Includes Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included
  • Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
  • Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
  • ​The GLS Glossmeter uses an LED for the light source in all its models

SPECIFICATIONS

Measurement Area 20°: 10 x 10 mm
60°: 10 x 20 mm
85°: 4 x 45 mm
Measurement Range 20°: 0 – 2,000 GU
60°: 0 – 1,000 GU
85°: 0 – 160 GU
Repeatability ±0.2 GU (≤100 GU), ±0.2% (>100 GU)
Reproducibility ±0.2 GU (≤100 GU), ±0.2% (>100 GU)
Reproducibility ±0.5 GU (≤100 GU), ±0.5% (>100 GU)
Resolution Gloss ±0.1 GU (≤100 GU), ±1 GU (>100 GU)
Resolution % Reflectance 0.1%
Resolution Haze ±0.1 (≤100), ±1 (>100)
Operating Conditions 0° to 45° C (32° to 113° F) – non-condensing
Probe Size 165 x 73 x 32 mm (6.5″ x 2.875″ x 1.25″)
Probe Weight 555 g (19.6 oz.)
