LM T Series
Laser Tapes

LM T Series is 2-in-1 laser tapes with tape and laser distance measurement. It is widely used in home decoration, engineering and construction, and other industries requiring distance measurement.

Models in LM T Series: LM40T, LM60T

Features of LM T Series Laser Tapes

Certificates: CE, UKCA

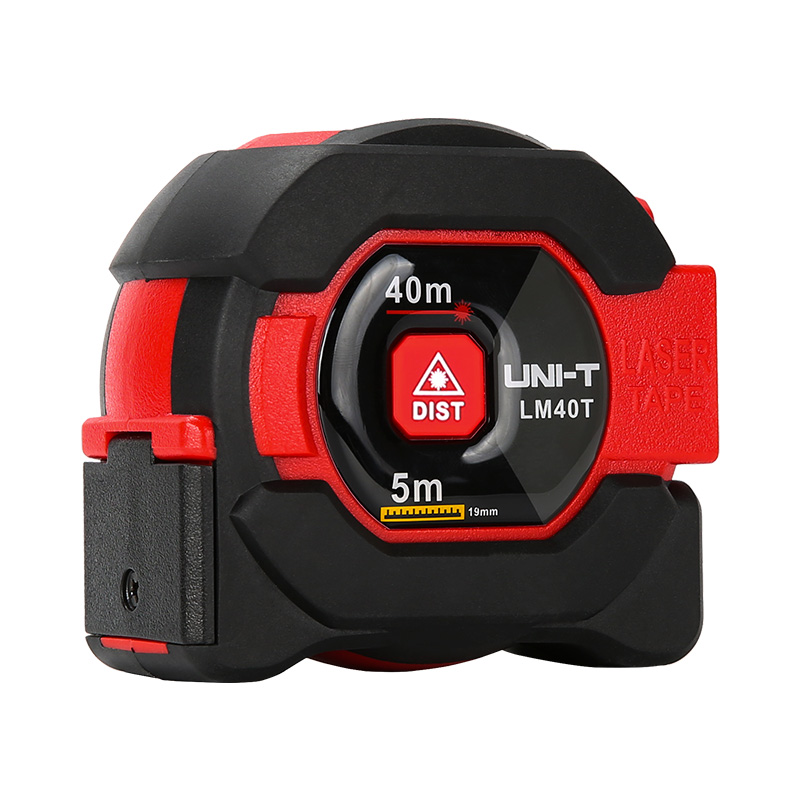

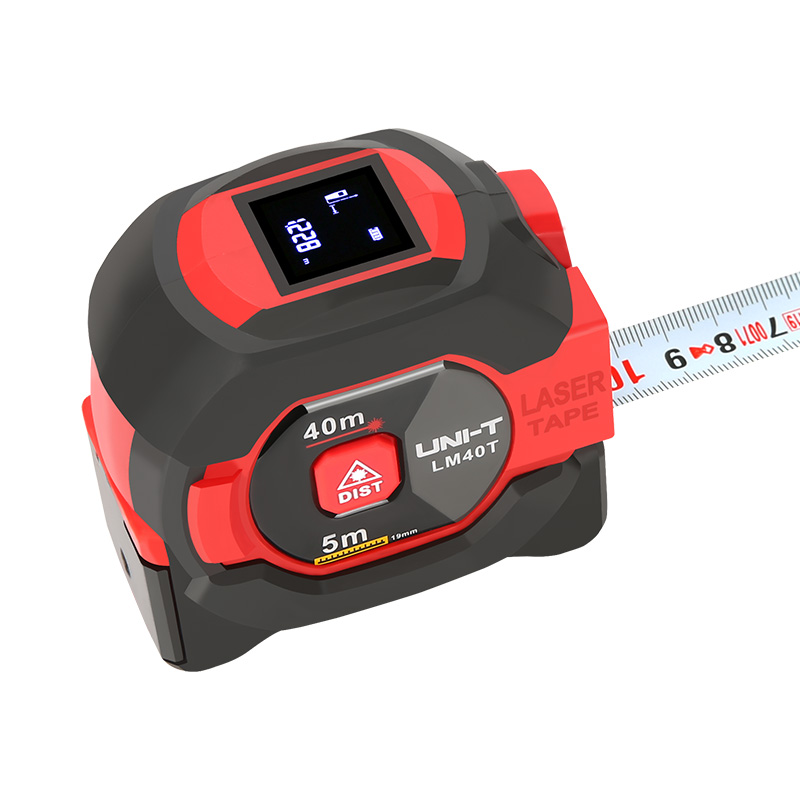

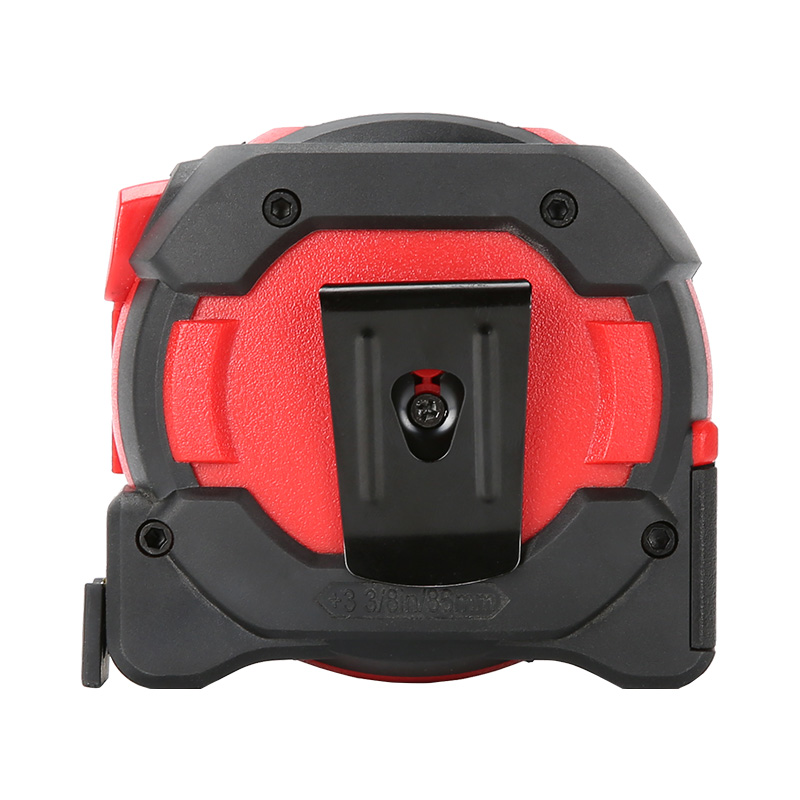

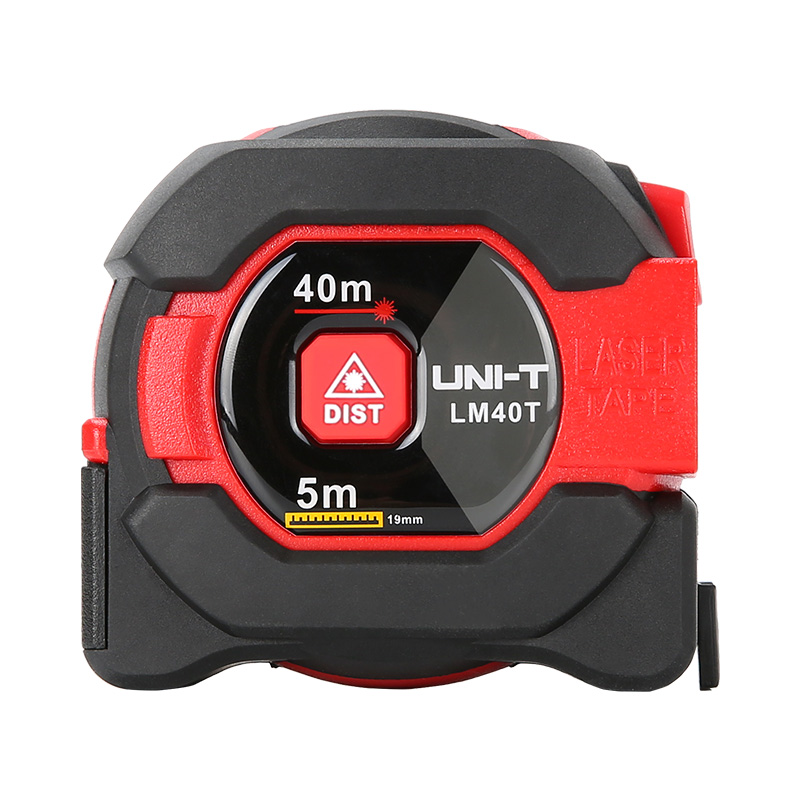

LM40T:

  • One-button operation
  • Single measurement

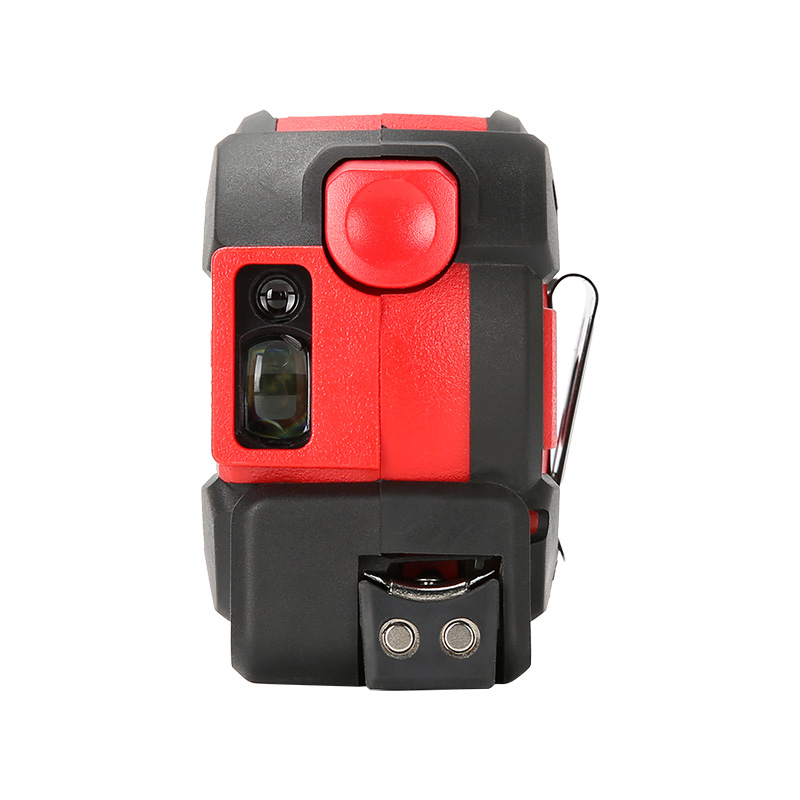

  • Rear measurement reference
  • Unit conversion
  • Dual measurement methods
  • Portable and compact

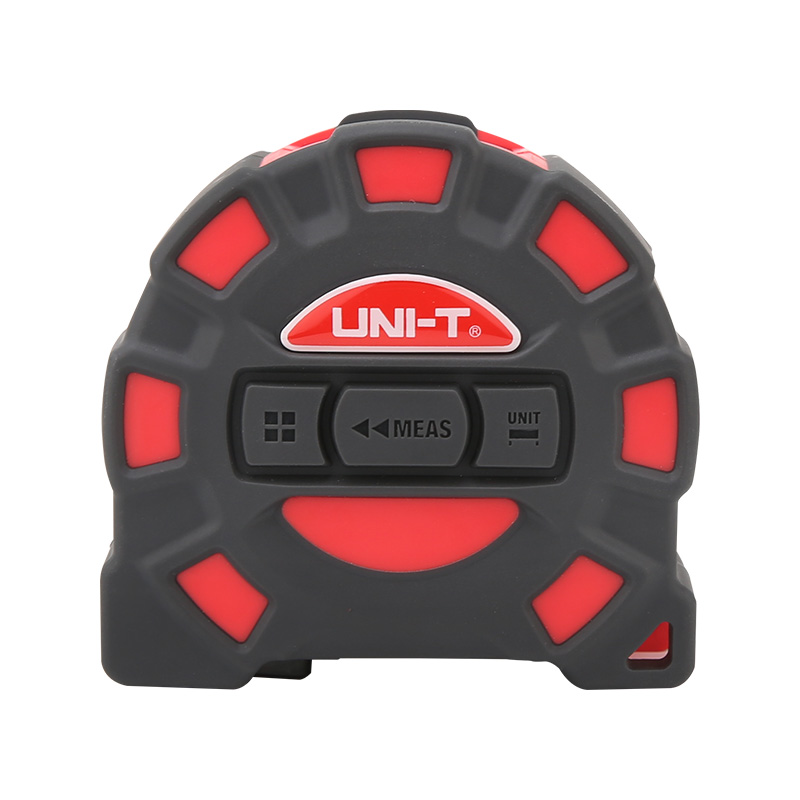

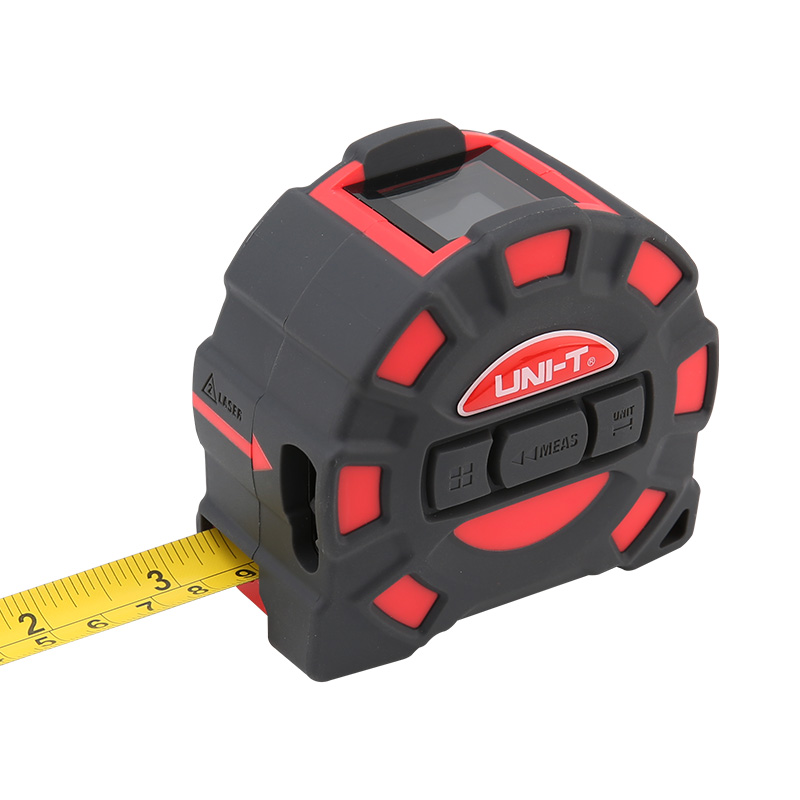

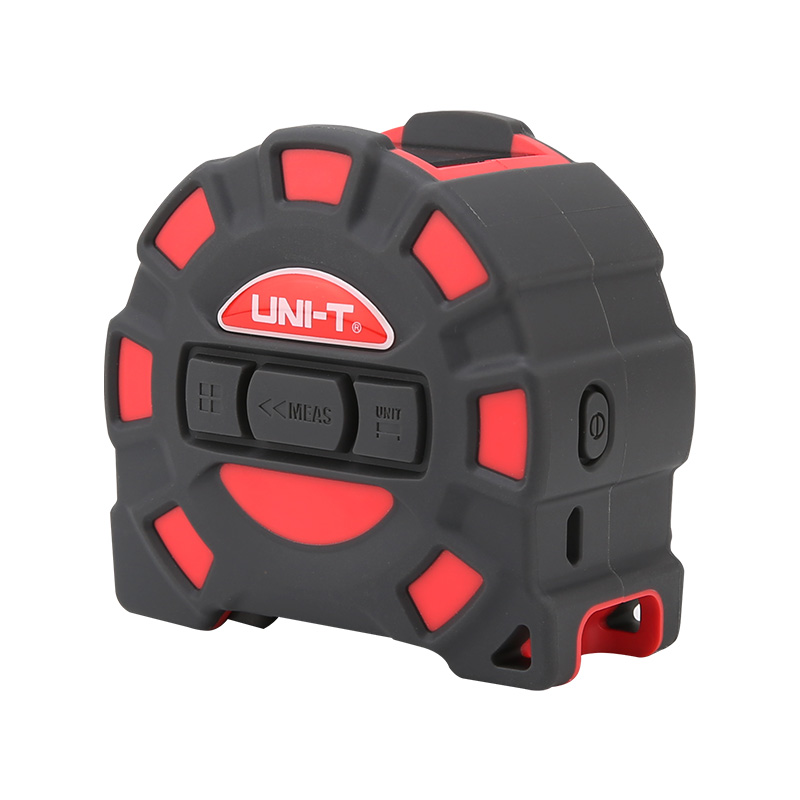

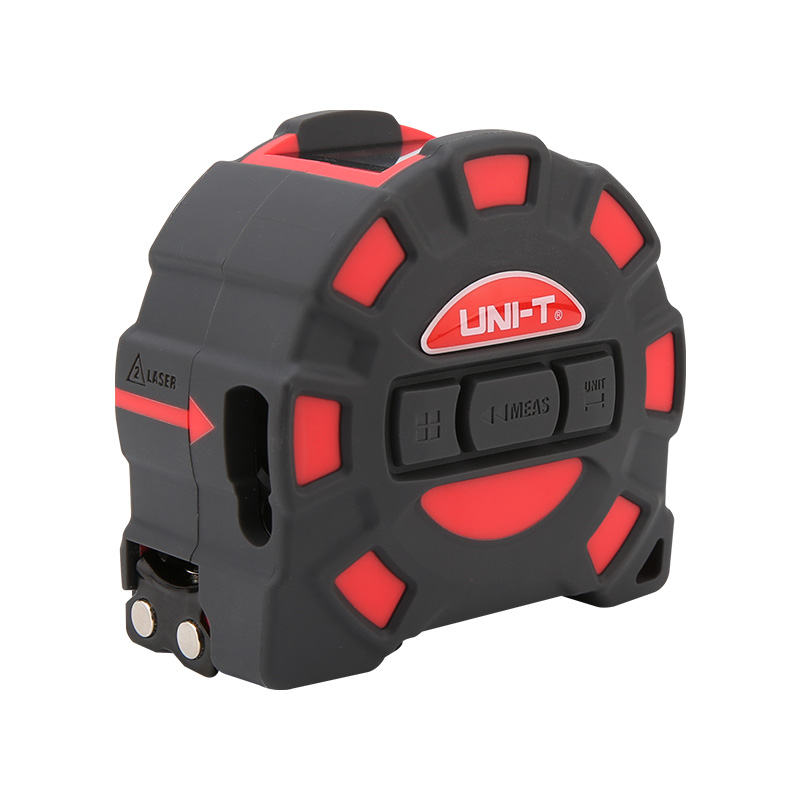

LM60T:

  • Single measurement
  • Dual measurement mode
  • Portable and compact
  • Continuous measurement

SPECIFICATIONS

Specifications of LM T Series Laser Tapes

Specifications LM40T LM60T
Display type LM40T EBTN-LCD
Display size 1.2-inches 1.22-inches
Range 40m; tape: 5m 60m laser,5m tape
Measurement units m/ft+in m/ft/in/’ ”
Measurement basis Rear front/rear
Accuracy ±2mm ±2mm
Laser class Class 2 Class 2
Laser type 630~670nm, <1mW 630-670nm, <1mW
Single measurement √ √
Continuous measurement √ √
Area √
Volume √
Pythagoras √
Power indication √
Automatic laser shutdown 30 seconds
Auto power off √ 3 minutes
Data storage 20 sets
Drop test 1m 1 m
General Characteristics

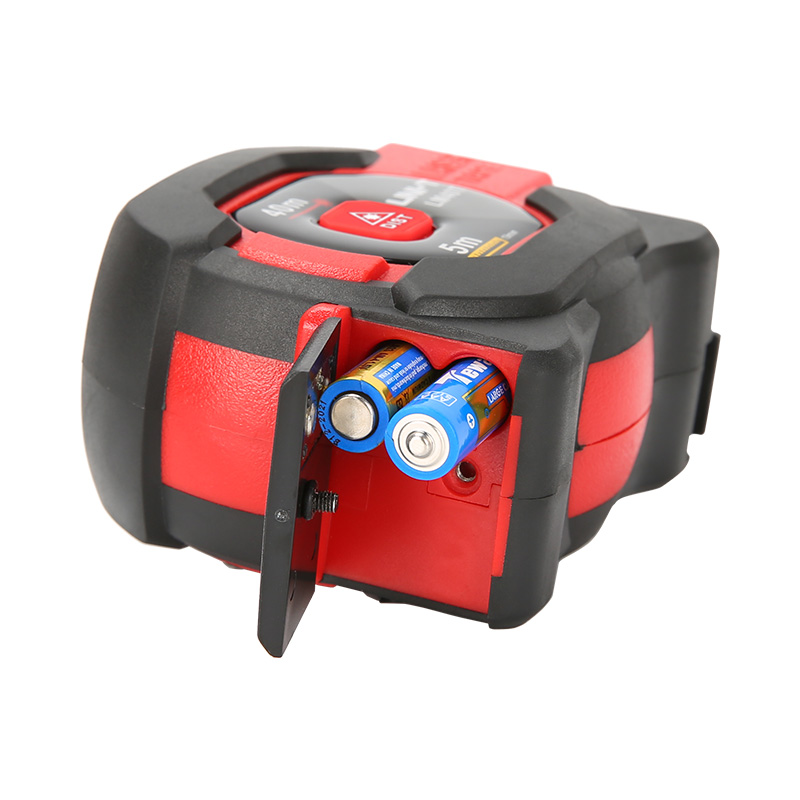

Power 1.5V battery (LR03) x 2 350mAh
Product net weight 305g 300g
Product size 86mm*50mm*8-mm 85*56.3*81.5mm
Standard individual packing Gift box, English manual USB interface cable, gift box, manual, blister
Standard quantity per carton 20pcs 20pcs/per carton
Standard carton measurement 345*315*230mm 345*315*230mm

APPLICATIONS

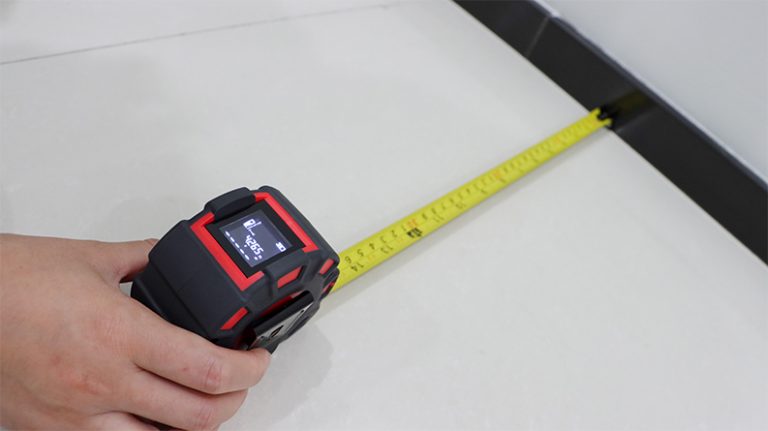

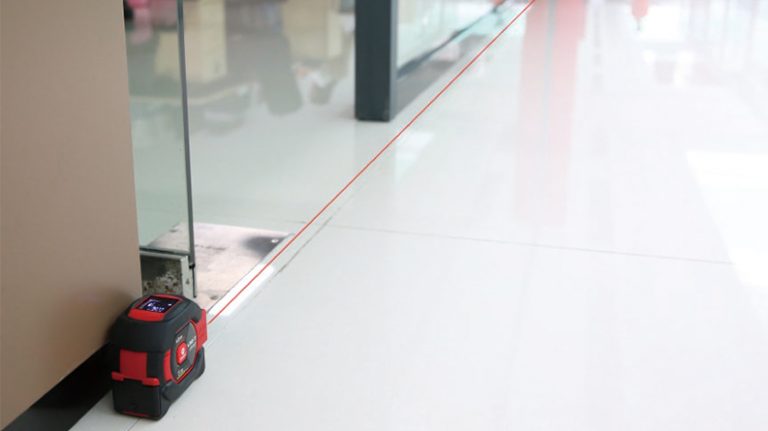

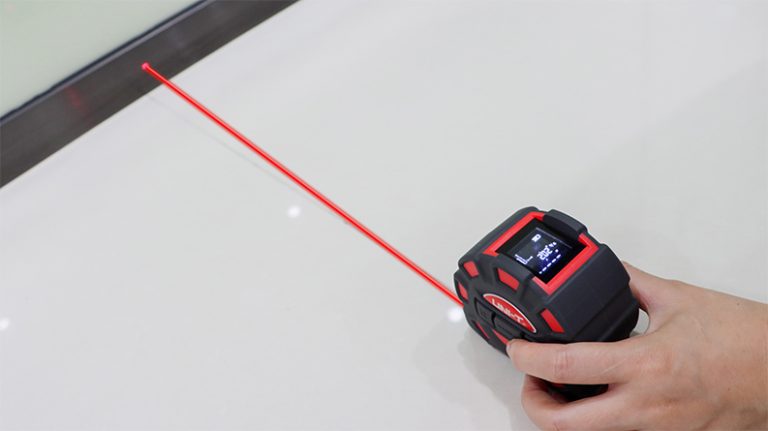

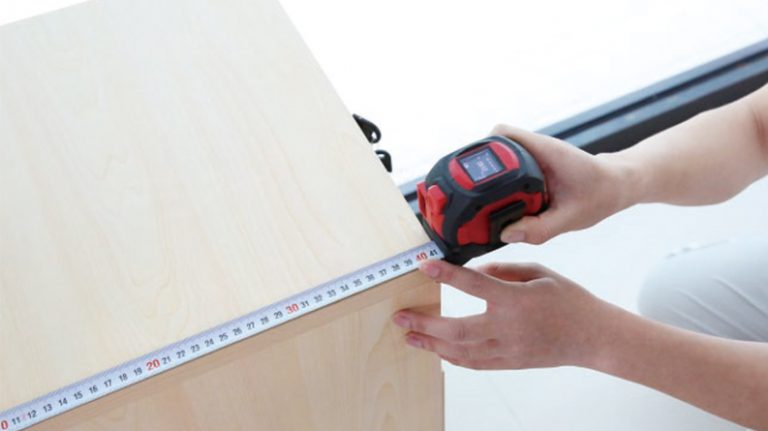

Applications of LM T Series Laser Tapes
