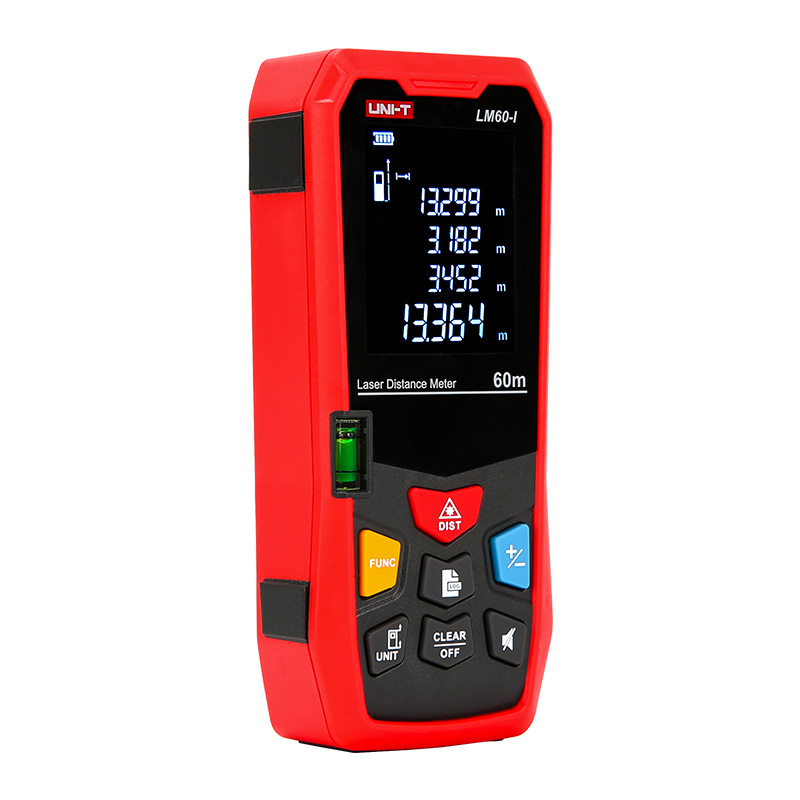

LM-I Series
Laser Distance Meters

The LM series laser distance meters are portable devices that can easily and accurately measure length, area, and volumeby pressing one button. These tools can be used in interior/exterior design, construction, factory supervision, engineeringinspection, traffic accident evidence gathering, real estate development, fire assessment, and more.

Models in LM-I Series: LM60-I, LM80-I, LM100-I

Features of LM-I Series Laser Distance Meters

Certificates: CE, UKCA

  • Ergonomic exterior, comfortable handling
  • Millimeter accuracy
  • Large, multiple angle HD display
  • Quick, auto calculation with real-time readout
  • Physical leveler
  • Auto power off after 3 minutes without operation

SPECIFICATIONS

Specifications of LM-I Series Laser Distance Meters

Specifications LM60-I LM80-I LM100-I
Display type EBTN TN
Display size 2.0-inches
Range 60m 80m 100m
Min. display unit 0.001m
Measurement units m/ft/in
Measurement basis front/rear
Accuracy ±(2mm+5 x 10-5D)
Laser class 2
Laser type 630~670nm, ﹤1mW
Features
Volume/Pythagoras √
Add/Subtract √
Auto leveling horizontal/vertical √
Tilt angle ±90.0°
Data storage 20 groups
Auto laser off 30s without operation
Auto backlight off 10s without operation
Audio indication √
Battery status display √
General Characterisitics
Power 1.5V battery (LR03) x 2
Product color Red and grey
Product net weight 108.8g
Product size 122mm x 52mm x 29.5mm
Standard accessories Carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton LM40-I/50-I/60-I/80-I: 60pcs; LM100-I/120-I/150-I: 20pcs
Standard carton measurement LM40-I/50-I/60-I/80-I: 520mm x 470mm x 345mm; LM100-I/120-I/150-I: 355mm x 340mm x 255mm
Standard carton gross weight LM40-I/50-I/60-I/80-I: 15.3kg; LM100-I/120-I/150-I: 5.2kg

APPLICATIONS

Applications of LM-I Series Laser Distance Meters

These tools can be used in interior/exterior design, construction, factory supervision, engineeringinspection, traffic accident evidence gathering, real estate development, fire assessment, and more.
