LM A Series
Laser Distance Meters

The new LM A series laser distance meters are new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups data. These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.

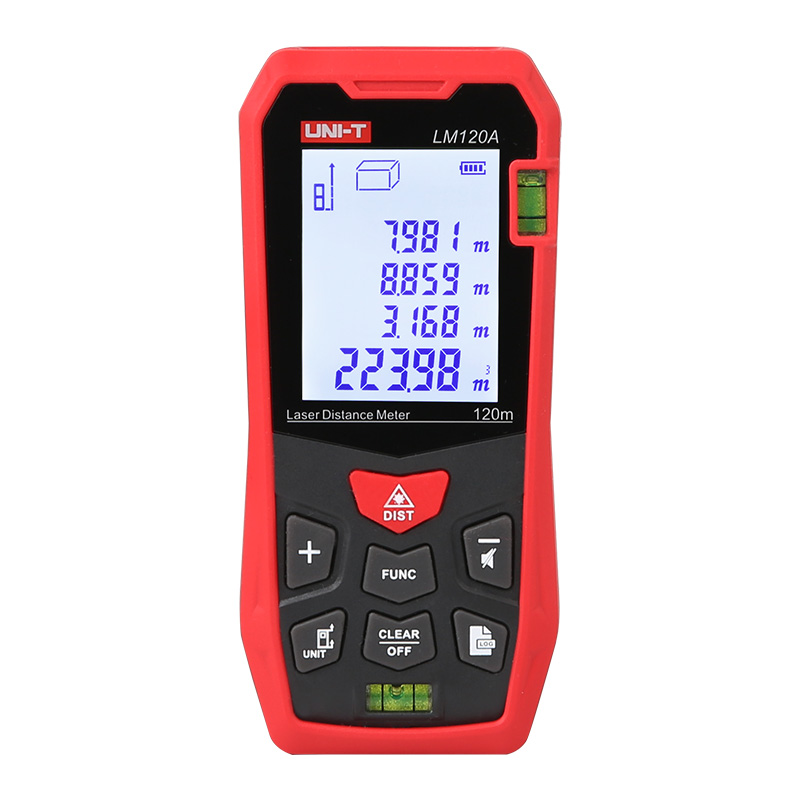

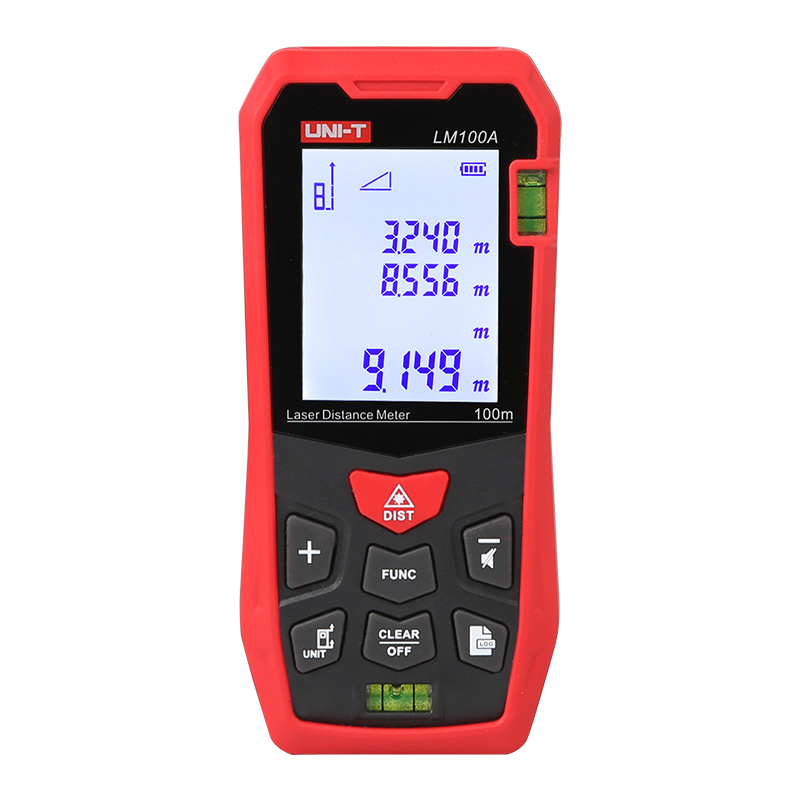

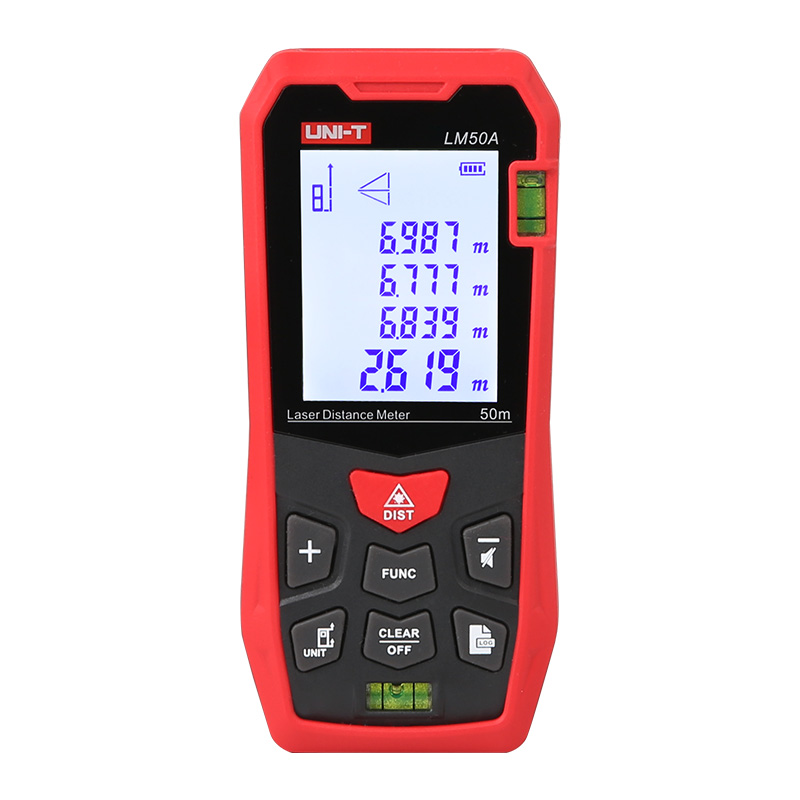

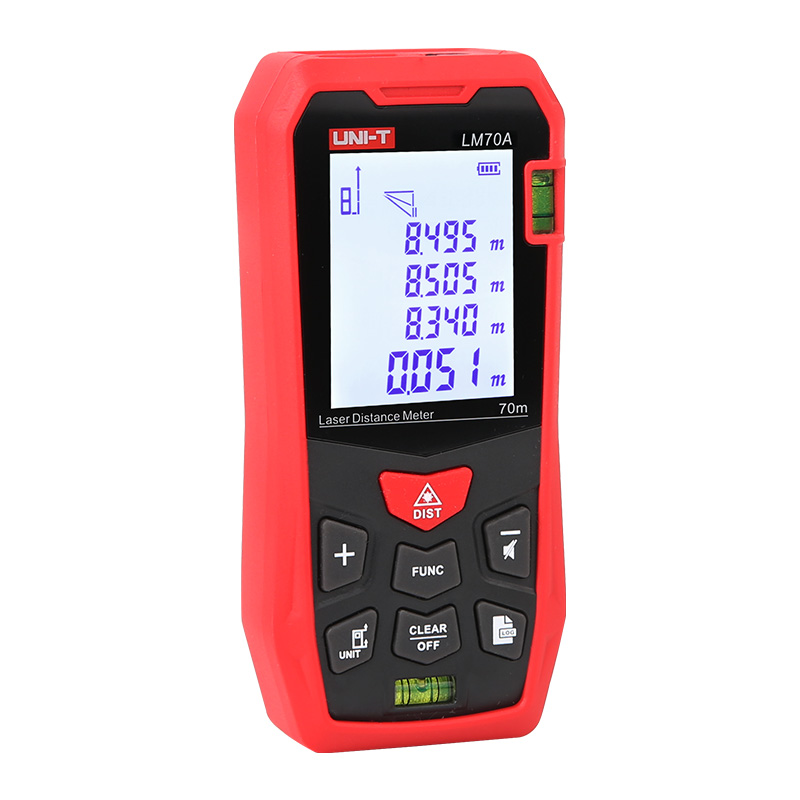

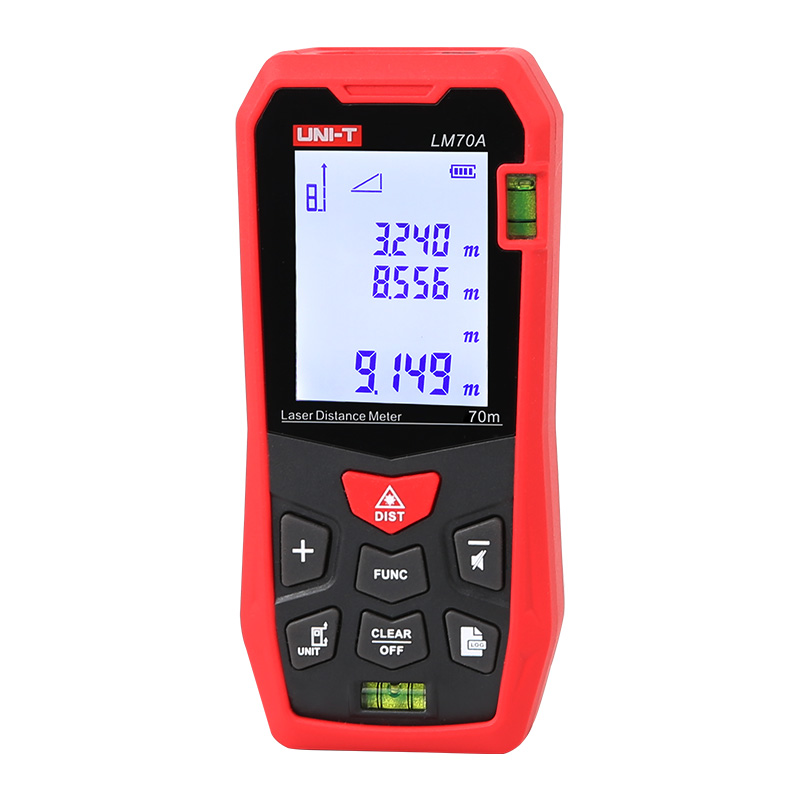

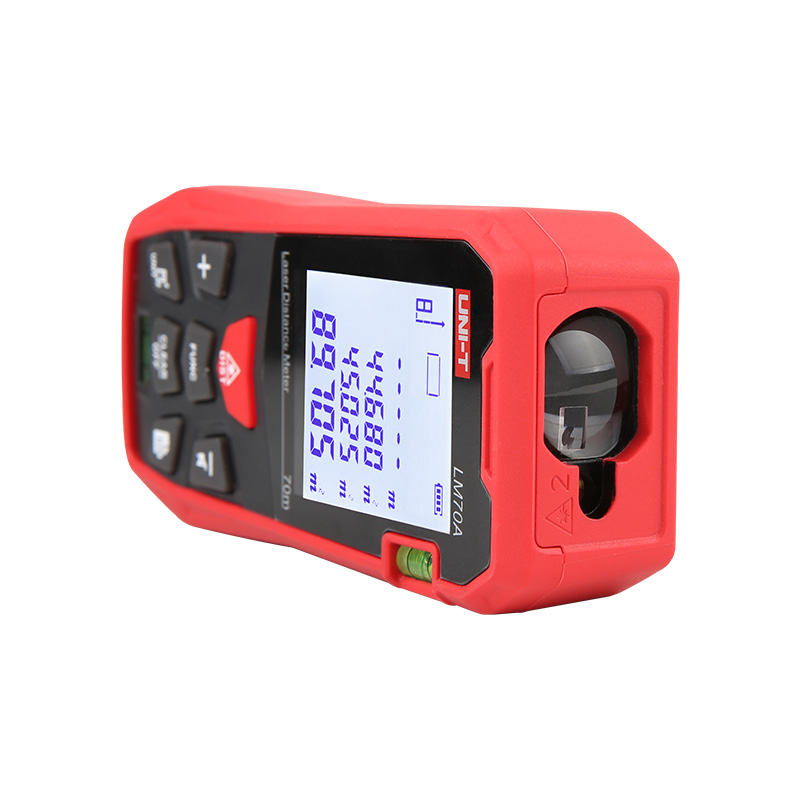

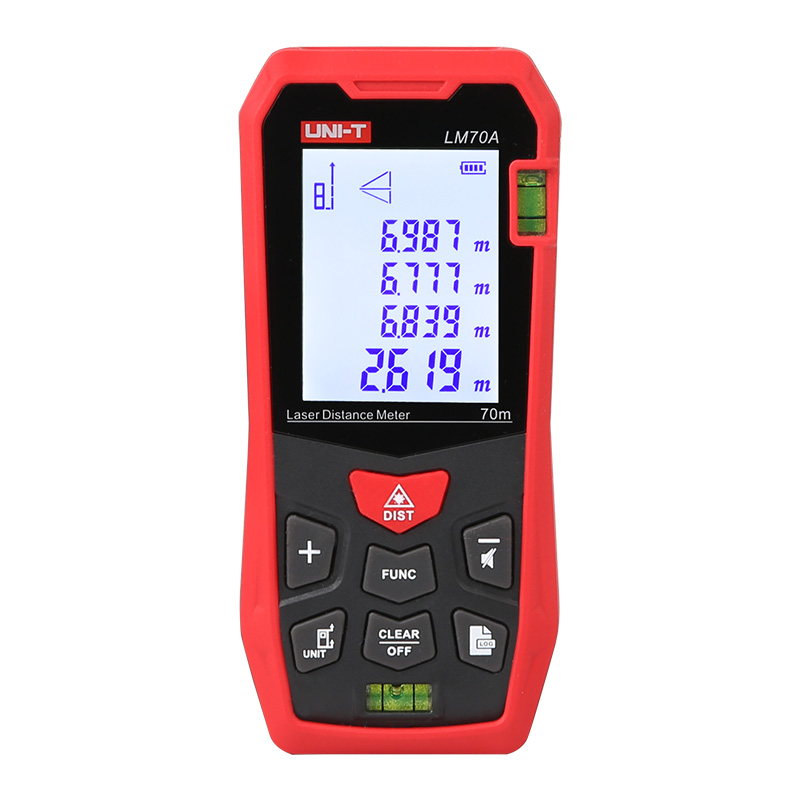

Models in LM A Series: LM50A, LM70A, LM100A, LM120A

Features of LM A Series Laser Distance Meters

Certificates: CE, UKCA

  • Ergonomic exterior, comfortable handling
  • Millimeter accuracy
  • 99 groups data storage
  • Quick, self calculation with real-time readout
  • Physical leveler(Horizontal and vertical)
  • Multiple functions: Max/Min/continuous measurement, data storage, etc

SPECIFICATIONS

Specifications of LM A Series Laser Distance Meters

Specifications LM50A LM70A LM100A LM120A
Certifications RoHS
Display size 2.0-inches
Range 50m 70m 100m 120m
Display type LCD
Min. display unit 0.001m
Measurement units m/ft/in
Measurement basis front/rear
Accuracy ±(2mm+5 x 10-5D)
Laser class 2
Laser type 630~670nm, ﹤1mW
Features
Single measurement √
Continuous measurement √
Max/Min/Area √
Volume √
Pythagoras √
Add/Subtract √
Self calibration √
Horizontal bubble √
Data storage 99 groups
Auto power off 3 minutes without operation
Auto laser off 30s without operation
Storage temperature  -20℃~60℃
Operating temperature 0℃~40℃
General Characterisitics
Power 1.5V battery (LR03) x 2
Product color Red and grey
Product size 122mm x 52mm x 29.5mm
Standard accessories Carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 40pcs
Standard carton measurement 475×290×180mm

APPLICATIONS

Applications of LM A Series Laser Distance Meters

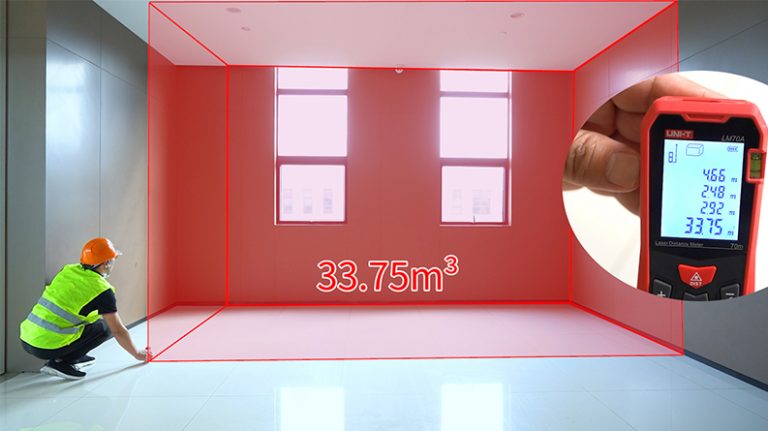

Volume measurement

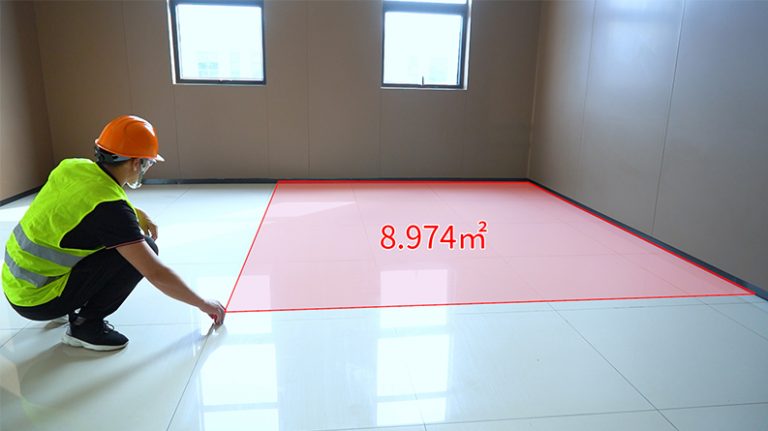

Area measurement

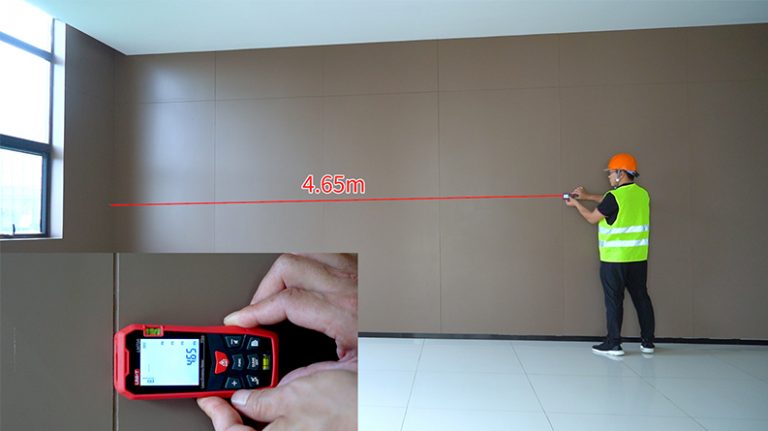

Single measurement (1)

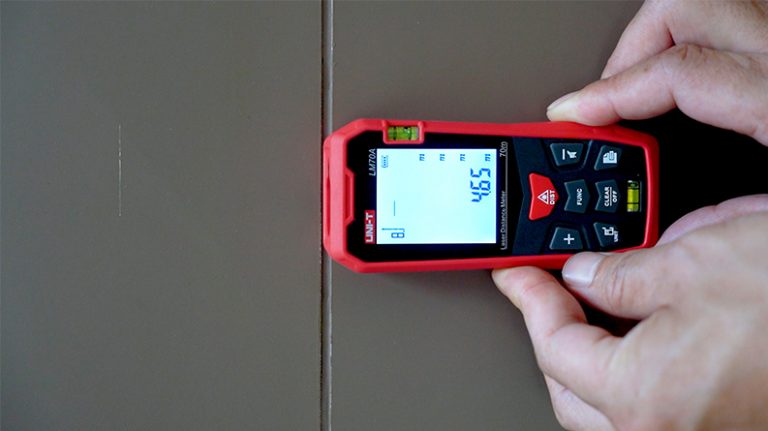

Single measurement (2)
