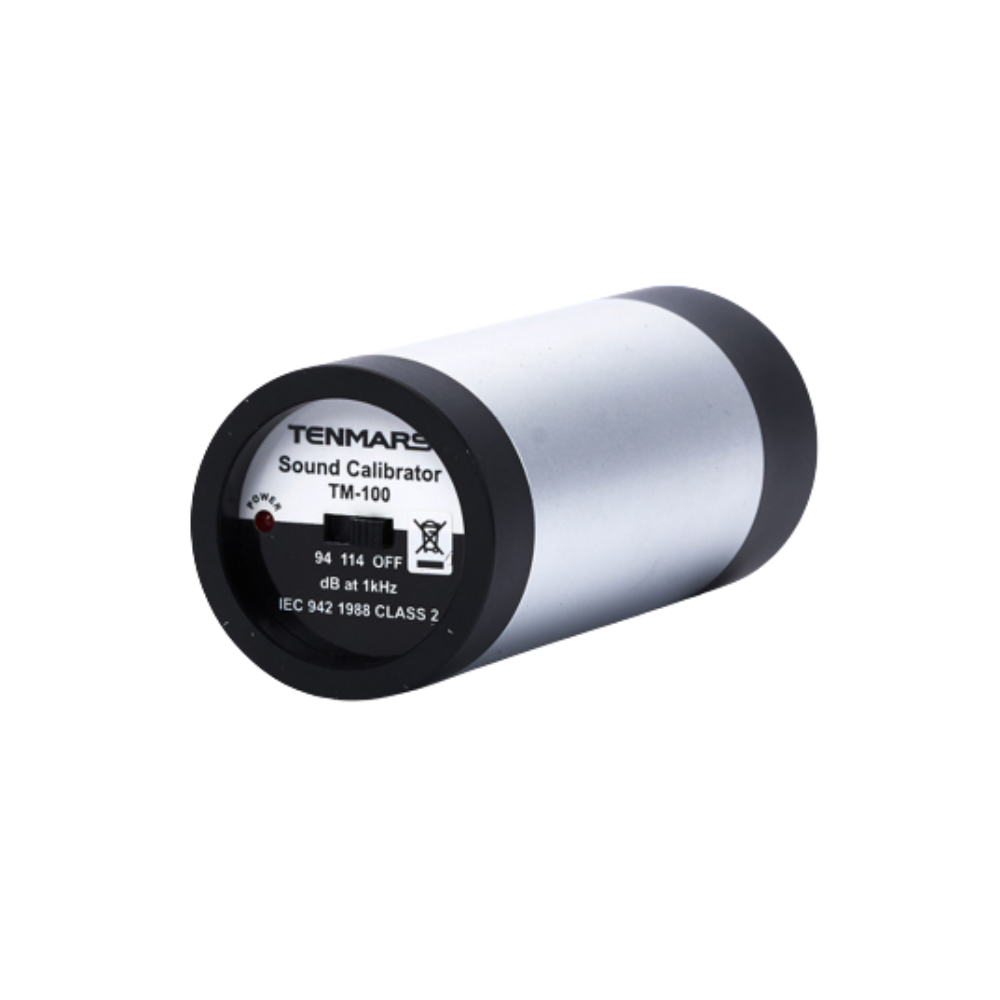

TM-100
Sound Level Calibrator

According to standard: ANSI S1.4 – 1984 and IEC 942 1988 class 2

APPLCIATION

  • Setting standard sound levels at 94dB and 114dB.
  • ½” microphone adapters provided.
  • With low battery indictor.

FEATURES

  • Standard: ANSI S1.40-1984 and IEC942 1988 Class2.
  • Output Sound Level: 94dB and 114dB re 20 uPa under reference.
  • Output Frequency: 1kHz ±4%.
  • Accuracy: ±0.5dB.
  • Battery: 9V, 006P or IEC 6F22 or NEDA 1604.
  • Battery Life: Approx 20 hours. (Alkaline battery)
  • Low Battery Indicator: The LED indicator will off, if battery voltage low.
  • Operation Temperature and Humidity: 0~40℃ (32~104℉), 10~70% RH.
  • Storage Temperature and Humidity: -10~60℃ (14~140℉), 10~90% RH.

SPECIFICATIONS

  • Dimensions:Ø48×125.
  • Weight: Approximately 285 grams.

Test Condition

 Environment Temperature
 20℃
 Relative Humidity
 65%
 Atmospheric Pressure
 1013 mbar

ACCESSORIES

  • User’s Manual
  • 9V battery
  • Carrying case
