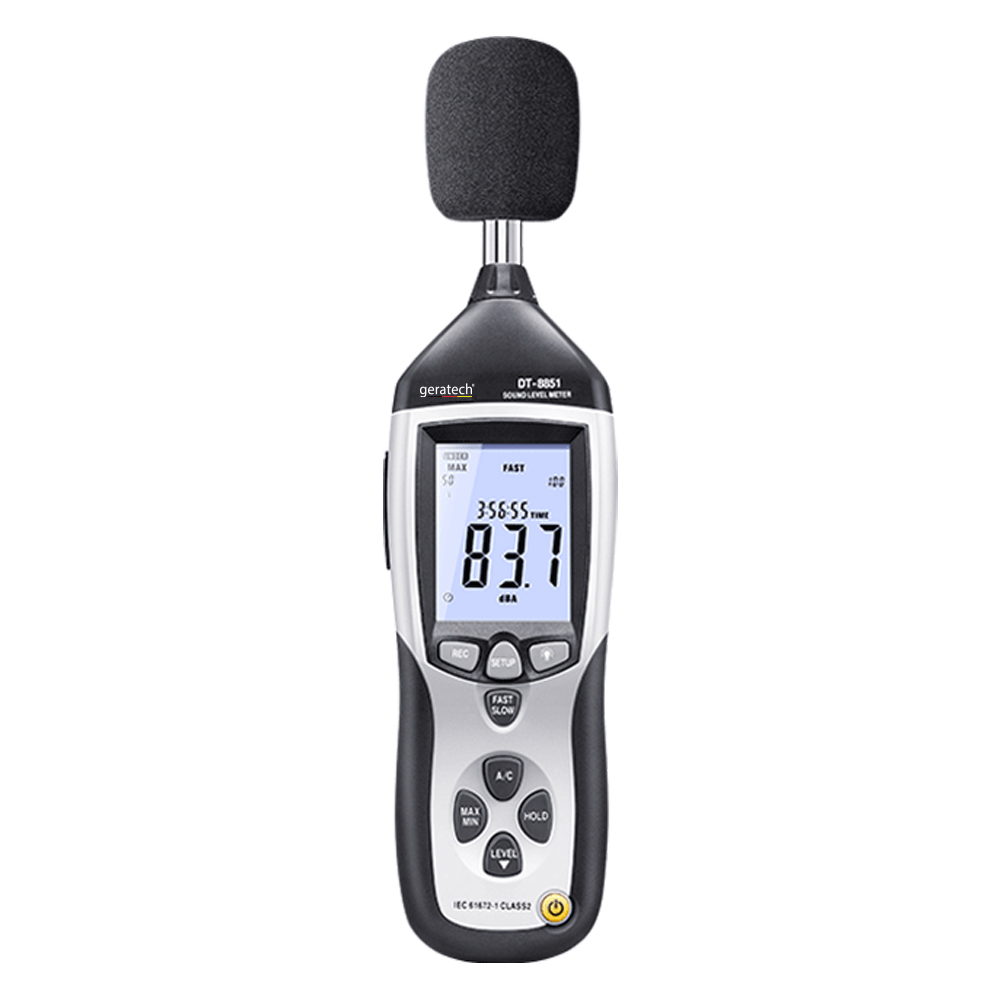

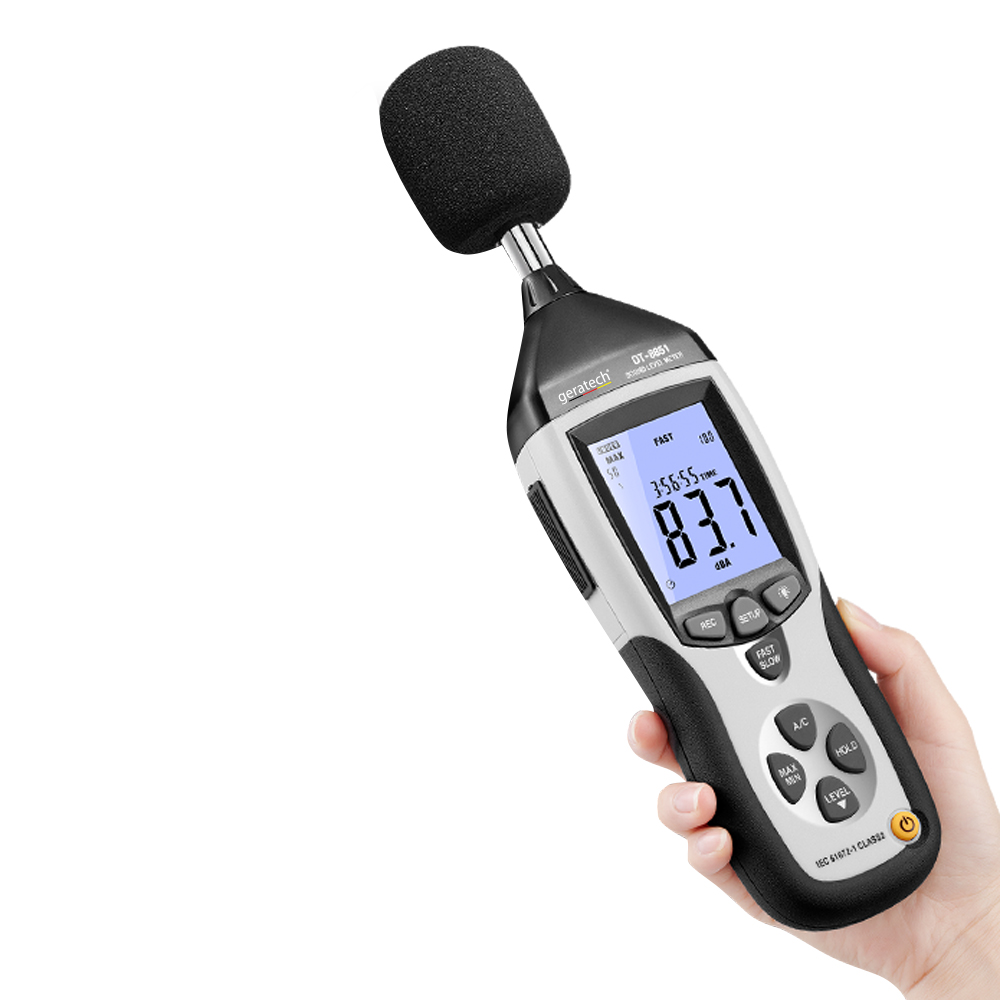

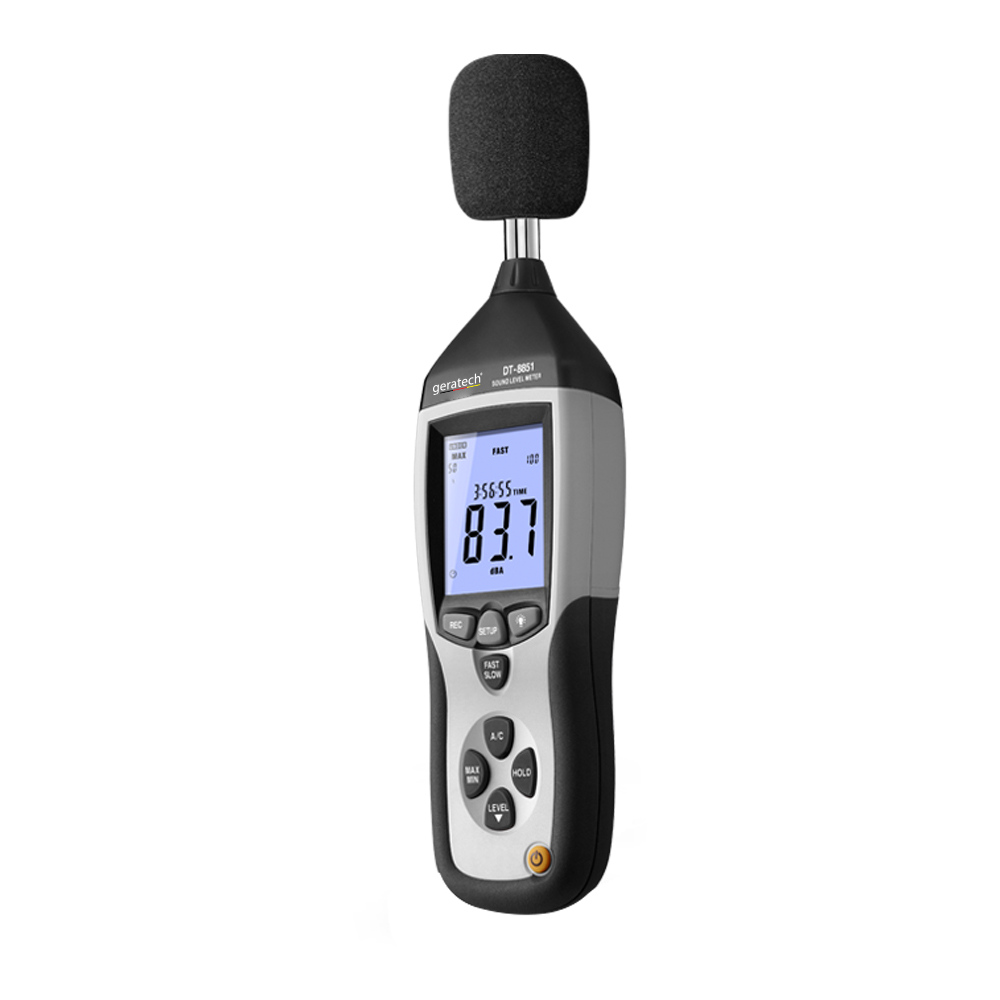

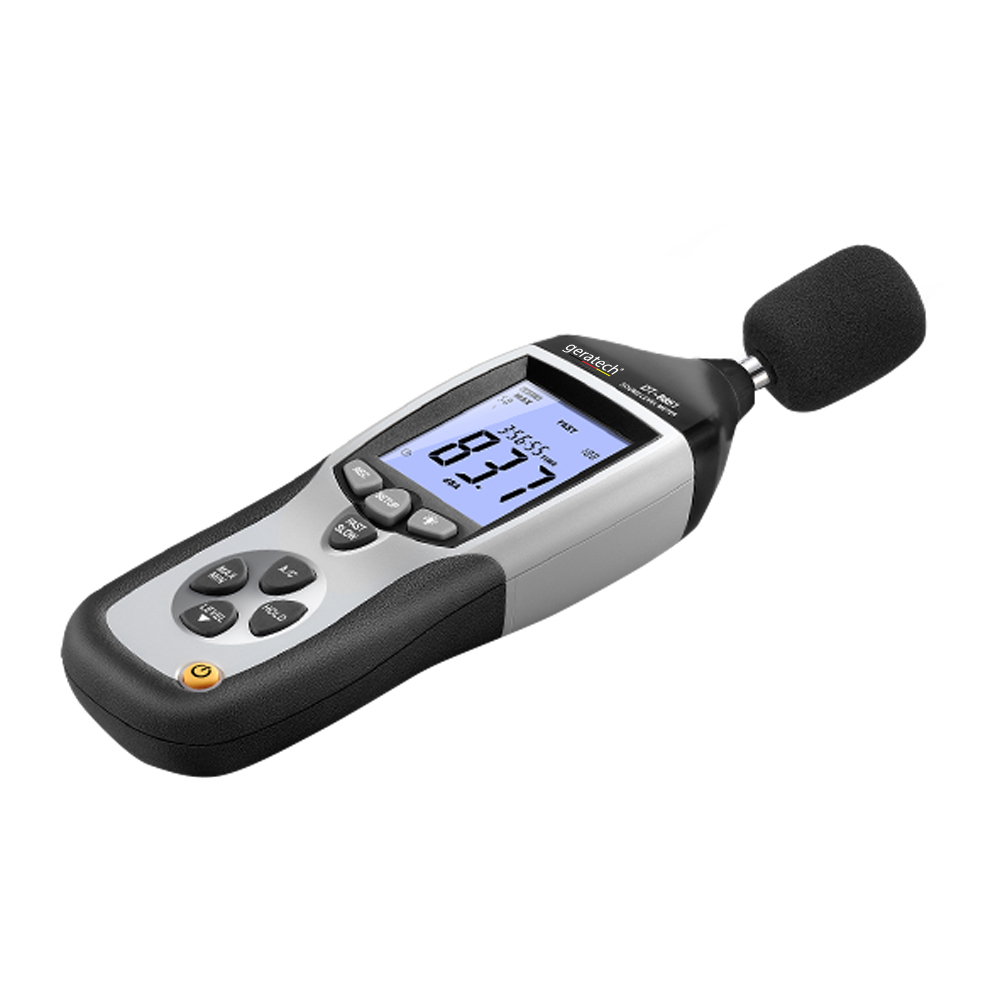

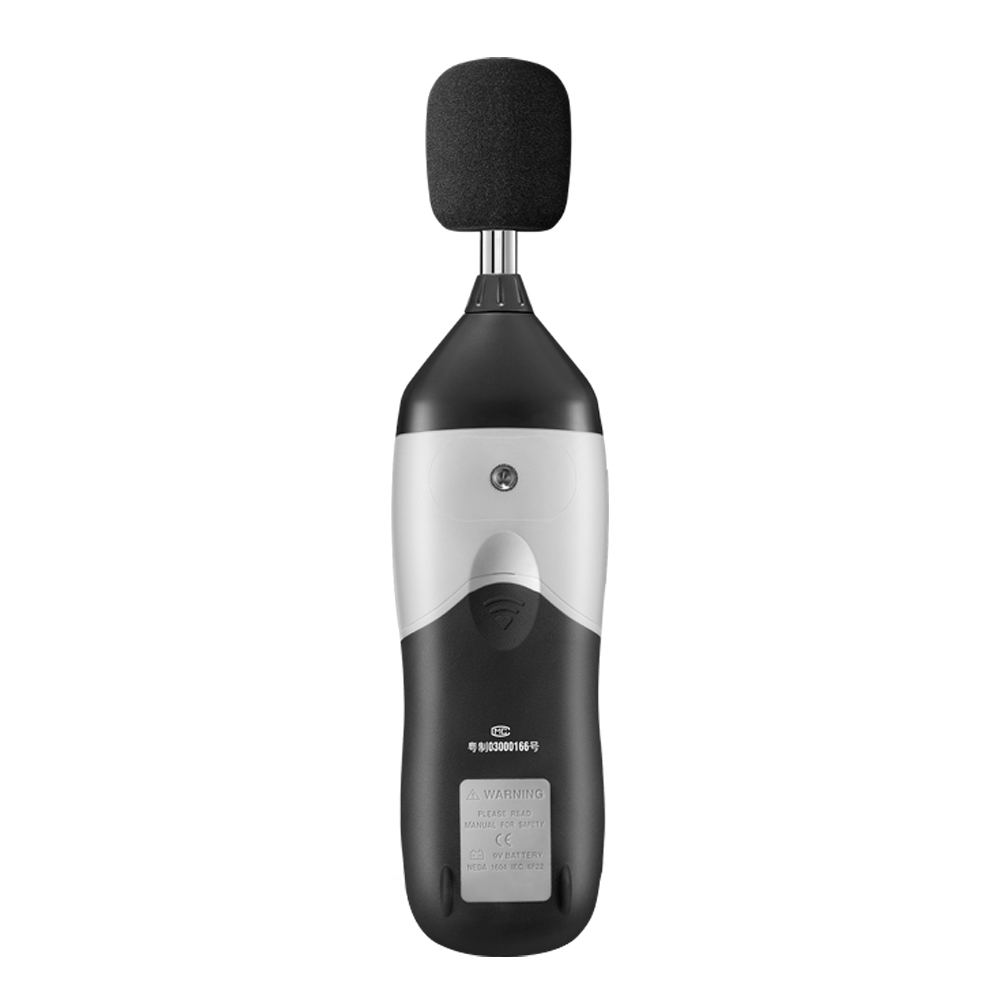

Sound Level Meters
DT-8851 Sound Level Meters are designed for noise project, quality control, illness prevention & cure and all kinds of environmental sounds measurements. It is applied to the sounds measurement at factory, school, office, traffic access and household etc.
FEATURES
| Features |
| This unit confirms to the IEC61672-1 class 2 for Sound Level Meters |
| MAX & MIN measurements |
| Overrange display |
| Underrange display |
| A & C Weighting |
| FAST & SLOW response |
| Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder |
| Datalogger function (8852) |
| Adjustable Alarm-Levels (8852) |
| Memory for 32700 readings (8852) |
Size(HxWxD): 278mm x 76mm x 50mm
Weight: 350g
SPECIFICATIONS
| Specifications | |
| Standard applied | IEC61672-1 Type 2, ANSI S1.4 Type2 |
| Accuracy | ±1.4dB |
| Frequency range | 31.5HZ ~ 8KHZ |
| Dynamic range | 50dB |
| Level ranges | LO:30dB~80dB Med:50dB~100dB |
| Hi:80dB~130dB Auto:30dB~130dB | |
| Time weighting | FAST ( 125mS ), SLOW ( 1s ) |
| Microphone | 1/2 inch electret condenser microphone |
| Resolution | 0.1dB |
| Display Update | 2 times/sec |
| Analog output | AC/DC outputs, AC=1Vrms, DC=10mV/dB |
ACCESSORIES
Accessories :
Battery, screwdriver, audio plug, windscreen, software, USB cable, tripod and DC 9V power supply
and gift box with carrying case.
