APPLICATION

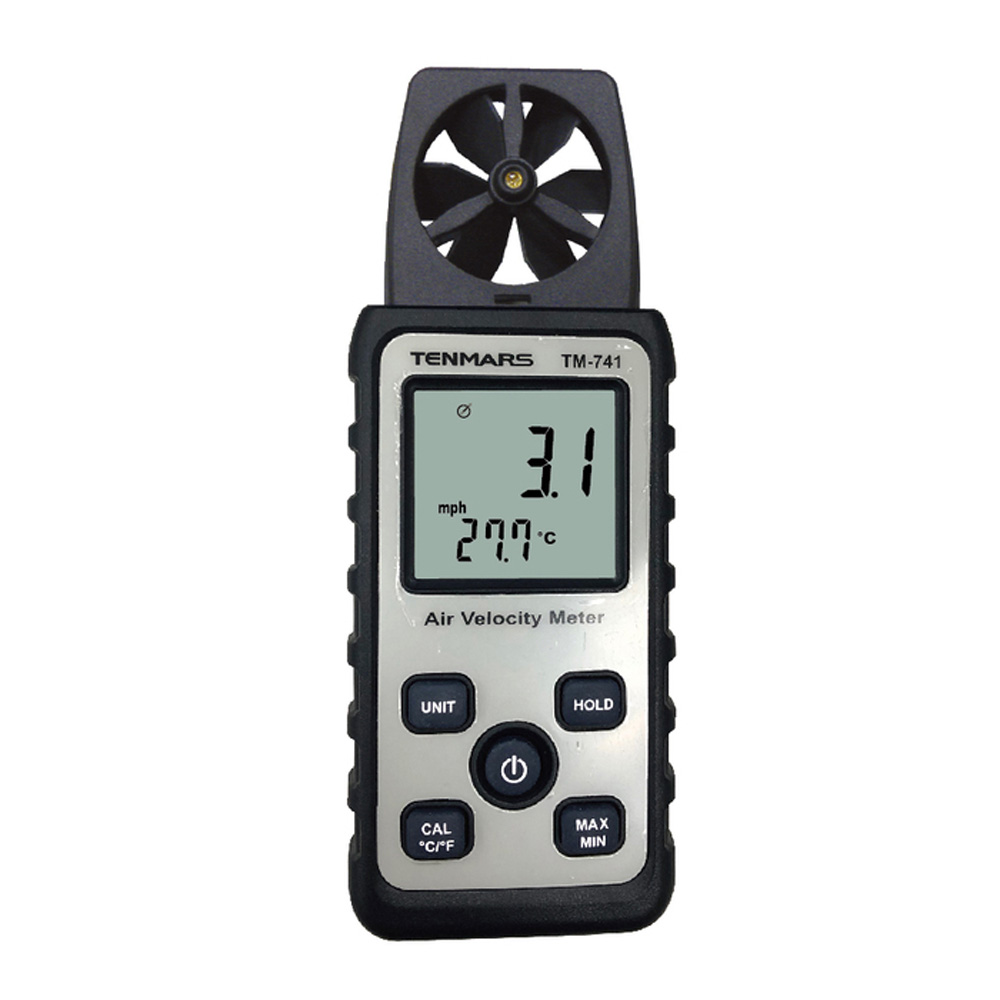

TM-741 is a low cost and pocket size model, it measures air speed and temperature, and ideal for spot measurements.
FEATURES
-
30mm 6 plastics vane.
-
Light air response 0.4m/s.
-
Air flow calculate function.
-
Max/Min/Avg and data hold.
-
Auto power off with disable function.
SPECIFICATIONS
Specifications
-
Dual LCD display with max. readings is 9999 and 999.
-
Sampling Rate : 1 sample per second.
-
Power Supply : 2 batteries 1.5V AAA MN2400 LR03 AM4.
-
Battery Life : 50 hours during consecutive use.
-
Dimensions : 135 × 48 × 23 mm (L × W × H).
-
Weight : 80g (excluding the battery).
-
Accessories : User manual, battery, and carrying case.
Electrical Specification
|
Temperature
|
|||
|
Unit
|
Range
|
Resolution
|
Accuracy
|
|
°C
|
-20~50
|
0.1
|
±1°C
|
|
°F
|
-4~122
|
0.1
|
±.8°F
|
|
Velocity
|
|||
|
Unit
|
Range
|
Resolution
|
Accuracy
|
|
m/s
|
0.4~25
|
0.1
|
±2﹪+0.2
|
|
Km/hr(kph)
|
1.5~90
|
0.1
|
±2﹪+0.8
|
|
mph
|
0.9~55
|
0.1
|
±2﹪+0.4
|
|
Knots(kts)
|
0.8~48
|
0.1
|
±2﹪+0.4
|
|
ft/min(fpm)
|
79~4921
|
1
|
±2﹪+40
|
ACCESSORIES
-
User manual.
-
1.5V battery (AAA MN2400 LR03 AM4).
-
Carrying case.
