Advanced Graphics Display Technology
Datapath’s nine slot video wall controllers have been designed for environments that demand high performance and reliability. The VSN 9 Series solutions for mission control rooms, military installations, logistic operations, security suites and many other command and control applications.
The VSN range has been developed to support Datapath’s world class Vision capture, Image graphics and ActiveSQX decoding cards. This allows physical and IP video sources to be displayed on medium and large scale video walls. Operators have the freedom to see any source on or multiple screen layouts.
Each system in the range of 2nd generation VSNs is available with Windows 10 to ensure the highest performance available.
Faster Processing. Advanced Cooling

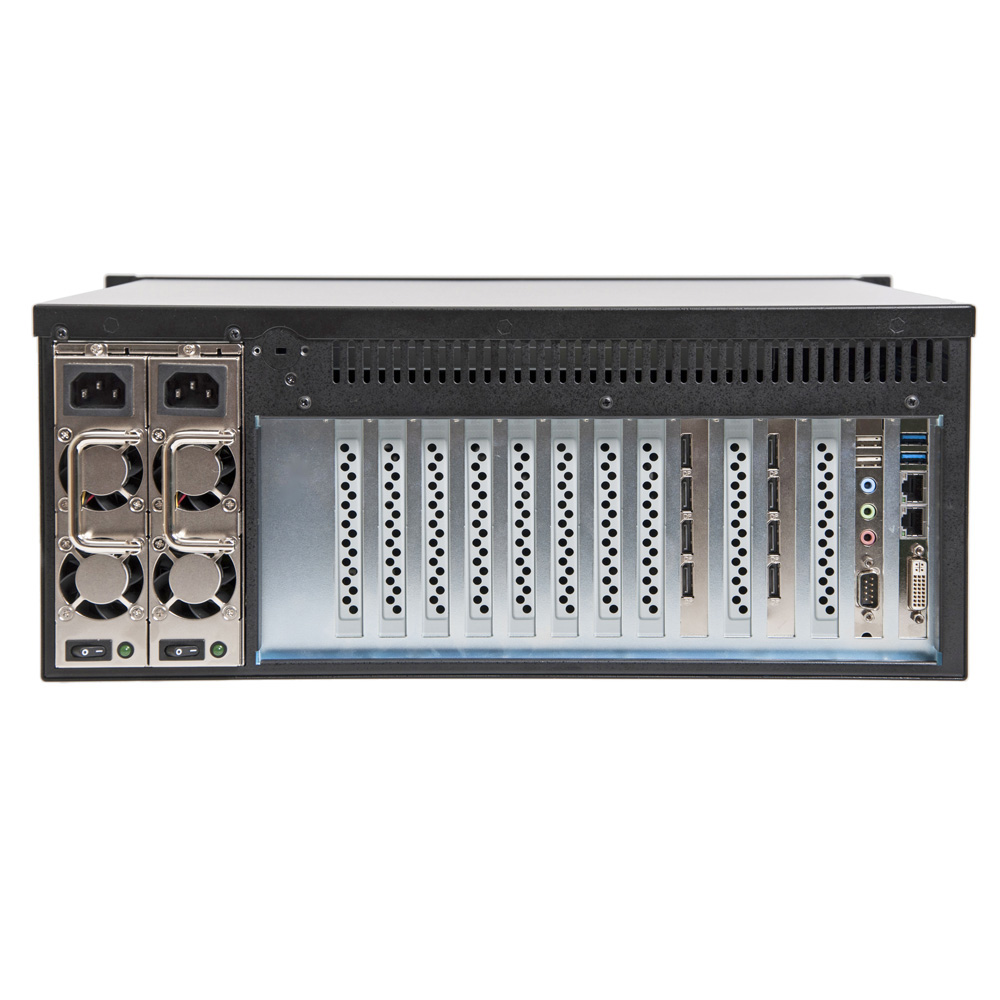

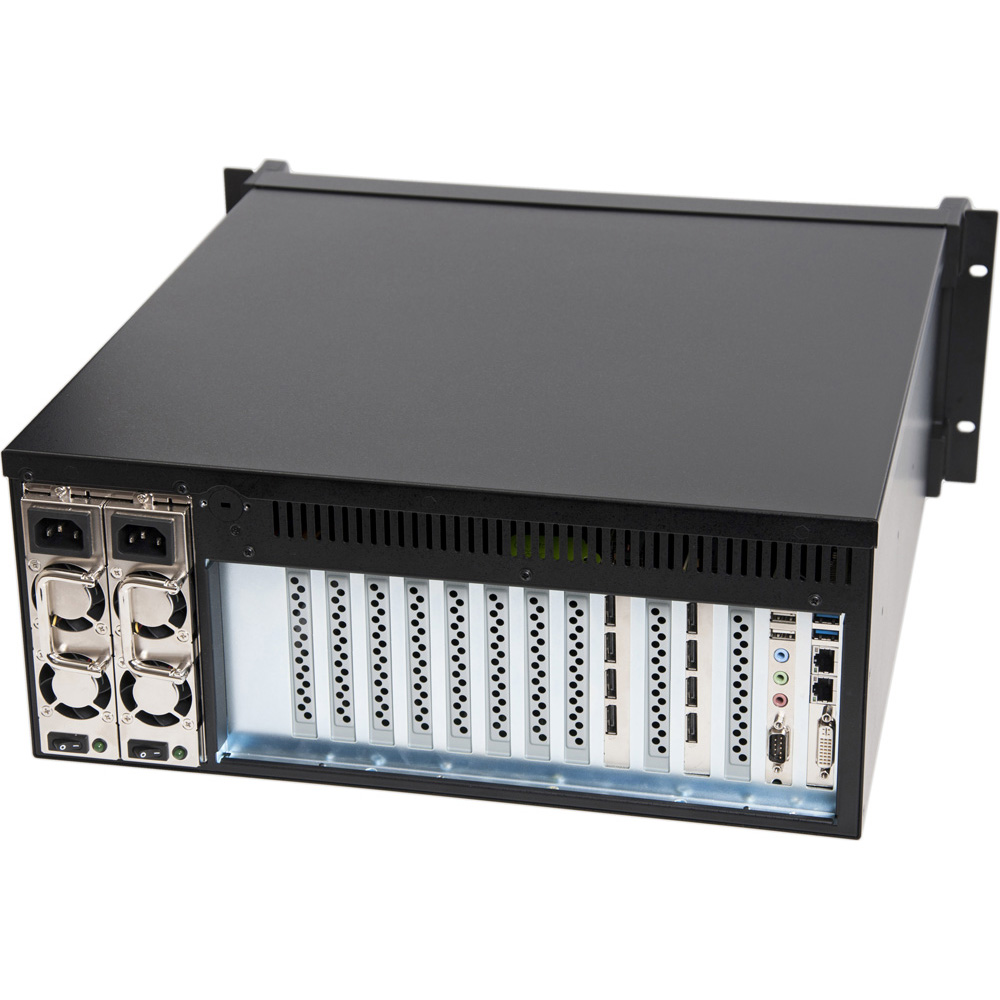

The VSN range of industrial PCs includes a nine slot PCIe backplane. The switched fabric technology provides high bandwidth Gen3 PCIe slots. Each slot is capable of delivering high resolution bandwidth from a range of capture cards to multiple outputs.
The VSN range is highly customisable. The systems contain a 7th generation Intel® Corei7. Systems are available with either 240GB or 480GB SSD drives and up to 32GB of memory.

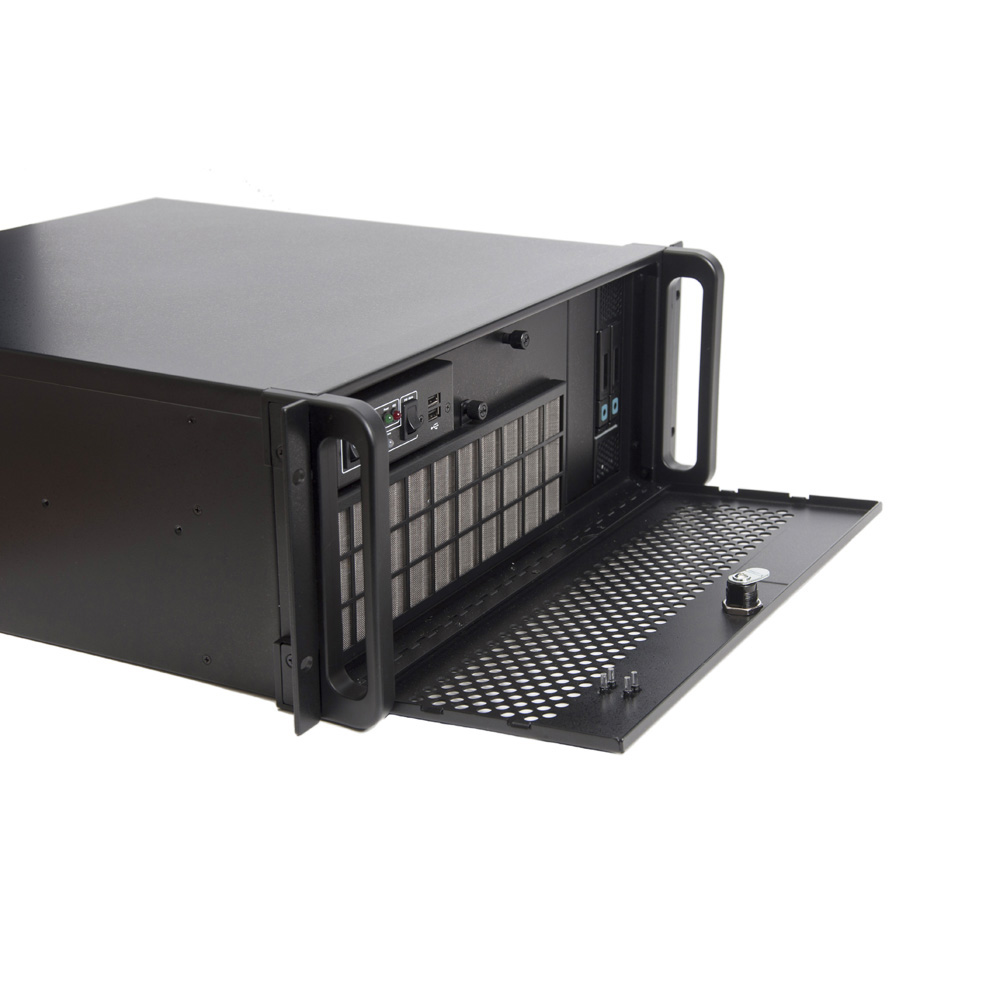

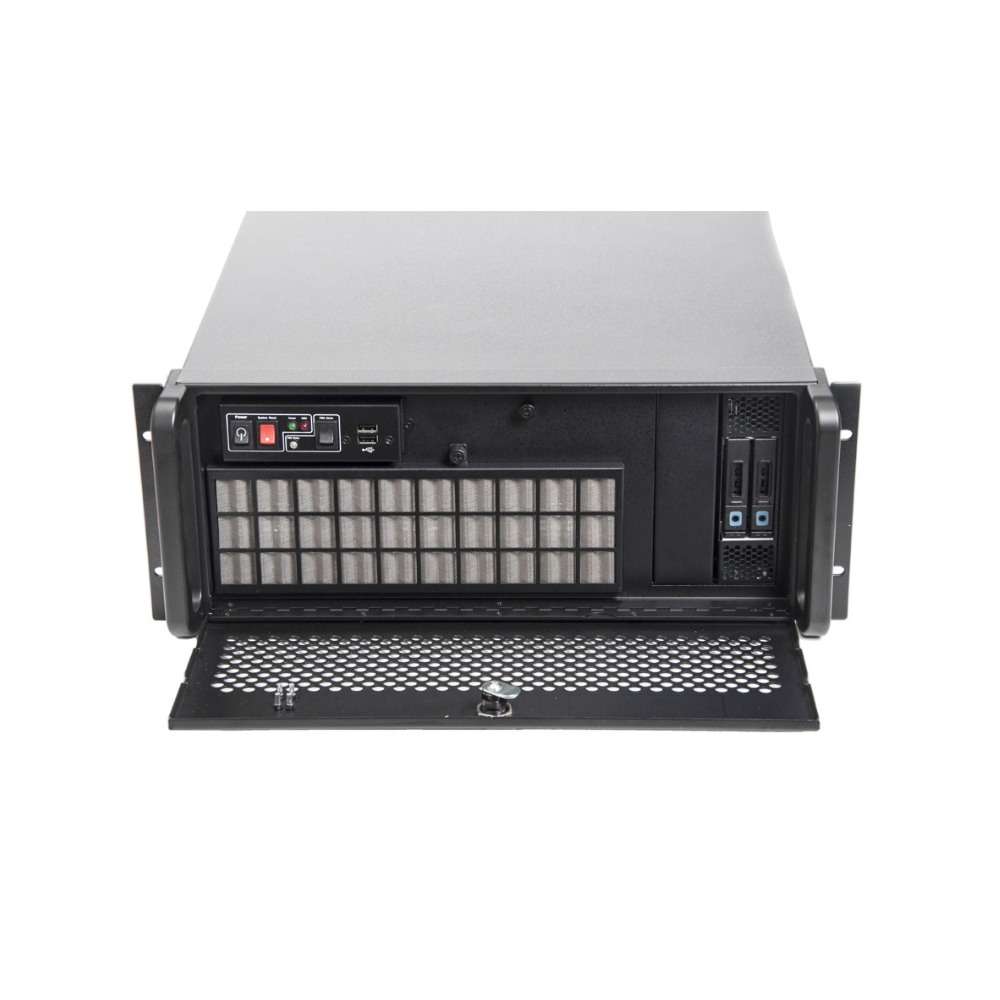

In order to maximise airflow, the 4U chassis has been custom designed to allow more air into the system. This keeps temperatures low and reduces fan noise.
VSN video wall controllers have been designed for use in demanding control room environments. Each component has been rigorously tested to ensure high levels of performance and reliability. For added peace of mind, systems can be pre-installed with Wall Monitor software.
Wall Monitor is an application that warns operators if a system begins to function outside of normal parameters. Alarms can be set to indicate changes in voltage and temperature.
allows users to closely monitor system temperatures and be alerted should a system temperature critical levels. The ability to create custom alerts means users can ensure operational system temperatures in a variety of environments.
Use with Aetria for Integrated Control Rooms
Aetria is Datapath’s integrated control room solution for the design, management and operation of control rooms of any size.
With Aetria, System Integrators have the freedom to design and deploy the right solution by following a structured, integrated process. Configuration of all connectivity to workstations, video walls, sources, layouts, and templates are managed and operated from a single interface. Meaning users can focus on their core objectives, rather than how to make the technology work.
Aetria has five distinct components:
- Aetria Designer
- Aetria Command Centre
- Aetria Workstation
- Aetria Wall Control
- Aetria Network Manager
Compatible with WallControl 10 for Standalone Video Walls of any Scale
WallControl 10 allows users to quickly and easily place and control output sources such as IP feeds, video captures and local applications anywhere on a video wall. These sources can be controlled simply when the most elaborate and complex wall scenarios are required.
Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals. Administrators of WallControl 10 can configure a single system to drive multiple walls. Each of these walls can be assigned several different user roles, and each user role can allow different access to sources, local videos, layouts and templates. *
Now With DDCT
All of Datapath’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed. The wizard allows users to easily configure video walls and get started in minutes
