FEATURES
Flexible Video Wall Control

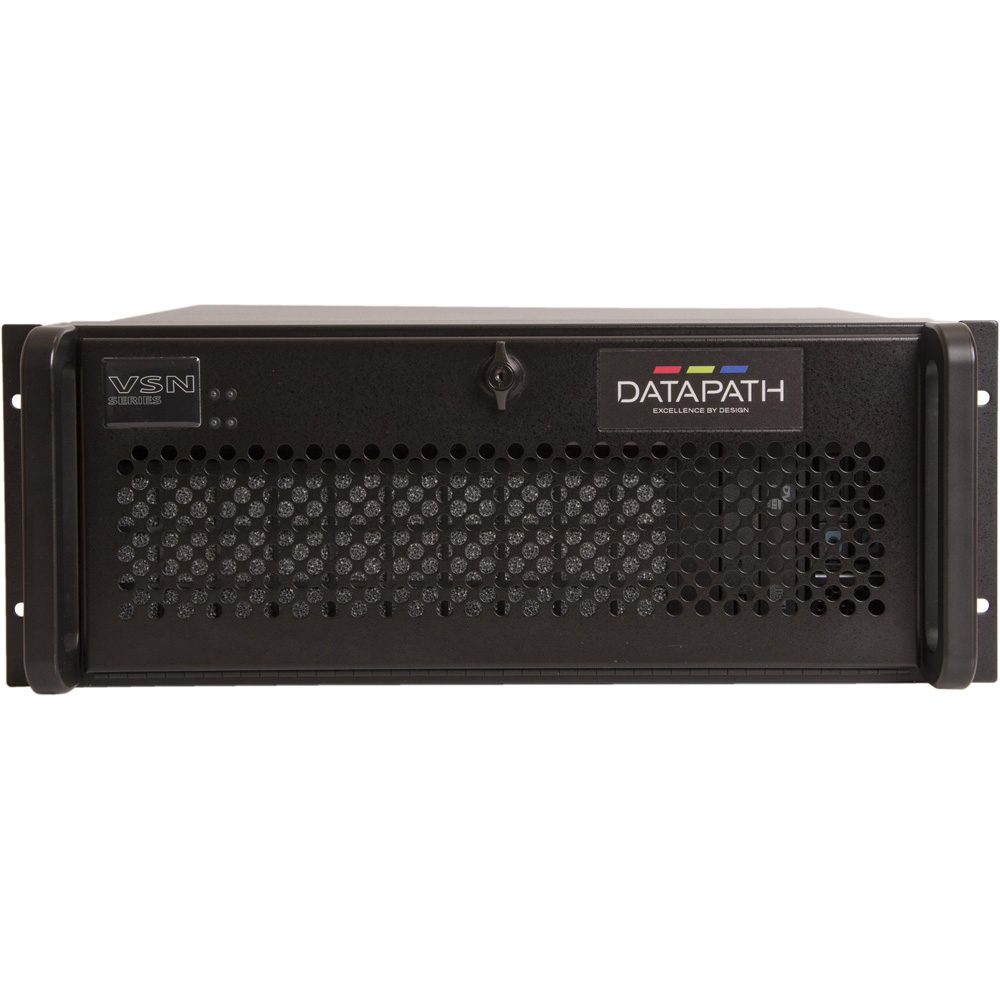

The VSN400 uses a COTS motherboard to provide flexibility and suitability for the smaller, more compact, video wall project. It comes complete with four high-performance PCI Express Gen3 expansion slots. Each x16 mechanical slot has been configured for x8 electrical performance giving up to 8GB/s bi-directional bandwidth.
Compatible with all of the Datapath portfolio of Vision capture cards and Image graphics cards, the VSN400 can provide a wide variety of HD and 4K inputs and outputs including SQX IP streams. When used in conjunction with Datapath’s range of expansion chassis, the VSN400 is able to deliver up to 64 HD outputs and high volumes of captured video and decoded IP media.
The VSN400 is provided in a standard configuration with upgrade options available for processor, memory, storage and power supply.
Multi-Application Chassis
The VSN400 has been designed for small to medium sized video walls and is ideal for applications such as:
- Traffic Management Hubs
- Operation Centres
- Security Suites
- Utility Services Operations
- Process Control Service
Use with Aetria for Integrated Control Rooms
Aetria is Datapath’s integrated control room solution for the design, management and operation of control rooms of any size.
With Aetria, System Integrators have the freedom to design and deploy the right solution by following a structured, integrated process. Configuration of all connectivity to workstations, video walls, sources, layouts, and templates are managed and operated from a single interface. Meaning users can focus on their core objectives, rather than how to make the technology work.
Aetria has five distinct components:
- Aetria Designer
- Aetria Command Centre
- Aetria Workstation
- Aetria Wall Control
- Aetria Network Manager
Compatible with WallControl 10 for Standalone Video Walls of any Scale
WallControl 10 allows users to quickly and easily place and control output sources such as IP feeds, video captures and local applications anywhere on a video wall. These sources can be controlled simply when the most elaborate and complex wall scenarios are required.
Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals. Administrators of WallControl 10 can configure a single system to drive multiple walls. Each of these walls can be assigned several different user roles, and each user role can allow different access to sources, local videos, layouts and templates. *
Use Quant for Application Streaming onto Video Walls
Quant is a video wall compatible collaboration software, allowing users to share numerous application windows with other peers within a group. It provides a quick and simple way to share on-screen information with other users and onto video walls in real-time.
Now With DDCT
All of Datapath’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed. The wizard allows users to easily configure video walls and get started in minutes.
