- Max 4 layers per screen (this function is possible when output number decreases to half, if it is not supports max 2 layers per screen)
- Maximum 32 displays with 4RU
- Maximum 16 full HD video sources with 4 RU
- Side-by-side, overlap, and picture in picture image positioning
- Output mapping on software, no need for fixed cable-to-display correspondence
- Seamless switching between sources
- Arbitrary cropping and content enlargement for the input image
- Bezel compensation for displays
- Automatic detection of input signals indicates the I/O status on the control software

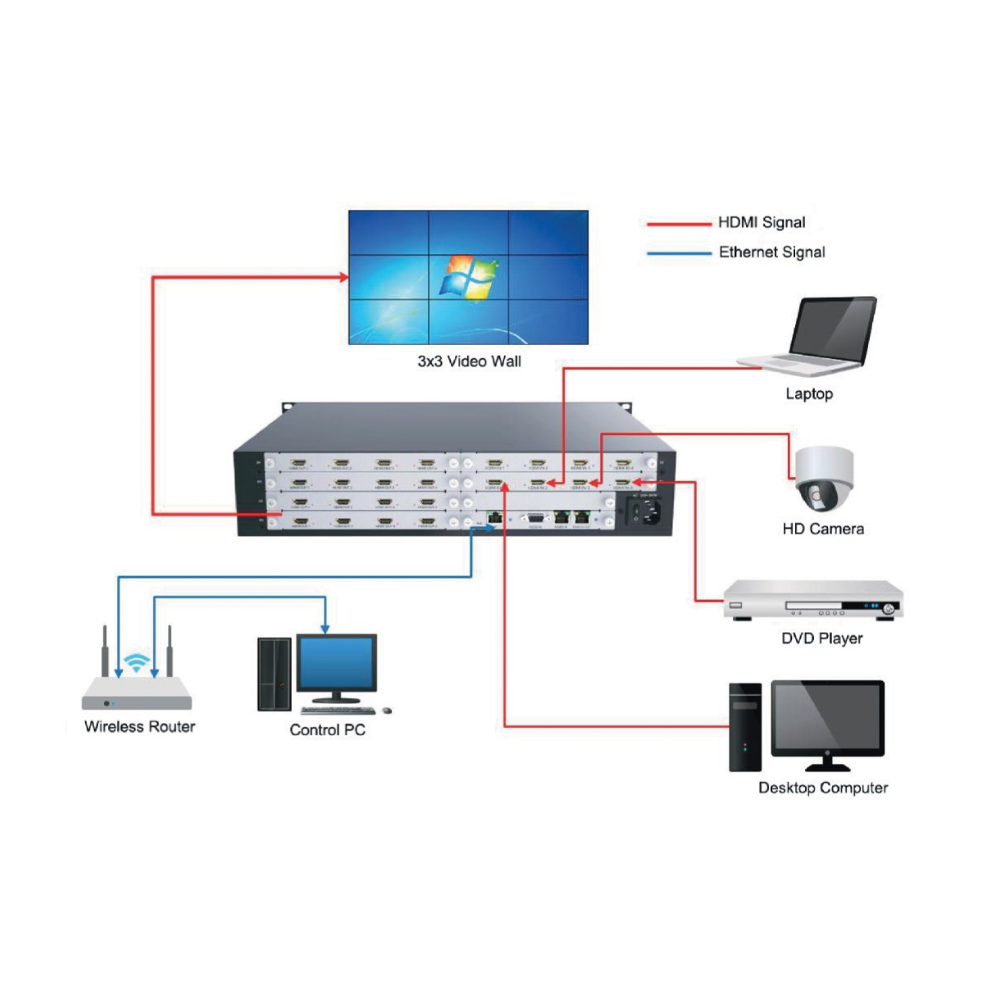

- Built-in matrix switcher function, any source image can be routed to any display
- Supports the pre-operation mode to avoid possible wrong operation
- Total 32 preset modes to be recalled in future
- Free easy-to-use configuration and control software
- Web Brower control via cross-platform from Windows, iOS, MacOS, Android, Linux and others

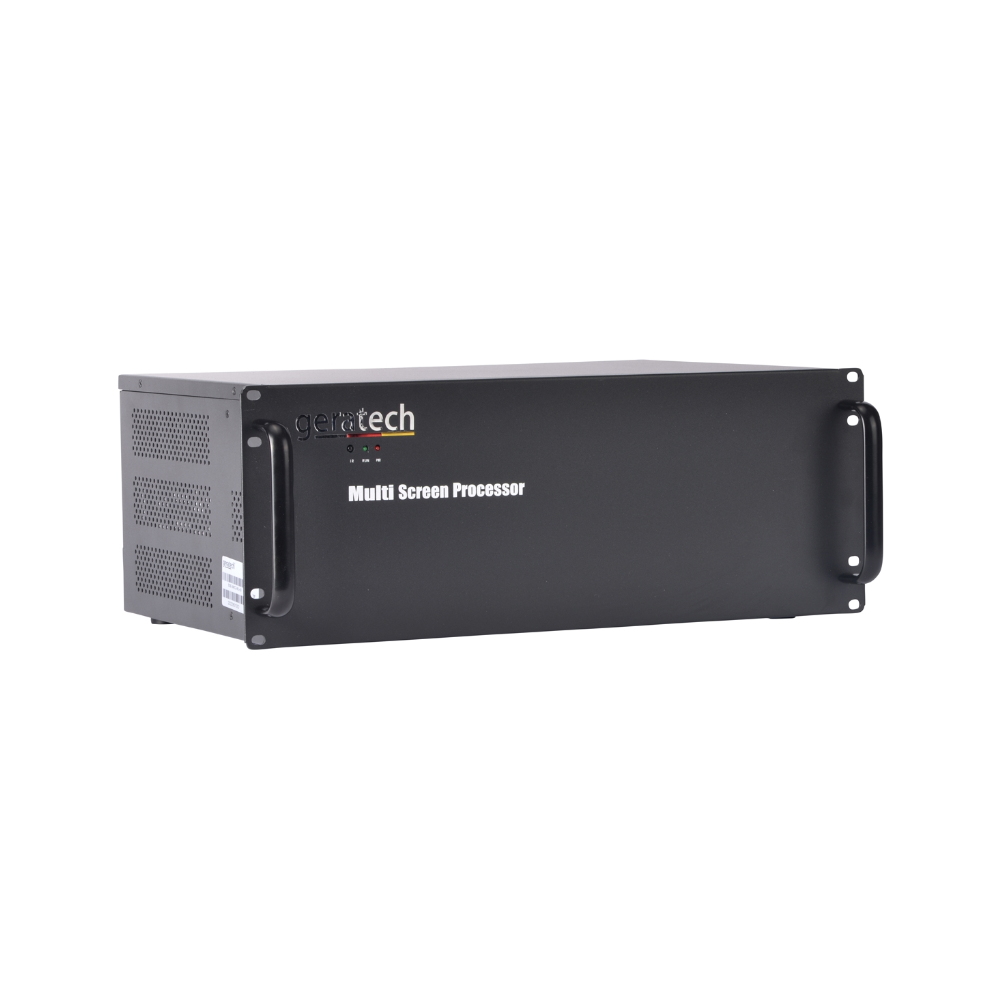

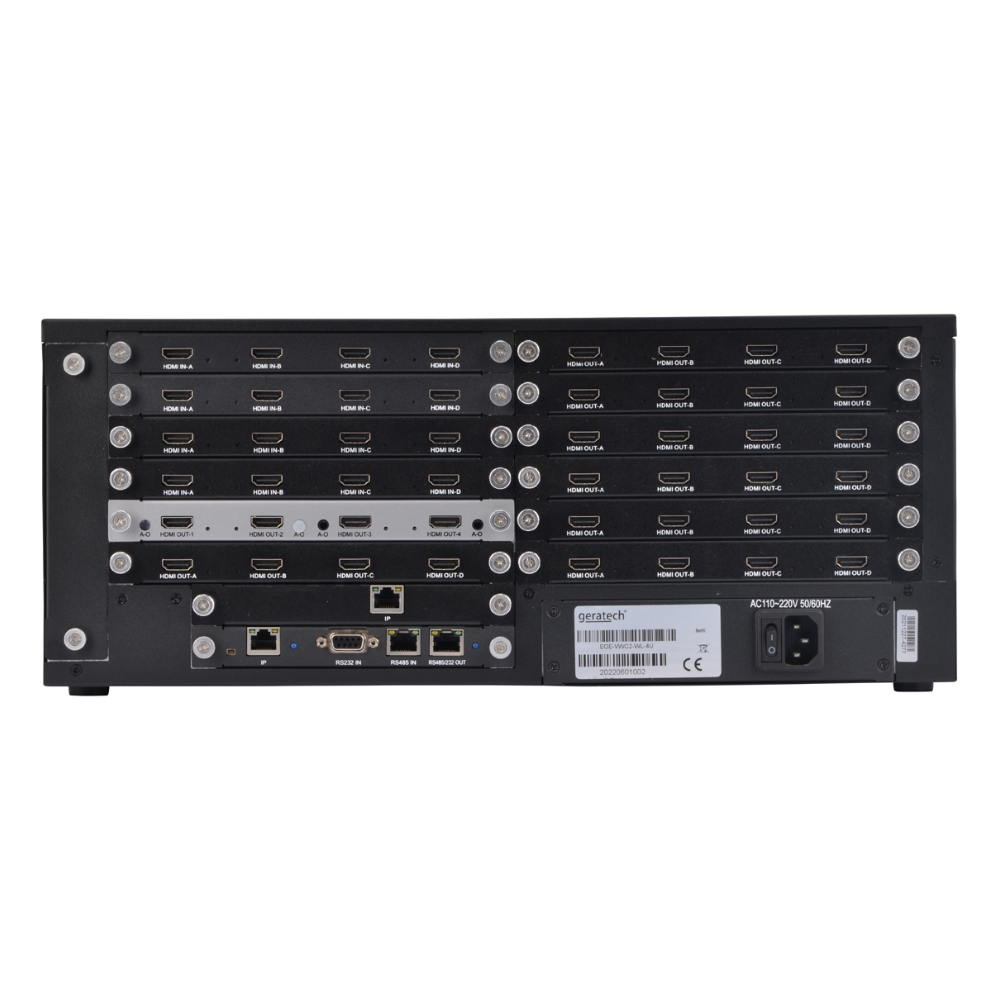

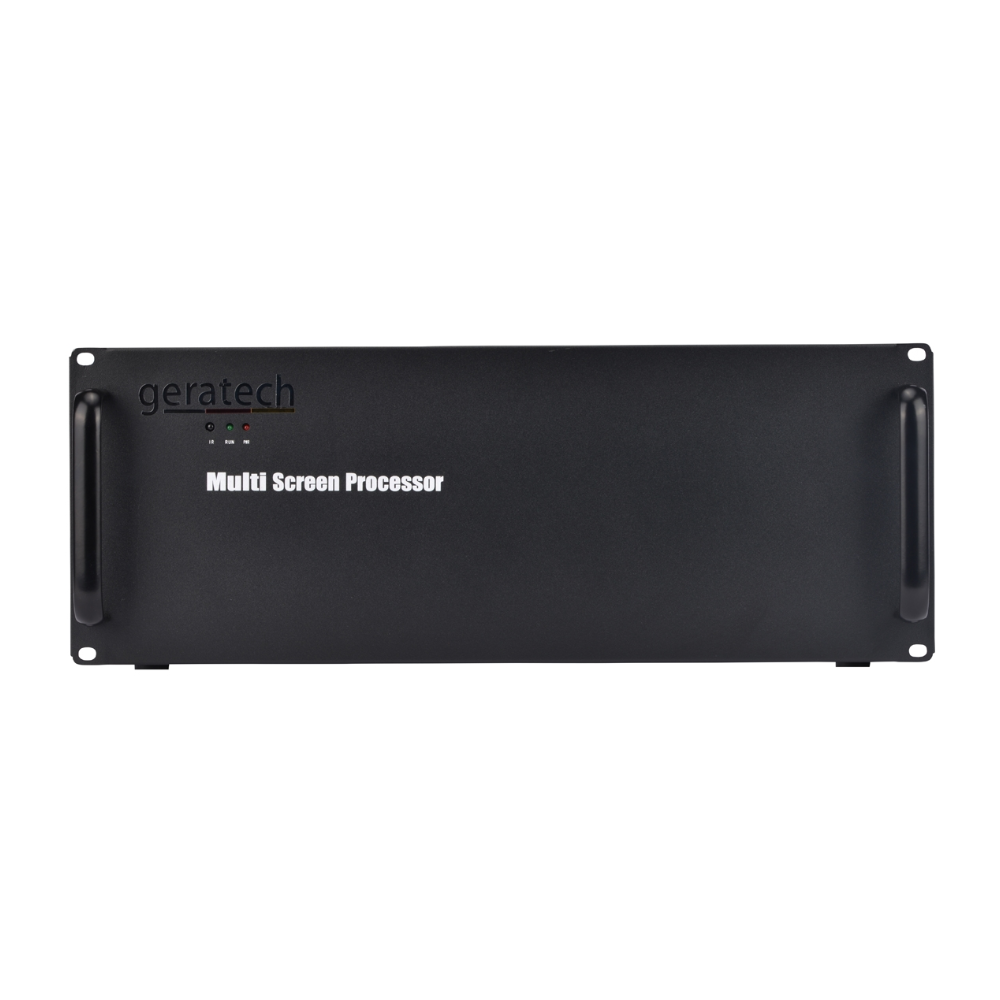

EGE-VWC2-WL Series
Videowall Controller
Videowall Controller
2/4 Layer per Screen
Audio Support
