- Four HDMI outputs from 640×480 to 1920×1200
- Supports HDMI input from 640×480 to 4K2K@60(YUV4:4:4),interlaced or progressive
- HDCP compliant
- Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
- Several image parameters and layouts can be saved in computers and can be loaded for later use
- Firmware upgradable for new features and technology enhancements
- Supports IR remote control
- Software control through USB and Ethernet
- Resize,position,zoom for each HDMI output video
- User-selectable output settings,up to1920x1200
- Supports remote control to switch 1×1,2×2,1×3 rotate,and 1×4 rotate mode
- Supports independent input rotation at the resolution up to 1080p
- 4K2K60(YUV4:4:4) can be divided and displayed on to four 1080p60 TV(2×2 layout only)
- Supports individual propagation delay on each display to have the best visual perception

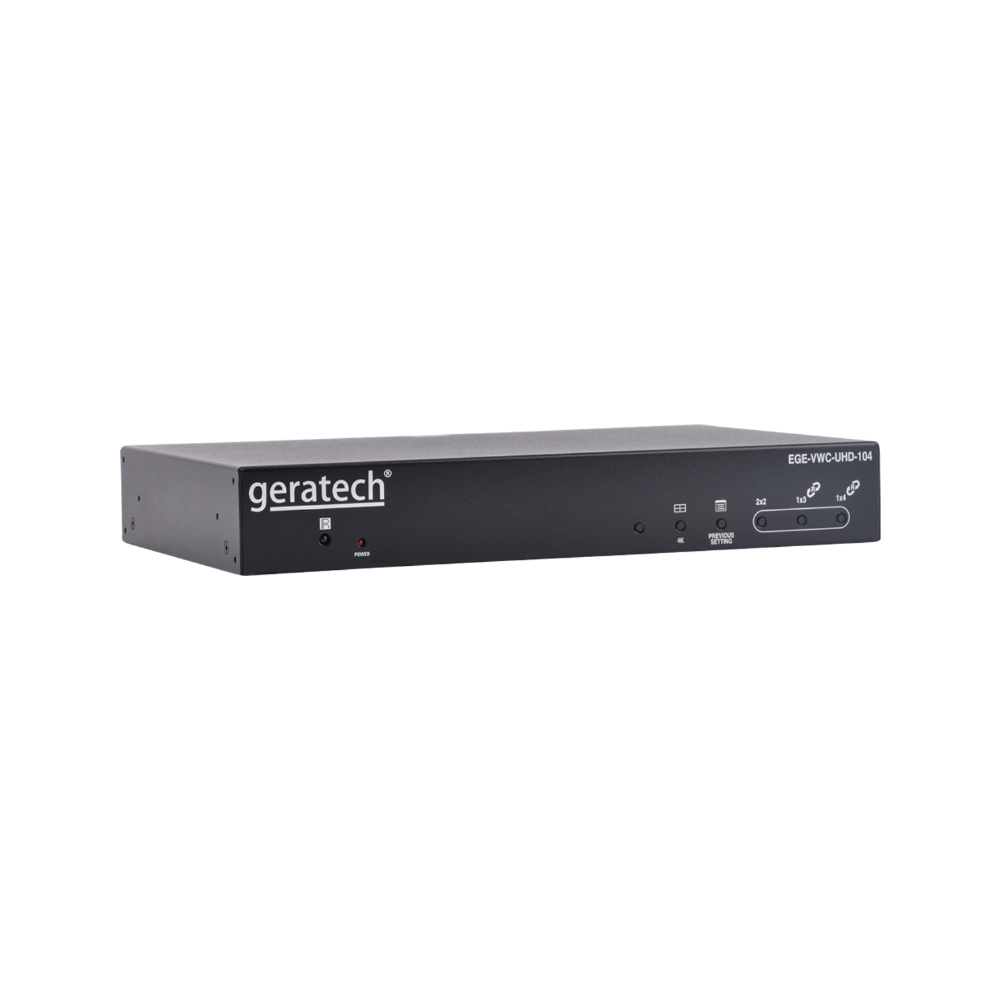

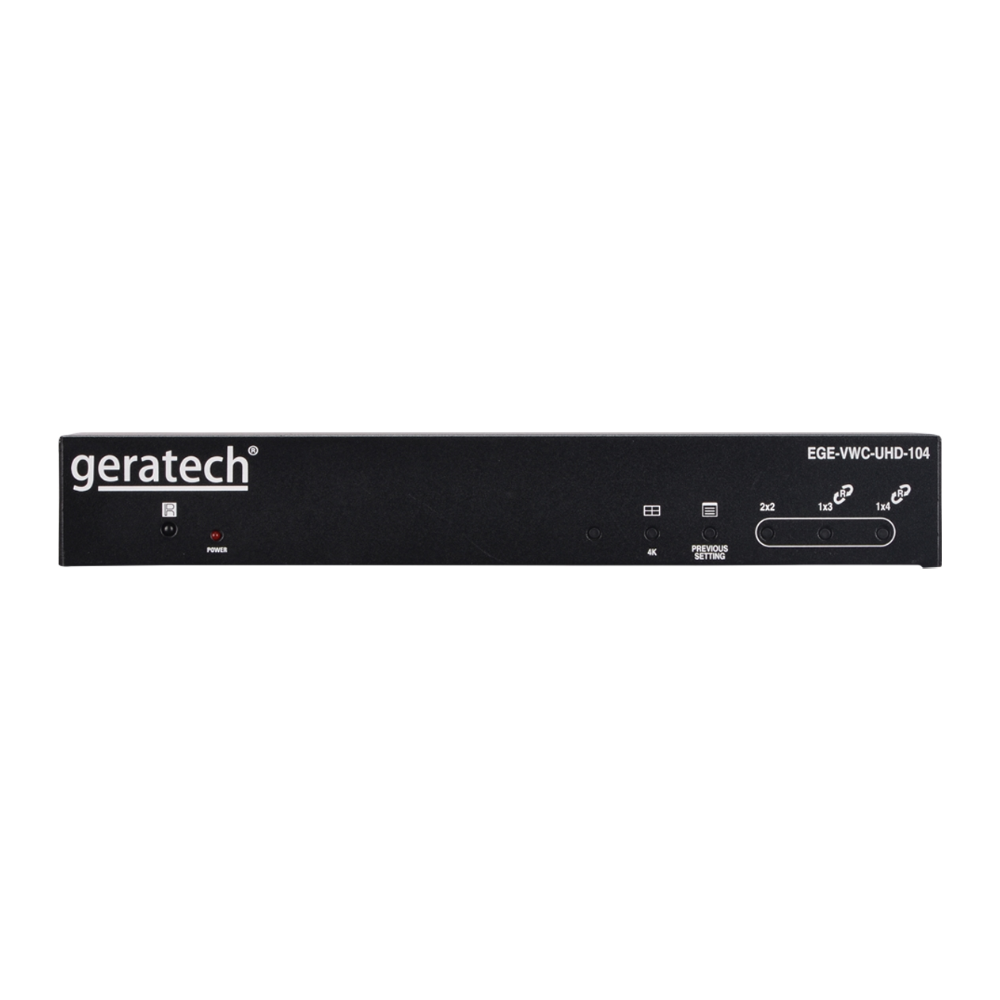

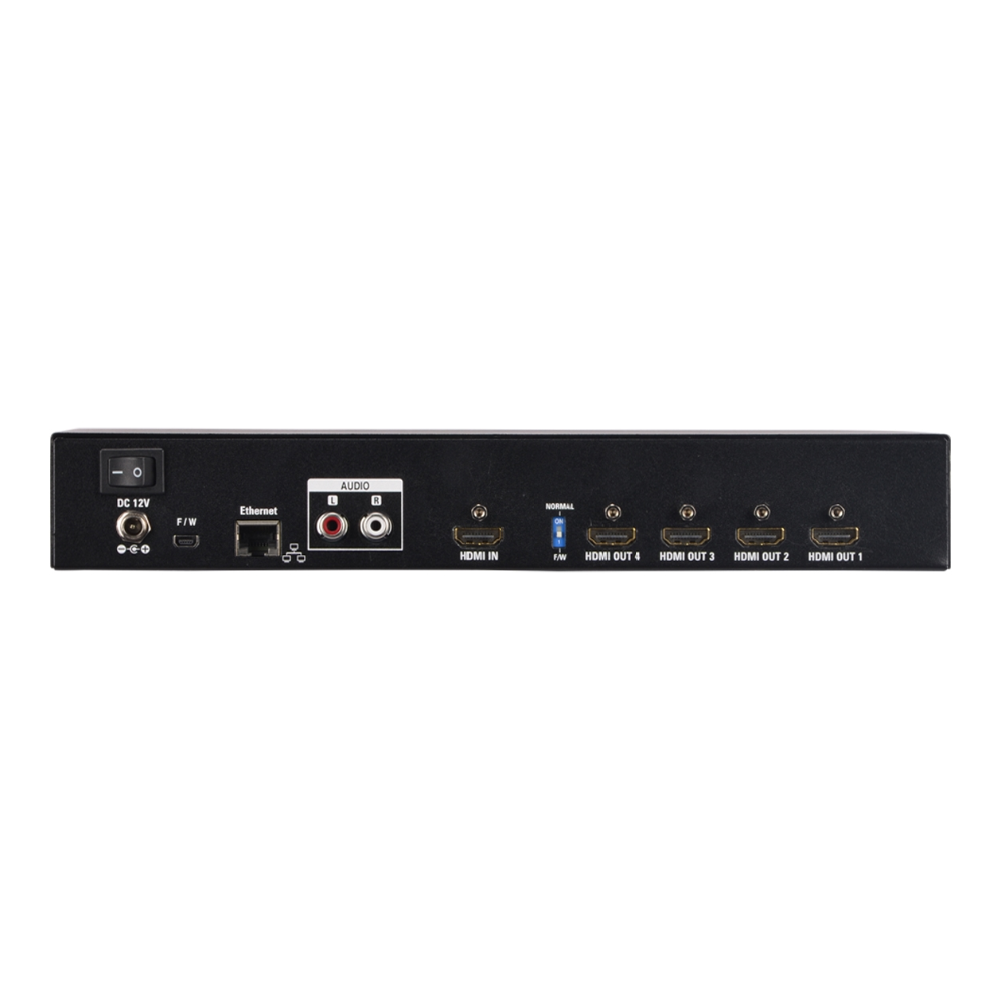

EGE-VWC-UHD-104
1X4 HDMI Videowall Controller
1X4 HDMI Videowall Controller
4K2K@60(YUV4:4:4) Input
HDCP compliant
