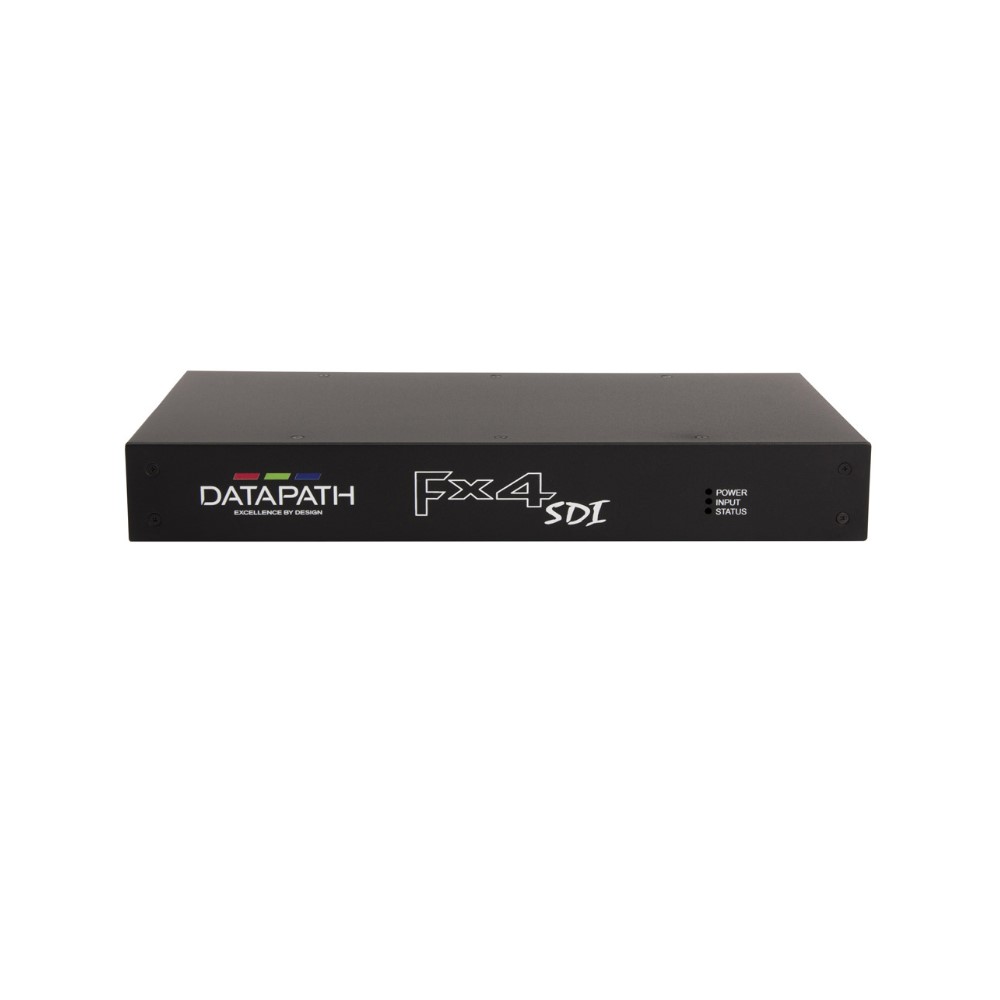

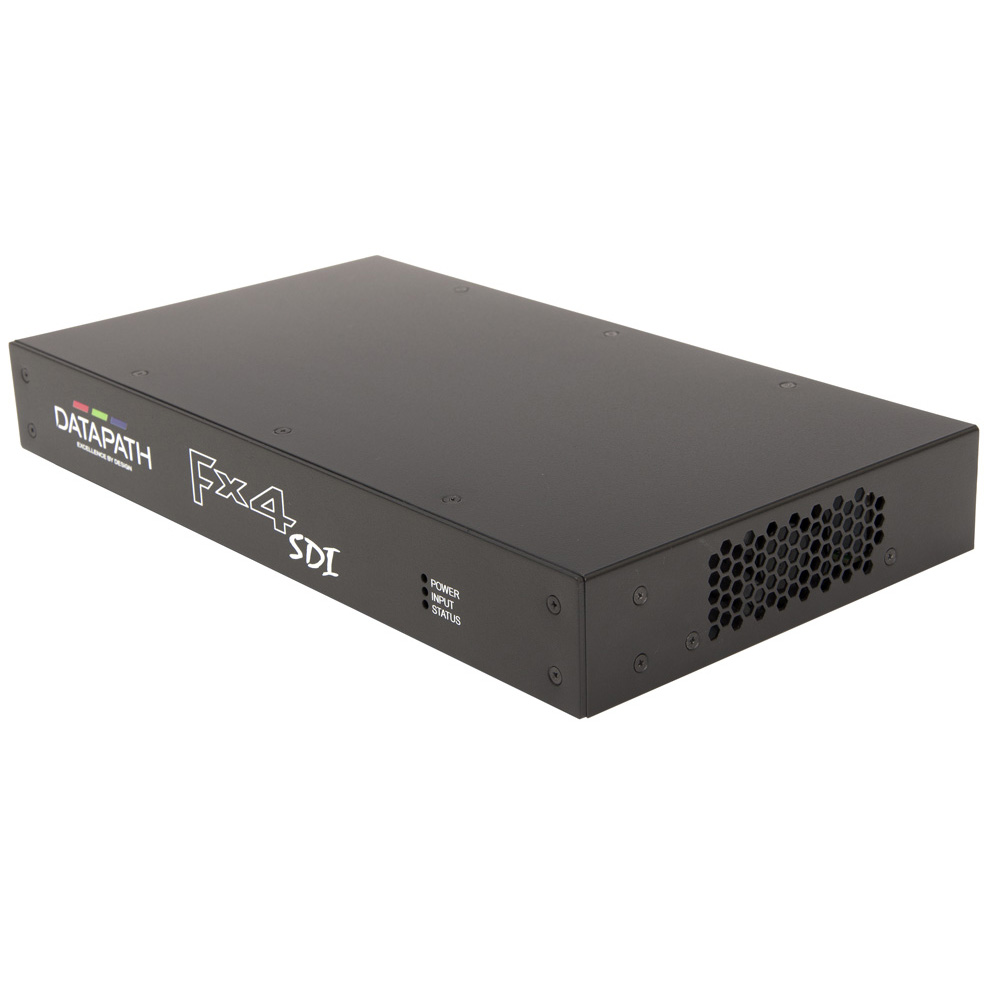

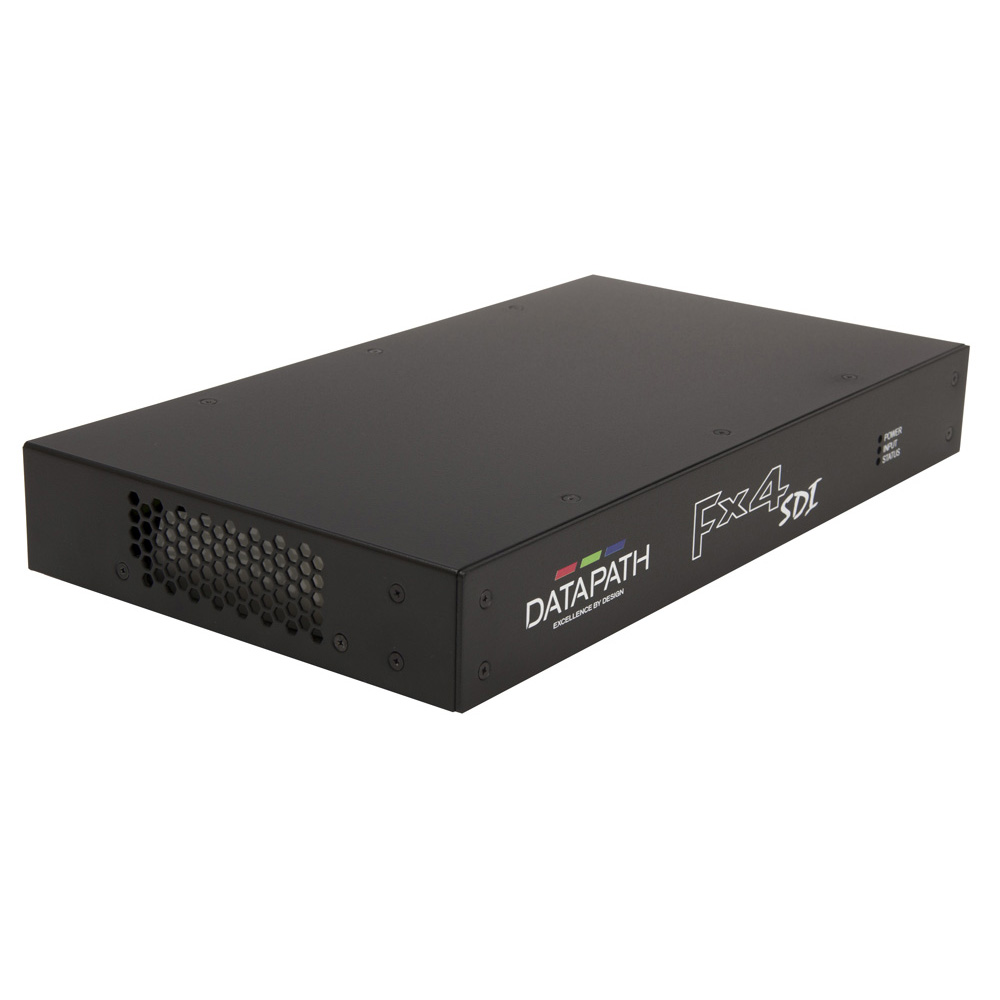

Fx4-SDI
Controller

The Datapath Fx4-SDI offers the perfect solution for staging and televised video walls. Delivering four SDI outputs and the ability to loop multiple units together, even the largest, most complex video wall installations are possible.

– 4K at 60fps input
– Multiple input choices
– Four SDI Outputs
– Rotates, crops and scales

FEATURES

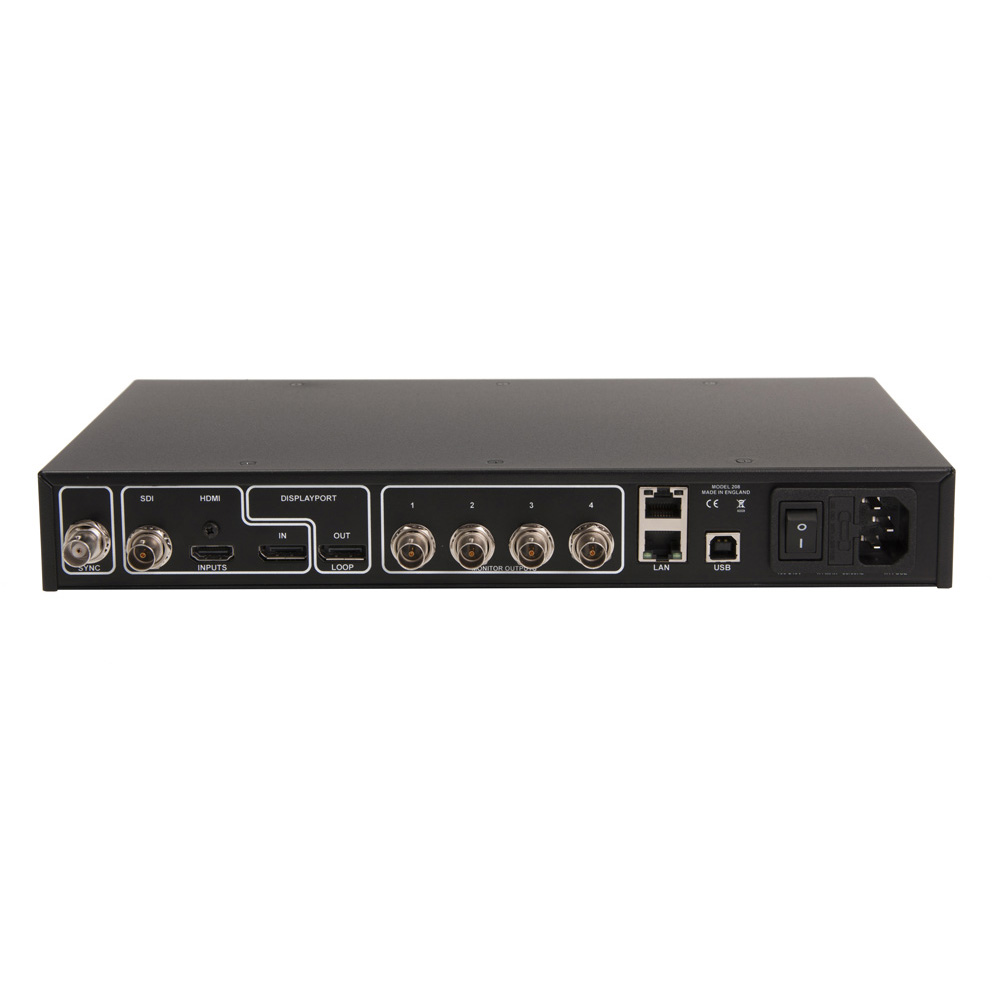

Unparalleled connectivity options

3 Input Choices

The Fx4-SDI features a choice of 3G-SDI, DisplayPort 1.2 and HDMI 1.4 inputs. The intuitive UI allows users to determine which input is used.

Network Connectivity

Dual Ethernet ports allow users to add the device to their networks. Ethernet loop though support on the second port means only one device in the chain needs to be physically connected.

Genlocked Input

A dedicated BNC connector allows users to SYNC with third party hardware.

Loop-through

A dedicated DisplayPort1.2 loop through output allows users to link multiple devices. Specifically designed to prevent any loss of resolution, and the original capture signal remains unchanged.
