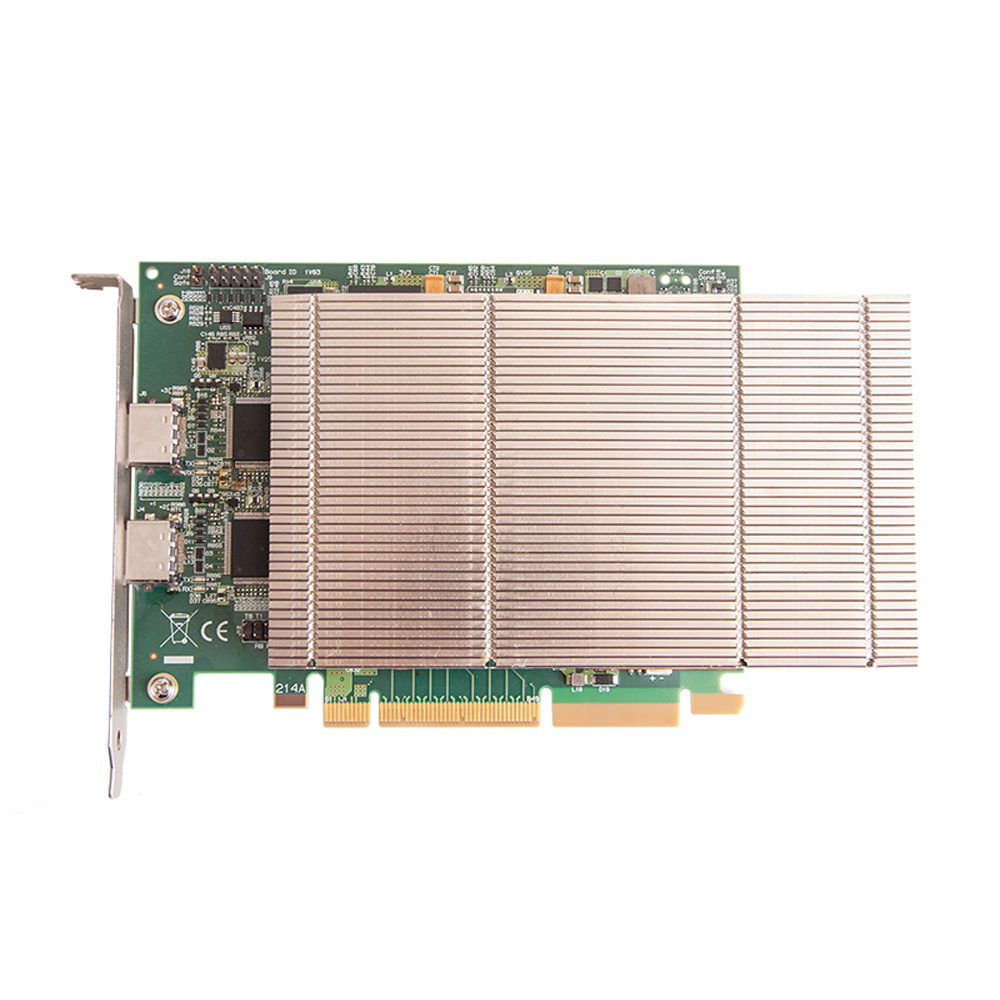

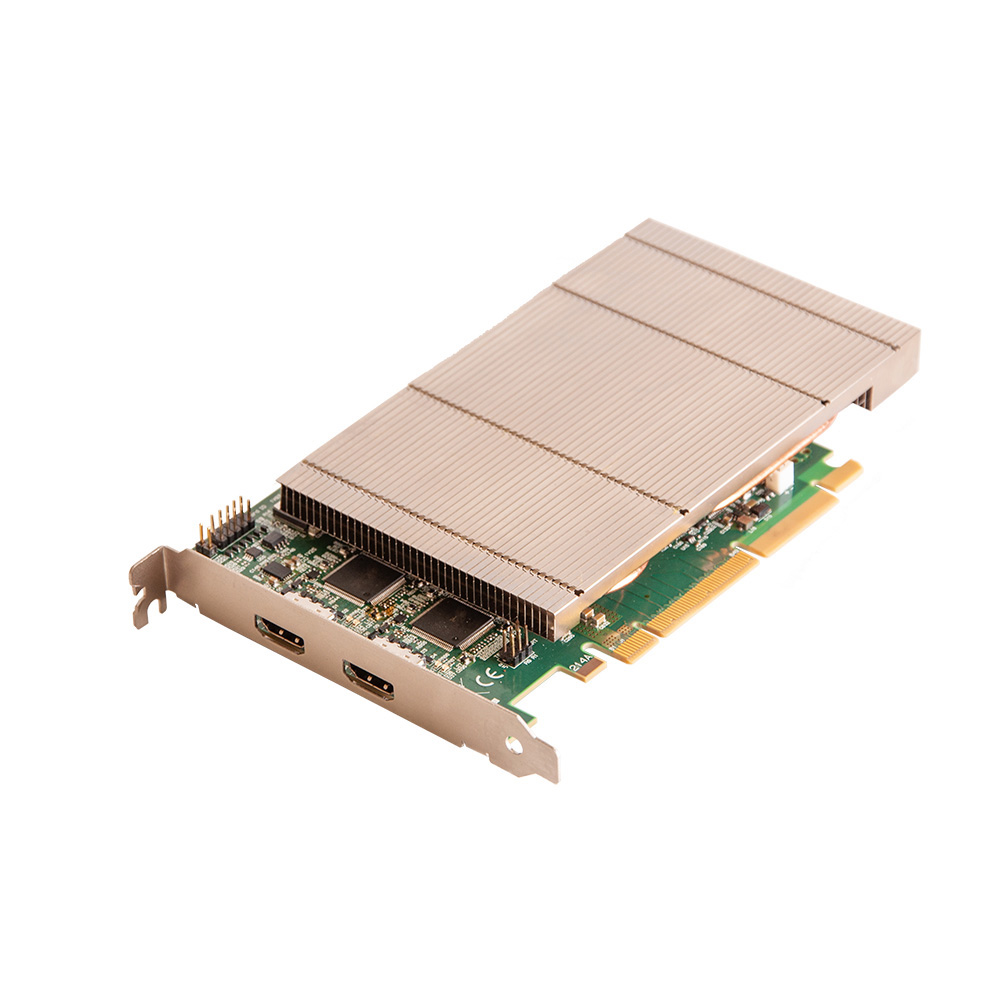

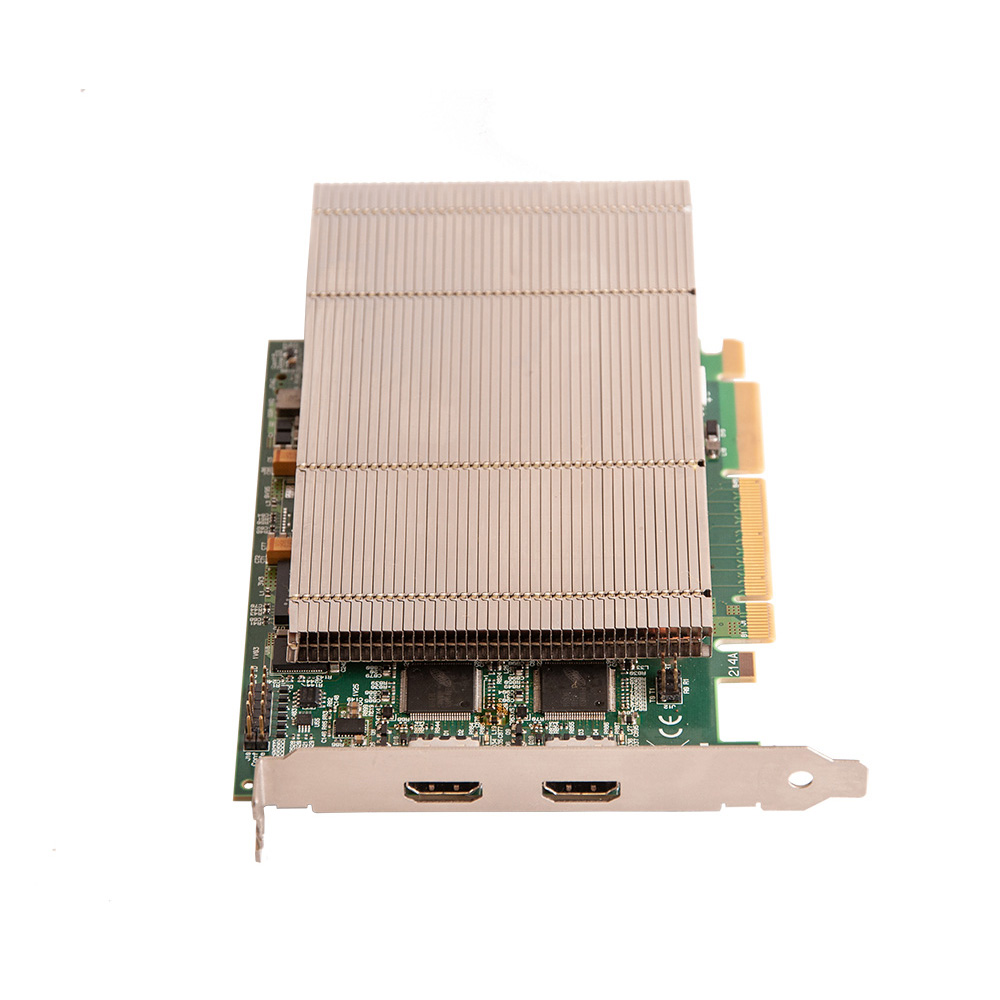

VisionSC-UHD2

  • Eight lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
  • Eight lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
  • 2GB Frame Buffer Memory
  • Full 10-bit processing pipeline
  • Fully scalable for use in high density systems supporting multiple capture cards
  • Full support of the Vision Performance feature set
  • Datapath unified Windows® and Linux® driver support
  • Supports HDMI certified premium cables up to 5M in length.

VisionSC-UHD2

The VisionSC-UHD2 supports all Datapath Vision Performance features. This includes LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning to support longer cable runs, automatic fast and reliable mode detection, frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter, plus a whole lot more. An advanced hardware scaling engine employs polyphase multi-tap filtering for superior anti-aliasing when downscaling and accurate pixel replication when upscaling.

Push and Pull Support

The VisionSC-UHD2 supports all Datapath Vision Performance features. This includes LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning to support longer cable runs, automatic fast and reliable mode detection, frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter, plus a whole lot more. An advanced hardware scaling engine employs polyphase multi-tap filtering for superior anti-aliasing when downscaling and accurate pixel replication when upscaling.

Reliability

Built for the future, Datapath continues to maintain and support its own RGBEasy SDK for application developers as well as offering a Microsoft DirectShow interface based on the AV Stream framework. Inputs can be accessed by DirectShow / Media Foundation-compatible applications including:

  • Dataton Watchout
  • One Control technology – Allows control of multiple PC’s across a single workstation with one keyboard and mouse
  • PanOpto
  • vMix
  • Telestream Wirecast
  • Opencast Video Solution
  • VidBlasterX
  • Open Broadcaster Software (OBS)
  • Adobe Flash Media Live
  • Encoder
  • VLC
  • Security – Mass storage mode disable for securing against endpoint intrusion
  • Connectors – Copper and fiber versions (can be mixed)
  • Rack Mount Kit – The Arqa RMK is a convenient way to house and power up to four transmitters or receivers into a single 1U rack space (subject to availability)

Extra Protection With Advanced Swap Out And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team

SPECIFICATIONS

Specification of the VisionSC-UHD2 Capture Card:

Board Format PCIe x8 plug-in card
Connectors Dual HDMI 2.0
Max Capture Rate 600MHz TMDS ClockMax capture surface of 8k x 8k*
Dimensions 110mm a 195mm (incl heat sink)
Frame buffer 2GB
Input mode detection Automatic
Pixel transfer formats RGB10: (10bit), 8-8-8 (24/32), 5-6-5, 5-5-5, 8-bit mono Y410 (10bit), 4:2:2, YUY2, UYVY, YVYU.
Planar Modes:NV12, YV12
Colour Spaces BT2020, BT709, BT601 with selectable limited and full range encoding.
Update Rate Captured frame rate will match the source providing PCle bandwidth is not exceeded.
Video Standard HDMI 2.0, HDMI 1.4, HDMI 1.3
Operating System Windows 8/10, Windows 7, Windows XP, Windows Server 2008, Windows Vista, Windows Server 2003
Power Requirements Max current at 12v, 1.7A
Max current at 3.3V 0.1A
Max power ≈ 21W
Operating Temperature 0 to 35 °C (32 to 96 °F)
Storage Temperature -20 to 70 °C (-4 to 158 °F)
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
