VisionSC-S2

  • High performance capture card for SDVoE AV networks
  • Dual channel 4K60 decoding
  • Fully SDVoE compliant to ensure compatibility with other SDVoE solutions
  • Compatible with Datapath’s range of Capture cards, Graphics cards
  • Full SDK available

VisionSC-S2+

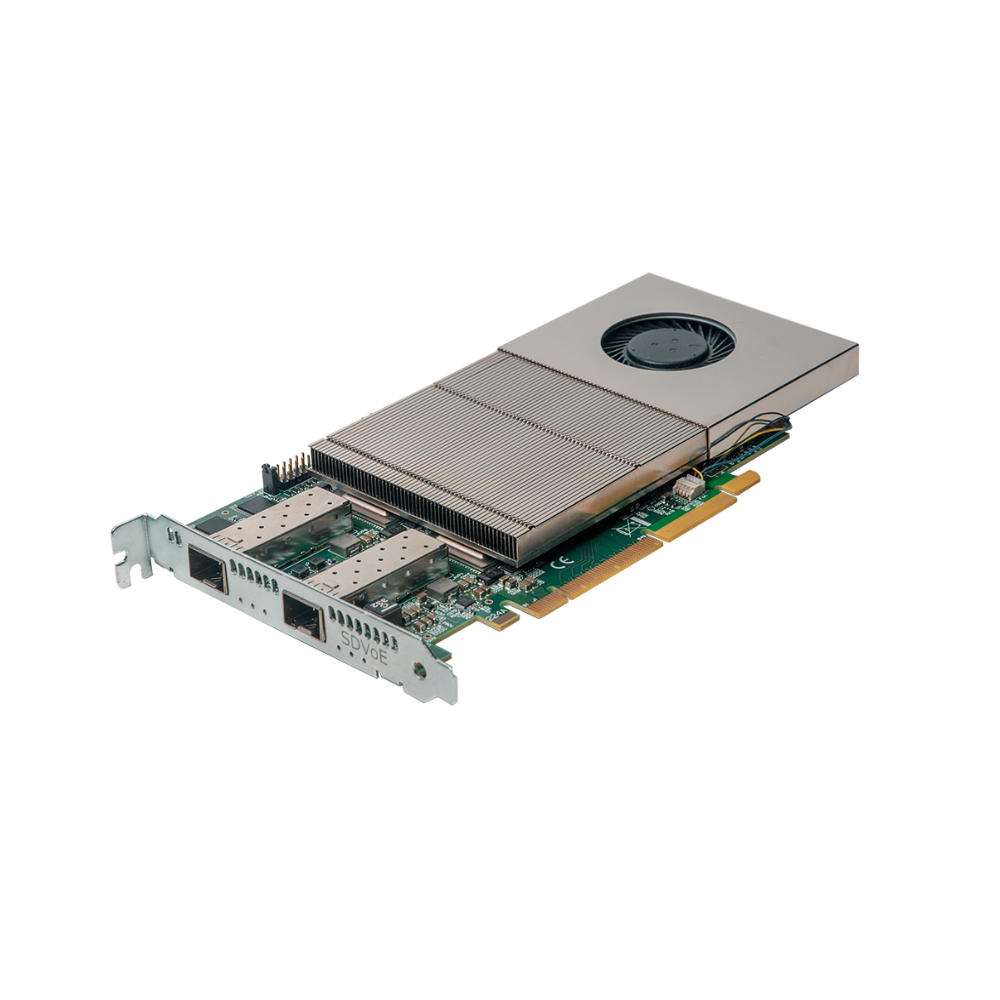

The VisionSC-S2 is a high-end dual channel SDVoE capture card. It is a PCI Express card that, as part of the VisionSC range, inherits all the standard Vision features such as hardware-based scaling, multi-client, and EDID management. Multiple cards can be combined with other Datapath capture and graphics cards as required to meet large-scale requirements.

SDVoE Technology

SDVoE (Software-Defined Video over Ethernet) is a software-based AV-over-IP platform for distribution and control of AV content over ethernet and fiber networks. The VisionSC-S2 meets all SDVoE feature requirements:

  • Zero-latency (under 100 microseconds / 1/150th of a video frame)
  • Full stack, 7-layer solution – providing an approach to every layer of the OSI (Open Systems Interconnection) network model from physical infrastructure to API
  • Comprehensive API provides simple interface to control complex AV tasks such as video routing, scaling, aspect ratio management, video wall processing, image compositing, audio downmixing, etc.
  • Fully uncompressed transmission for HD and 4K signals
  • HDMI video transmission up to full 4K60
  • Independent multi-channel audio routing

SPECIFICATIONS

Specification of the VisionSC-S2 Video Capture Card:

Board Format PCIe x8 plug-in card
Connectors Dual SDVoE capture channels
Maximum capture rate 600MHz TMDS ClockMax capture surface of 8K x 8K*
Dimensions 111mm x 210mm (incl active heatsink)
Frame buffer memory 2GB
Input mode detection Automatic
Pixel transfer formats RGB10: (10bit), 8-8-8 (24/32), 5-6-5, 5-5-5, 8-bit
mono Y410 (10bit), 4:2:2, YUY2, UYVY, YVYU
Planar Modes: NV12, YV12.
Colour Spaces BT2020, BT709, BT601 with selectable limited and full range encoding.
Update rate Captured frame rate will match the source providing PCIe bandwidth is not exceeded
Video Standard 4096×2160, 60Hz formats including, 8-bit 4:4:4, 10-bit 4:2:2, 10-bit 4:2:0
Operating system Windows® 8/10, Windows 7, Windows XP, Windows Server 2008, Windows Vista, Windows Server 2003
Power Requirements Max current at +3.3 – 2.2A
Max current at +12V – 1.4A
Max power ≈ 24W
Operating Temperature 0 to 40 °C/ (32 to 104 °F)
Storage Temperature -20 to 70 °C/ (-4 to 158 °F)
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
