VisionSC-HD4+

  • Four independent HDMI 1.4 capture channels
  • 2×297 Mhz channels offering 3840x2160p at 60 fps
  • 2×165 Mhz channels offering 1920x1080p at 60 fps
  • Eight lane PCIe Gen.3 interface, Net 6.4 GB/s total capture bandwidth
  • Support for HDCP
  • Large 6.4GB/s capture bandwidth for more pixels
  • Highly flexible, multiple cards can be used in a single system
  • Embedded audio capture
  • Datapath unified Windows and Linux driver support

VisionSC-HD4+

Developed for capturing multiple High Definition SDI video signals, the VisionSC-SDI4 is the perfect solution for AV professionals looking to capture from multiple SDI sources.

Ideal for use in broadcast markets or with any SDI capable applications the VisionSC-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second. Each capture channel is hardware timestamped allowing for larger surfaces to be captured and stitched together.

Video Streaming

DirectShow drivers for WDM Streaming support the following applications, to encode, record and stream video over networks or the Internet:

  • Microsoft Media Encoder®
  • VLC
  • VirtualDub
  • Any other DirectShow encoding software

For streaming applications, the VisionSC-SDI4 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.

Any application compatible with Windows® DirectShow technology can use the VisionSC-SDI4 due to its built-in WDM support.

Extra Protection With Advanced Swap Out And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team

SPECIFICATIONS

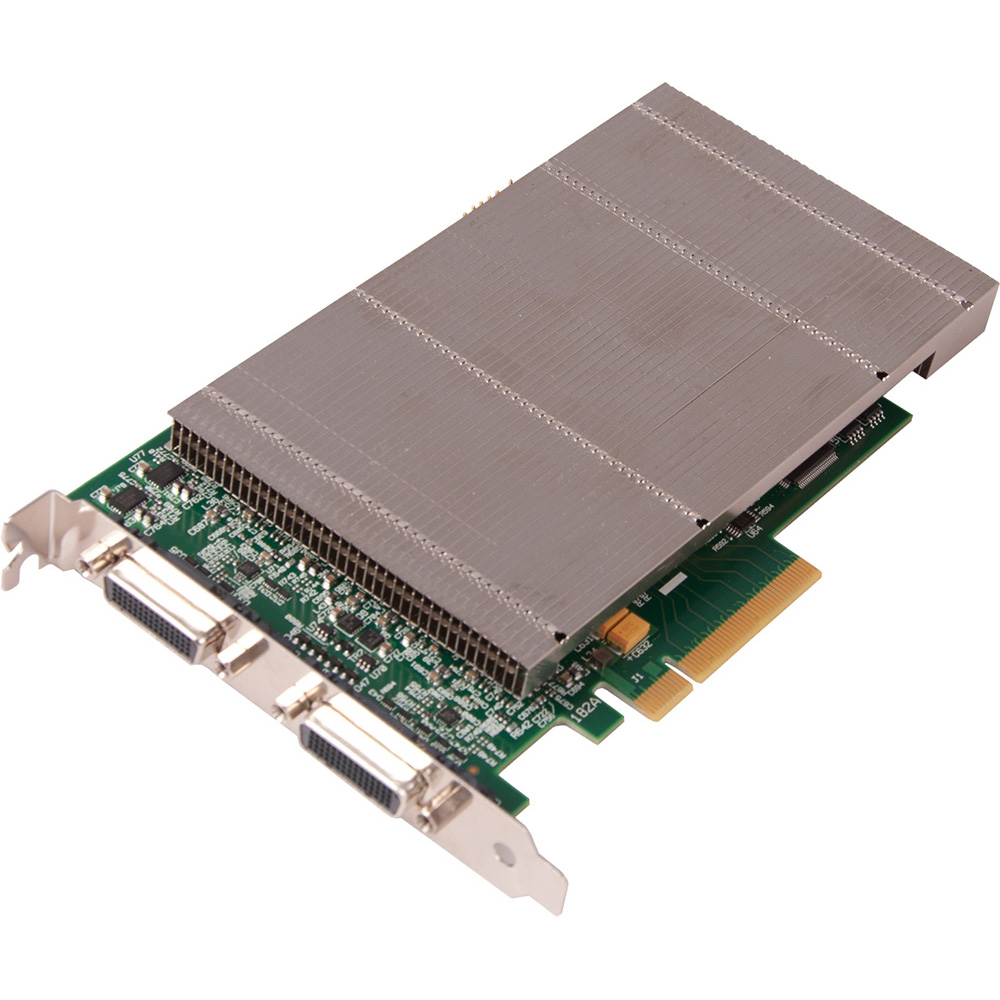

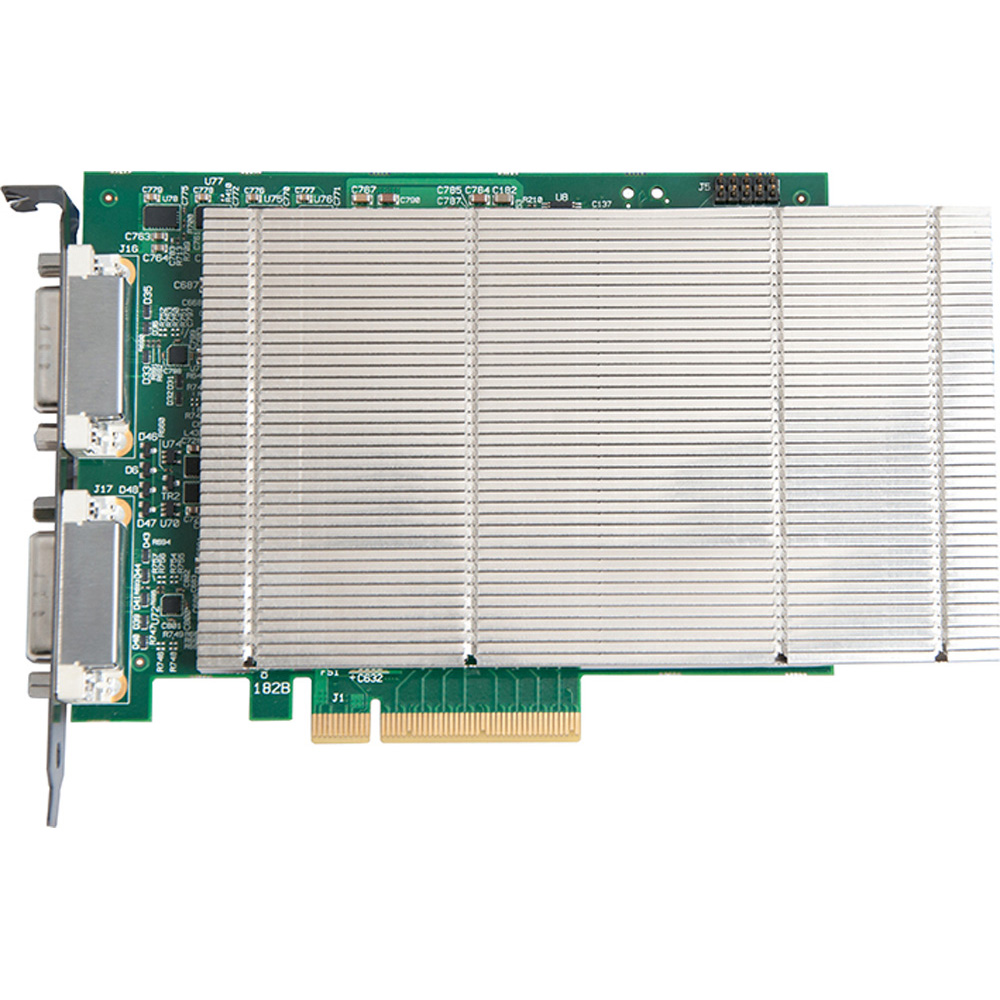

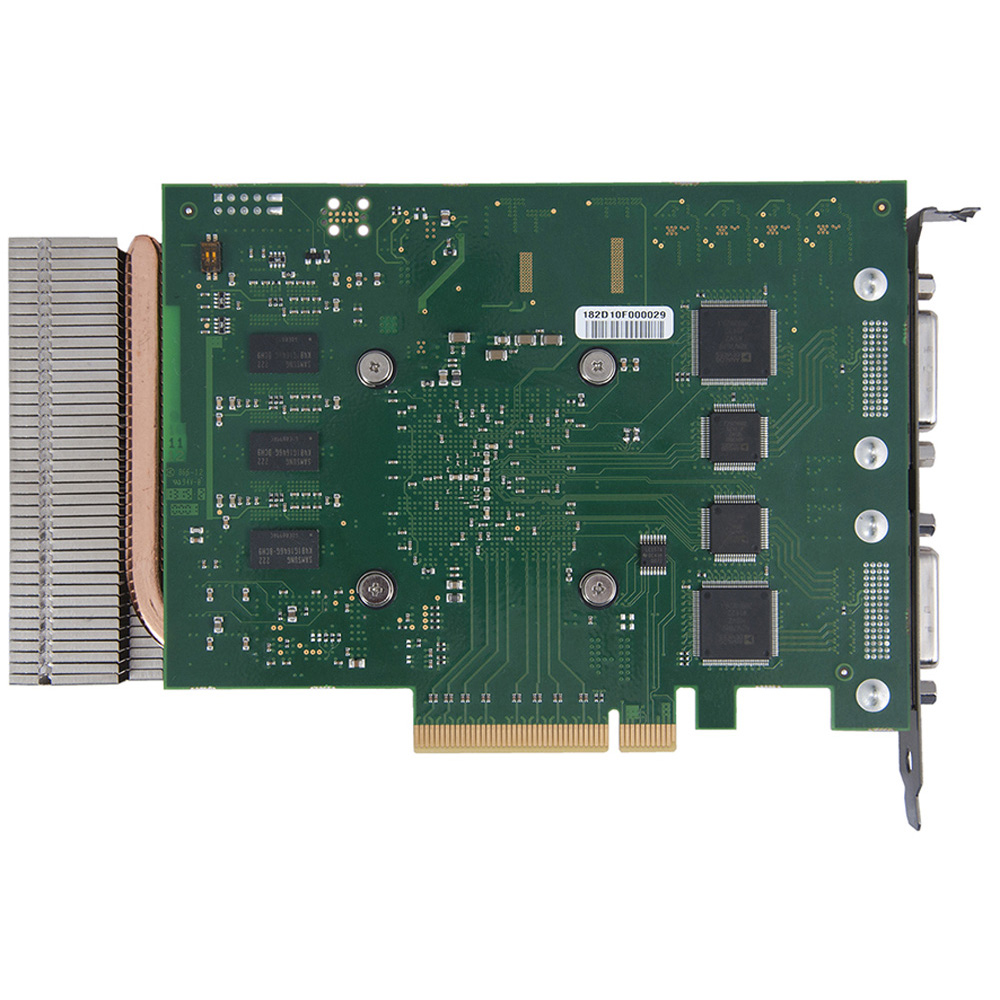

Specification of the VisionSC-HD4+ Video Capture Card:

Board Format PCIe x8 plug-in card

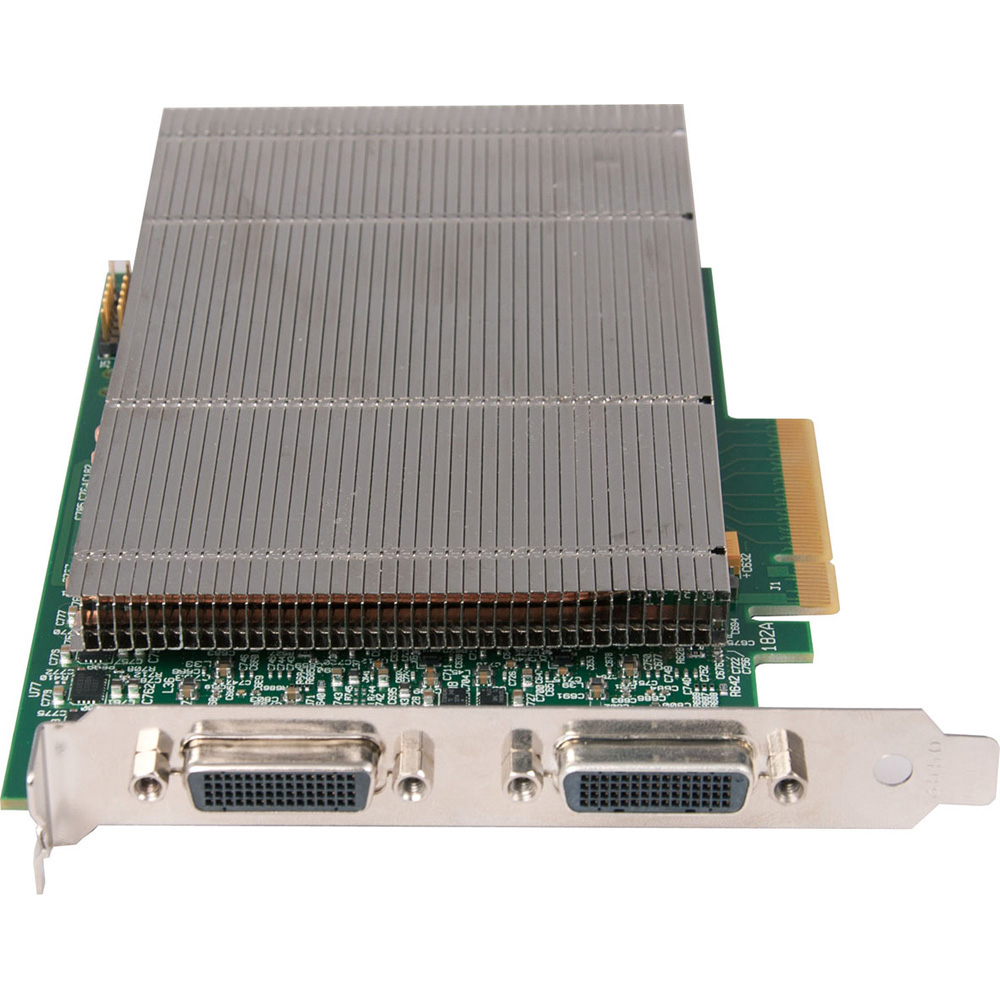

Connectors 4 x HDMI connectors, with optional DVI adapters
Maximum capture resolution Channels 1 & 3: 2x3840x2160p @60 fps
Channels 2 & 4: 2x1920x1080p @60 fps
Dimensions 110mm a 177mm (incl heat sink)
Frame buffer memory 768 MB
Pixel transfer formats RGB: 5-5-5, 5-6-5 or 8-8-8 (24 bit/32 bit)
YUV: 4:2:2
MONO: 8 bit
Update rate User defined. Captured frame rate will match the source providing max data rate (6.4GB/s) is not exceeded. Multi-buffered to eliminate tearing artefacts.
Video Modes HDMI 1.4, HDMI 1.3, DVI
Operating system support Windows ® up to 10 and Linux ®
Power Requirements Max current at +3.3 – 0.45A.
Max current at +12V – 0.85A
Max power ≈ 18W
Operating Temperature 0 to 35 °C/ 32 to 96 °F
Storage Temperature 20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
