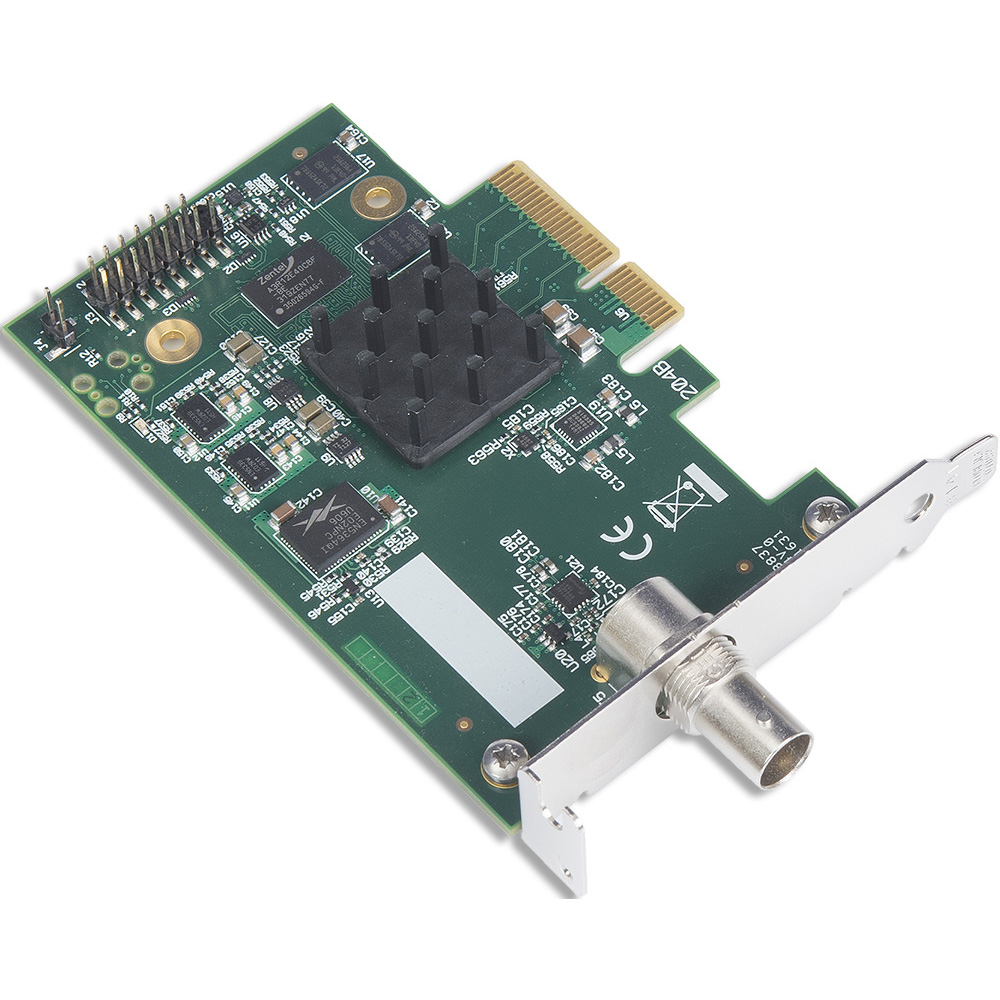

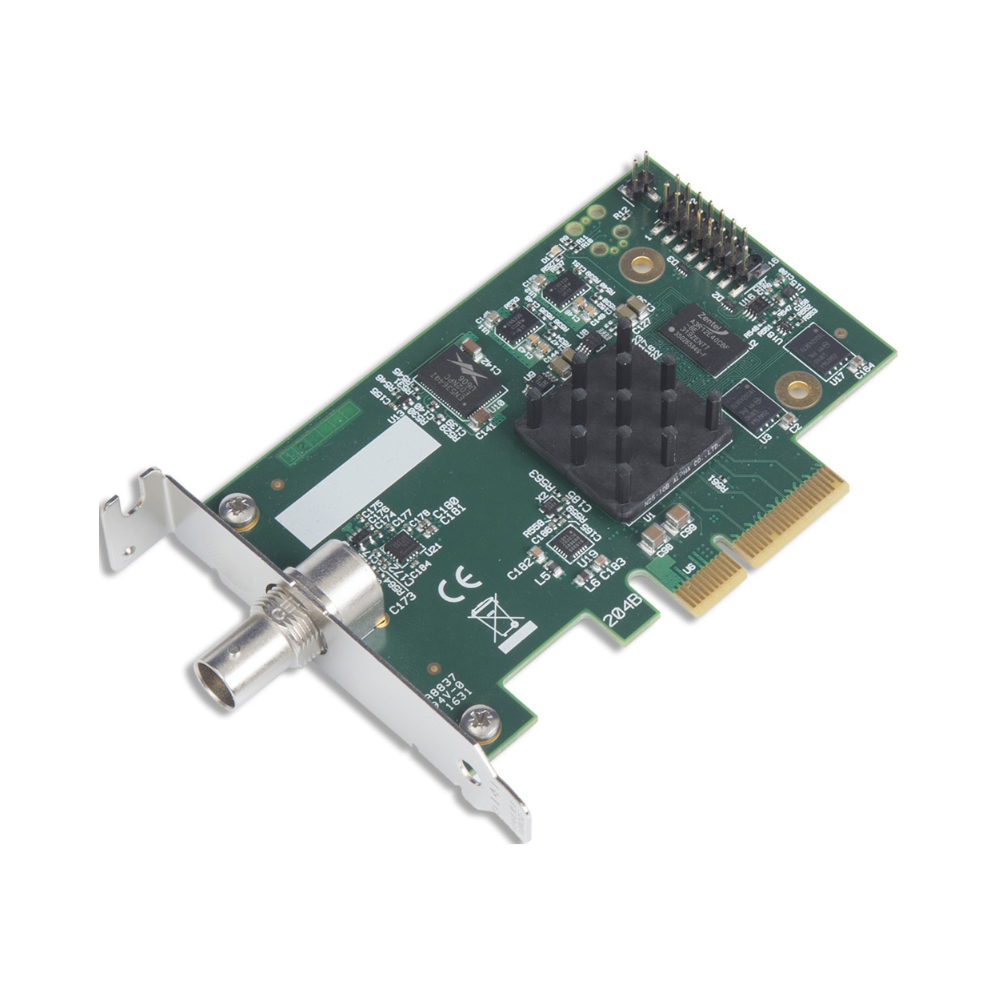

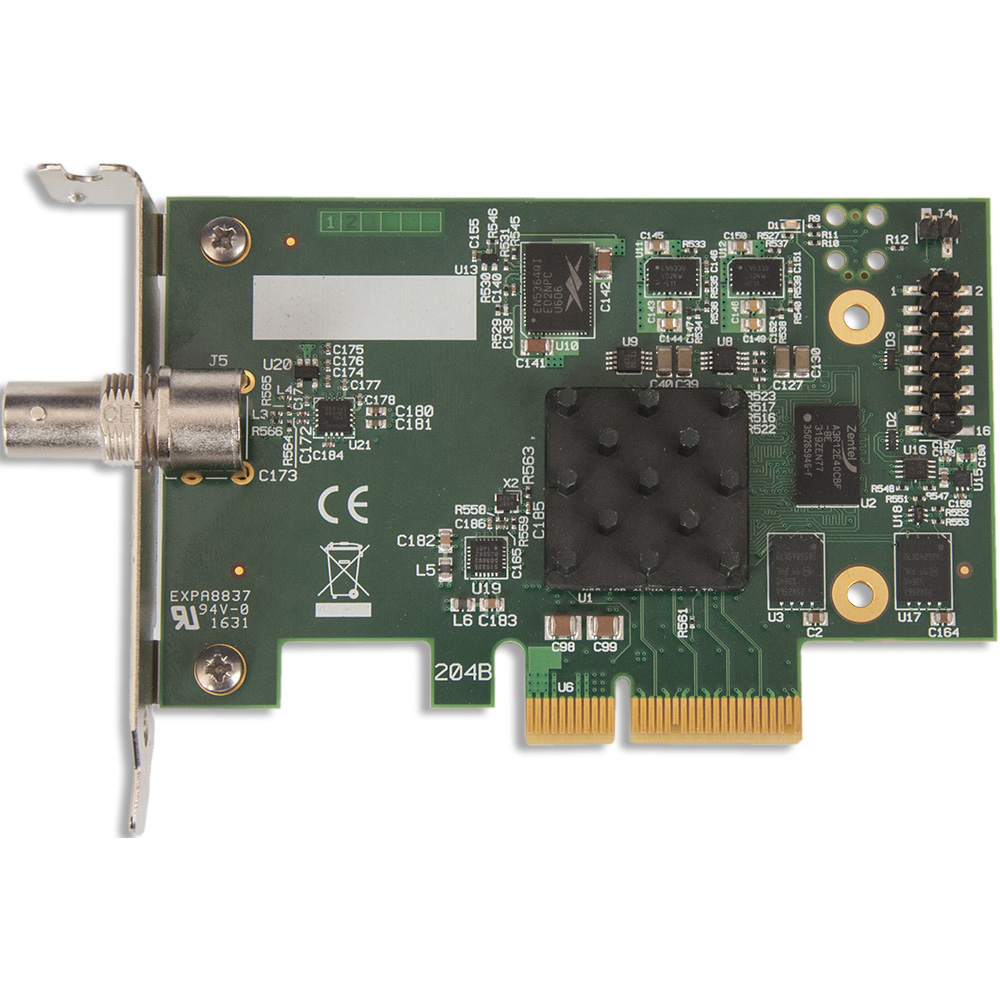

VisionLC-SDI

  • Single SDI capture channel
  • SD/ HD/ 3G at 60 fps
  • 800 MB/s DMA bandwidth
  • High performance up and down scaling
  • Colour space conversion to any output formats
  • PCI Express Gen 1×4 low profile
  • Datapath unified Windows® and Linux® driver support

VisionLC-SDI

Discrete video capture is now the mainstay of many small form factor appliances being used in markets such as lecture capture, distance learning and medical environments. Datapath’s VisionLC-SDI provides tri-band SDI capture for use within such applications. Datapath’s LiveStream:Capture architecture allows captured video to be processed and delivered in real time to a processor or graphics card.

This VisionLC-SDI supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The VisionLC-SDI natively supports 32, 24, 16 and 12 bit YUV and RGB formats.

Multi-application capture

The VisionLC-SDI capture card has been designed for use within application models such as:

  • Medical environments
  • Simulation systems
  • Live events
  • PC and gaming console capture
  • Lecture and presentation capture
  • Real time streaming

It is also possible to put more than a single card into a system for multiple capture channels.

Due to the nature of the LiveStream:Capture architecture, the VisionLC-SDI is not supported for wall controller applications that depend on Datapath’s MultiStream technology.

Video streaming

Built upon the Microsoft AV stream model, VisionLC-SDI inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.

Tested applications include:

  • Microsoft Media Encoder
  • VLC
  • Telestream WireCast
  • vMix
  • Opencast Matterhorn
  • VidBlaster
  • OBS Project
  • Adobe Flash Media Encoder
  • Dataton Watchout

Extra Protection With Advanced Swap Out And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team.

SPECIFICATIONS

Specification of the VisionLC-SDI Video Capture Card:

Board Format PCIe Gen 1 x 4 plug-in card
Dimensions 103mm x 64mm (l x h)
Connector SDI-BNC
Maximum Capture Resolution SD/ HD/ 3G at 60 fps
Transfer Rate 800MB maximum DMA transfer rate
Input Mode Detection Supports SMPTE-352 Payload identifiers
Hardware Colour Space Conversion 30 / 24 / 16 bit RGB (4:4:4)
16 bit YUV (4:2:2)
12 bit YUV, NV12, YV12 (4:2:0)
Audio Support Stereo pair PCM audio via each SDI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz
Video Modes SD-SDI (480i/ 576i) ST-259, EBU 3276
HD-SDI (up to 1080i) ST-260, 274, 296
3G-SDI (up to 1080p) ST-274, 296
2k Digital Cinema modes ST 2048-2
Low Latency LiveStream:Capture
Single frame time plus DMA transfer of final line
Operating Sysytem Support Windows® XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8/8.1 and Windows 10
Power Requirements Max current at 1A at 3.3V
Max power ≈ 3.3V
Operating Temperature 0 to 35 deg C/ 32 to 96 deg F
Storage Temperature 20 to 70 deg C (-4 to 158 deg F)
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
