VisionHD4

  • 8 Lane PCI Express Gen.3 bus
  • 3.2 GB/s total capture bandwidth in 4 PCIe lanes
  • Gen.3 or 8 Lanes Gen.2
  • Frame buffer memory 4 x 256 MB
  • Datapath unified Windows and Linux driver support

VisionHD4

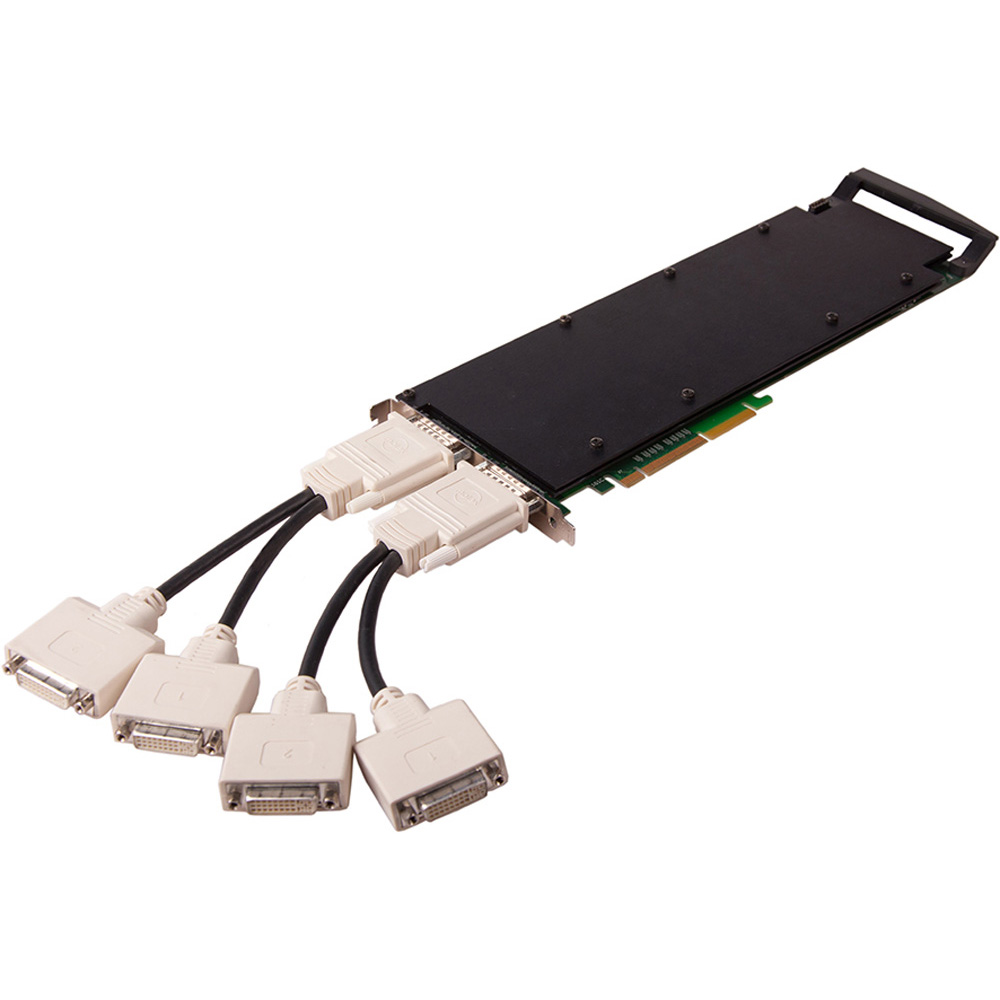

Capture four DVI-I High Definition DVI streams in a single capture card.

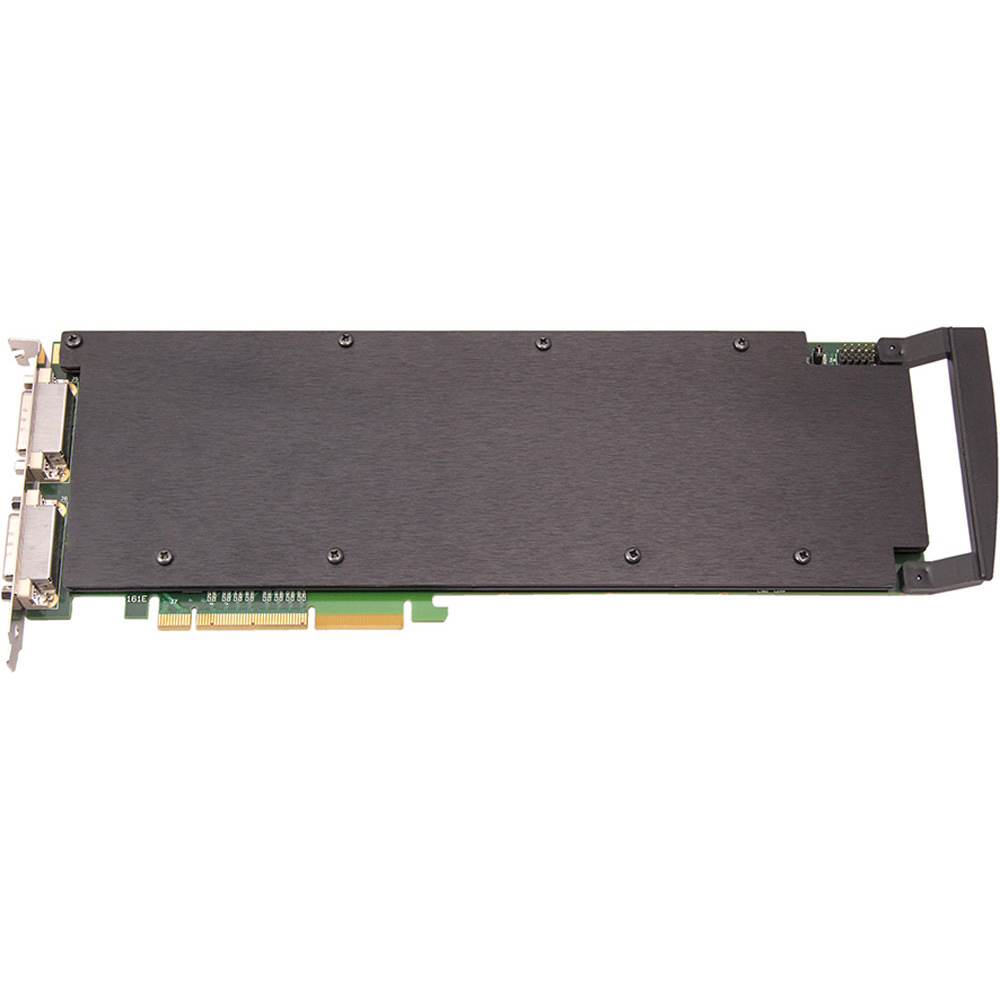

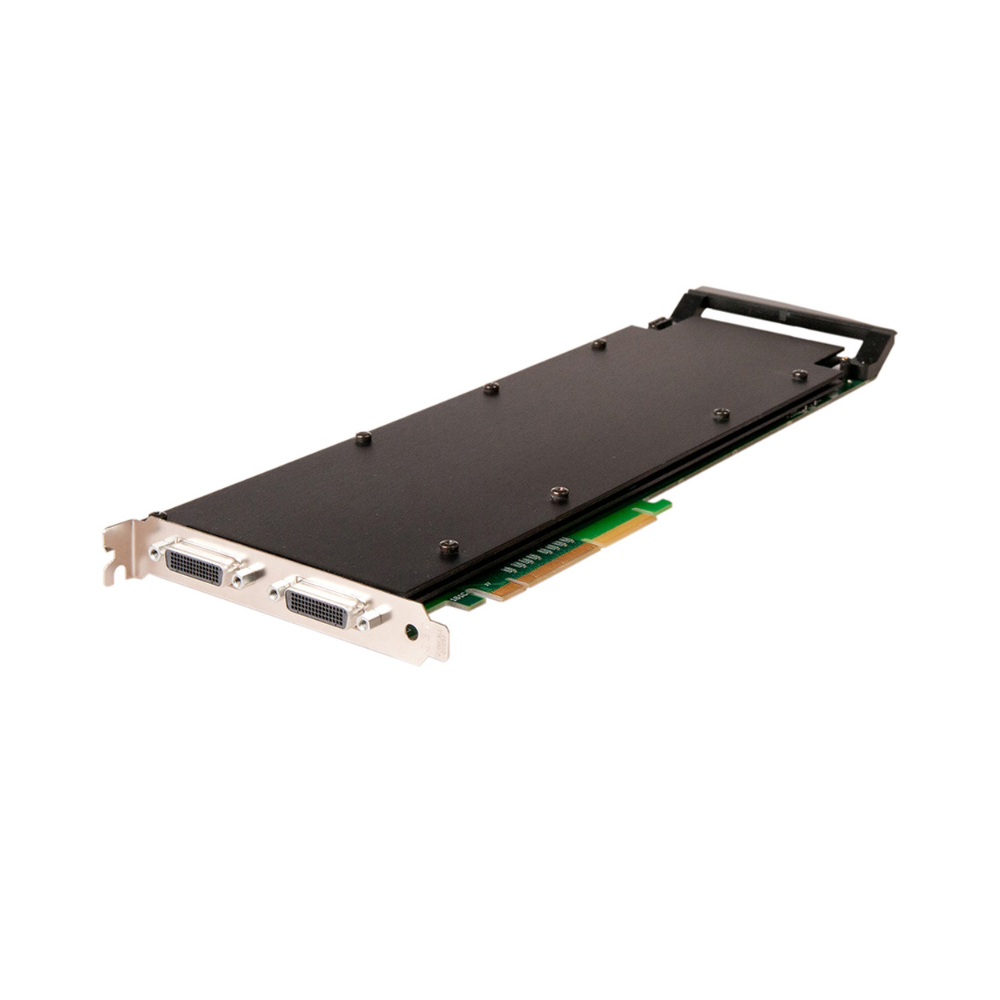

The VisionHD4 is an eight lane PCI Express capture card with four independent video capture channels, supporting HD capture.

This video capture card provides a high-performance, high-density video capture solution for control rooms, medical venues, and other applications that require high-capture bandwidth. The quad HD capture capability in combination with Datapath’s multi stream and synchronisation features enables resolutions up to 4096×2048 and Quad HD solutions.

The VisionHD4 captures all four HD video channels simultaneously and triple buffers them into onboard storage for tear free video, alongside embedded HDMI audio streams can also be captured from each channel.

This full length video capture card has four capture processors, each providing 800 MB/s bandwidth.

Extra Protection With Advanced Swap Out And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team.

SPECIFICATIONS

Specification of the VisionHD4 Video Capture Card:

Board Format Full size 8 lane PCIe 3-0 interface, 111mm x 312mm (H x L)

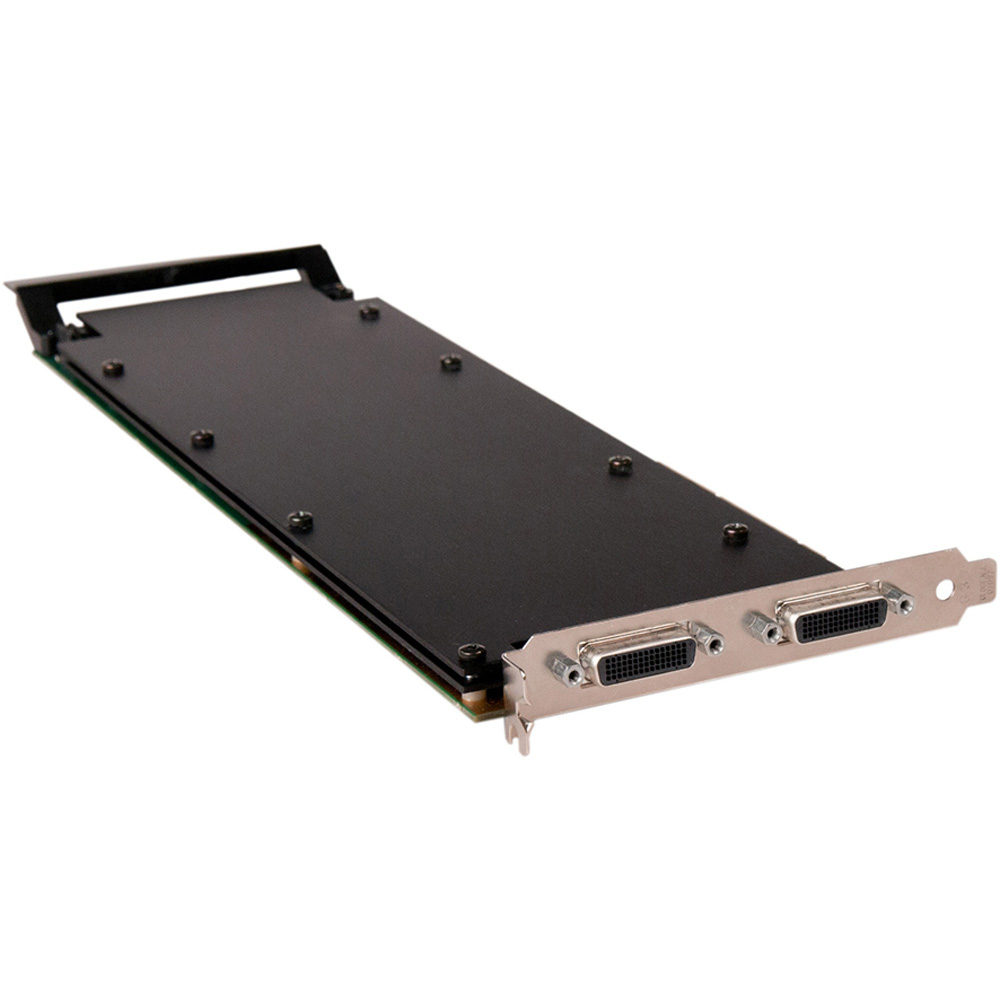

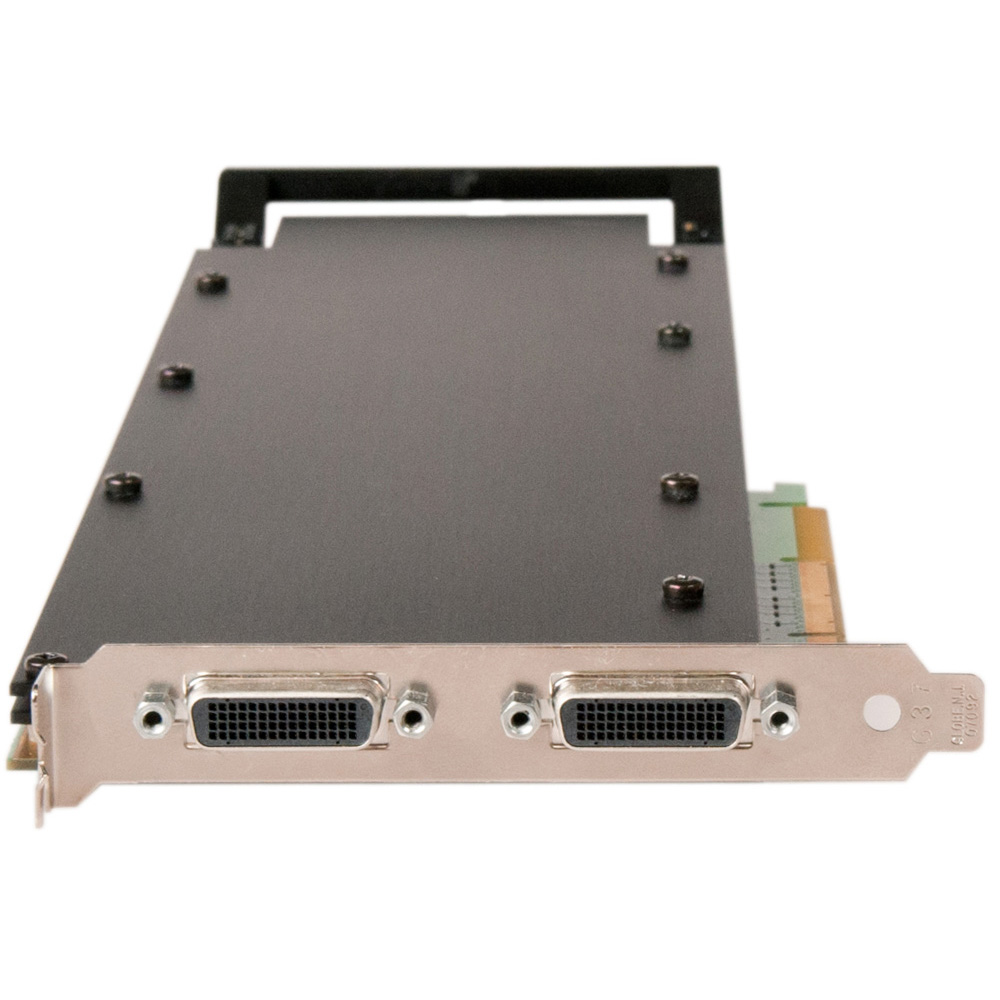

Connectors Two DMS59 high density video connectors
Maximum Sample Rate 170 Mpixels per second analogue RGB or 165 MHz DVI
Analogue modes up to 340 MHz pixel clock can be captured using dual-pass sampling
Maximum Data Rate 800 MB/s bandwidth per capture processor, 3.2 GB/s for the card
Video Sampling RGB: 24 bits per pixel/ 8-8-8 format
Video Capture Memory 256 MB per capture channel, triple buffered
Analogue RGB Mode Support 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1080, 1920×1200 and custom modes
DVI Single-Link Mode Support 640×480, 800×600, 1024×768, 1280×1024, 1600×1200, 1920×1080, 1920×1200 and custom modes
HD Modes 1080p, 1080i, 720p, 576p, 480p and 480i using a Component-DVI connector.
For HDCP support contact the sales department for more information
Input Modes Detection Direct DMA to physical or virtual memory buffers with full scatter-gather support
DMA bandwidth: up to 800MB/s
16 independent DMA streams: Any mix of HD and SD sources, colour space, cropping and scaling parameters
Pixel Transfer Formats RGB: 5-5-5, 5-6-5 or 8-8-8 (24 bit, 32 bit) pixels
YUV: 16 bit (4:2:2)
MONO: 8 bit
Update Rate User defined, capture frame rate will match the source providing max data rate (800MB/s) is not exceeded.
Multi-buffered to eliminate tearing artifacts
Video Format Options Analogue RGB plus HSync and VSync (5 wire)
Analogue RGB with Composite Sync (4 wire)
Analogue RGB with sink on Green/ YPbPr (3 wire)DVI Single Link, HDMI 1.3
Operating system support Up to Windows® 10 and Linux support (NOTE: Check Linux specific features with Sales)
Power Requirements Max current at 1.9A @ 12V
Max current at 2.5A @ 3.3A
Max power 31 Watts
Operating Temperature 0 to 35 °C/ 32 to 96 °F
Storage Temperature 20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
