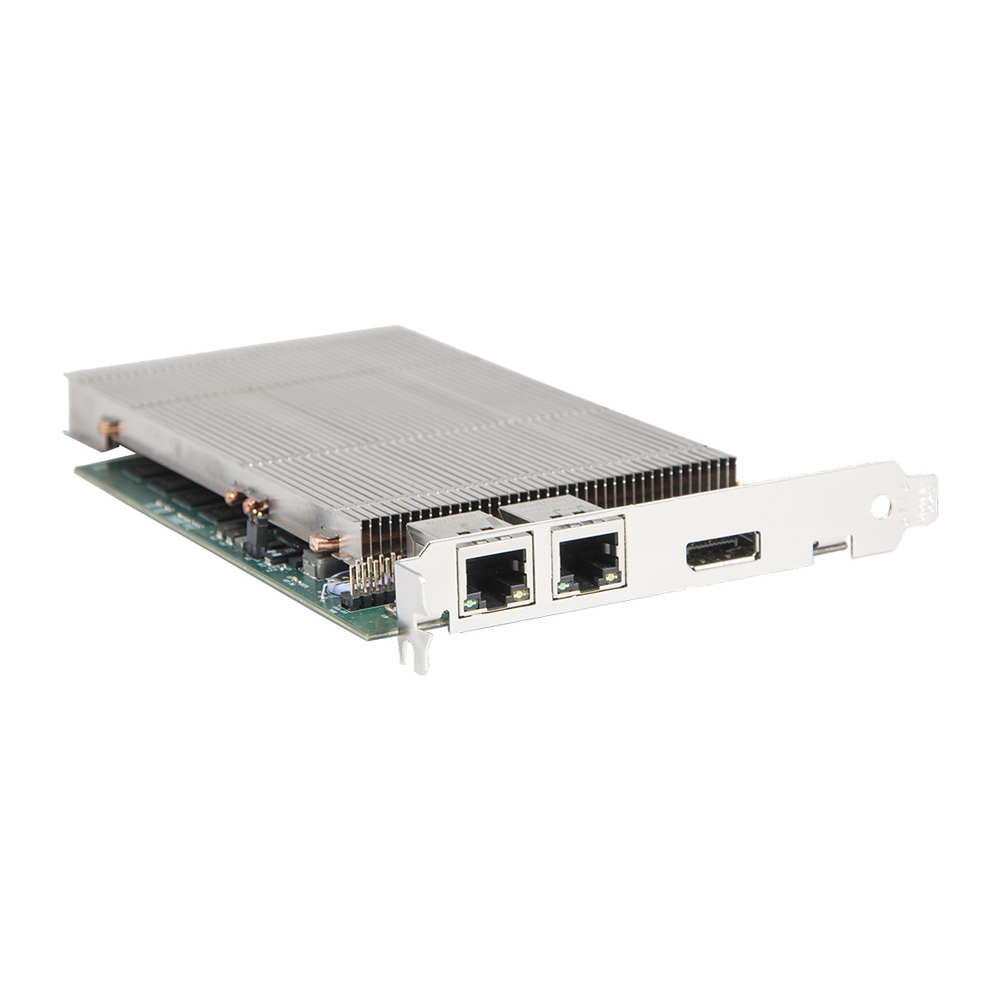

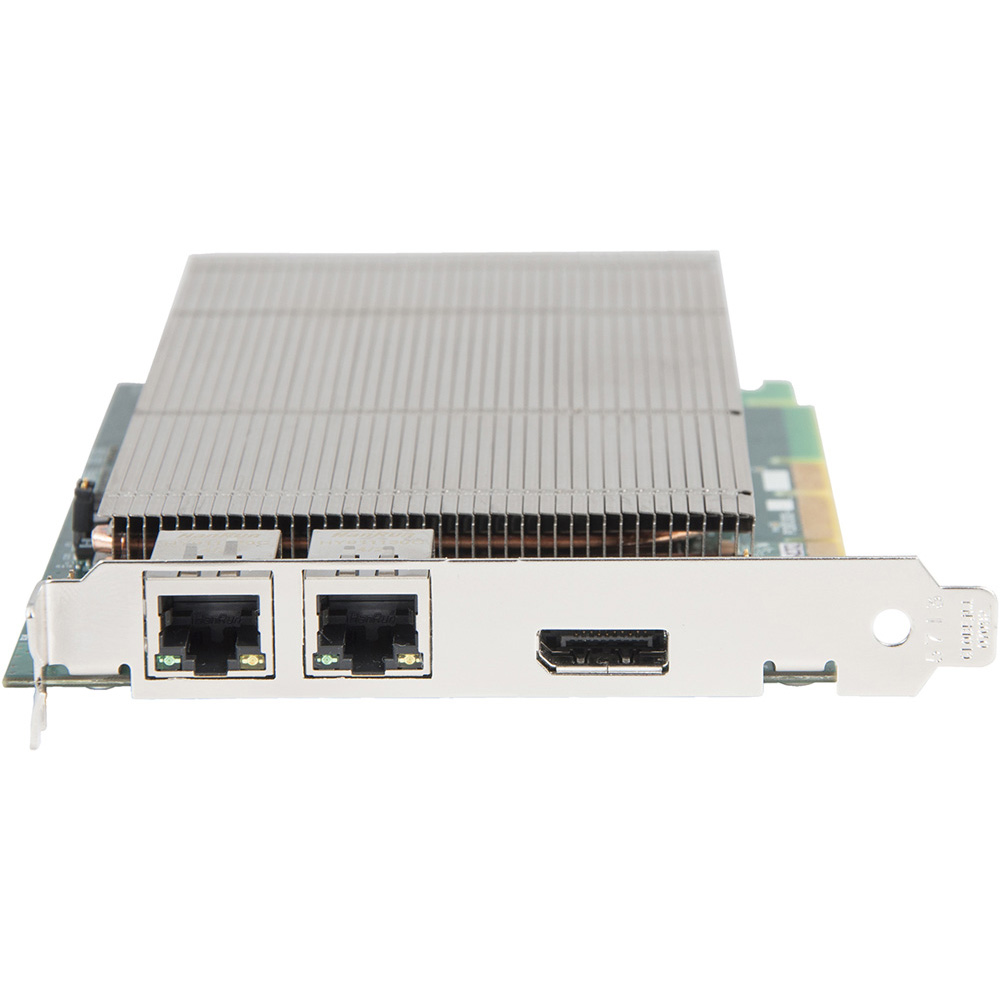

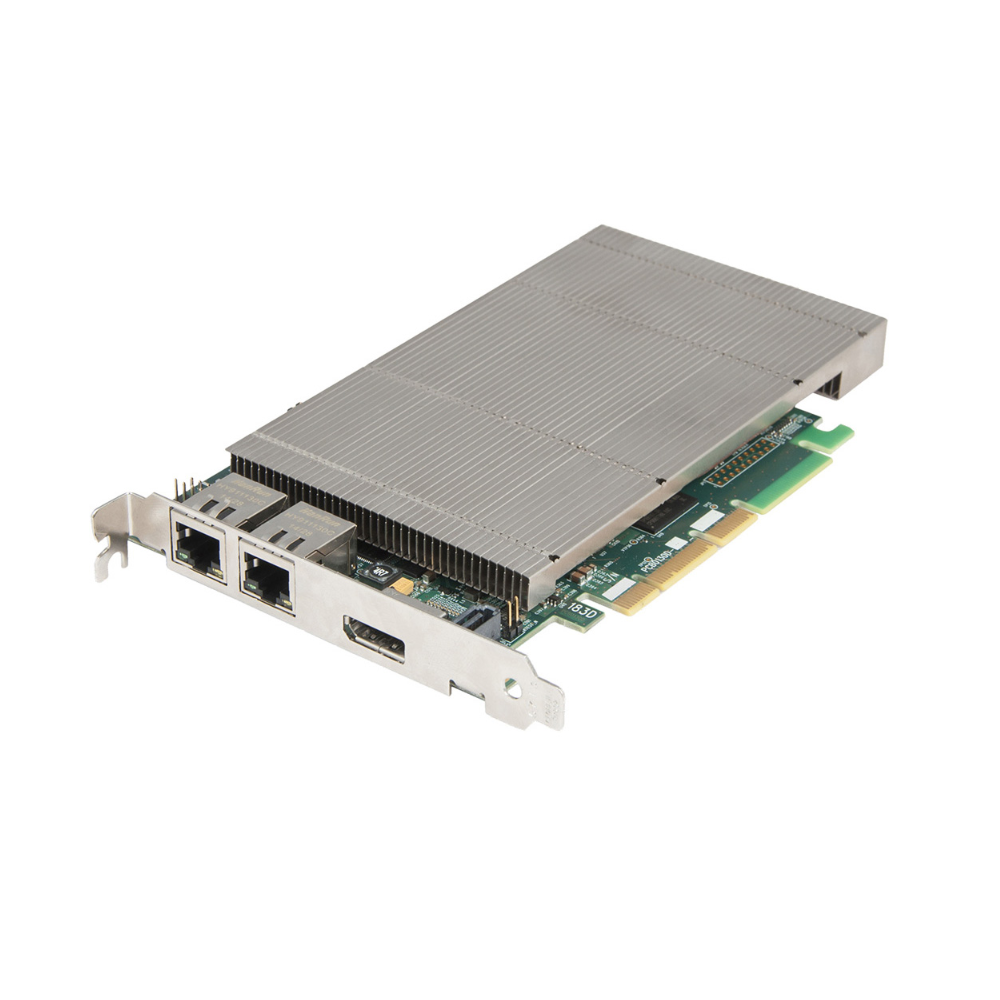

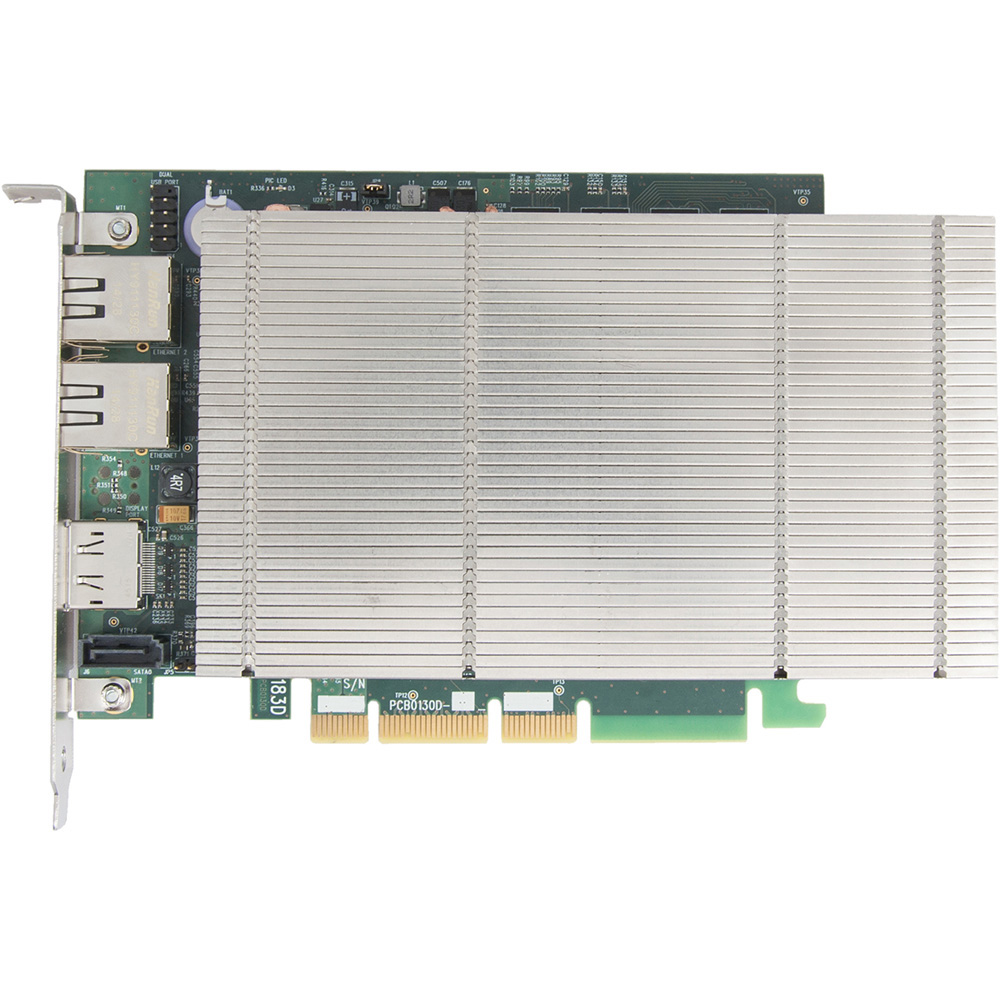

ActiveSQX

    • Dedicated decoding card with dual RJ45 Ethernet ports
    • On-board SQX decoding engine
    • 800 Mb/s from each Ethernet ‘input’

Decode multiple streams simultaneously:

    • Up to three 4096x2160p at 30 fps
    • Six 1920x1080p at 60 fps / 12 at 30 fps
    • 50+D1 resolution streams @ 30fps
    • Maximum will depend on H.264 profiles and levels of incoming media

Advanced Dedicated IP Streaming Decoding Technology

Professional AV solutions require video to be recieved from a great many different sources and locations. The ability to receive and display video directly from online resources such as CCTV networks and remote desktop applications, and then combining them with local inputs, has become a crucial part of fully functional video wall display. Datapath’s ActiveSQX PCIe plug in card is a powerful addition to systems that require a scalable hardware based decoding solution.

The ActiveSQX includes a dedicated processor capable of decoding several IP streams simultaneously via the on-board ethernet ports. Fully PCIe compatible, multiple ActiveSQX cards can be used in a single system to provide project scalability giving users more processing and more simultaneous decodes.

Datapath SQX Technologies

Datapath’s SQX technology is compatible with industry standards for video compression and streaming. The ActiveSQX allows users to decide large numbers of high definition 1080p 60 fps streams and multiple ActiveSQX cards reside in a single system to provide even more decoding capabilities. In addition, the ActiveSQX can be placed in systems alongside graphics cards and video capture cards, such as the Datapath Vision range, to provide a powerful addition to any control room environment. Combine the ActiveSQX with the VisionHD2-SQX to provide full decode and encode capabilities in a single video wall system.

SPECIFICATIONS

Specification of the ActiveSQX Capture Card:

Board Format PCIe x4 Gen.2 plug-in card half length, full height
Connectors 2 x RJ45 Ethernet ports, 1 x DisplayPort output connector (reserved for future use)
Ethernet
 Dual 1000 Base-T Ethernet ports DHCP or Static IP support IPv4 & IPv6
Streaming Methods Multicast & Unicast support
Streaming Codecs H.264 (Mpeg4 Part 10 AVC), VC-1, MPEG2 Part 2, MJPEG
Streaming Containers MPEG4 part 1, MPEG2-TS, WMV, MOV
Streaming Protocols HTTP, RTSP, RTP, UDP
Decode Density*
 Up to 1x4096x2160 @ 60fps / 3x4096x2160p @ 30fps or 6x1920x1080p @ 60fps / 12 x 1080p @ 30 fps or 10 x 1080i @ 30fps / 50+ D1 @ 30 fps
De-interlacing Supported
Stream Authentication Basic & Digest Stream Authentication
Video Capture Memory
 4 GB
H.264 Profiles
 Constrained Baseline Profile (CBP) / Main Profile (MP)/ High Profile (HiP)
H.264 Levels
 Level 3/ 3.1/ 4/ 4.1/ 4.2/ 5/ 5.1/ 5.2
Colour Format
 NV12 4:2:0
DMA Engine
 Direct DMA to physical or virtual memory buffers with full scatter-gather support DMA bandwidth: up to 1.3 GB/s
Scaling
 Hardware downscaling prior to DMA transfer. One to One (1:1) transfer for upscale after DMA
Carousel
 IP Window carousel supported including the hardware based pre-buffering of IP decodes for smoother playback
OS Support Windows 10 64 bit/ Server 2012
Power Requirements Max current at +3.3 – 0.6A (TBC)
Max current at +12V – 0.80A (TBC)
Max power ≈ 12W (TBC)
Operating Temperature 0 to 40 °C/ 32 to 104 °F
Storage Temperature -20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

*Decode density may be affected if either the encoded stream was originally encoded to a pixel format other than NV12 (eg. YV12) or if the encoded stream is interlaced and requires de-interlacing.

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
