- HDMI output compatible with DVI

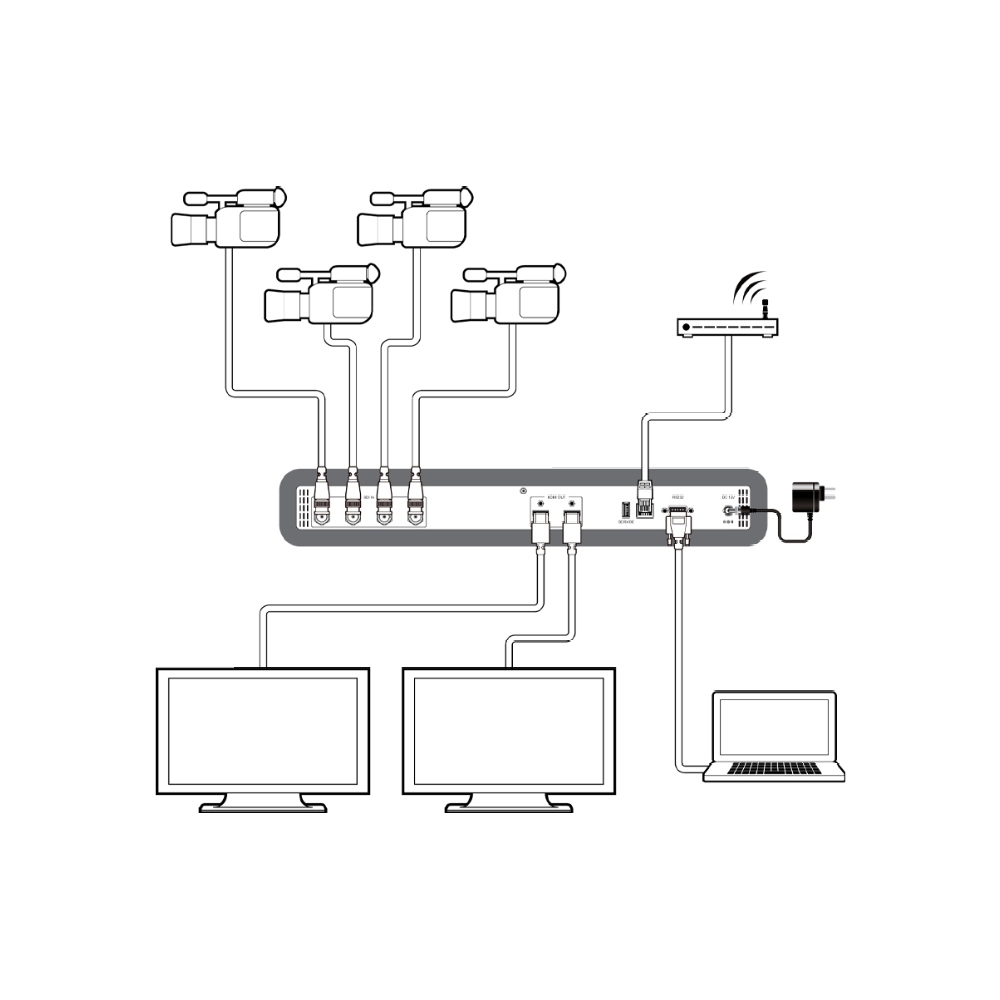

- Combine four SDI sources into a single HDMI signal and simultaneously output to two HDMI displays
- Seamless switching between channels and windows
- Zoom, shrink or overlay the 4 input images
- Supports PIP (Picture-in-Picture), POP (Picture-out-of-Picture) and multi-window display
- Supports OSD (on-screen display), RS-232, IR remote control and on-panel controls
- Supports fade in/fade out, chromakey, mirror and rotation functions
- Supports 8 preset hot keys and extra 4 customized favorite screen setting
- Supports individual channel size and position adjustment
- Supports SDI standards: SMPTE 259M-C@270Mbit/s, SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s, and SMPTE 424M/425M-A@2.970Gbit/s &2.970/1.001Gbit/s
- Supports SDI to HDMI signal conversion: SD-SDI to 480i/576i, HD-SDI to 720p/1080i and 3G-SDI to 1080p/1080PsF
- Supports HDMI output resolutions: 480i, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, and 1080PsF@23.98/24/25/29.97/30Hz
Inputs
- 4x BNC [4x 3G-SDI / HD-SDI / SD-SDI]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
PSU:
- 12V/3A
Dimensions
- 482mm [W] x 274mm [D] x 52mm [H]
Net Weight
- 2976g
