CM22-VCU
4K Video Conference Camera with USB3.0 & HDMI

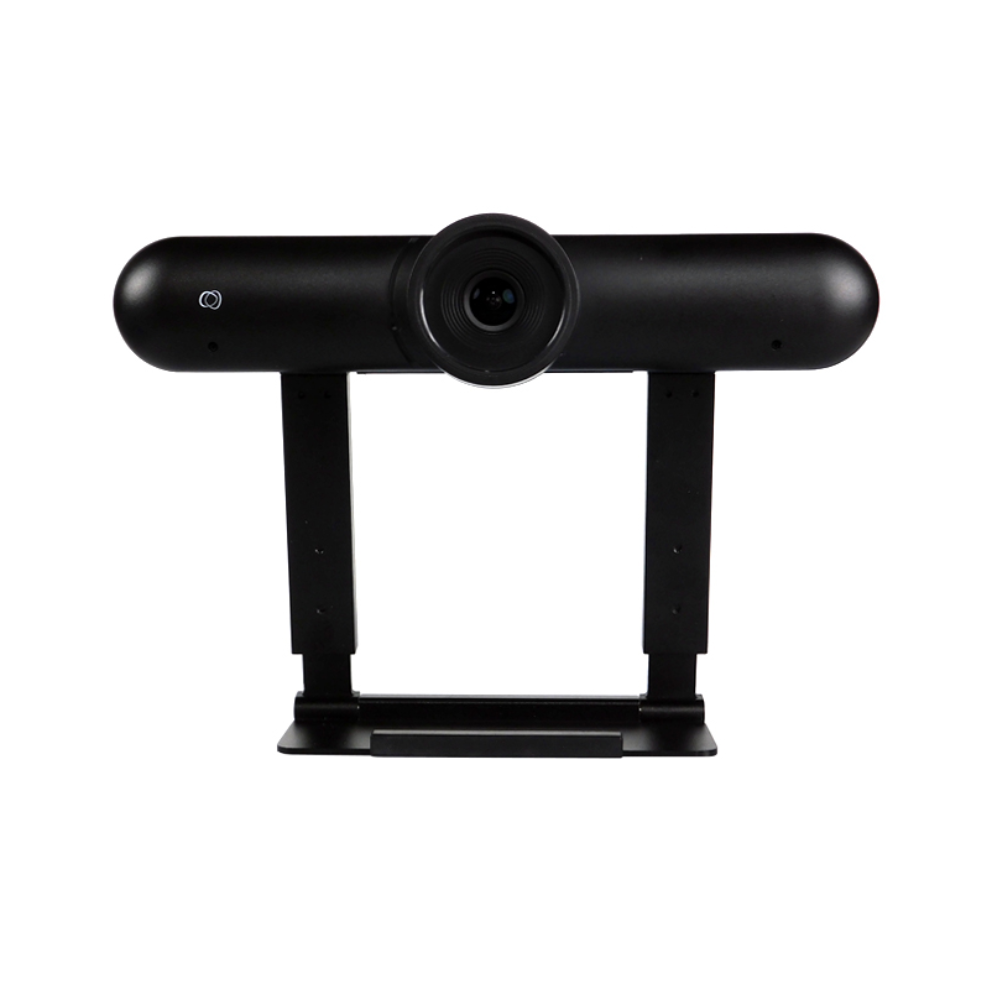

The Avonic CM22-VCU boasts a 4K, wide angle lens up to 120 degrees FOV that makes sure you can capture all attendees. A true integration product with a discrete design and mount developed for PRO-AV installations.

FEATURES

The Avonic CM22-VCU boasts a 4K, wide angle lens up to 120 degrees FOV that makes sure you can capture all attendees. Its smart automatic and fully user configurable modes guarantee crystal clear video even under the most challenging light conditions. Built in user configurable dual microphones allow for easy audio capture. A true integration product with a discrete design and mount developed for PRO-AV installations. It can be easily mounted either on top of or below a screen for optimal line of sight during a meeting. The mount can be used in combination with modern thin-bezel screens.

PRODUCT SPECIFICATIONS

⦁ Lens

Fixed focus lens with 120° Horizontal Field of View (FOV)

⦁ Output

HDMI and USB3.0 up to 4K30 or 1080p30 on USB 2.0

⦁ Control

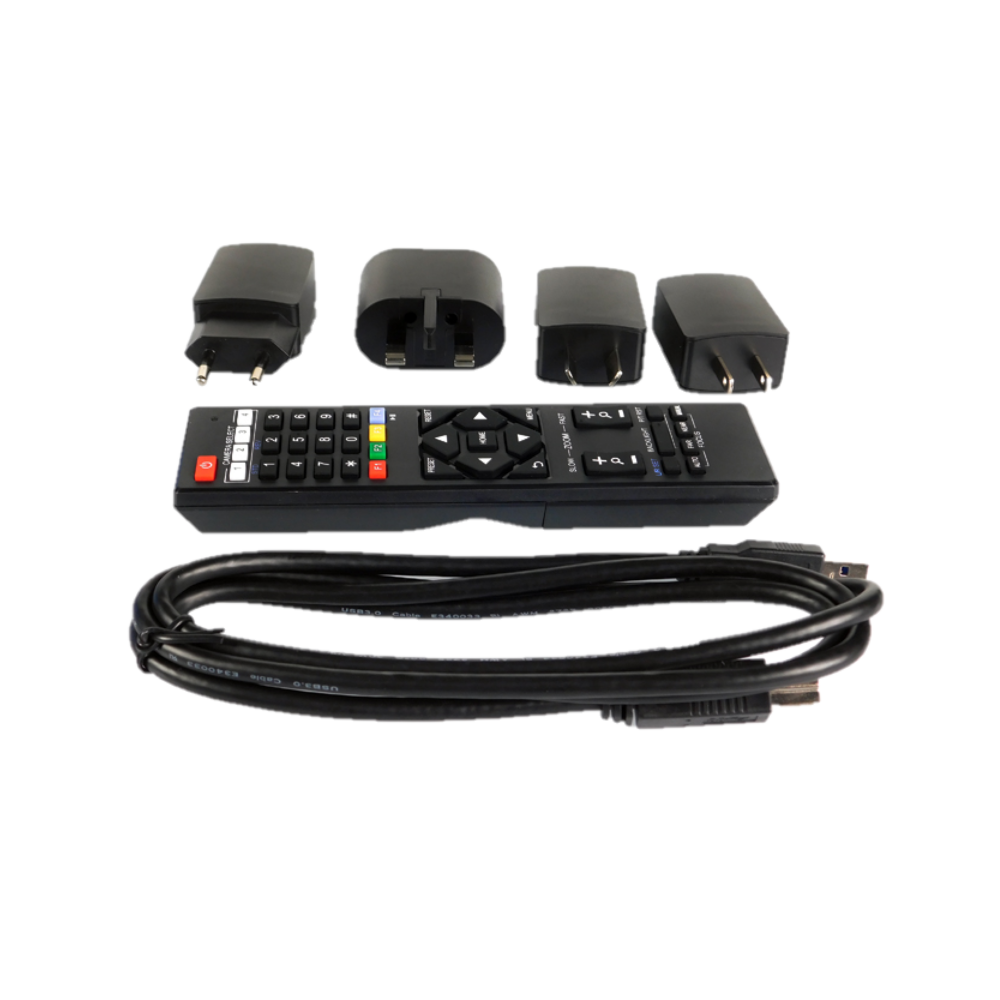

Control the camera via any UVC based videoconference application or the included IR remote control.

⦁ Presets

10 user-definable presets with Digital Pan Tilt and Zoom including startup prese

⦁ Crystal Clear Image

4K Progressive CMOS sensor 2160P ultraHD.

⦁ Audio

Built-in dual noise-cancelling microphones with 4-meter pickup range

⦁ Auto-framing

The CM22 automatically adjusts its zoom and focus for an optimal framing of the subjects. The CM22 continuously detects the amount of people and will act accordingly, making maximum use of its 4K resolution and 8x digital zoom range.

⦁ Audio embedding

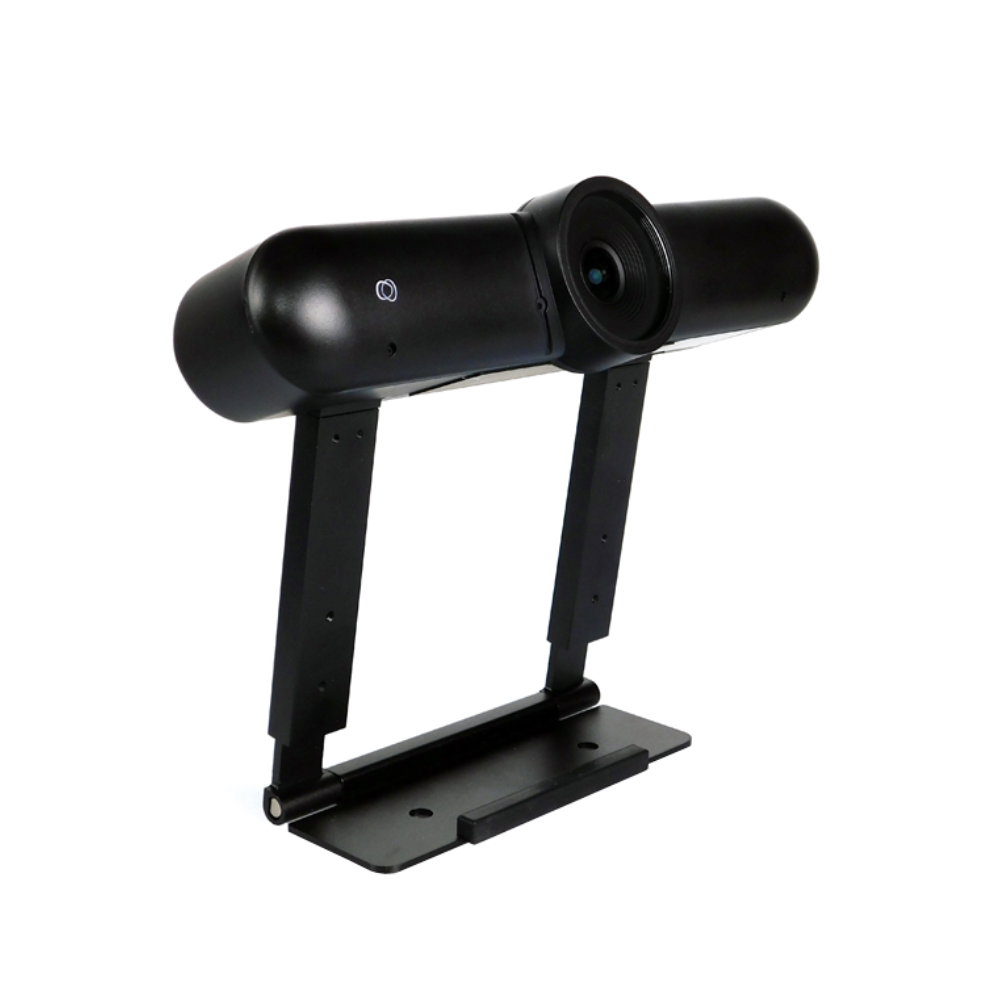

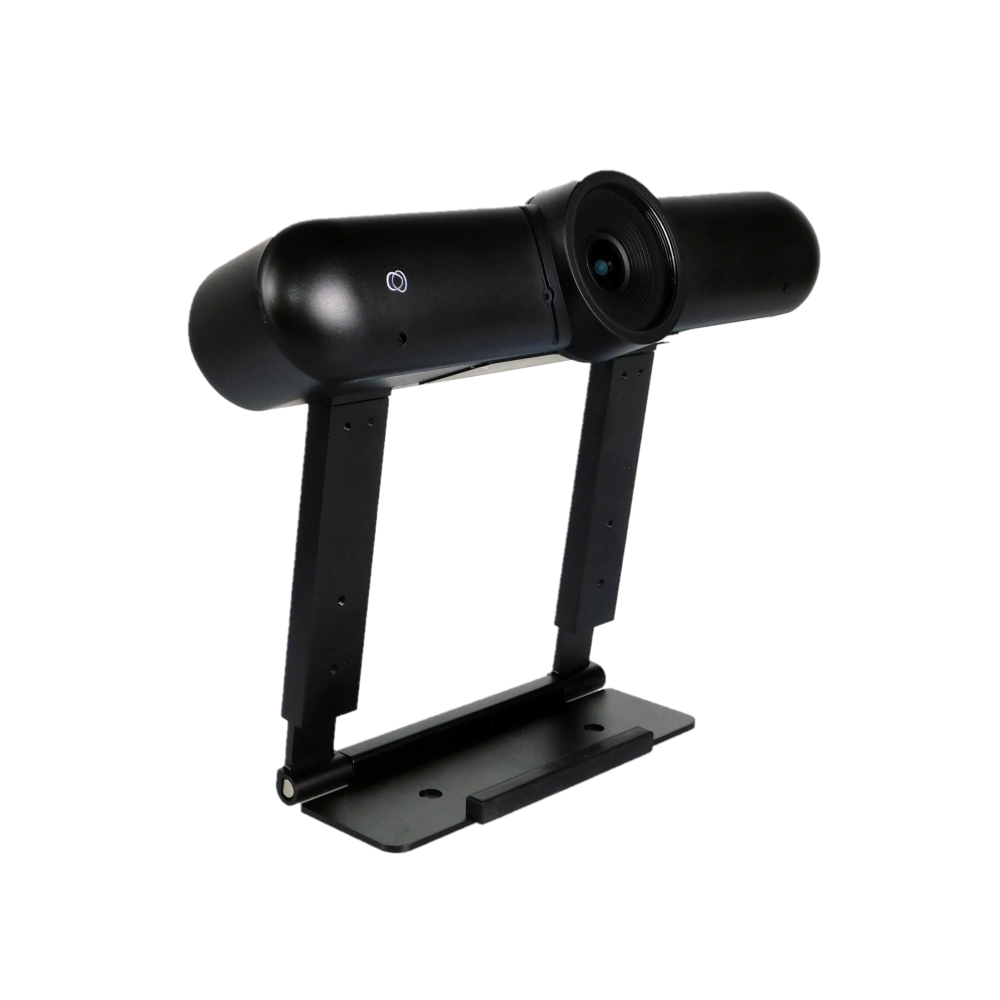

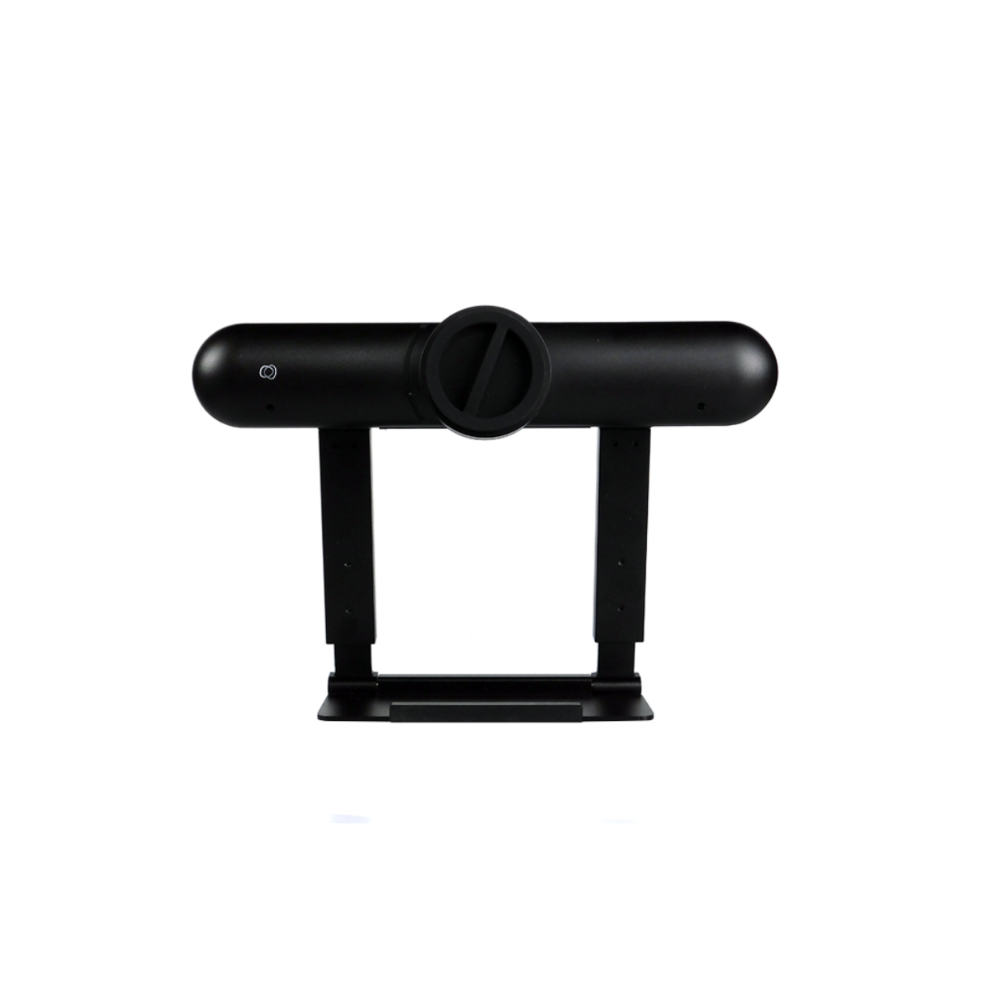

Detachable integration mount with the ability to secure and mount the camera above and below thin-bezel screen.

Product Information

Weight 1.2 kg
Dimensions 31 × 10 × 26 cm

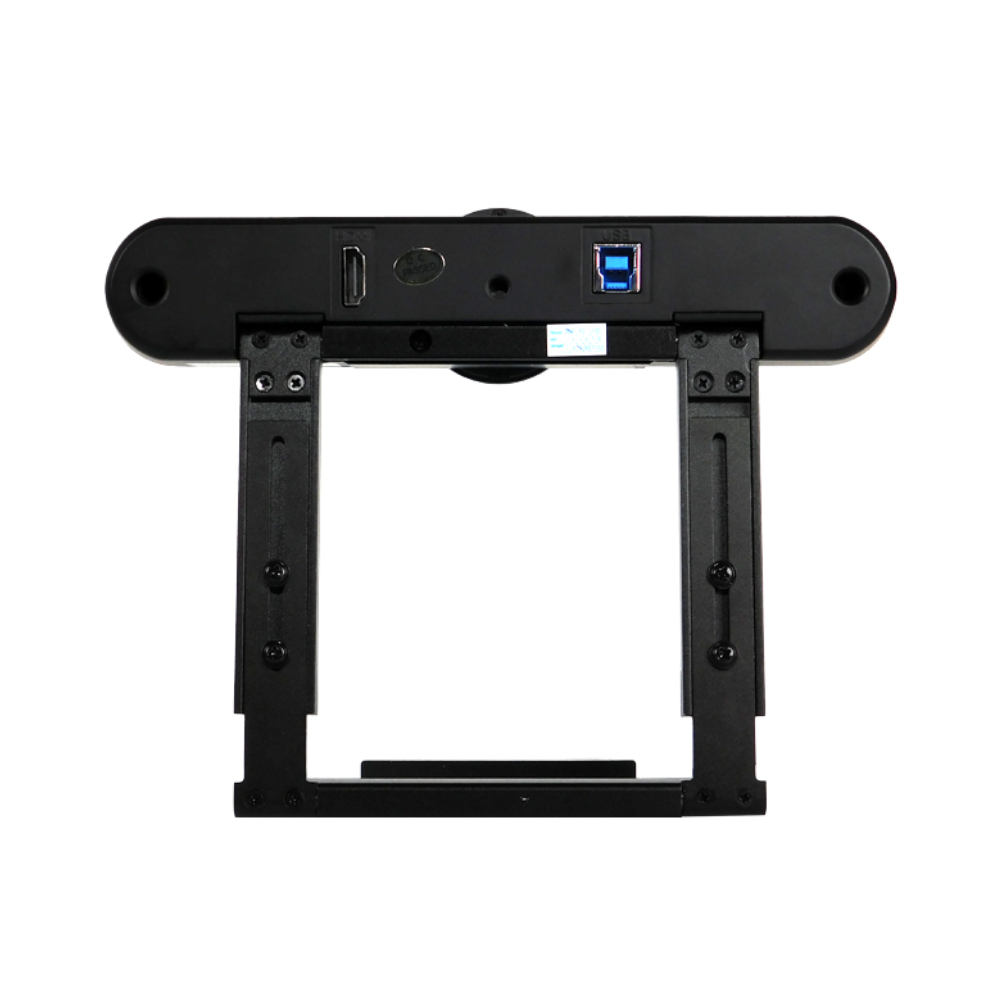

Video Output HDMI, USB 3.0
Color Black
Power 5V USB
Control IR remote, USB UVC
