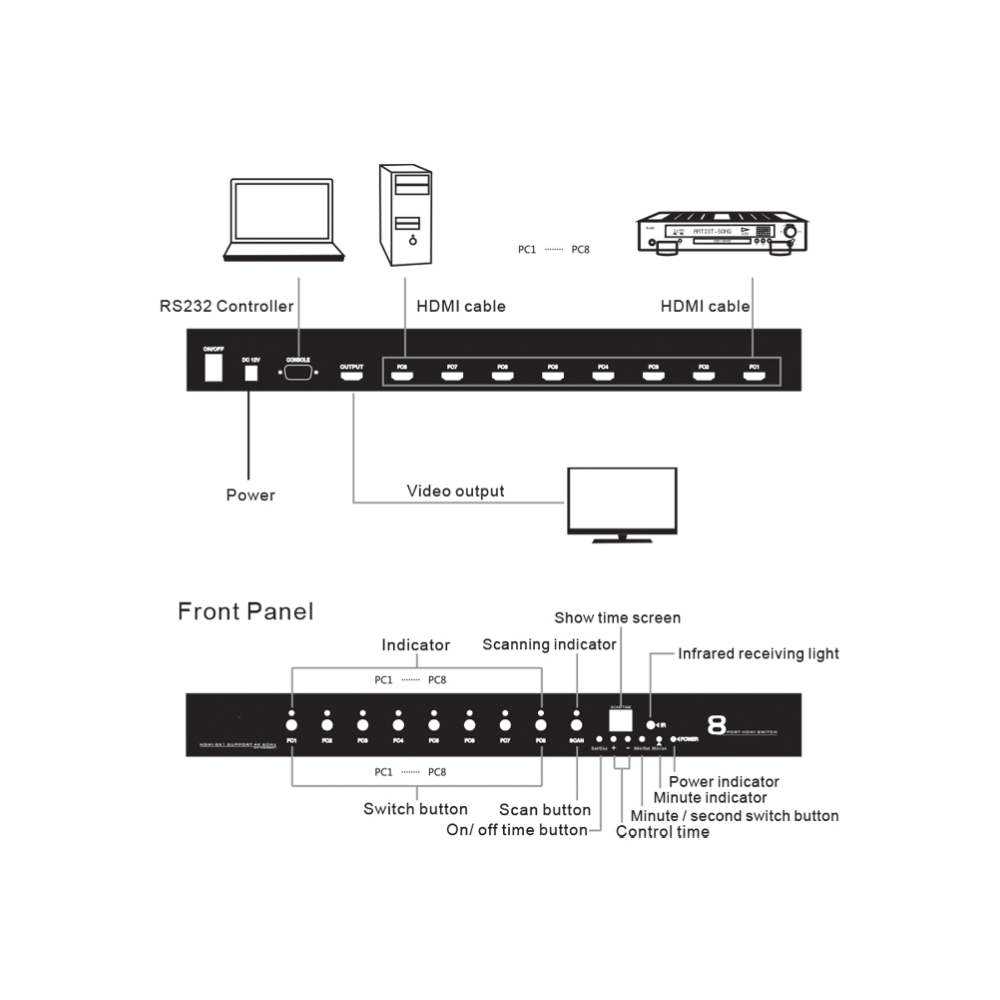

This 4K HDMI Audio Video switch can connect 8 roads HDMI signal sources to an HDMI display. It supports the resolution up to 4K (4096*2160@60Hz 4:4:4), data rate 18Gbps, 3D, color depth up to 12 bits, and distortion-free audio format. The 8 port HDMI auto switch is equipped with an automatic switching mode, which can provide the convenience of automatic switching of signals and an instant switching function, allowing users to easily switch between HDMI signal sources. In addition, users can quickly and easily operate the 8×1 HDMI switch in many ways. For example: through front-panel buttons, two-way RS-232 serial port, IR, and automatic switching functions. This model is suitable for multi-clock application environment, such as: home theater, conference room, trade exhibition hall, shopping mall.
Connect up to 8 HDMI signal source to an HDMI display
Support HDCP2.2 standard
High resolution: true 4K resolution (4Kx 2K@60Hz 4: 4: 4) and 1080P(1920 *1080 @60Hz)
Support automatic scanning(Interval time can be arbitrarily set in units: minutes / second)
Support RS-232 serial port for high-level system control
Automatic switching mode supports automatic selection of the connection port
Support IR switching function
LED indicator show signal status
Plug and play
Rack-mount design
