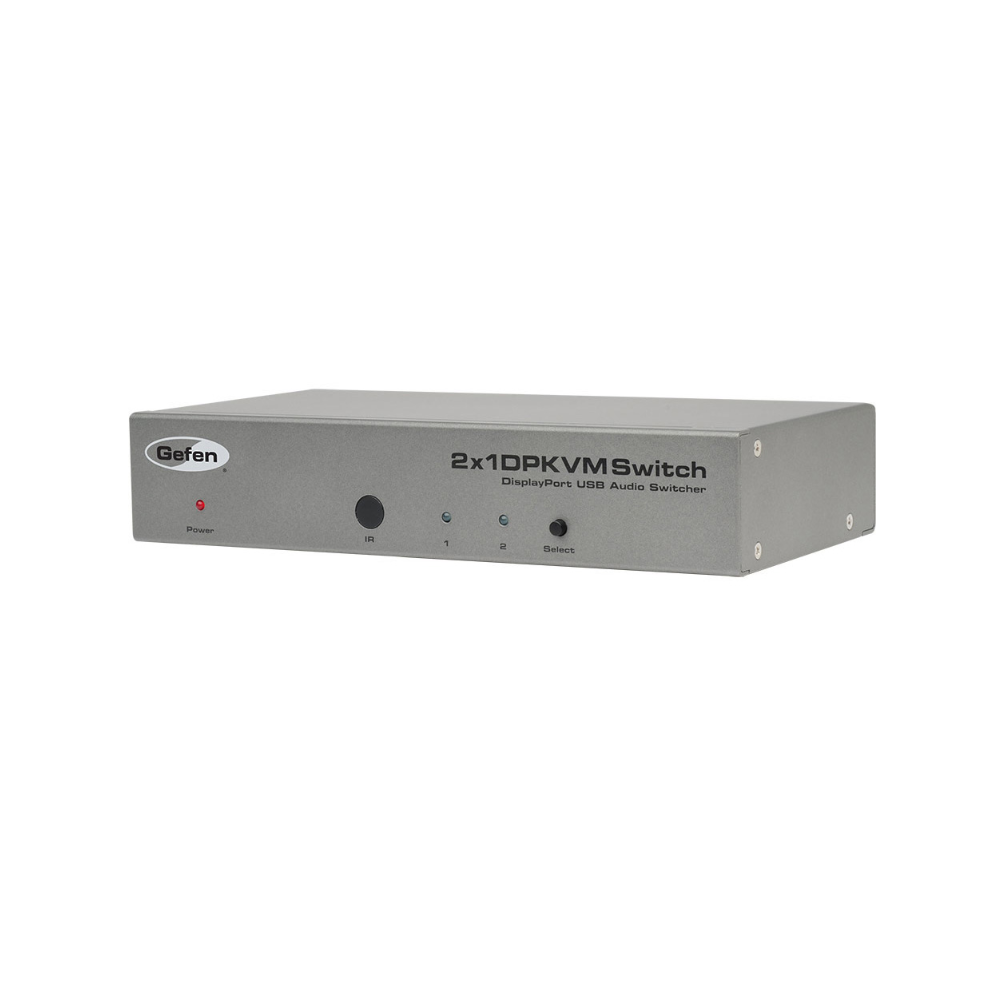

EXT-DPKVM-241
2×1 DisplayPort KVM Switcher

Switches DP 1.1 up to 2560×1600, USB 2.0, and Analog L/R Audio between two computers and one workstation

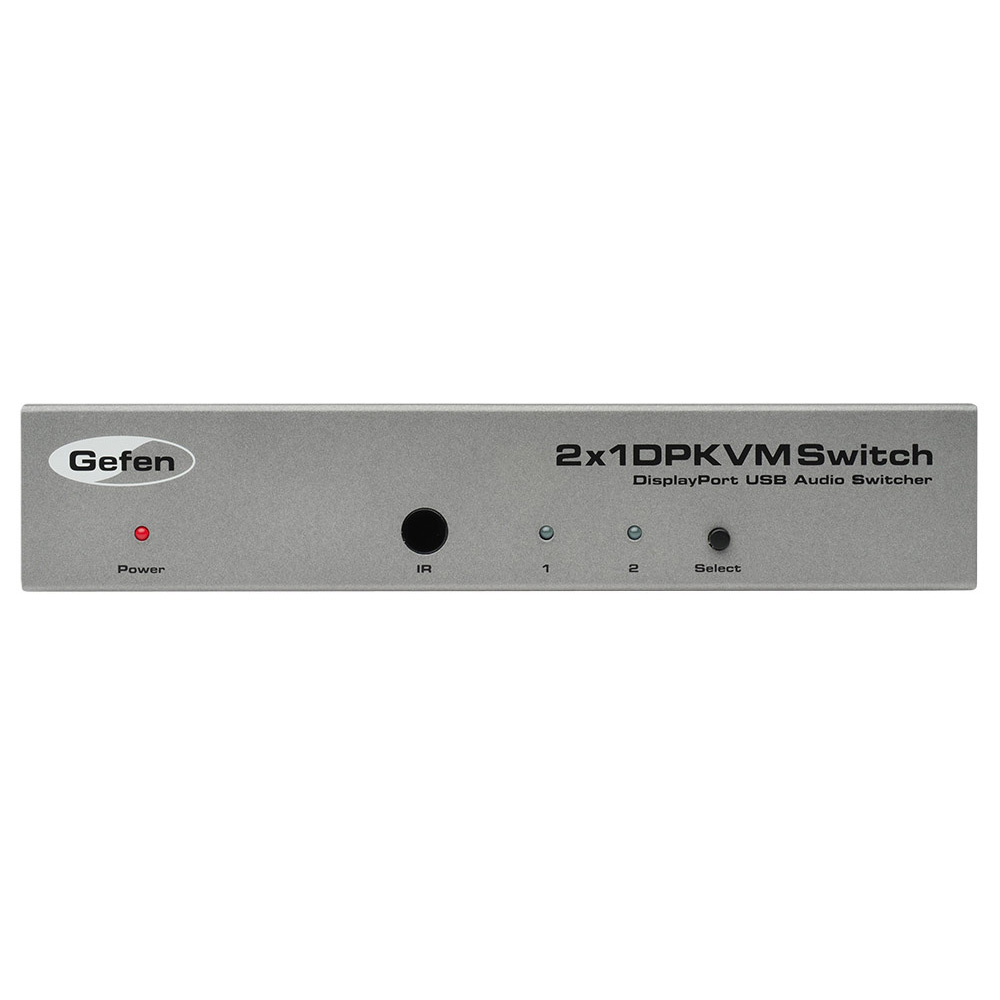

Switch between two computers effortlessly using the Gefen EXT-DPKVM-241 2×1 DisplayPort KVM Switcher, utilizing one display and one USB 2.0 port for a keyboard and mouse. Switch audio, video, and control signals for each computer. Access two computers from one workstation without having to use a network. Switch through the front panel “select” button, using the supplied IR remote control or via the RS232 port. The Gefen DisplayPort KVM Switcher is compatible with both Macintosh and PC keyboards, mice, and displays.

Video Support

Resolutions up to 2560 x 1600 (WQXGA) are supported.

FEATURES

  • Switches one High-Resolution Display between two DisplayPort-equipped computers with audio/video and USB keyboards
  • Supports resolutions up to 2560 x 1600
  • Supports RGB and YCbCr color spaces
  • DisplayPort utilizes a compact connector for easier installations
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U

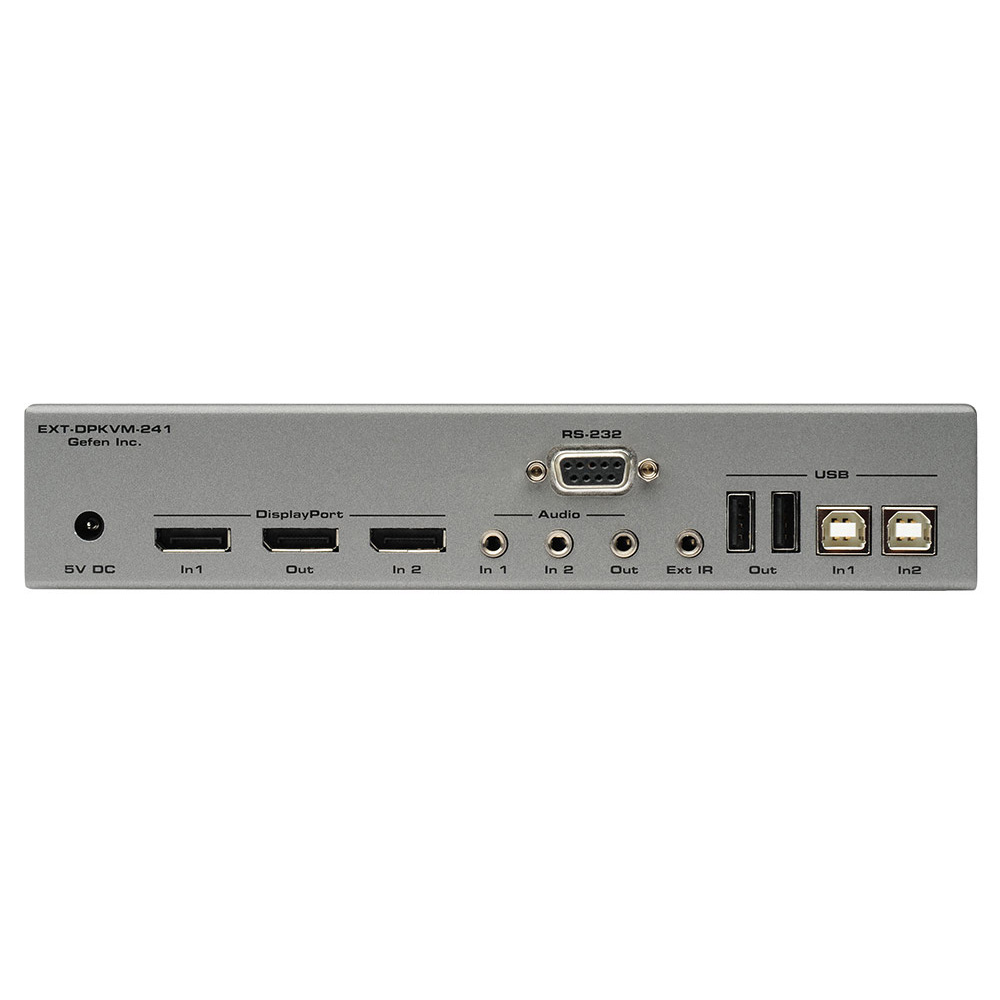

SPECIFICATIONS

  • Maximum Pixel Clock: 360 MHz
  • Input Connector: (2) DisplayPort (from computers)
  • Output Connector: (1) DisplayPort (to display)
  • Input Connector: (2) USB 2.0 Type “B” (from computers)
  • Output Connector: (2) USB 2.0 Type “A” (to keyboard/mouse)
  • Input Connector: (2) 3.5mm analog L/R audio (from computers)
  • Output Connector: (1) 3.5mm analog L/R audio (to speakers or amplifier)
  • Dimensions (W x H x D): 8.41″ x 1.57″ x 4.23″ (213mm x 39mm x 107mm)
  • Shipping Weight: 6 lbs (2.7 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length16.93 (Inches)
  • Width6.3 (Inches)
  • Height5.31 (Inches)
  • Weight3.6 (Lbs)
  • UPC845344048413
  • Other Specifications
  • Maximum Pixel Clock: 360 MHz
  • Input Connector: (2) DisplayPort (from computers)
  • Output Connector: (1) DisplayPort (to display)
  • Input Connector: (2) USB 2.0 Type “B” (from computers)
  • Output Connector: (2) USB 2.0 Type “A” (to keyboard/mouse)
  • Input Connector: (2) 3.5mm analog L/R audio (from computers)
  • Output Connector: (1) 3.5mm analog L/R audio (to speakers or amplifier)
  • Dimensions (W x H x D): 8.41″ x 1.57″ x 4.23″ (213mm x 39mm x 107mm)
  • Shipping Weight: 6 lbs (2.7 kg)

In The Box

  • DisplayPort KVM Switcher (EXT-DPKVM-241)(1)
  • 6 ft. DisplayPort Cables (CAB-DPN-06MM)(2)
  • 6 ft. USB Cables (A-B) (CAB-USB-6)(2)
  • 6 ft. 3.5mm Mini Stereo Audio Cables (CAB-AUDIO-6)(2)
  • 5V Power Supply w/ US, EU, UK, & AU plugs (EXT-PS526AIPN or EXT-PS526AIPN-6)(1)
  • IR Remote Control (RMT-2IRN)(1)
  • Quick-Start Guide (QSG-DPKVM-241)(1)
