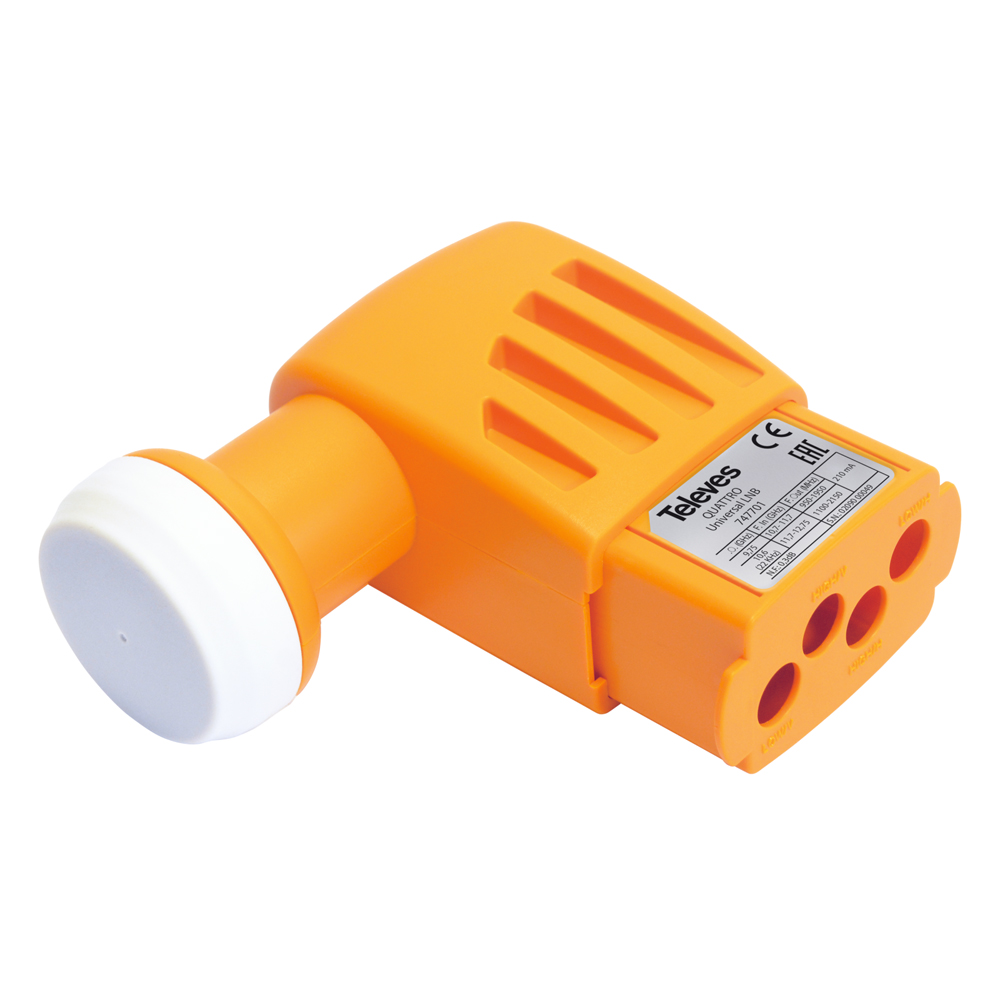

Quattro LNB offset
4 outputs: Hh-Vh-Hl-Vl / Ref. 747701

Highlights

  • Low visual impact design and small casing
  • High gain
  • Low noise figure
  • Outstanding linearity and careful equalization
  • High discrimination between polarities
  • Very high IP protection index (IP66)
  • Can be used under extreme temperature conditions

Main features

  • Light-weight
  • Compatible with 40-mm supports
  • Low power consumption
  • Power feeding either through the receiver or the multiswitch
  • Simple connection
  • Multisatellite-compatible solutions

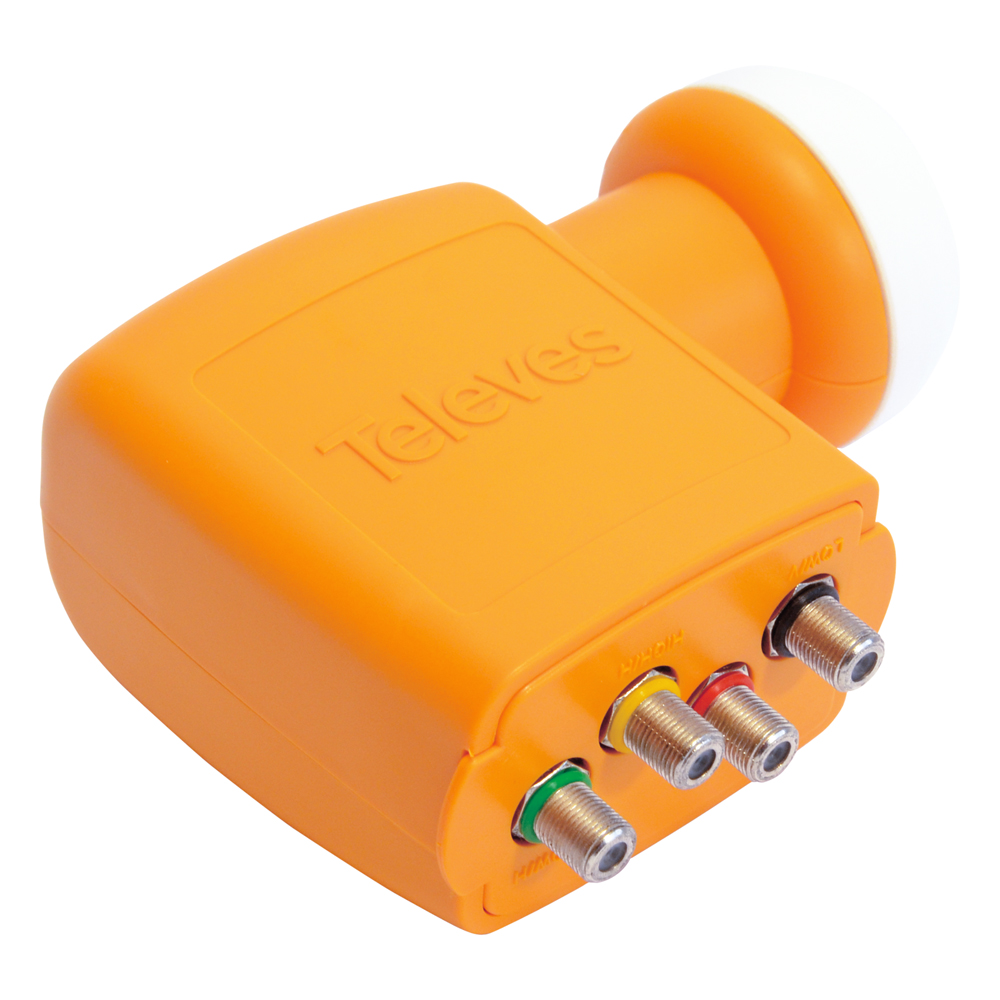

Quatro LNB converter, equipped with four outputs, each with one specific polarity/band combination (Hh, Hl, Vh, Vl). Each output is marked with the respective colour: black for Vl, red for Vh, yellow for Hh, and green for Hl.

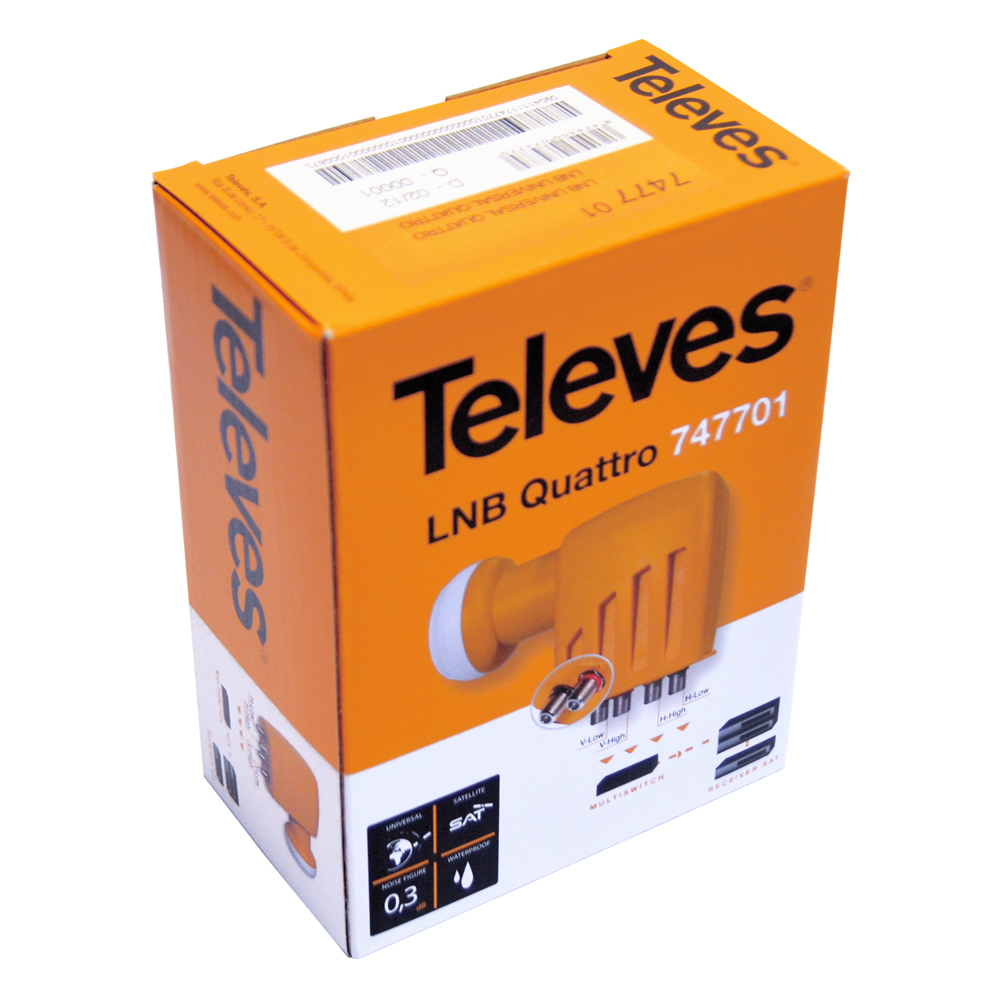

Supplied in individual packing.

SPECIFICATIONS

Frequency range GHz 10.7 … 12.75
Control signals Horizontal Vdc 16 … 19
Control signals Vertical Vdc 12 … 14
Output frequency range MHz 950 … 2150
L.O. frequency 0KHz GHz 9.75
L.O. frequency 22KHz GHz 10.6
Gain dB 60
Noise figure dB 0.3
L.O. stability MHz -1.5 … 1.5
Polarities discrimination dB > 20
Phase noise (@10 KHz) dBc -75
Powering Vdc 12 … 20
Max. current mA 245
Impedance Ω 75
Connectors “F” female
LNB-bracket diameter mm 40
Operating temperature °C -30 … 60

DOWNLOADS

APPLICATION EXAMPLE

The illustration shows an installation to distribute 20 channels of MUX DVBS2_QAM/COFDM CI T-0X.

ADDITIONAL INFORMATION

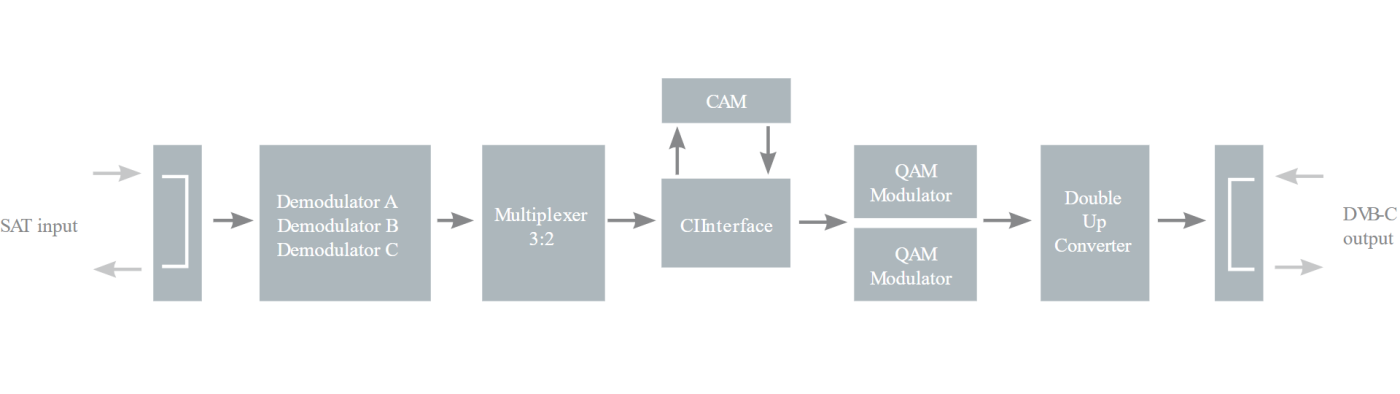

Block Diagram
