Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR

Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR 4K 60 Hz, 4:4:4

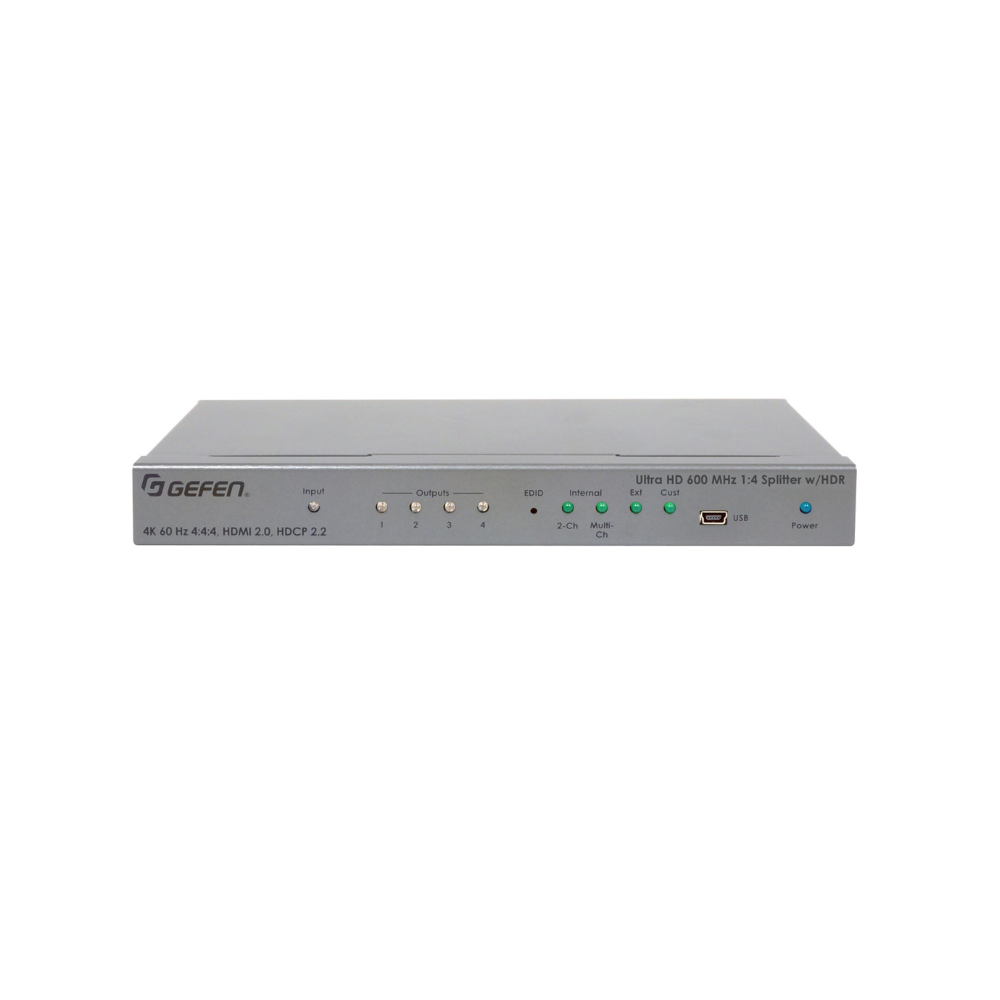

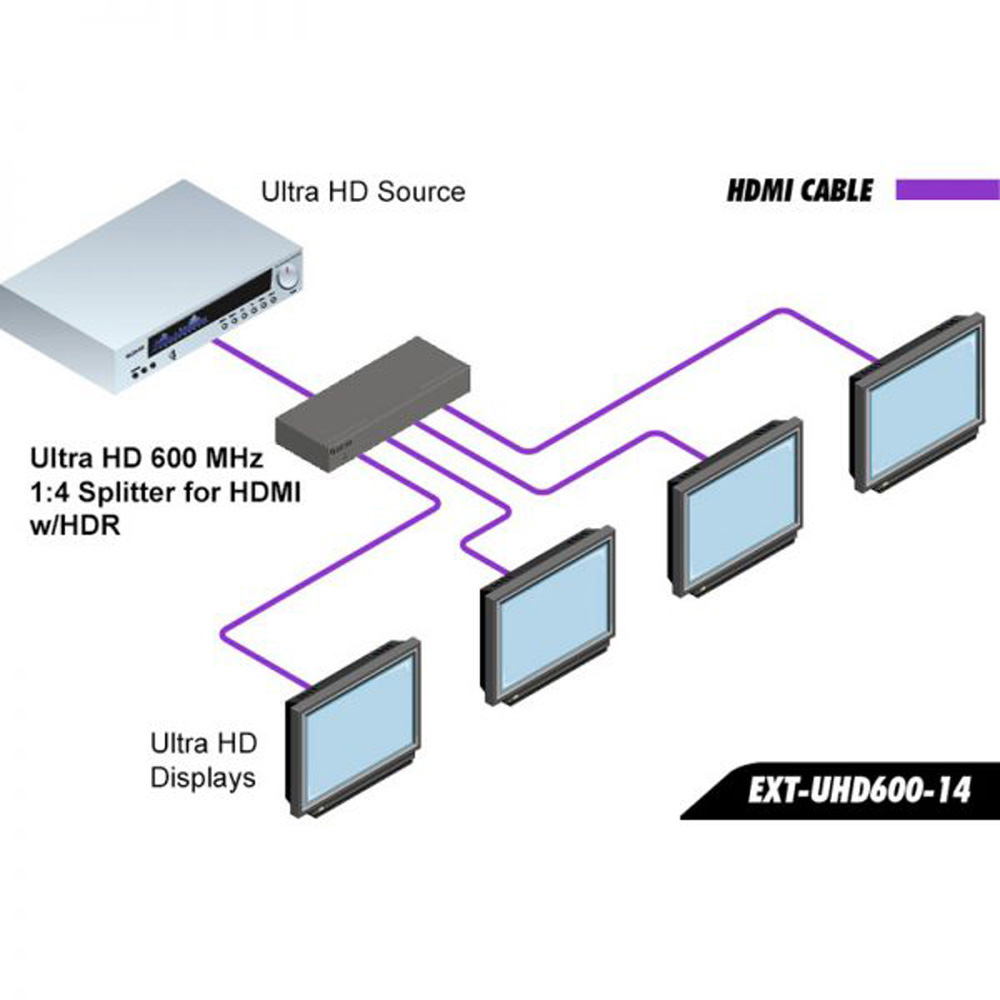

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-14 splitter distributes signal from one 4K source, and distributes it to up to four 4K displays or video zones. The splitter features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It also accommodates Gefen locking HDMI cables for secure connections.

Video Support

Gefen’s Ultra HD 600MHz Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefens Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow. Supporting the digital rights management standar(more…)

FEATURES

  • Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays
  • Specifically designed to support multiple layers of splitting/cascading** in large video distribution and signage applications, supporting up to hundreds of displays
  • Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4), 1080p Full HD, & 1920×1200 (WUXGA)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p 60 Hz 4:4:4
  • 3DTV pass-through
  • Lip Sync pass-through
  • EDID Management and Audio Mode selectors for rapid integration of source and displays
  • Supports uncompressed LPCM digital audio up to 7.1 channels
  • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA), with HDMI-to-DVI adapters (not included)
  • Advanced EDID and HDCP Management via USB, using the Gefen Syner-G software
  • In-field firmware update via USB, using the Gefen Syner-G software
  • Long Reach Power (LRP)(more…)

SPECIFICATIONS

  • Maximum Pixel Clock: 600 MHz
  • HDMI Input Connector: (1) Type A 19-pin female, locking
  • HDMI Output Connectors: (4) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V: 500 mA
  • Cascading ability**: Typically up to 10 layers without HDR and up to 6 layers with HDR

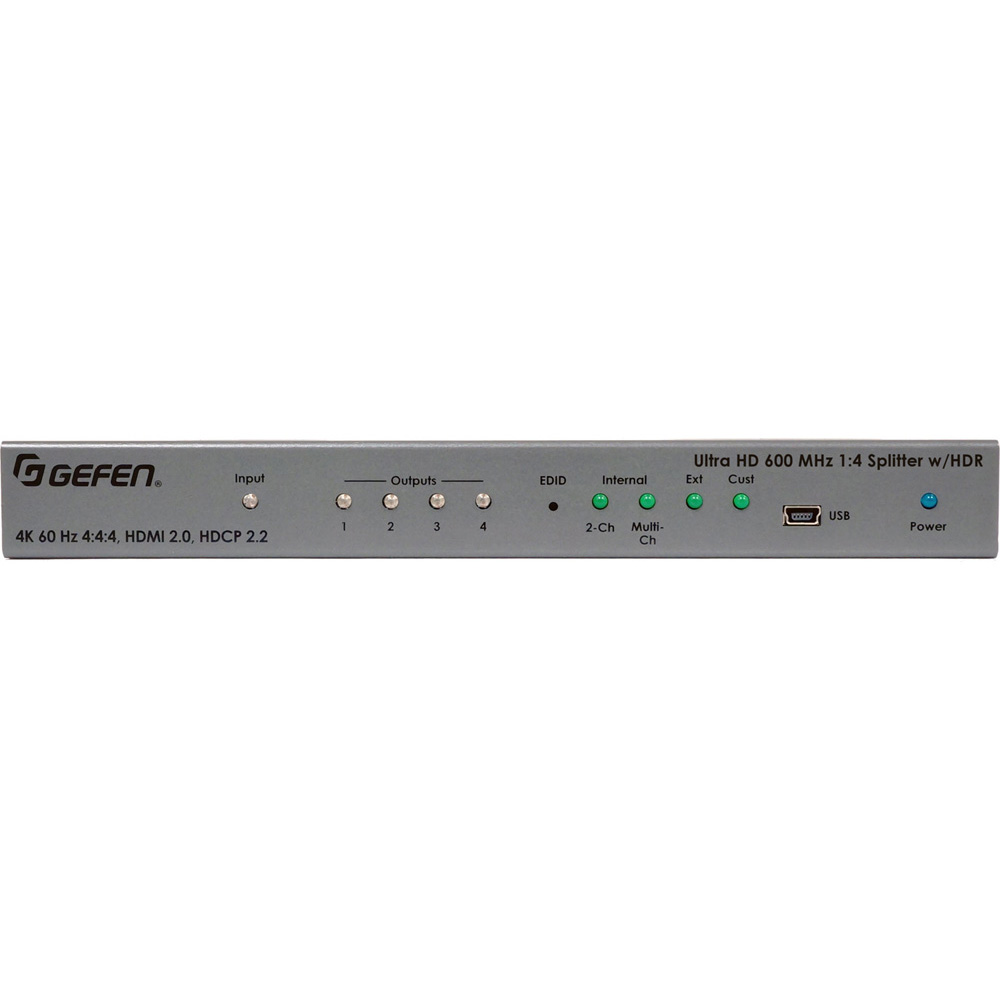

  • USB Port: (1) Mini-B
  • Power Indicator: (1) LED, blue
  • Input Indicator: (1) LED, green
  • Output Indicators: (4) LEDs, green
  • EDID/Audio Indicators: (4) LEDs, green
  • EDID/Audio Selector Switch: (1) recessed tact switch
  • DC Power Connector: (1) Locking type
  • Power Supply: 5V DC
  • Power Consumption: 7.5W
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 300000 hours
  • Dimensions (W x H x D, without connectors or feet): 8.4″ x 1″ x 3.7″ (213mm x 25mm x 93mm)
  • Net Weight: 0.75 lbs (0.3 kg)
  • Shipping Weight: 2.2 lbs (1 kg)
  • ** Actual cascading layer count is dependent on the robustness of HDMI Source output section and the HDMI Display input section. HDR reduces cascading ability.

OTHER SPECIFICATIONS

Shipping Info

  • Length12.3 (Inches)
  • Width6.1 (Inches)
  • Height4.3 (Inches)
  • Weight2.15 (Lbs)
  • Unit of MeasureEach
  • UPC888814374933

Other Specifications

  • Maximum Pixel Clock 600 MHz
  • HDMI Input Connector (1) Type A 19-pin female, locking
  • HDMI Output Connectors (4) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V 500 mA
  • Cascading ability** Typically up to 10 layers without HDR and up to 6 layers with HDR
  • USB Port (1) Mini-B
  • Power Indicator (1) LED, blue
  • Input Indicator (1) LED, green
  • Output Indicators (4) LEDs, green
  • EDID/Audio Indicators (4) LEDs, green
  • EDID/Audio Selector Switch (1) recessed tact switch
  • DC Power Connector (1) Locking type
  • Power Supply 5V DC
  • Power Consumption 7.5W
  • Operating Temperature +32 to +122 °F (0 to +50 °C)
  • Operating Humidity 5% to 90% RH, non-condensing
  • Storage Temperature -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity 0% to 95% RH, non-condensing
  • MTBF 300000 hours
  • Dimensions (W x H x D, without connectors or feet) 8.4″ x 1″ x 3.7″ (213mm x 25mm x 93mm)
  • Net Weight 0.75 lbs (0.3 kg)
  • Shipping Weight 2.2 lbs (1 kg)
  • ** Actual cascading layer count is dependent on the robustness of HDMI Source output section and the HDMI Display input section. HDR reduces cascading ability.

In The Box

  • Ultra HD 600 MHz 1:4 Splitter for HDMI w/ HDR (EXT-UHD600-14)1
  • 6 ft locking HDMI cable (CAB-HD-LCK-06MM)1
  • 5V Power Supply w US/EU/UK/AU plugs (EXT-PS526AIP-LP-6)1
  • Surface Mounting L-Brackets2
  • M3 6 mm Machine screws for mounting the L-Brackets to unit4
  • 6-32 5 mm Machine screws for mounting the unit to EXT-RACK-1U-GRY (available separately)2
  • Self-Adhesive Rubber Feet4
  • Quick-Start Guide1
