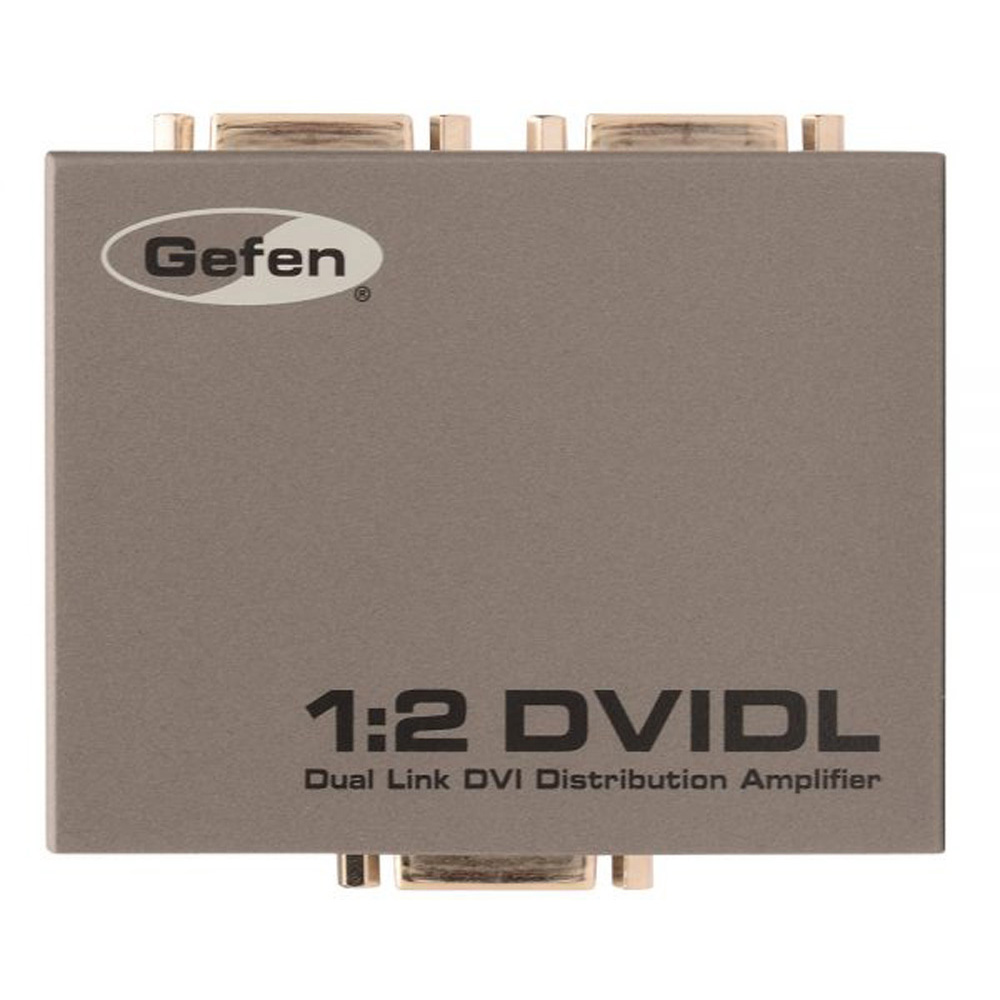

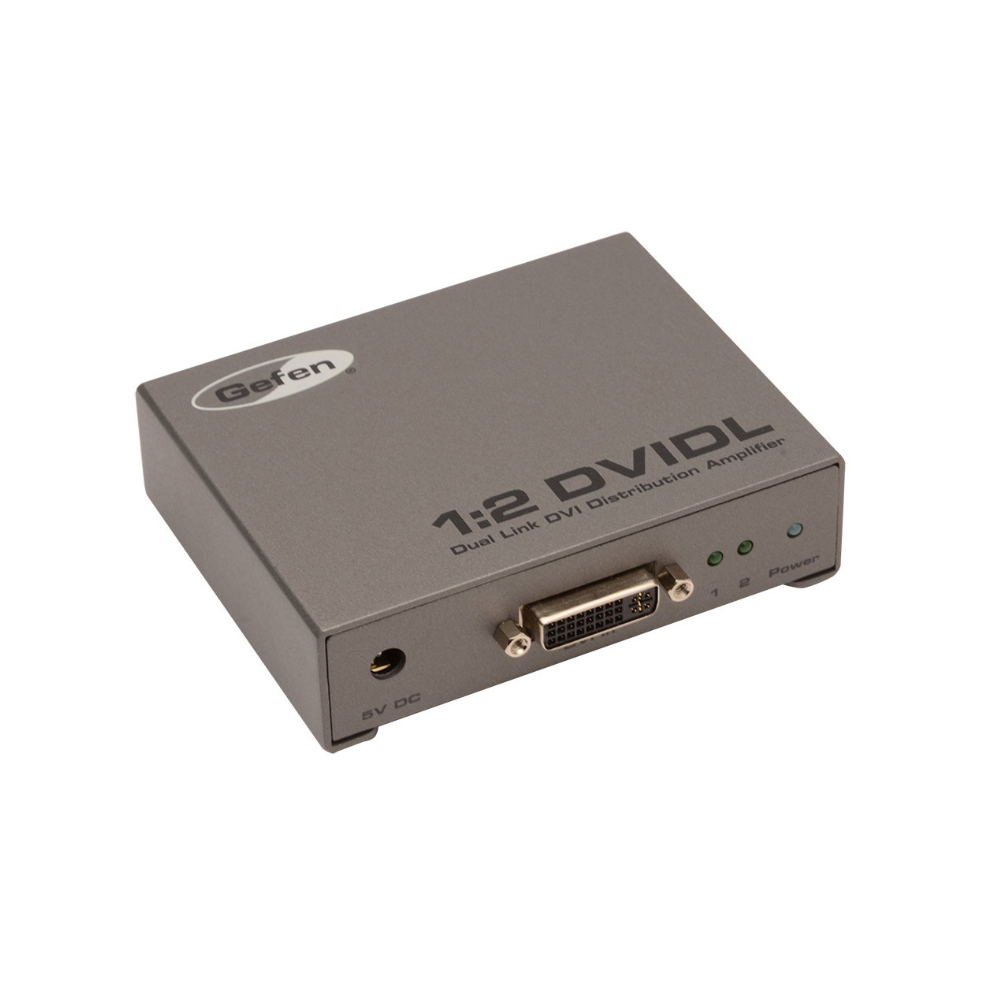

EXT-DVI-142DLN
1:2 Dual Link DVI Distribution Amplifier

One Dual Link DVI Source Splitter to two Dual Link DVI Outputs

The Gefen EXT-DVI-142DLN Dual-link 1:2 DVI DL Distribution Amplifier splits video using a dual link DVI source such as a computer to two DVI dual link outputs such as monitors, without losing picture quality or the high resolution. Multiple1:2 DVI DL units can be cascaded from one to the next to create a flexible Dual Link DVI distribution system that can connect to multiple displays.

Video Support

Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400

FEATURES

  • Split a Dual Link DVI signal to two DVI Dual Link outputs
  • Allows simultaneous display of source on two screens
  • Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
  • Auto EQ compensates for any imperfections in the image
  • Power On indicator
  • DVI Link indicators
  • Supports DDWG standard for DVI-compliant monitors
  • HDCP pass-through on output #1

SPECIFICATIONS

  • Maximum Pixel Clock: 2 x 165 MHz

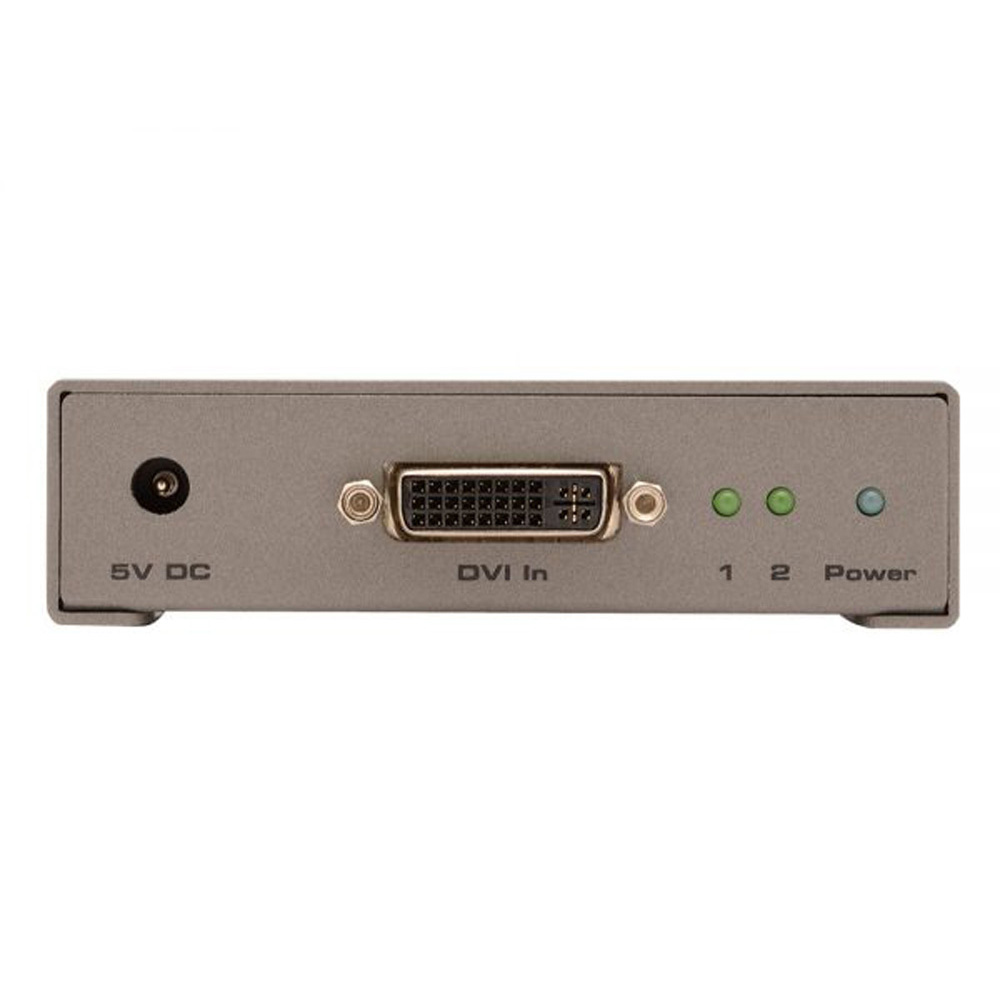

  • Video Input Connector: (1) DVI-D, 29-pin, female

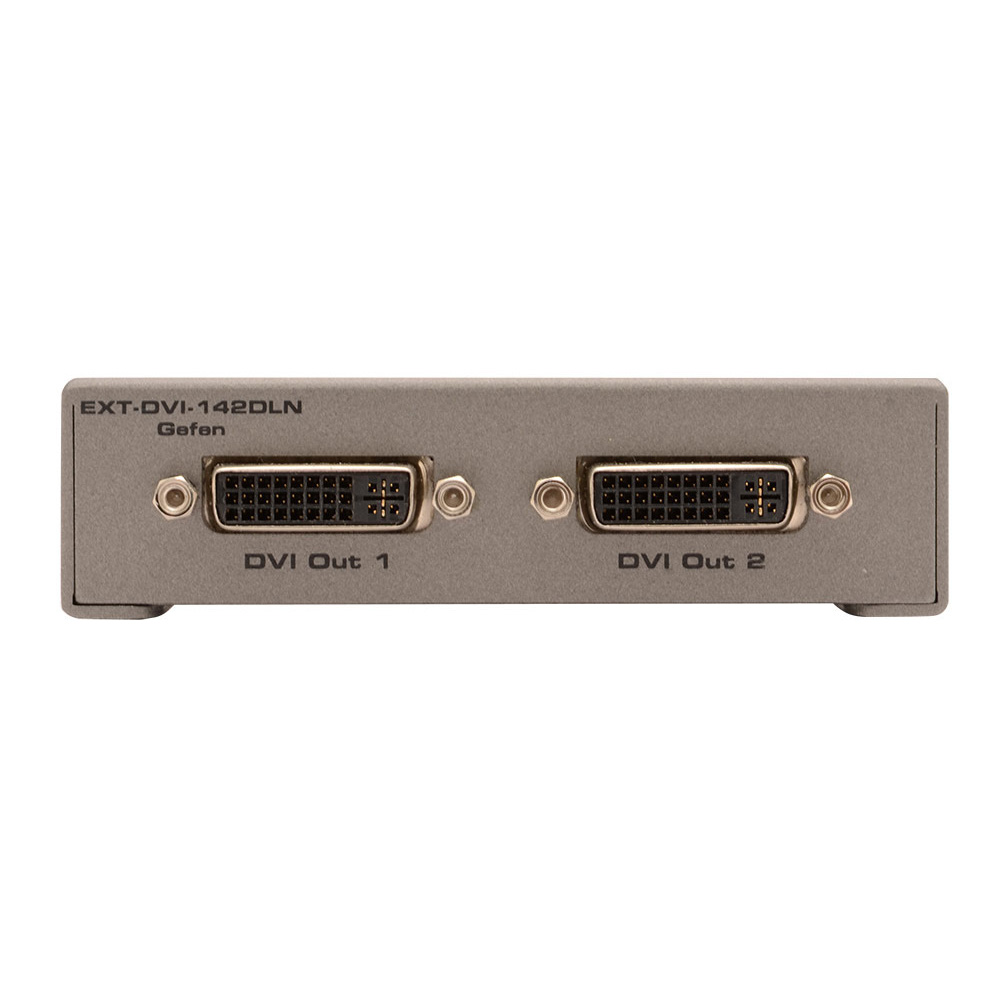

  • Video Output Connectors: (2) DVI-D, 29-pin, female
  • Power On indicator: (1) LED, blue
  • Link indicators: (2) LED, green
  • Power Consumption: 5 W (max.)
  • Power Supply: 5V DC
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Operating Humidity: 20% to 80% RH, non-condensing
  • Storage Temperature: -4 to +140 °F (-20 to +60 °C)
  • Storage Humidity: 20% to 90% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D): 4″ x 1.25″ x 3.25″ (102mm x 32mm x 83mm)
  • Shipping Weight: 2 lbs (0.9 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length12.1 (Inches)
  • Width6.1 (Inches)
  • Height4.3 (Inches)
  • Weight2.05 (Lbs)
  • UPC845344085678

Other Specifications

  • Maximum Pixel Clock: 2 x 165 MHz
  • Video Input Connector: (1) DVI-D, 29-pin, female
  • Video Output Connectors: (2) DVI-D, 29-pin, female
  • Power On indicator: (1) LED, blue
  • Link indicators: (2) LED, green
  • Power Consumption: 5 W (max.)
  • Power Supply: 5V DC
  • Operating Temperature: +32 to +104 Â °F (0 to +40 Â °C)
  • Operating Humidity: 20% to 80% RH, non-condensing
  • Storage Temperature: -4 to +140 Â °F (-20 to +60 Â °C)
  • Storage Humidity: 20% to 90% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D): 4″ x 1.25″ x 3.25″ (102mm x 32mm x 83mm)
  • Shipping Weight: 2 lbs (0.9 kg)

In The Box

  • 1:2 Dual Link DVI Distribution Amplifier (EXT-DVI-142DLN)(1)
  • 6 ft. Dual Link DVI Copper Cable (M – M) (CAB-DVIC-DL-06MM)(1)
  • 5V DC Power Supply (EXT-PS526AIPN)(1)
  • Quick-Start Guide (QSG-DVI-142DLN)(1)
