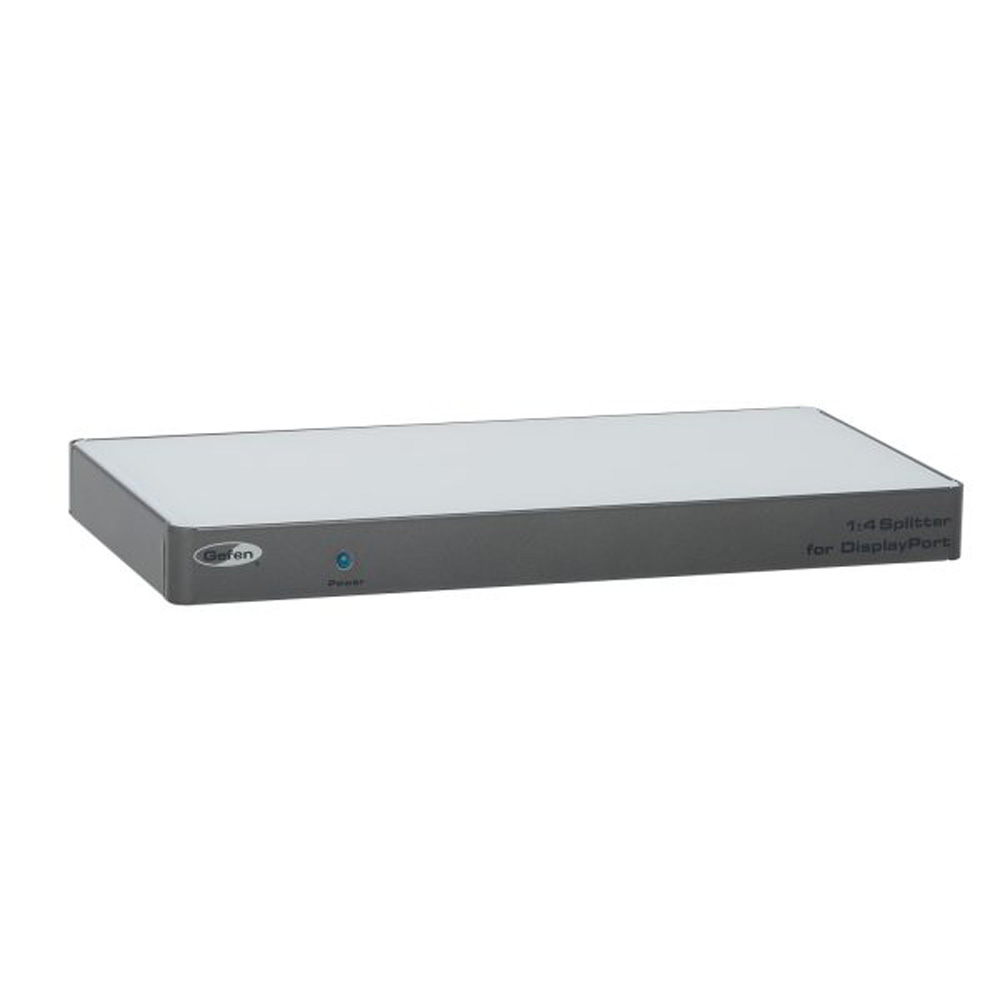

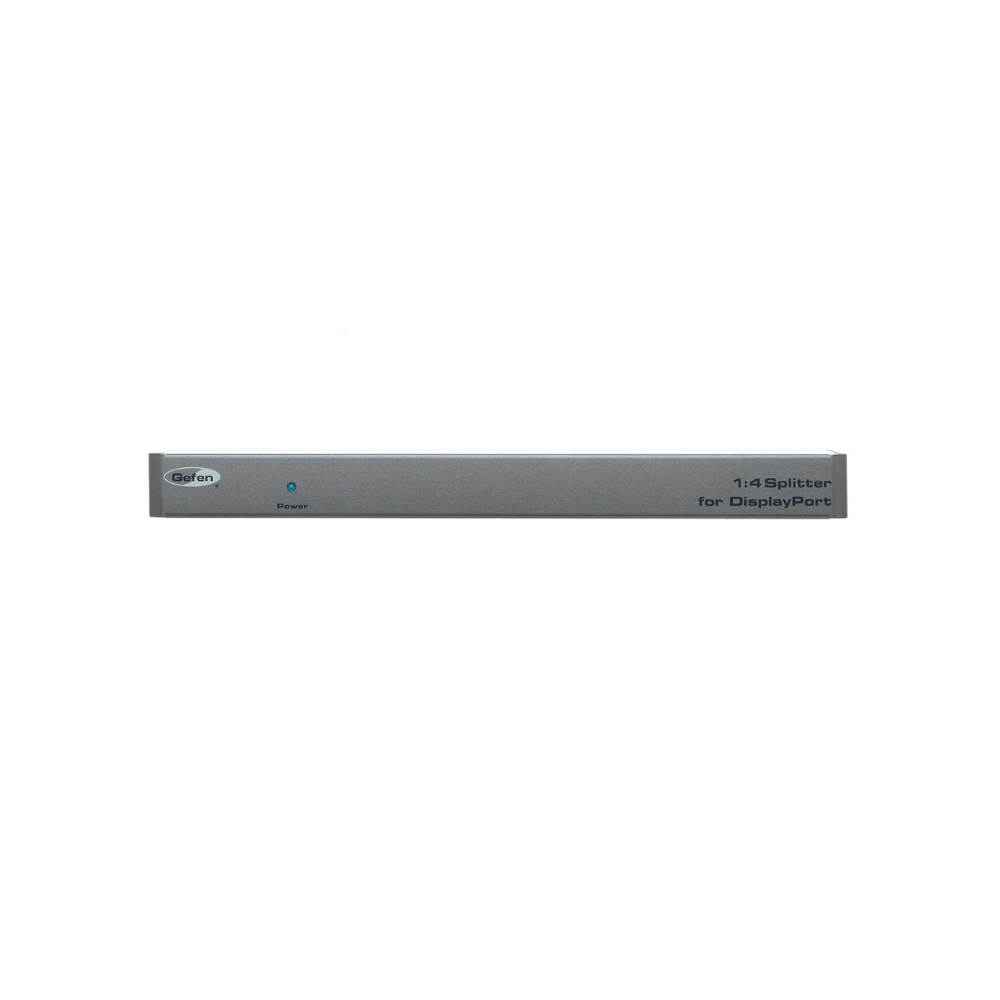

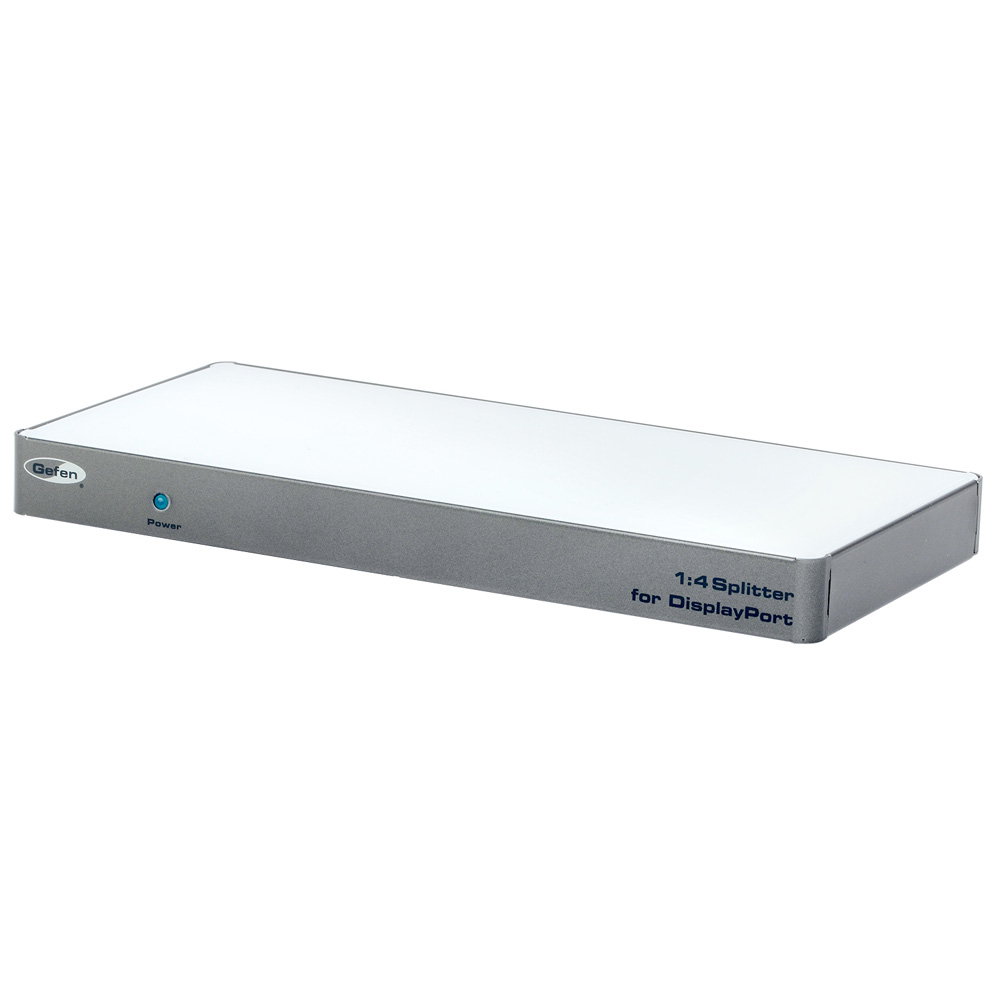

EXT-DP-144
1:4 Splitter for DisplayPort

Connects a DP 1.1 source up to 2560×1600 to 4 displays

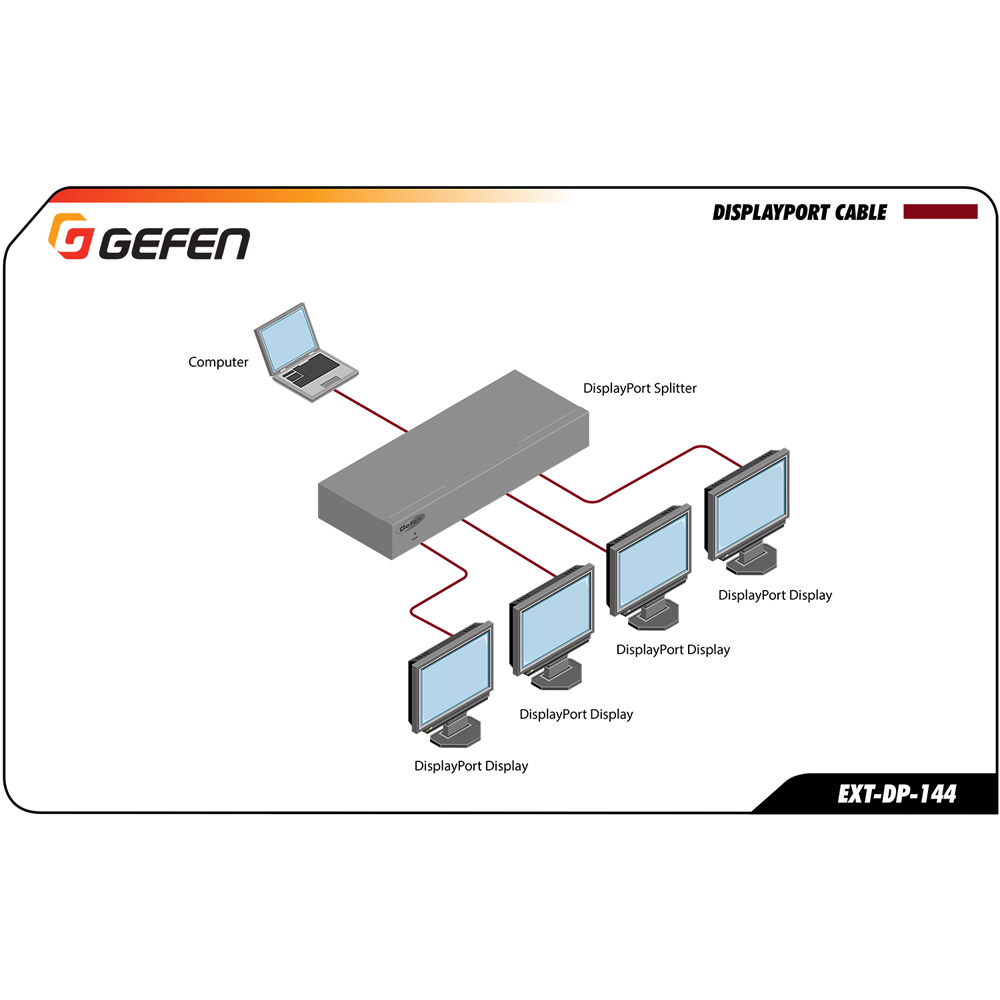

The Gefen EXT-DP-144 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to send identical signal to up to four DisplayPort displays. EDID management provides rapid integration of source and displays. Two or more of these splitters can be connected together to create larger video distribution networks.

Video Support

Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)

Audio Support

Supports up to 7.1 channels of linear PCM audio (32 kHz – 192 kHz sampling rate)

FEATURES

  • Simultaneously displays one DisplayPort source on up to four displays
  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
  • EDID Management for rapid integration of source and displays
  • EDID Reset button
  • Supports up to 7.1 channels of linear PCM audio (32 kHz – 192 kHz sampling rate)
  • Supports DisplayPort 1.1a

SPECIFICATIONS

  • Maximum Pixel Clock: 300 MHz
  • Maximum Data Rate: 10.8 Gbps
  • Maximum Resolution: 2560 x 1600

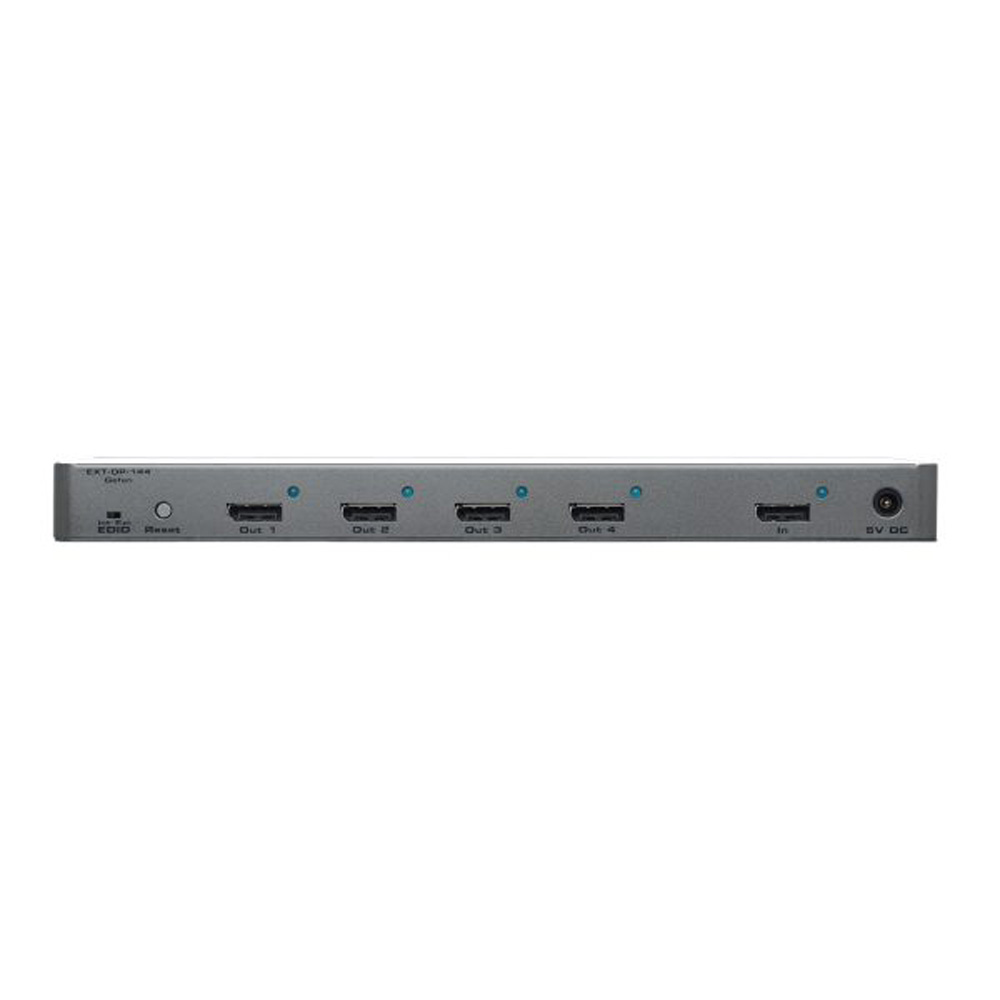

  • Video Input Connector: (1) DisplayPort, female
  • Video Output Connectors: (4) DisplayPort, female
  • Power Supply: 5V / 4A DC
  • Power Consumption: 15W (max.)
  • Operating Temperature: 0 – 40 ° C
  • Dimensions (W x H x D): 10.75″ x 1.25″ x 5.25″ (274mm x 32mm x 134mm)
  • Shipping Weight: 3 lbs. (1.2 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.5 (Inches)
  • Width8.5 (Inches)
  • Height4 (Inches)
  • Weight3.6 (Lbs)
  • UPC845344047645

Other Specifications

  • Maximum Pixel Clock: 300 MHz
  • Maximum Data Rate: 10.8 Gbps
  • Maximum Resolution: 2560 x 1600
  • Video Input Connector: (1) DisplayPort, female
  • Video Output Connectors: (4) DisplayPort, female
  • Power Supply: 5V / 4A DC
  • Power Consumption: 15W (max.)
  • Operating Temperature: 0 – 40Â ° C
  • Dimensions (W x H x D): 10.75″ x 1.25″ x 5.25″ (274mm x 32mm x 134mm)
  • Shipping Weight: 3 lbs. (1.2 kg)

In The Box

  • 1:4 Splitter for DisplayPort (EXT-DP-144)(1)
  • 6 ft. DisplayPort cable (CAB-DPN-06MM)(1)
  • 5V / 4A power supply (EXT-PS54AU21-6)(1)
  • Quick Start Guide (QSG-DP-144)(1)
