- Compatible with DisplayPort 1.1a and EDID
- Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the source
- Supports output resolution up to 2560×1600 and deep color video up to 12 bits
- Supports digital audio up to LPCM 7.1CH (32-192kHz Fs sample rate)
- Supports pixel component formate for RGB; YCbCr 422; YCbCr 444
- Supports color space conversion between RGB and YCbCr color space
- Flexible 1/2/4 lanes configurations; Full 10.8Gbps data rate support (4lanes at 2.7Gbps)

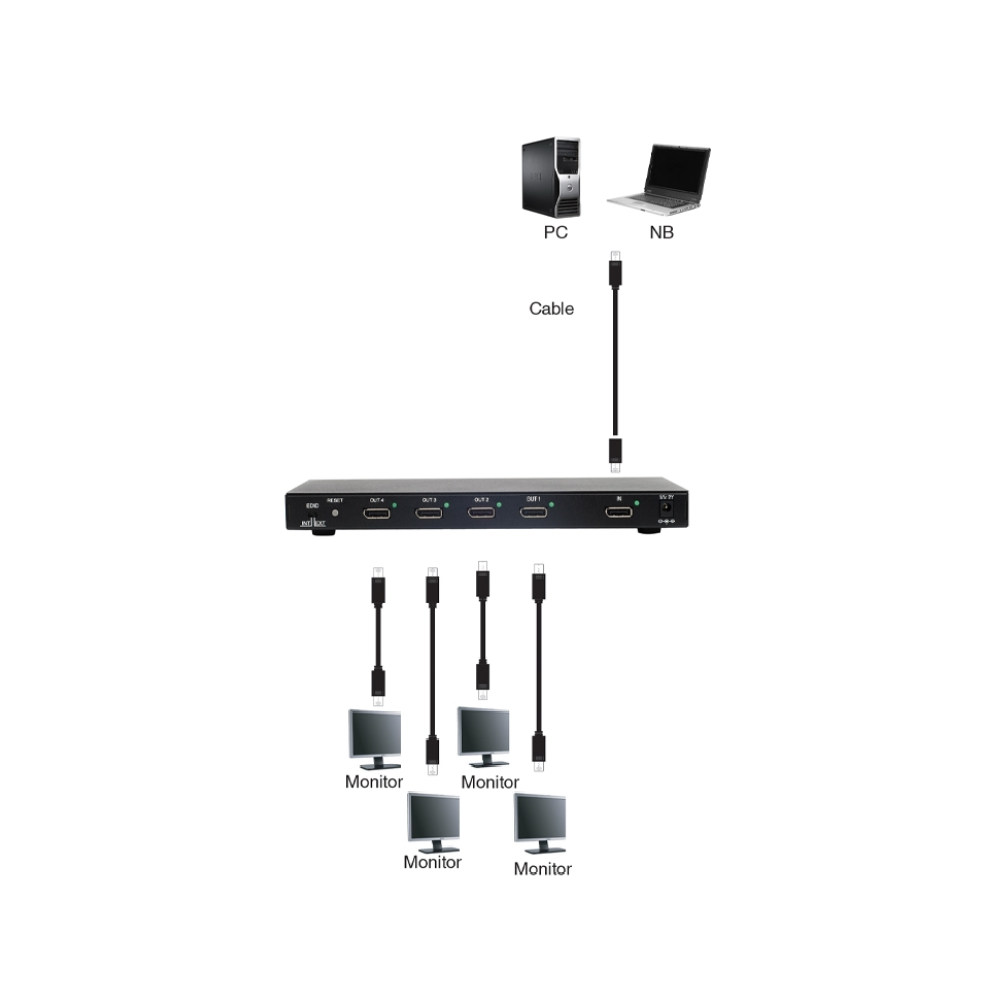

Inputs
- 1x DisplayPort [1x Uncompressed AV]
Outputs
- 4x DisplayPort [4x Uncompressed AV]
PSU:
- 5V/3A
Dimensions
- 270mm [W] x 124mm [D] x 29mm [H]
Net Weight
- 770gr
