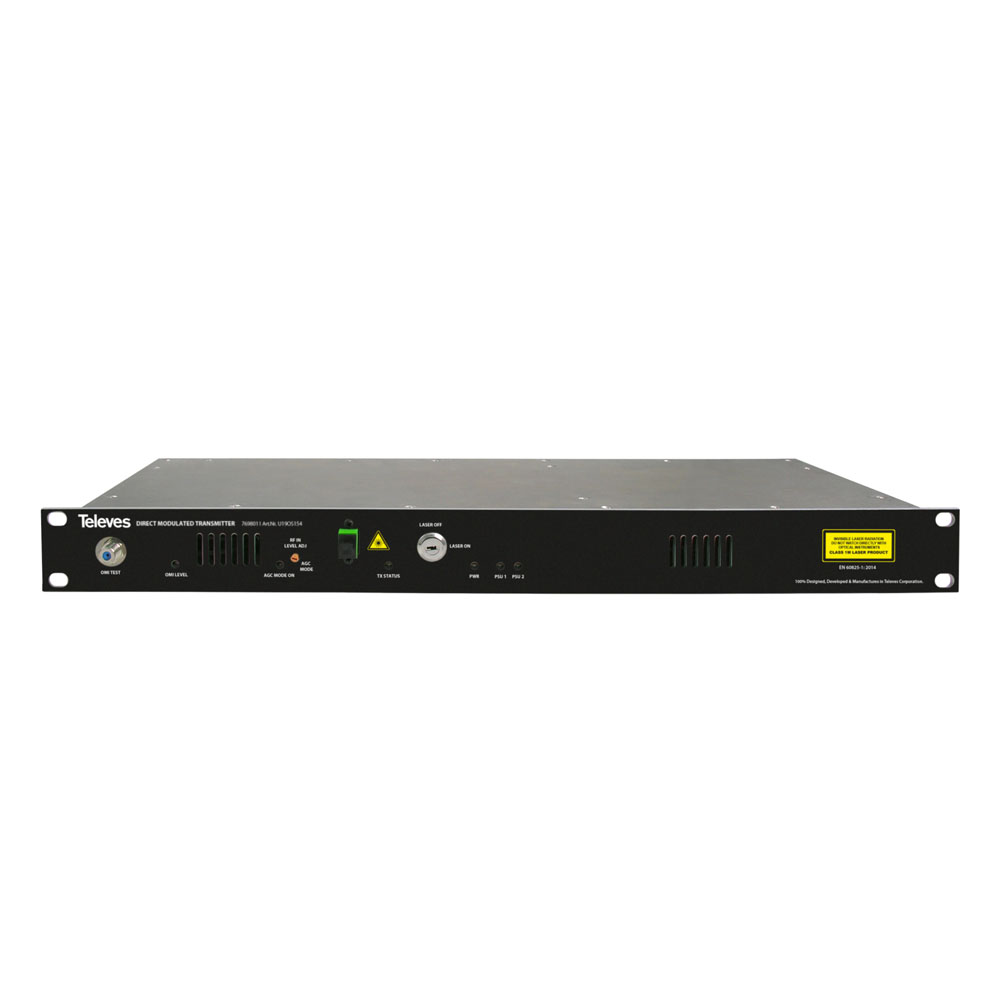

Optical transmitter, 1RU rack 19″
1550 nm, Po 5 dBm / Ref. 769801

Produces an optical signal in the 1550 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 5 dBm.
Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.

Highlights

  • SMATV-compatible: up to 2400 MHz input bandwidth
  • RF input level control: optimization of the optical conversion quality parameters
  • Optical power drop alarm
  • 19″-rack installation, 1U height



Main Features

  • Very low equivalent noise conversion
  • Easy to install and use
  • High energy efficiency
  • SC/APC optical connectors, and F-type connectors for RF

SPECIFICATIONS

RF parameters RF frequency range MHz 47 … 2400
RF input level (AGC: ON) dBμV/dBmV 75…90 / 15…30
SAT input level (AGC: ON) dBμV/dBmV RF – 10dB
RF manual gain adjust dB 0 … 14 (steps 2 dB)
CAG control dB 20
Flatness (47…1220MHz) dB ± 0,5
Flatness (950…2400MHz) dB ± 2
Return losses (47…1220MHz) dB ≥ 10
Return losses (950…2400MHz) dB ≥ 7
Impedance Ohm 75
CSO (CENELEC 42) dB ≥ 60
CTB (CENELEC 42) dB ≥ 60
C/N dB >50
Optical Laser type MQW-DFB
Wavelength nm 1550 ± 10
Optical power dBm 5
General RF connectors type F female
Optical connectors SC/APC
Supply voltage VAC 110 – 230
Frequency Hz 50/60
Power consumption mA 100
Operation temperature ºC / ºF -5…….45 / 32…….113
