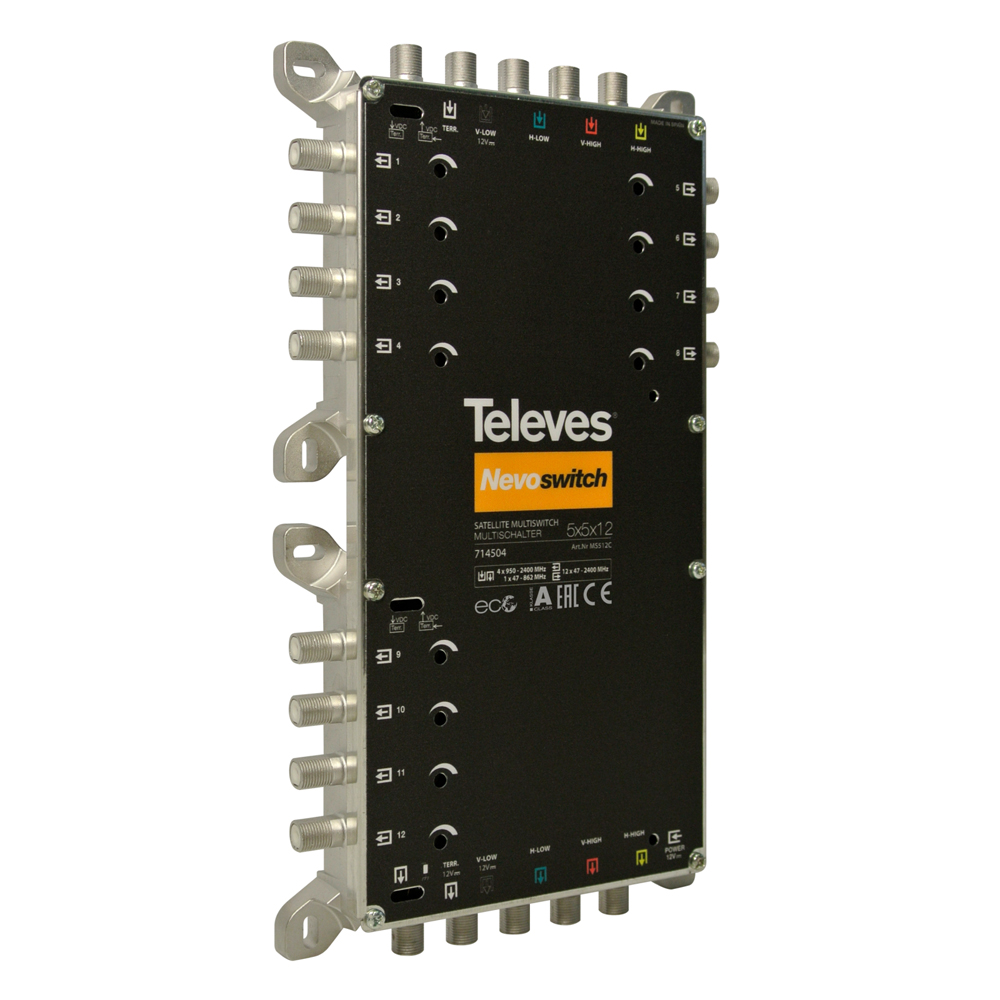

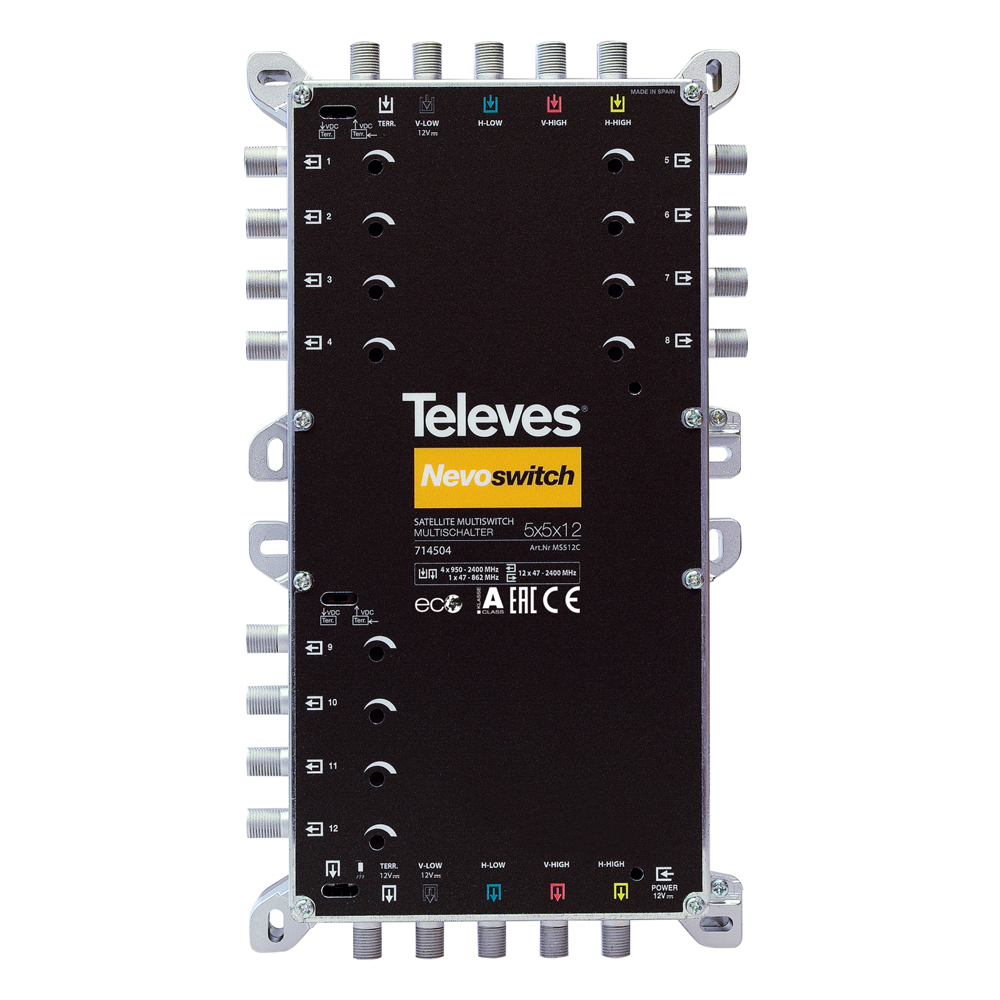

NevoSwitch 5 inputs – 12 outputs
When quality matters / Ref. 714504

Cascadable multiswitch equipped with 5 inputs (one terrestrial, and the four polarities of one satellite), 12 user outputs, and a 12 dB potentiometer per user output.
Can be used as a terminal (star topology) or as a cascade by using a simple switch.

Highlights

  • One potentiometer (12 dB) on each of the user outputs to optimize the level on an individual basis

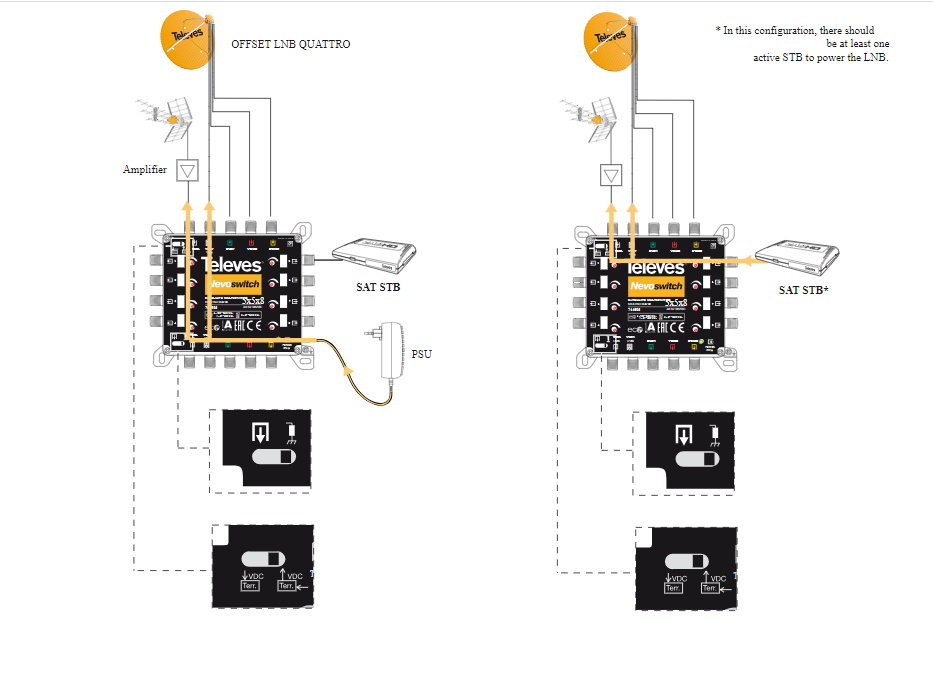

  • A switch for either powering terrestrial pre-amplifiers or allowing current circulation
  • Can be powered directly from the satellite receiver, without the need for a power supply unit*
  • Remote power feeding using VL
  • Current circulation between all inputs and cascades
  • Active terrestrial
  • European design, quality, and manufacturing



Main Features

  • Very compact
  • Made of zamak
  • Input and output colour identification
  • Available ECO mode
  • Selector switch to shift between cascade and terminal modes
  • 12 V power supply
  • Low power consumption

SPECIFICATIONS

Number of inputs 5
Number of cascadable outputs 5
Number of user outputs 12
Frequency range TERR. MHz 47 … 862
Frequency range SAT. MHz 950 … 2400
Input level TERR. dBμV 92
Input level SAT. dBμV 105
Through losses TERR. dB 4
Through losses SAT. dB 3 … 8
Tap losses 1…8 TERR. dB 2
Tap losses 1…8 SAT. dB 1
Tap losses 9…16 TERR. dB 4
Tap losses 9…16 SAT. dB 2
Tap regulation range dB 0 … 12
Isolation H/V dB > 30
Isolation users dB > 25
Powering Vdc 12
Max. current (PSU) mA 85
Max. current (STB) mA 35
Operating temperature °C -5 … 45
Protection index 20

DOWNLOADS

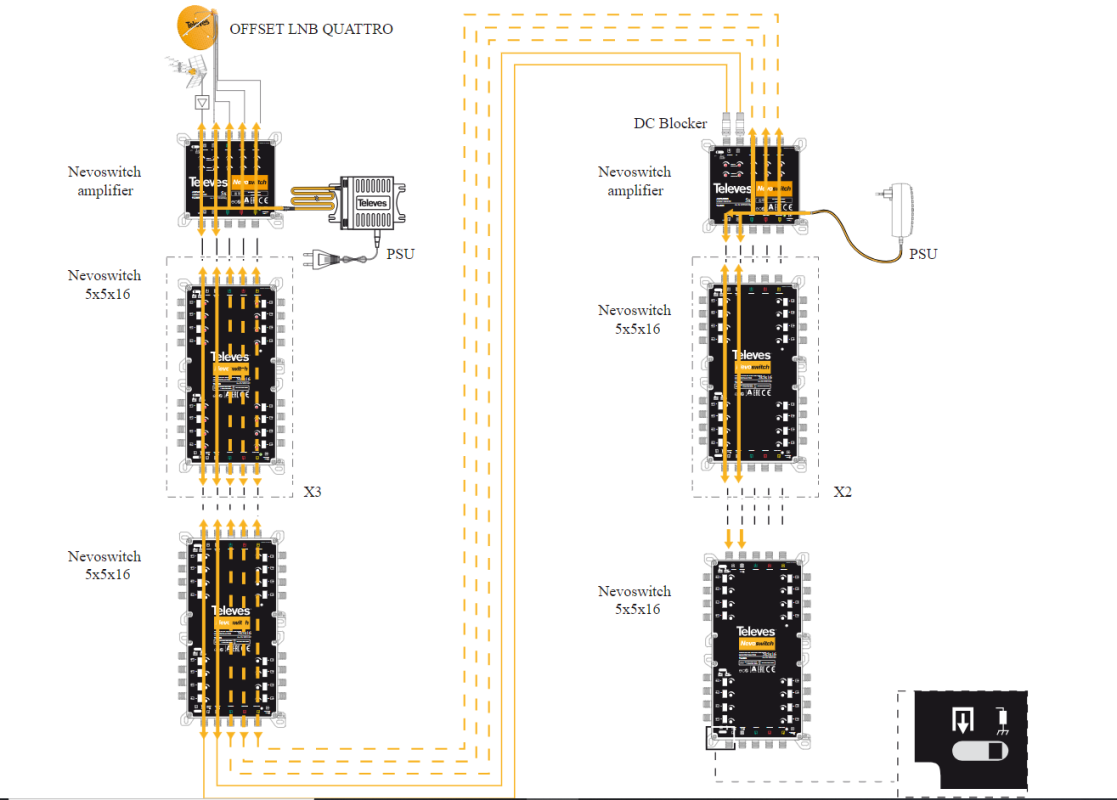

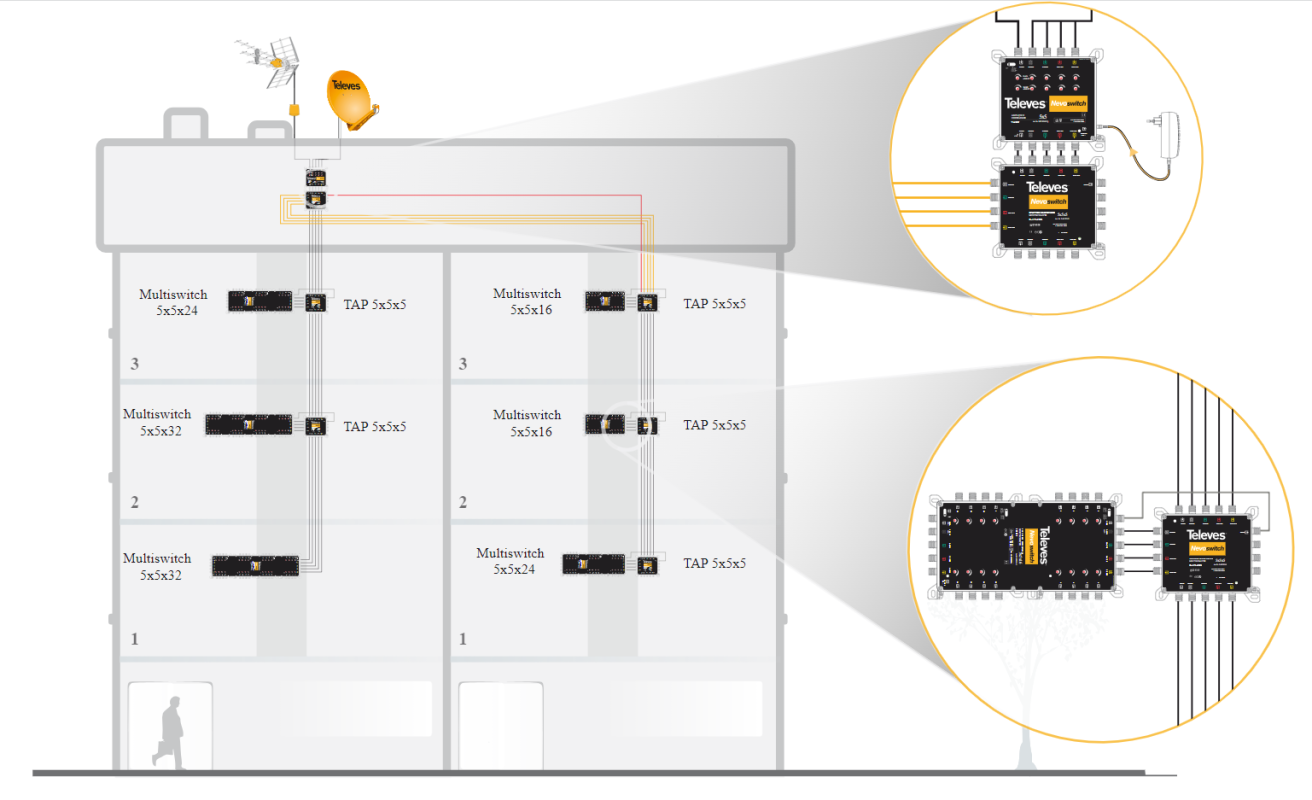

APPLICATION EXAMPLE
