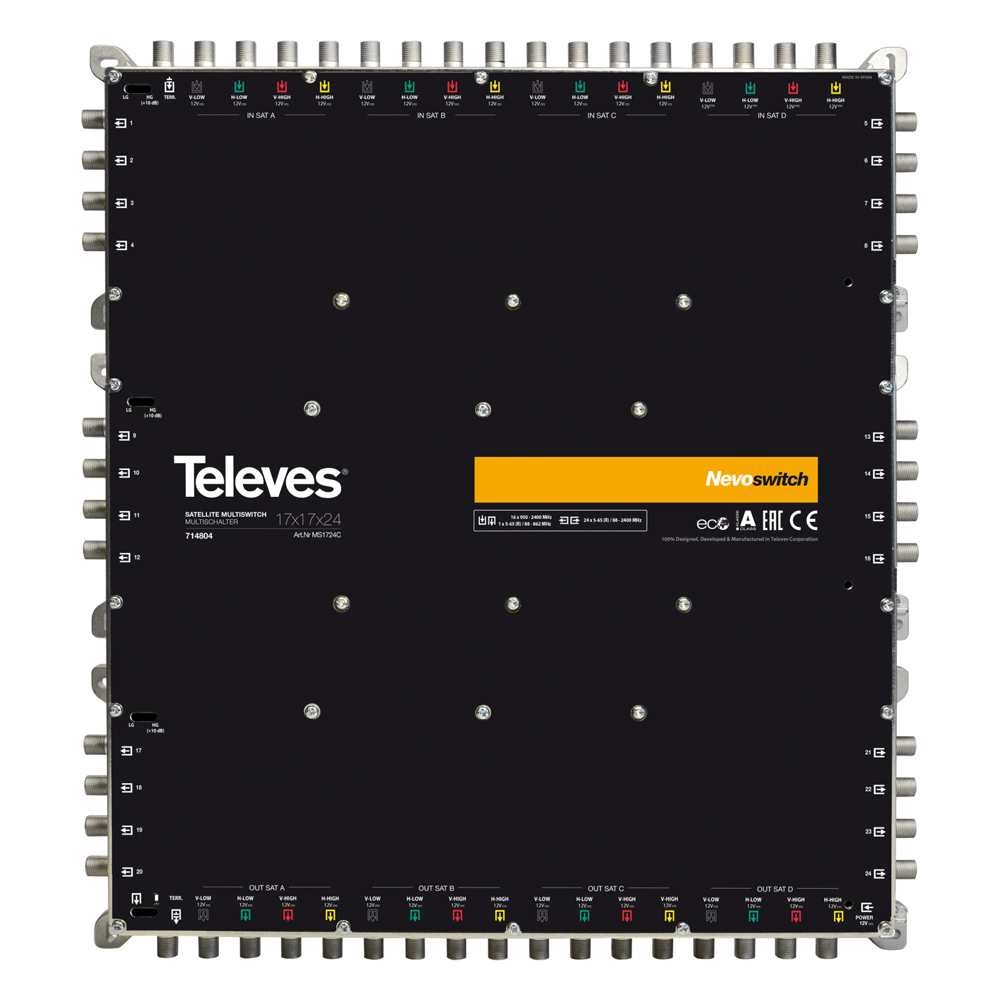

NevoSwitch 17 inputs – 24 outputs
When quality matters / Ref. 714804

Multiswitch equipped with 17 inputs (one terrestrial and 16 for four satellites, each with its four polarities) and 24 user outputs.
Can be used as a terminal (star topology) or as a cascade by using a simple switch.

Highlights

  • 10 dB Low Gain (LG) / High Gain (HG) switch for the attenuation of the satellite input signal for each 8-user group
  • Remote power feeding using VL
  • Current circulation between all inputs and cascades
  • Cloning function to replicate configurations between different installations
  • Compatible with return-channel applications
  • European design, quality, and manufacturing



Main Features

  • Very compact
  • Made of zamak
  • Input and output colour identification
  • Available ECO mode
  • Selector switch to shift between cascade and terminal modes
  • 12 V power supply
  • Low power consumption

SPECIFICATIONS

Number of inputs 17
Number of cascadable outputs 17
Number of user outputs 24
Frequency range TERR. MHz 88 … 862
Frequency range SAT. MHz 950 … 2400
Input level TERR. dBμV 90
Input level SAT. dBμV 112
Through losses TERR. dB 6
Through losses SAT. dB 6 … 15
Tap losses 1…8 TERR. dB 4
Tap losses 1…8 SAT. dB 3
Tap losses 9…16 TERR. dB 6
Tap losses 9…16 SAT. dB 6
Tap losses 17…24 TERR. dB 8
Tap losses 17…24 SAT. dB 10
Isolation H/V dB > 30
Isolation users dB > 25
Powering Vdc 12
Max. current (PSU – LG) mA 130
Max. current (PSU – HG) mA 260
Max. current (STB) mA 40
Operating temperature °C -5 … 45
Protection index 20

DOWNLOADS

APPLICATION EXAMPLE

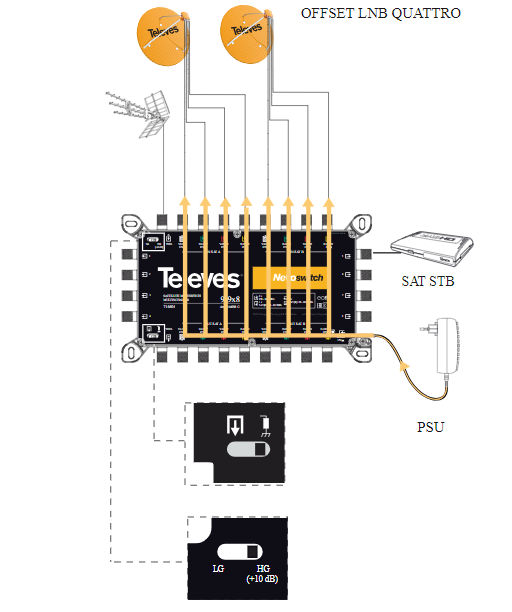

SIMPLE CONFIGURATION

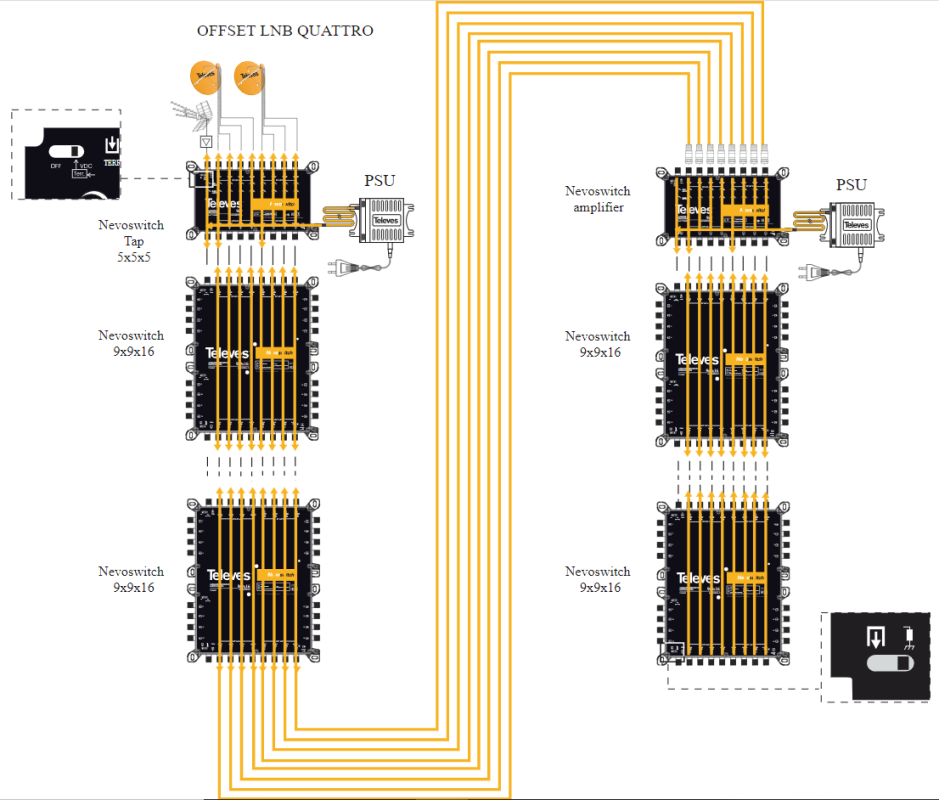

CASCADE CONFIGURATION

ADDITIONAL INFORMATION

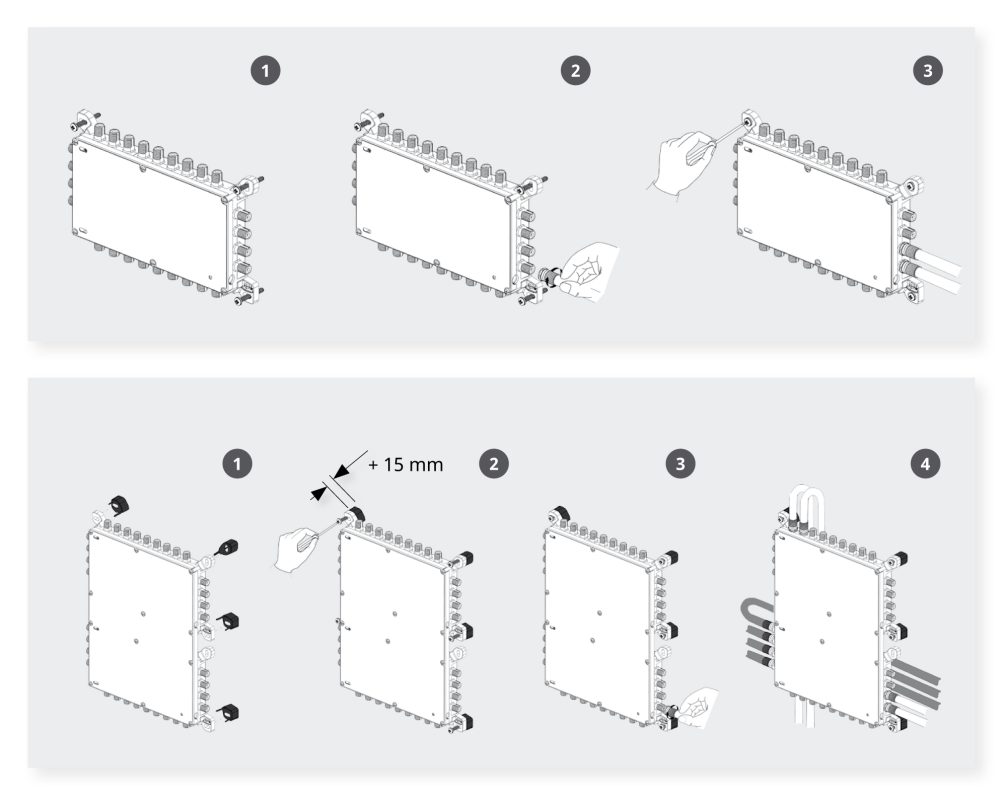

Mounting details
