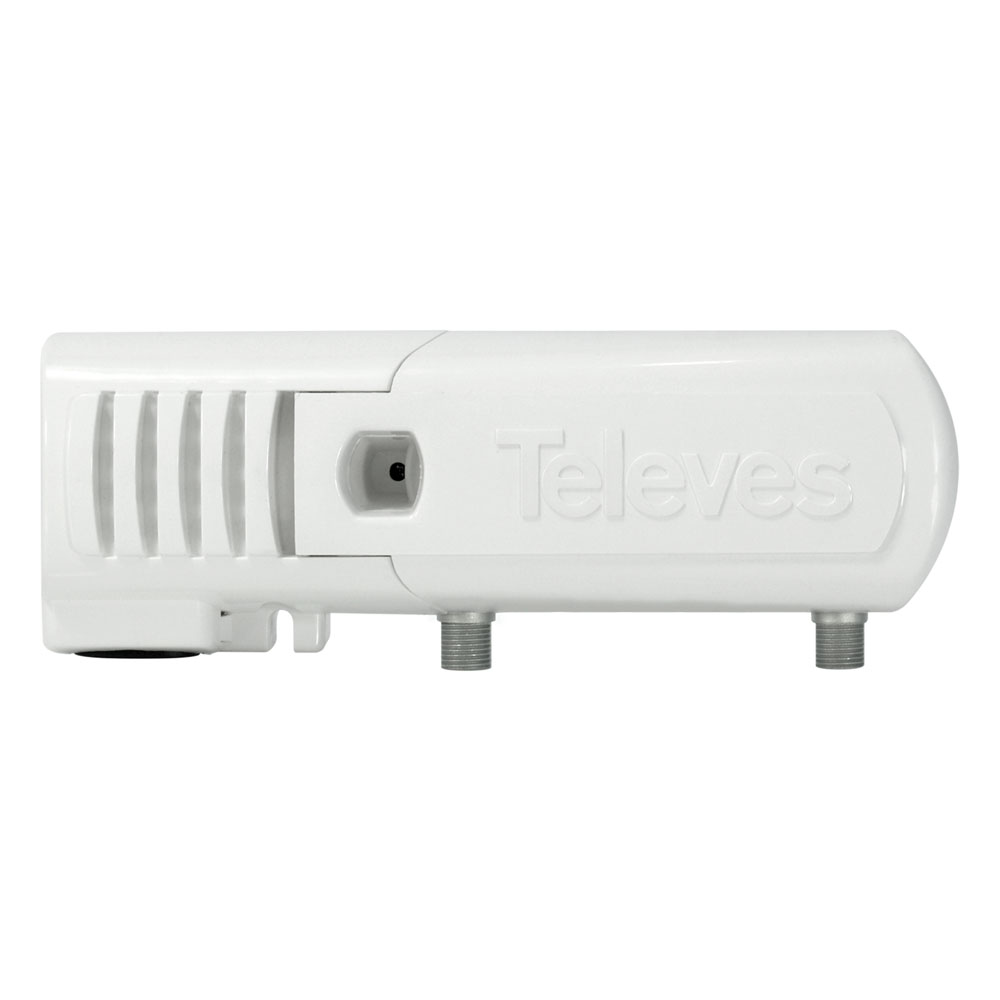

“F” domestic amplifier equipped with equalization and high gain
1 output: VHF/UHF + Passive return channel, DOCSIS 3.0 / Ref. 553504

Domestic amplifier with 1 output to extend the terrestrial television domestic network. Amplifies and equalizes the terrestrial band and provides a passive return channel to allow communication between the subscriber modem and the operator. Its expanded bandwidth in the forward path (88 MHz-1006 MHz) makes the amplifier compatible with DOCSIS 3.0.

Highlights

    • Forward channel up to 1 GHz (DOCSIS 3.0)
    • Passive return channel 5 MHz – 65 MHz
    • Low-impact visual design and limited size
    • Integrated high-performance switched-mode power supply (40% less than a standard amplifier)
    • Fully automated manufacturing subject to the most stringent quality controls



Main features

    • Adjustable equalizer and manual gain control, protected by a folding cover
    • High gain (35dB)
    • Can be wall-mounted using screws
    • “F” connectors



SPECIFICATIONS

Number of outputs 1
TV output No
Frequency range MHz
5 … 65 88 … 1006
Gain dB
-1 35
Gain adjustment range dB
— 0 … 18
Equalizator dB
— 0 … 18
Output level DIN45004B dBμV
— 116
Noise figure dB
— 5
Input voltage Vac 220 … 230
Mains frequency 50 Hz / 60 Hz
Max. current mA 24
Max. power consumption W 2.4
Operating temperature °C -5 … 45
Protection index (IP) 20



DOCUMENTS

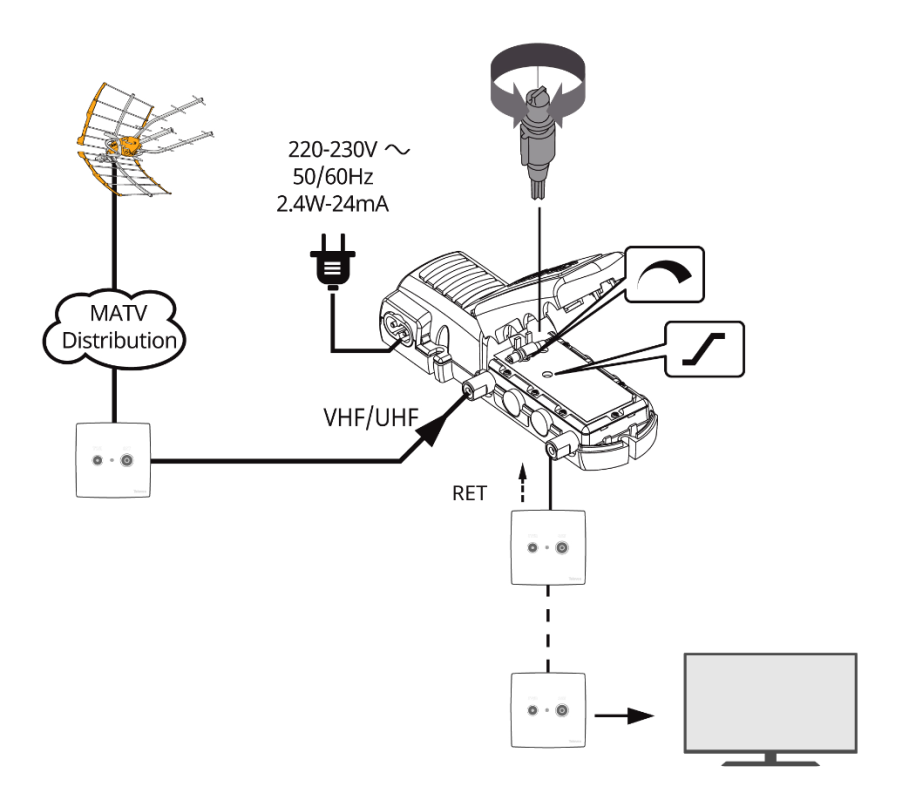

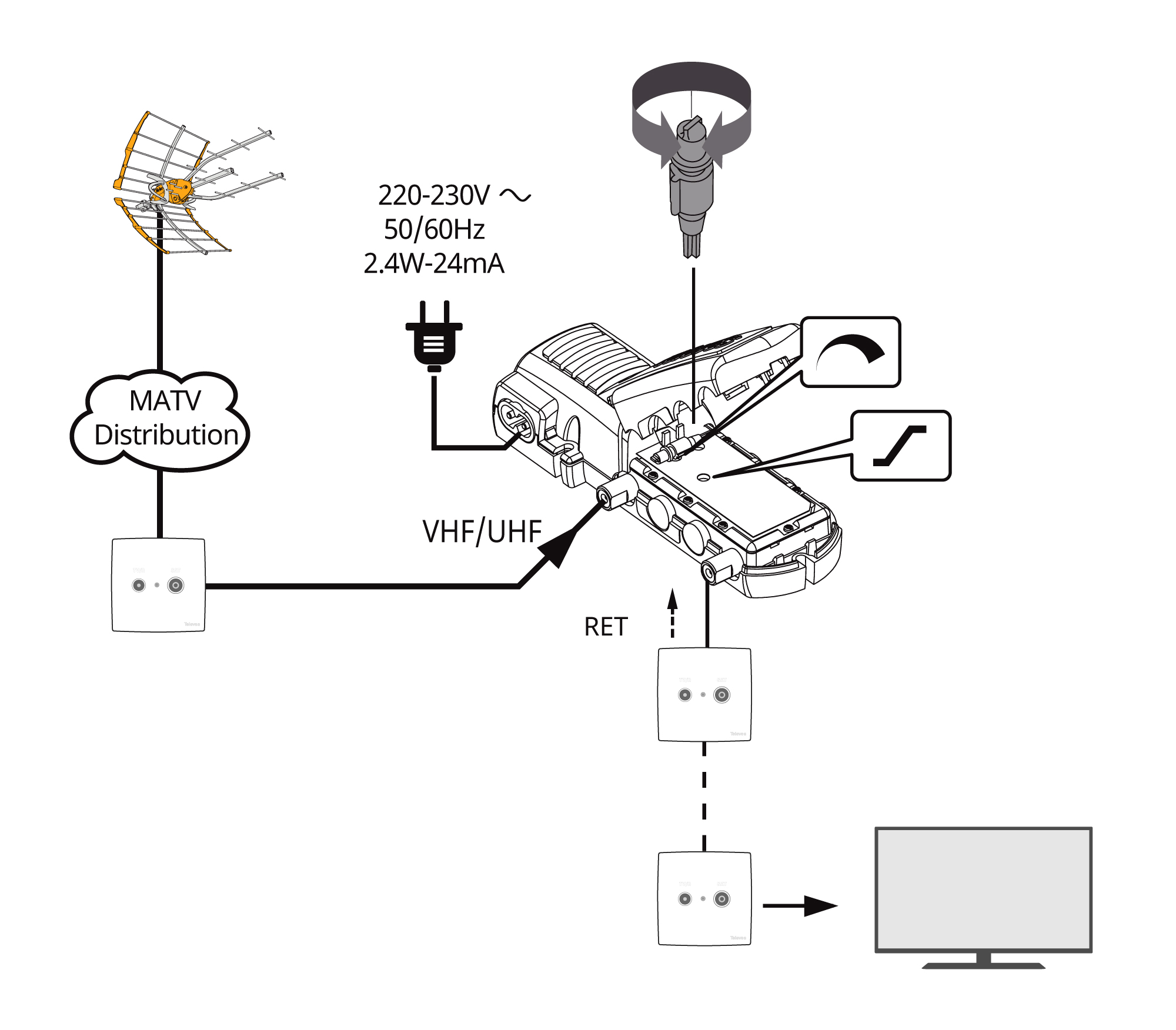

APPLICATION EXAMPLE
