- Supports switching and scaling of multiple A/V inputs to HDMI or VGA outputs
- Supports HDMI output resolutions up to 1080p/WUXGA
- Supports EDID and HDCP
- Supports 3D de-interlace, noise reduction and 3D comb filter
- Supports frame rate conversion
- Control the scaler via RS-232, IP(Telnet/Web GUI) and IR controls
- Supports output timing hot keys switching
- Supports Digital to Analog (DAC) and Analog to Digital (ADC) Audio conversion
- Supports usage without HDCP signal for Apple computers

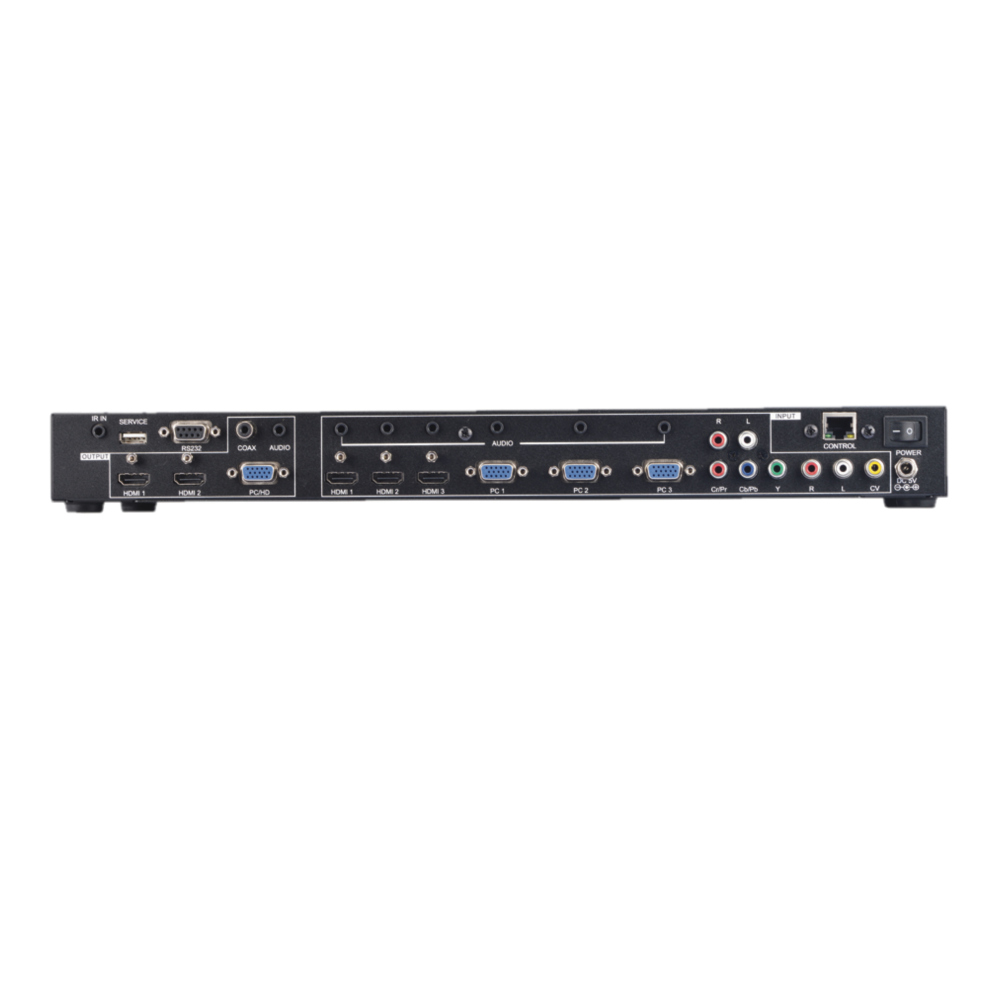

Inputs
- 3x HDMI [3x Uncompressed AV and Data]
- 3x 15-pin D-sub [3x RGBHV]
- 6x 3.5mm Stereo Mini-jack [6x Stereo(L/R)]
- 3x RCA [1x YPbPr Component]
- 1x RCA [1x Composite Video]
- 4x RCA [2x Stereo (L/R)]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 1x 15-pin D-sub [1x RGBHV / YPbPr Component]
- 1x RCA [1x COAX 2 Channel LPCM]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
PSU:
- 5V/3A
Dimensions
- 432mm [W] x 183mm [D] x 47mm [H]
Net Weight
- 2140gr
