- Compatible with HDMI 1.3, HDCP 1.1 and DVI 1.0
- Supports PC/HD input resolutions 480p-1080p50/60 and PC input resolutions: VGA-WUXGA
- Supports DVI input resolutions: VGA-WUXGA
- Scales input resolutions to XGA/UXGA/720p/1080p resolutions

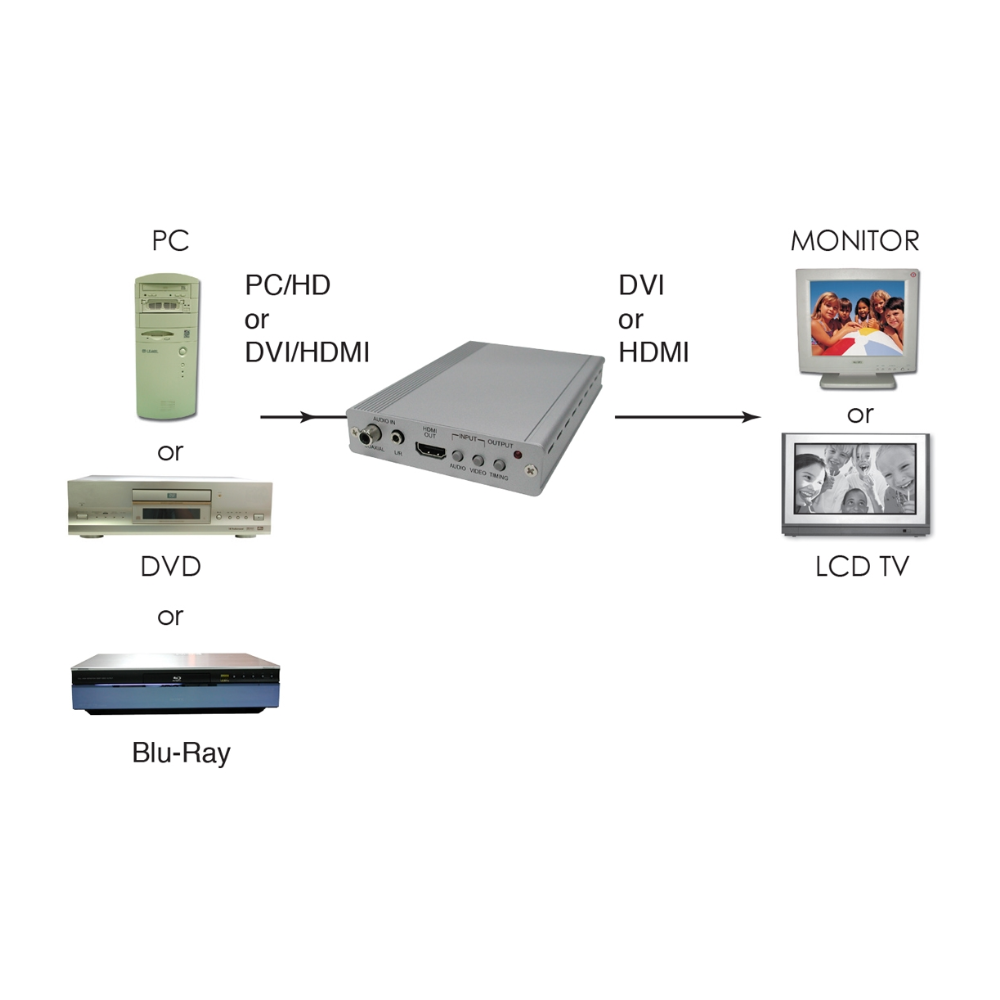

- Supports convertion from VGA and DVI to HDMI output
- Transfer L/R and coaxial sounds to HDMI
- Input and output selection buttons for easy usage
- Supports Component Video input via D-sub 15-pin to 3 RCA phono adaptor
Inputs
- 1x DVI-I [1x DVI-I]
- 1x 15-pin D-sub [1x PC/HD RGBHV / YCbCr Component]
- 1x RCA [1x COAX 2 Channel LPCM]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
PSU:
- 5V/2.6A
Dimensions
- 160mm [W] x 102mm [D] x 25mm [H]
Net Weight
- 332gr
