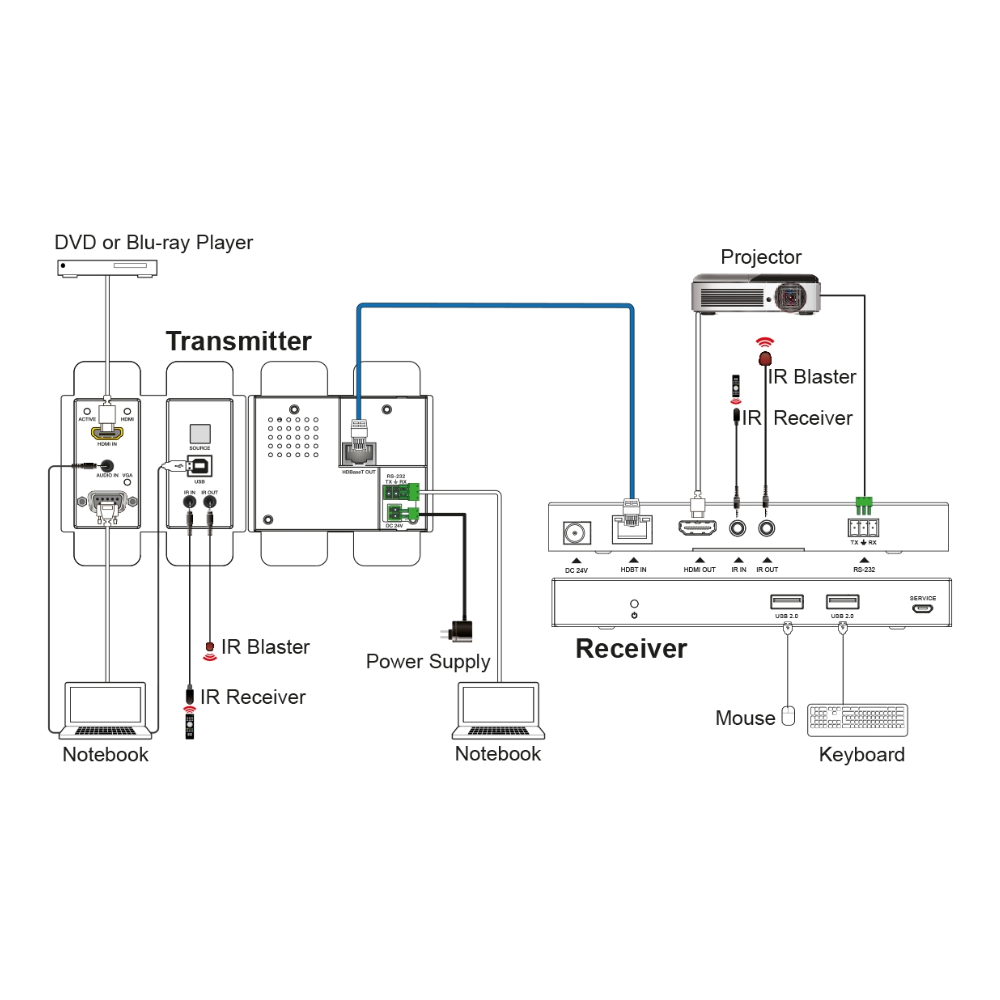

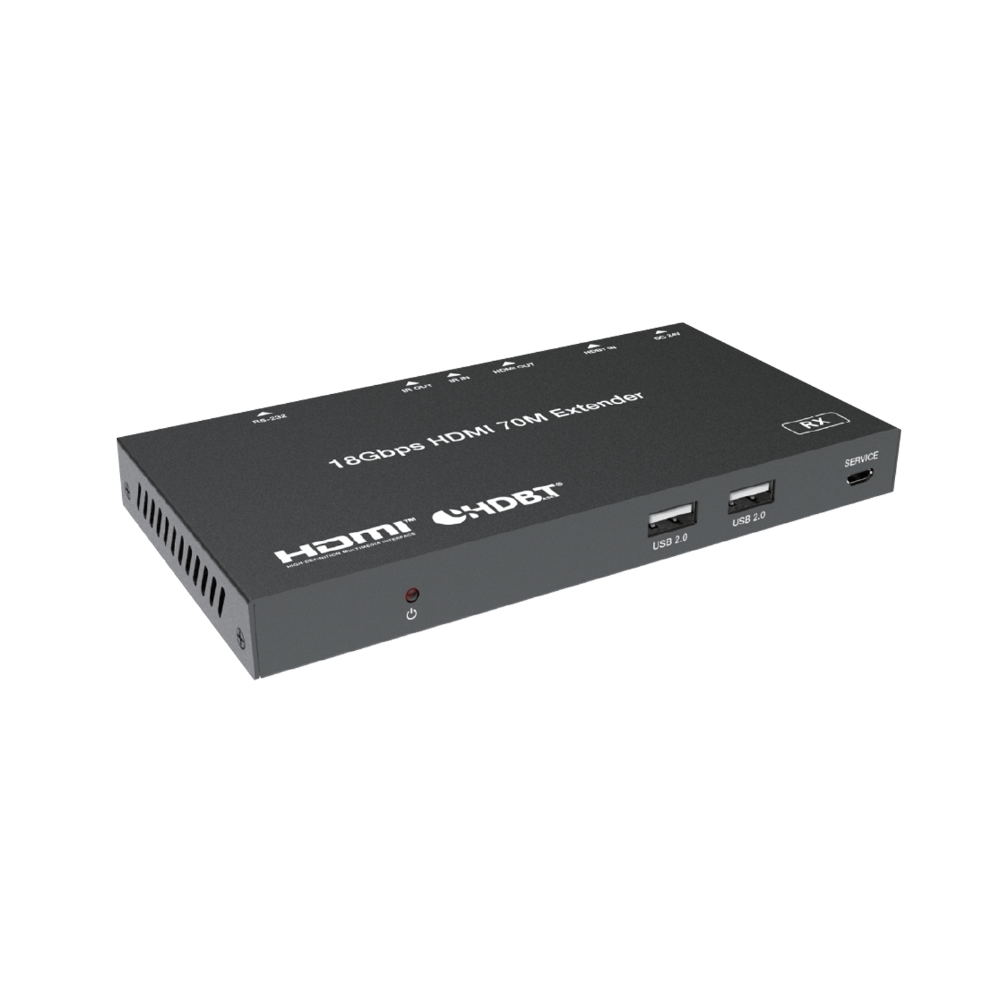

This 18Gbps 70M HDBaseT Receiver is designed to be used in conjunction with the HDBaseT Wall-plate. It can extend transmission distance up to 230ft / 70m for 1080p60Hz signal or 131ft / 40m for 4K2K@60Hz (4:4:4) signal. The video resolution is up to 4K2K@60Hz YUV 4:4:4. It supports two-way IR and RS-232 signal control and 24V POC function.
HDMI2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz YUV 4:4:4
The transmission distance can be extended up to 70m / 230ft at the resoution of 1080P@60Hz, or 40m / 131ft at 4K2K@60Hz 4:4:4 via a single CAT6/6a cable
Support USB signal, bi-directional IR and RS-232 control signal pass- through
Support USB KVM function
Support POC (Power over Cable) function
Compact design for easy and flexible installation
