AT40LPPCI
DVB-ASI Player and Recorder

TS Player & Recorder

DVB-ASI Input & Output

Free Application Software

PCIe with an adaptor

  • Combined DVB-ASI Input/Output Device
  • PCI 2.2, 32 bit, 33/66MHz 3.3V
  • Bus Master DMA, Scatter /Gather Interface Protocol
  • Windows Drivers & SDK
  • Linux Drivers
  • Free Application Software, DVSStation3
  • Supports DVB According to Standard A1010 Rev1 and EN50083
  • Supports 188 & 204 byte or Arbitrary Packet Sizes

Input

  • Integrated Loop Through output
  • Automatic Cable Equalization of up to 350m
  • Supports True or Inverted ASI signals
  • Carrier and Lock Detection
  • Sync, Error & Code Violation Detection
  • PID filtering by Hardware.
  • PCR Time stamping by Hardware

Output

  • Programmable Output Bit Rate
  • DVB-ASI Input/Outputs (BNC)
  • Can output True and Inverted signals
  • Supports Burst Mode.
  • Null packet insertion by Hardware
  • PCR, continuity counter correction
  • Packet time and date correction
  • Error insertion

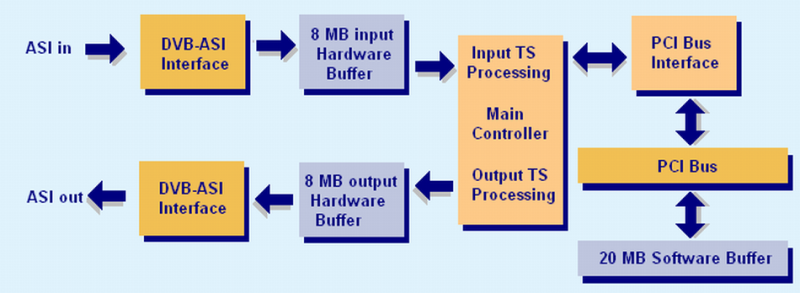

BLOCK DIAGRAM

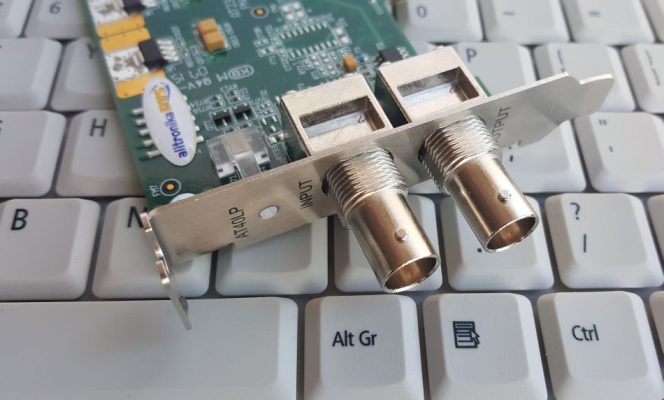

CONNECTIONS

APPLICATIONS

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40LPPCI is an ideal solution for a number of applications such as:

  • Development Tools
  • DVB to IP Gateway
  • Universal Interface for Digital Video or MPEG-II Transport Stream Playing and Processing
  • Video on Demand Server.
  • Transport Stream Test Generator
  • High Speed Serial Data Link
  • Software Based MPEGII Encoders and Decoders

SPECIFICATIONS

  • On Board Buffer:16 Mbytes
  • External DVB-ASI Connector: 75 Ohms BNC
  • Input Return Loss: >15 dB
  • Input Signal level: 800 mV +/- 10%
  • Output Signal level: 1.0Vp-p nominal
  • DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s
  • Bit Rate Stability:
    – Standard: +/- 25ppm
    – Maximum: +/- 1ppm
  • DVB-ASI Output Clock: 270 MHz
  • Size WxL: 60mmx120mm

APPLICATION SOFTWARE

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika’s FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

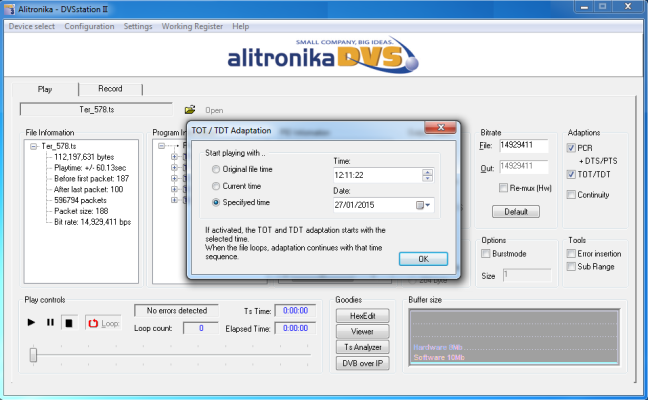

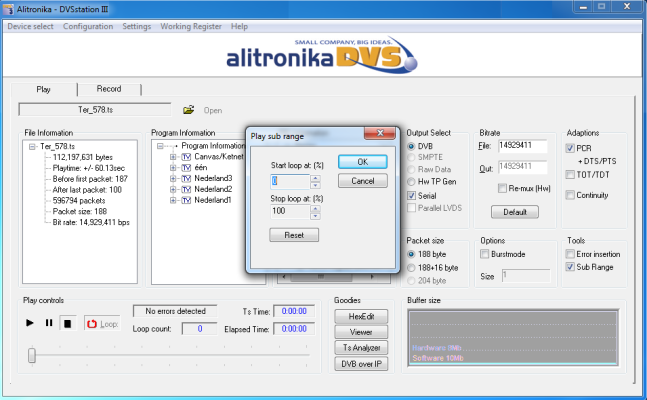

Play Screen

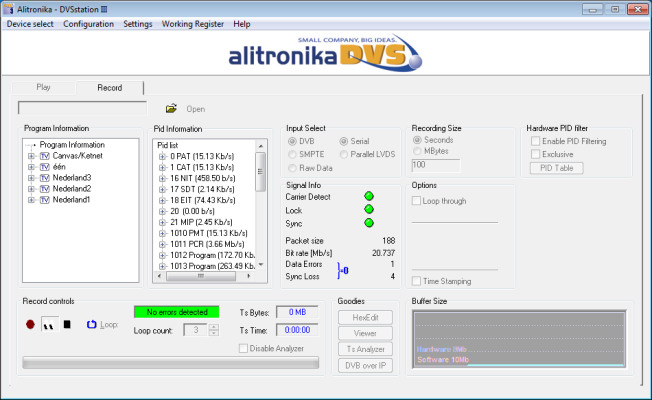

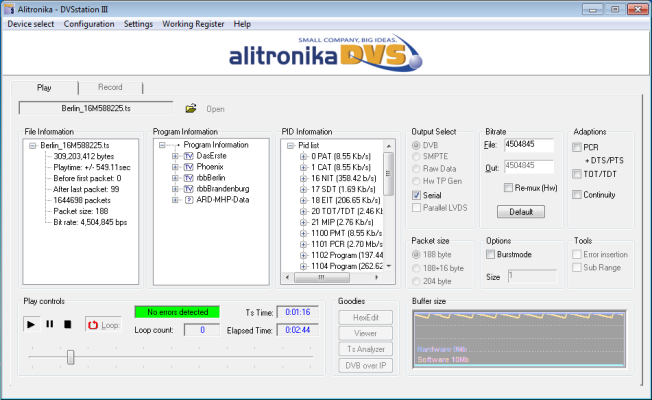

Record Screen
The application software provides the user with many functions & features such as :

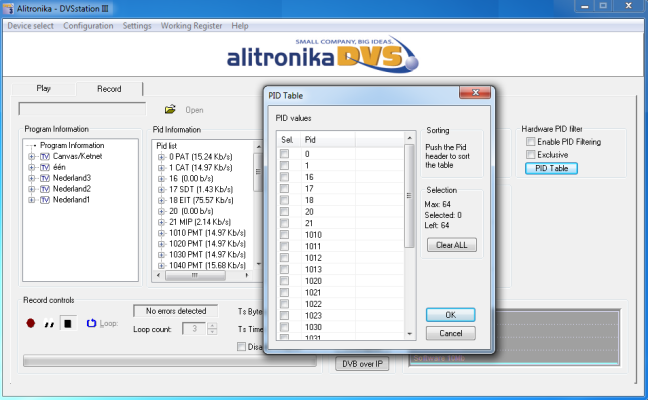

PID Filtering

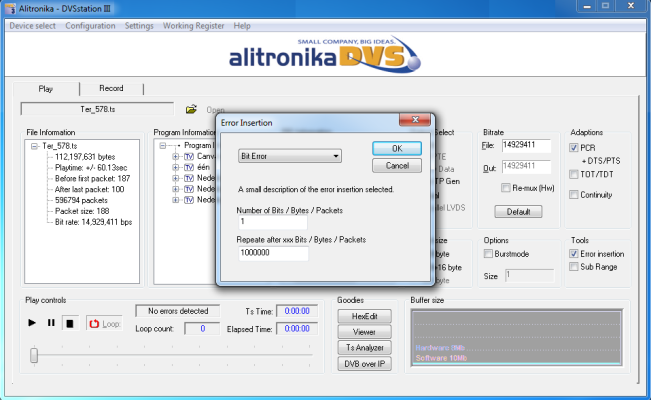

Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops…….

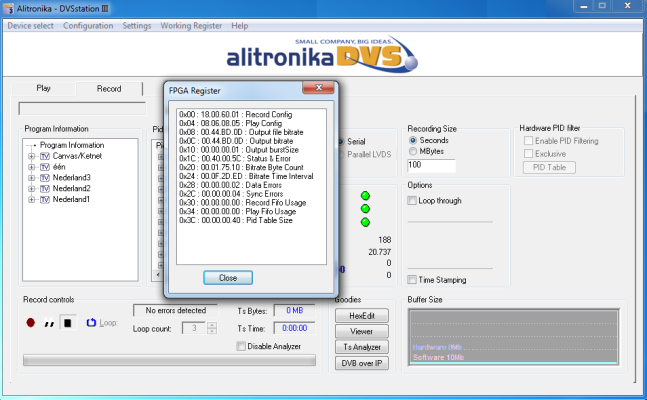

Hardware Working Regiters are accessable for monitoring

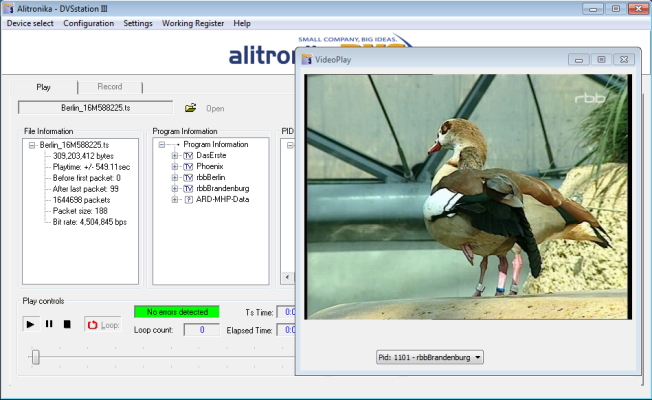

Among the “Goodies” are a Video Viewer

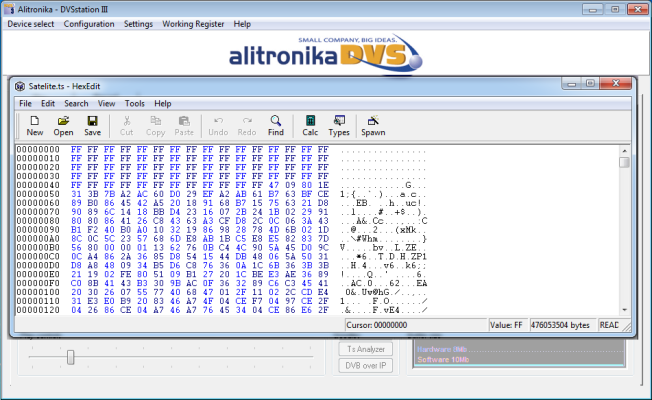

Hex Editor

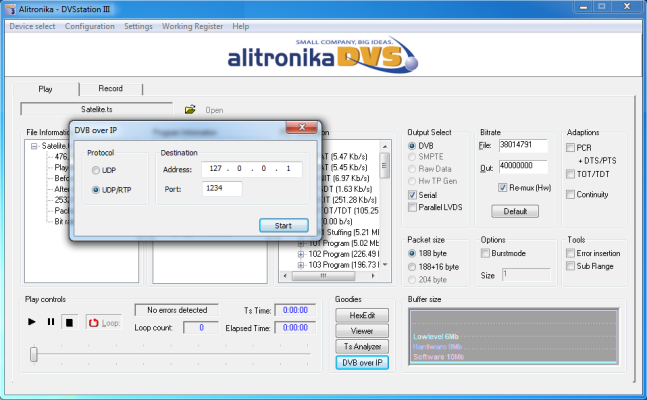

A DVB to IP Player/Converter

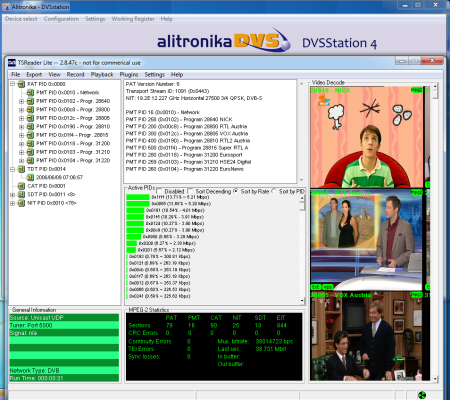

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.
