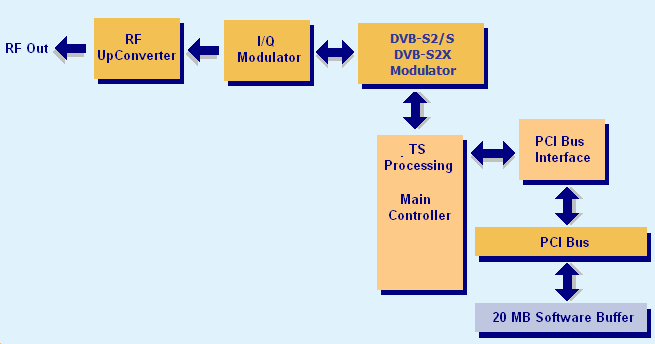

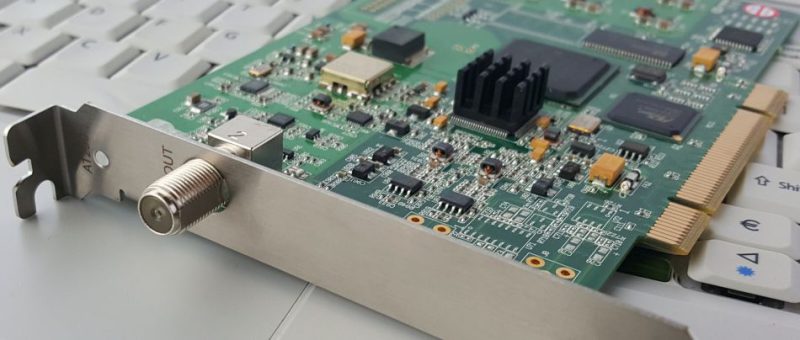

QPSK Modulator and UHF Up-converter, supports DVB-S2X, DVB-S2, DVB-S & DVB-DSNG.
- PCI 2.2, 32 bit, 33/66MHz 3.3V.
- Bus Master DMA, Scatter /Gather Interface Protocol.
- Windows Drivers & SDK & Linux Drivers.

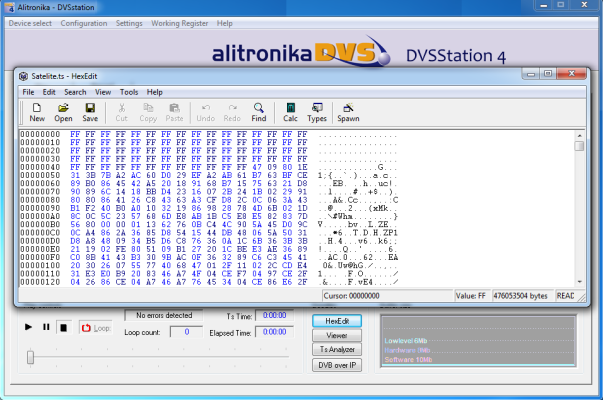

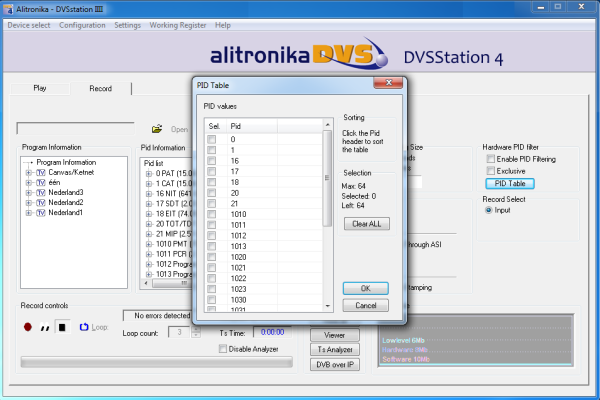

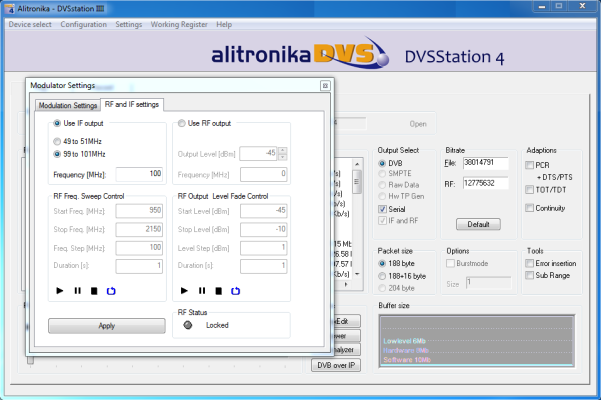

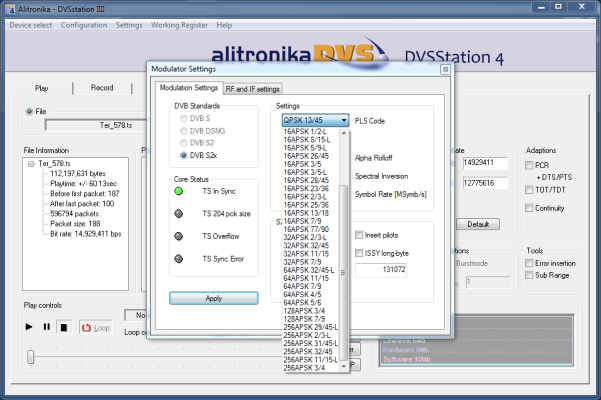

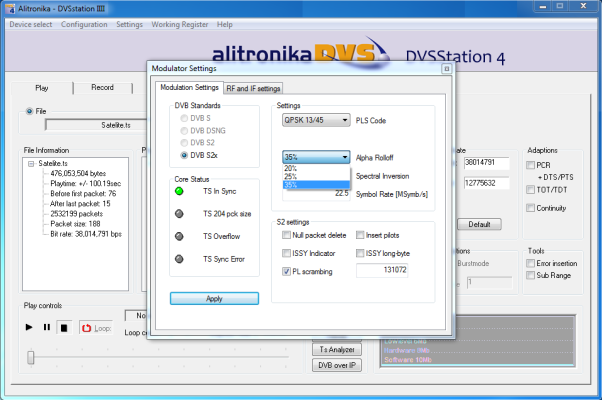

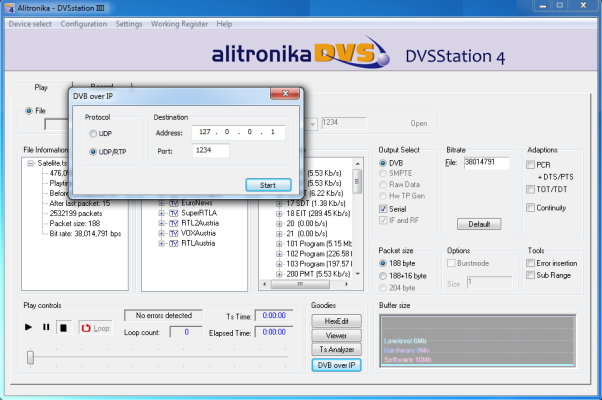

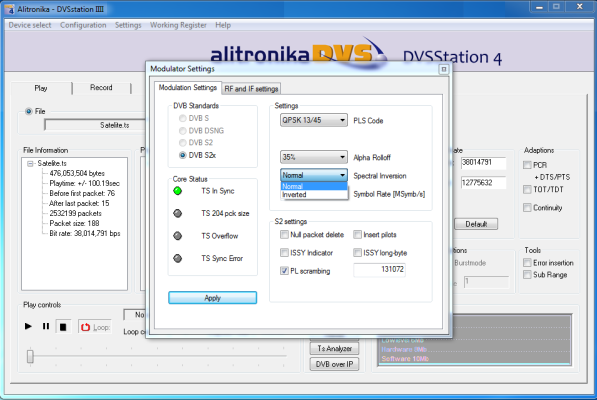

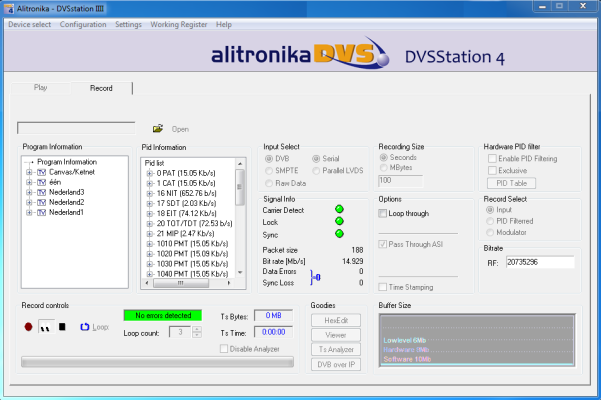

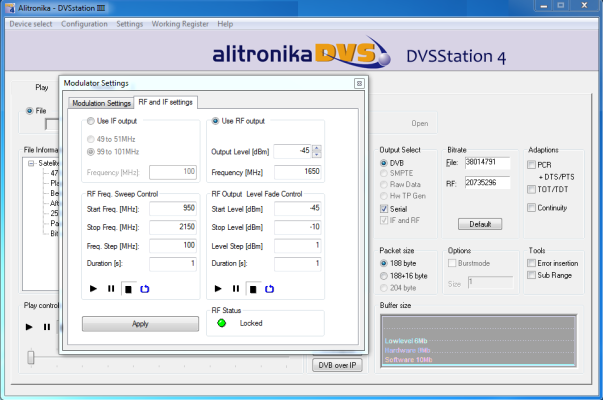

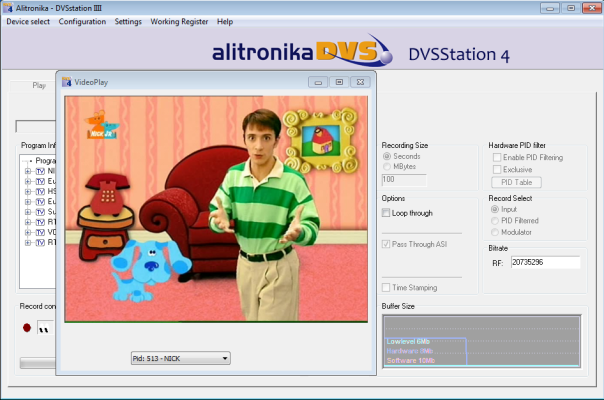

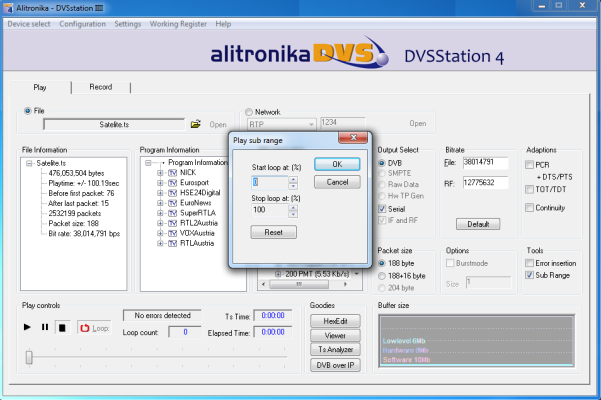

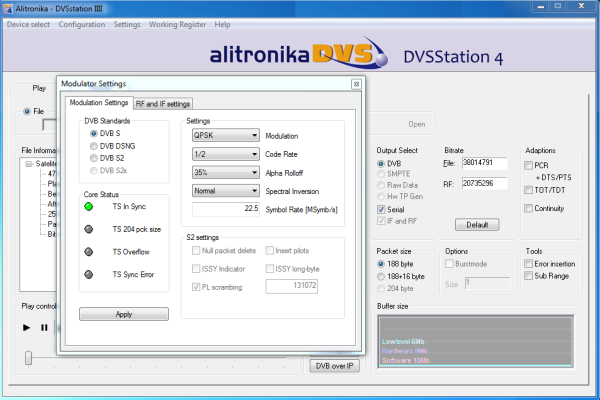

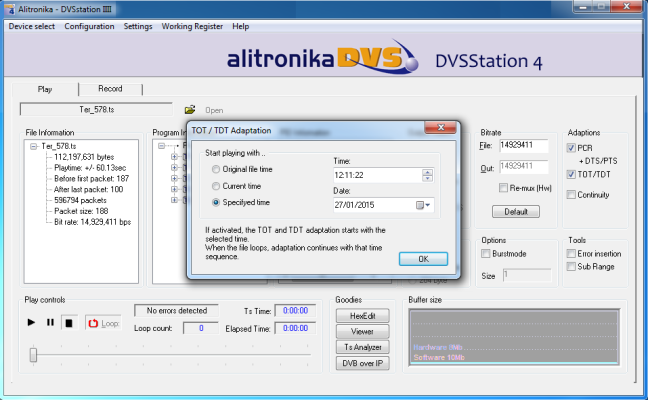

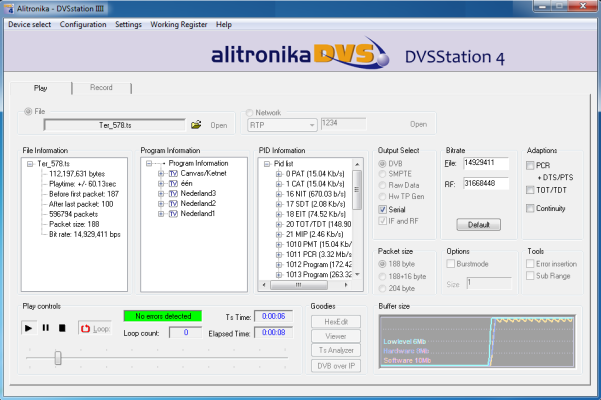

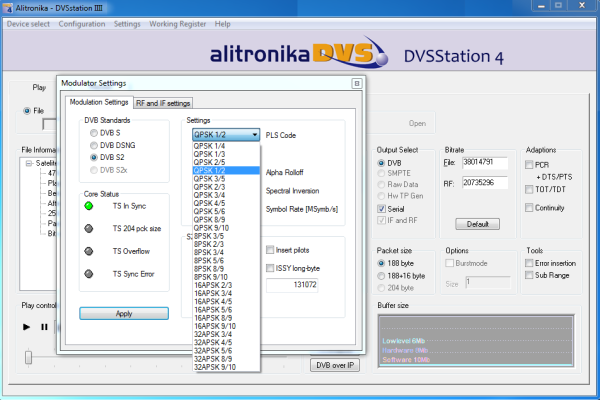

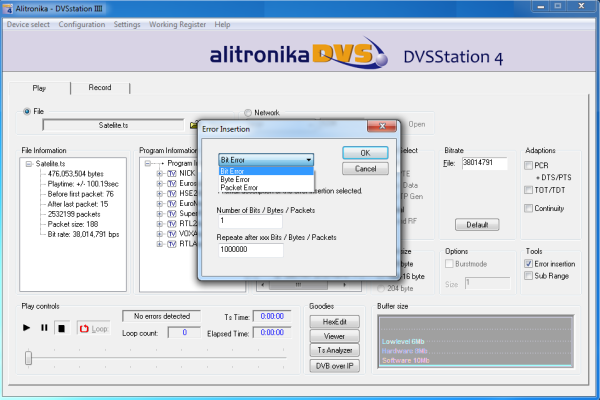

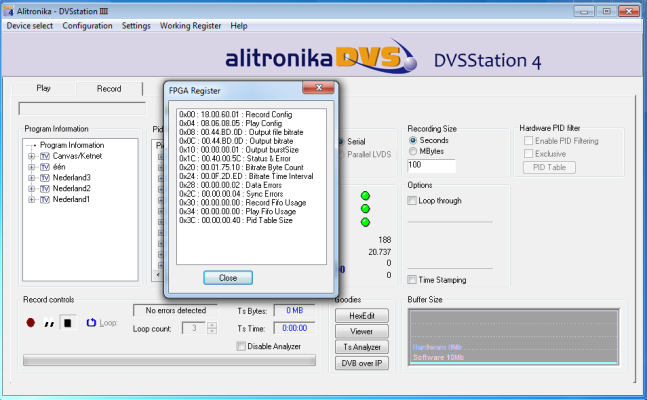

- Accompanied by DVSStation4 Alitronika’s Application Software.
- Supports Standards ETSI EN302307-2, ETSI EN302307-1, and ETSI EN103129.
- Supports DVB According to Standard A1010 Rev1 and EN50083.
- Modulation of Transport Stream file from Harddisk.
- All modulation processes are carried out by the hardware so that there is no load on the PC processor,
So there is no need for an expensive high performance PC.
- Supports Burst or continuous modes, 188 and 204 packet sizes.
– DVB-S2 : up to 200.385 MBit/s.
– DVB-S : up to 72.574 MBit/s.
- RF Output.
