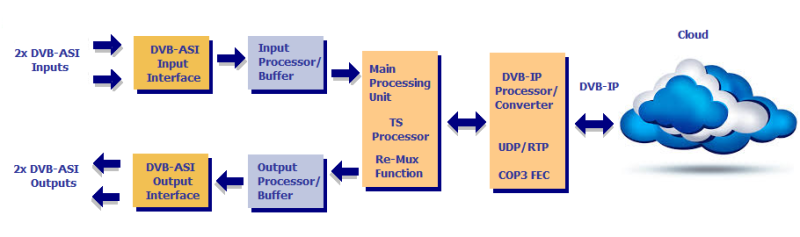

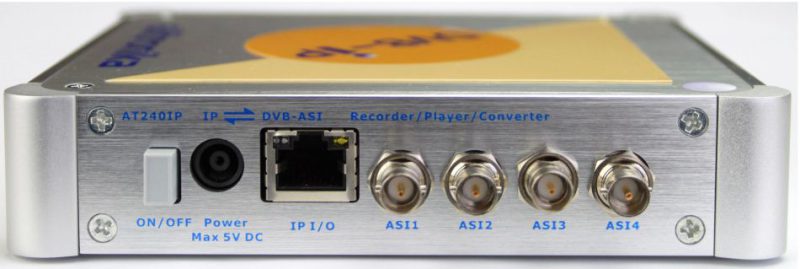

- Full Duplex DVB-ASI Player/Recorder & DVB-ASI to IP & IP to DVB-ASI Converter.
- Converts HD and SD MPEG-2 or H.264/MPEG-4 AVC transport streams from DVB-ASI to IP in real time.
- Receives HD and SD MPEG-2 or H.264/ MPEG-4 AVC transport streams over Ethernet-based Internet Protocol (IP) networks and converts them to DVB-ASI.

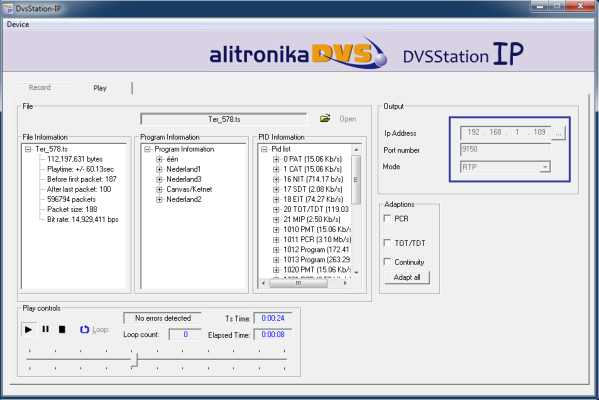

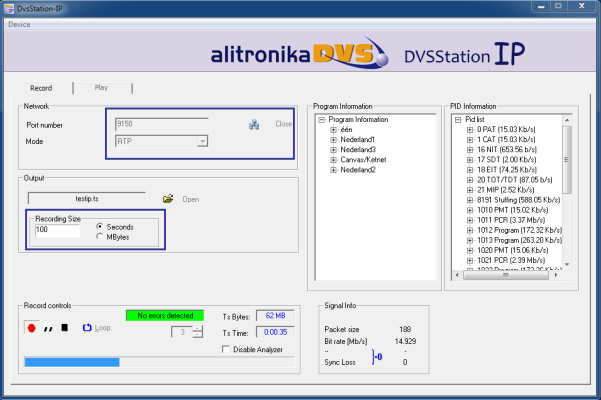

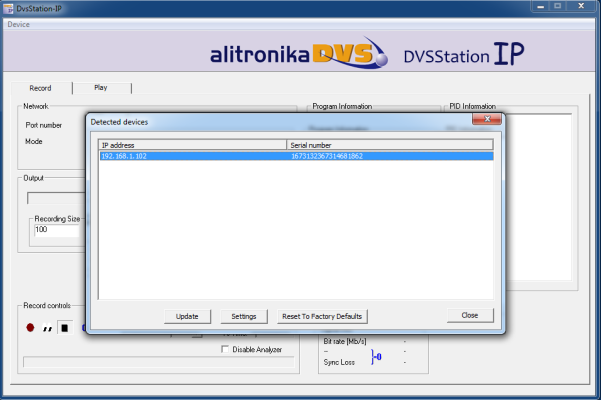

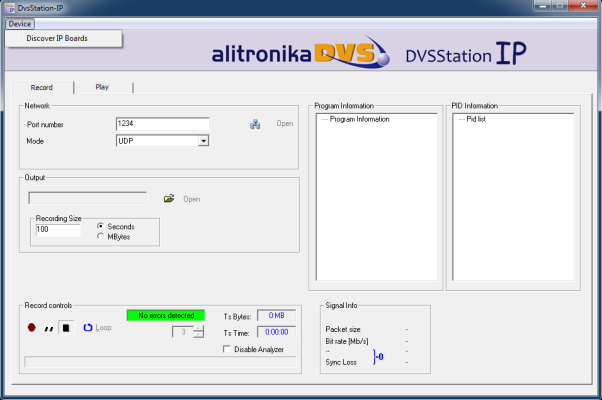

- Web based Software as well as DVSStationIP an IP TS Recorder & Player.
Supports DVB According to Standard A1010 Rev1 and EN50083. - Supports 188 & 204 byte or Arbitrary Packet Sizes.

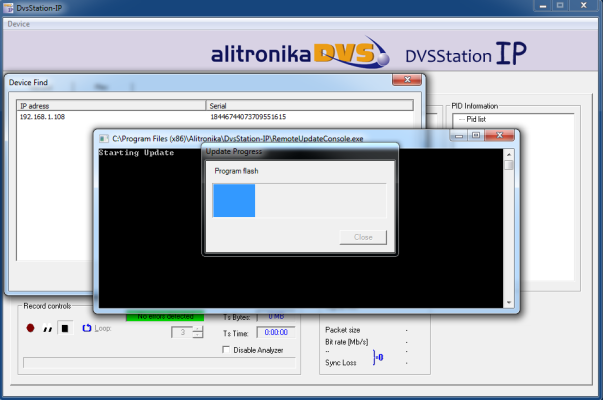

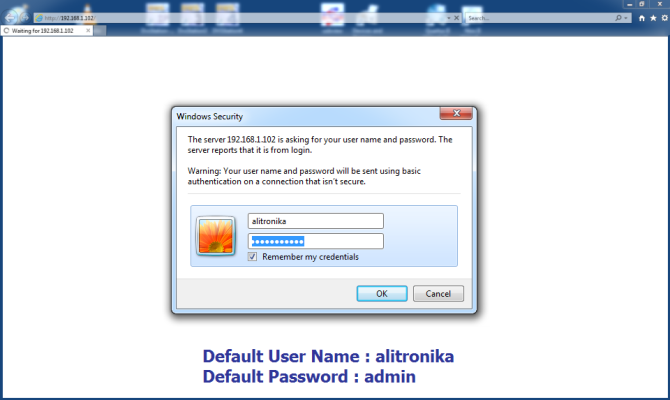

- Remote Web-based configuration management and remote firmware upgrade.
- Saved configuration setting. No re-configuration needed after system reboot.
- An alternative to dedicated satellite links – connects digital video equipment to computer networks.
IP
- Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP), with Real-time Transport Protocol (RTP) encapsulation and COP3 FEC.
- Dedicated hardware performs the encapsulation, which maximizes the throughput and latency.
- The device can accept traffic from Ethernet network and recover TS data.
- For RTP encapsulated data, the device incorporates buffer to absorb network jitter and correct for packet reordering and packet duplication.
- COP3 FEC-based lost packet recovery is available.
- For multiple TS interfaces, the AT60IP, individually maps each one to a specific UDP/IP socket (a combination of IP address and UDP port).

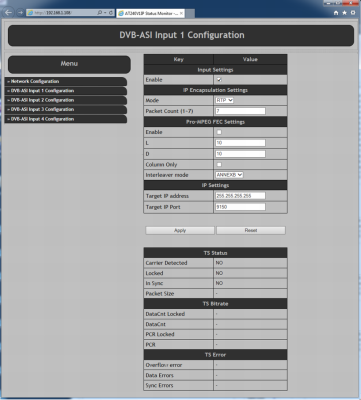

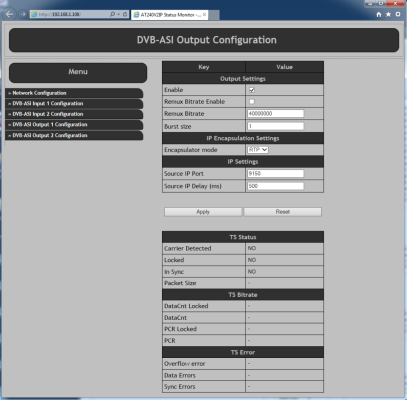

- All other encapsulation parameters can also be individually configured per TS.
Input & Output
- IP Maximum rate of up to 214 Mbps per ASI channel.
- Network jitter correction.
- Supports constant bit rate ASI output.
- IP address assignment from DHCP server and static IP address.

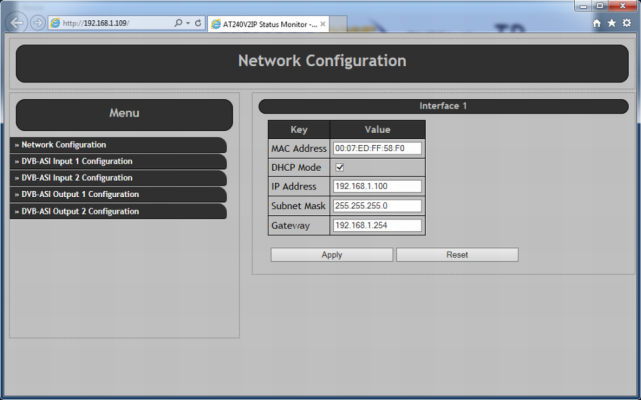

- IP address also configurable through the web interface.
- Configuration for Time To Live (TTL) for Multicast.
Input
- Automatic Cable Equalization of up to 350m.
- Supports True or Inverted ASI signals.
- Carrier and Lock Detection.
- Sync, Error & Code Violation Detection.
- Supports both multi-program TS (MPTS) and single-program TS (SPTS)data.
Output
- PCR, continuity counter correction.
- Packet time and date correction.
