AT660USB
Multi Standard

Receiver/Recorder/Converter/Player

DVB-S2/S to USB, ASI & SPI

DVB-ASI, DVB-SPI Outputs

Free Application Software

  • Combined DVB-S2/S Input and DVB-ASI/SPI Output
  • High Speed USB 2.0
  • Windows Drivers & SDK
  • Linux Drivers
  • Free Application Software, DVSStation3

Input

  • DVB-S2/S Direct TV Compliant QPSK Reception
  • Demodulation Standards: DVB-S, DVB-S2, DVB/DSS
  • Input Frequency Range: 950 MHz to 2150 MHz
  • Symbol Rate: 2 Mbaud to 45 Mbaud
  • Channel Bitrate: 190Mbit/s
  • Supports 188, 204 Transport Packet Sizes

Output

  • RF Loop Through Output
  • Simultaneous two Serial (ASI) & Parallel (SPI) Outputs
  • Supports DVB According to Standard A1010 Rev1 & EN50083

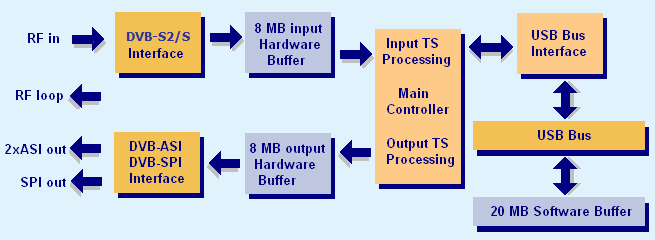

BLOCK DIAGRAM

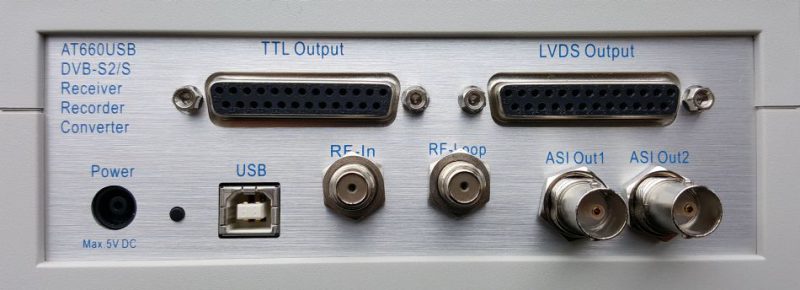

CONNECTIONS

APPLICATIONS

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT660USB is an ideal solution for a number of applications such as:

  • Development Tools
  • DVB to IP Gateway
  • DVB-S2/S to DVB-ASI/SPI Conversion
  • MPEG-II Transport Stream Recording,Monitoring & Processing

SPECIFICATIONS

  • On Board Buffer: 16 Mbytes
  • RF Tuner Connector:
    – 75 Ohms F Type
  • Loop Through Connector:
    – 75 Ohms F Type
  • Input Frequency Range: 950 MHz to 2150 MHz
  • Input Signal Level: -65dBm to -25dBm @ 27.5 Mbaud
  • Maximum Symbol Rate:
    – QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:30MSPS, DVB:2-45MSPS
  • DisEqc: DisEqC 2.X
  • Standards: DVB-S2/S & Direct TV
  • Demodulation Standard: DVB-S2 & DVB/DSS compliant
  • Modulation Method:
    – DVB-S:QPSK
    – DVB-S2: QPSK, 8PSK, 16APSK & 32APSK
  • Supported Code Rate:
    – QPSK: 1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10
    – 8PSK: 3/5,2/3,3/4,4/5,5/6,8/9,9/10
    – 16APSK: 2/3,3/4,4/5,5/6,8/9,9/10
    – 32APSK: 3/4,4/5,5/6,8/9,9/10
  • DVB-ASI Connector: 75 Ohms BNC
  • Output Signal level: 1.0Vp-p nominal
  • DVB-SPI Connector: 25-pin sub-D
  • DVB-ASI Output Bit Rate: 0 to 214 Mbit/s
  • DVB-SPI Output Bit Rate: 0 to 108 Mbit/s
  • DVB-ASI Output Clock: 270 MHz
  • DVB-SPI Output Clock: 0 to 13.5 MHz
  • DVB-SPI Output Level: LVDS

APPLICATION SOFTWARE

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika’s FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

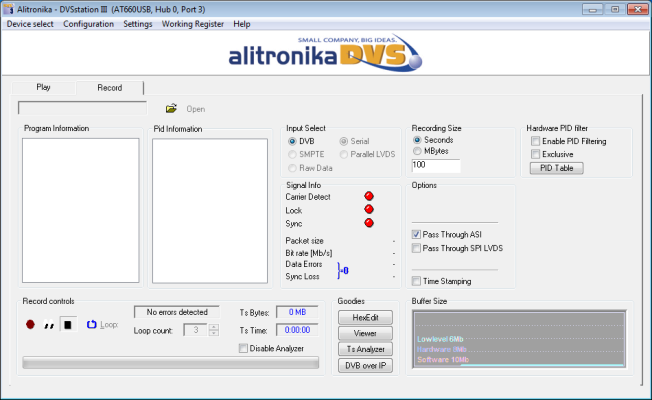

Record Screen => Before correct RF & LNB settings are selected.
DVB-S2/S Tuner Settings => Shows Errors before all settings are selected

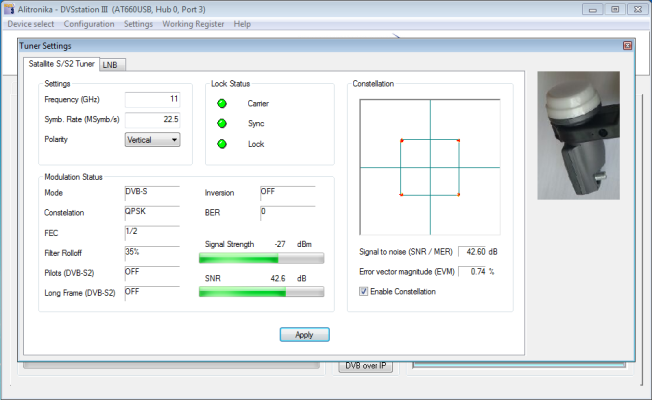

DVB-S2/S Tuner Settings => With all correct settings
LNB Settings => LNB power can be activated when connected to a LNB.

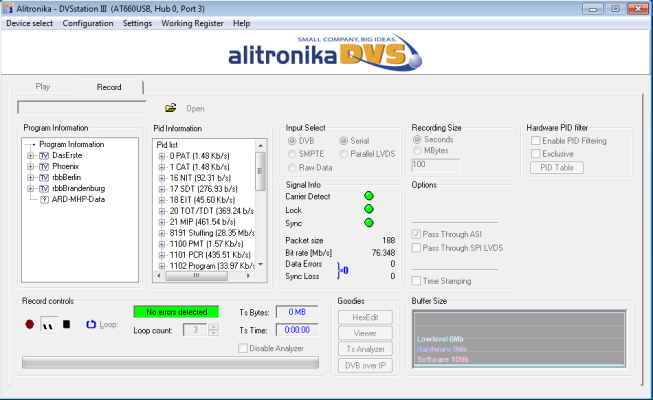

Record Screen => In normal operating conditions

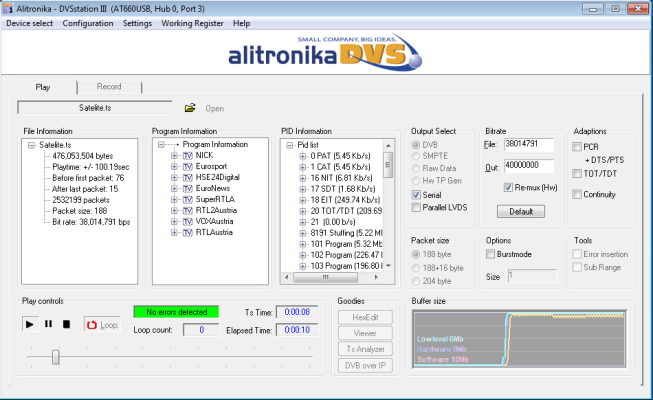

Play Screen
The application software provides the user with many functions & features such as :

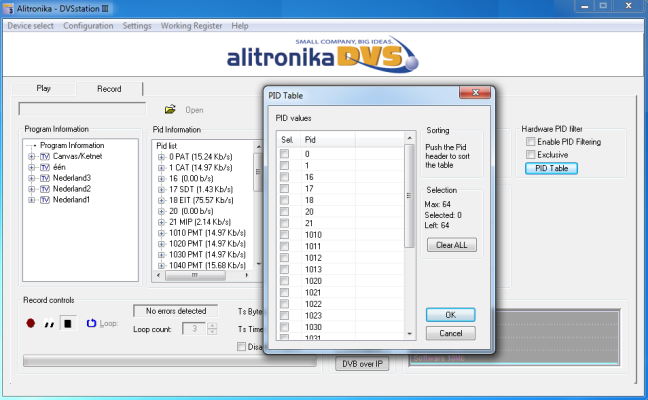

PID Filtering

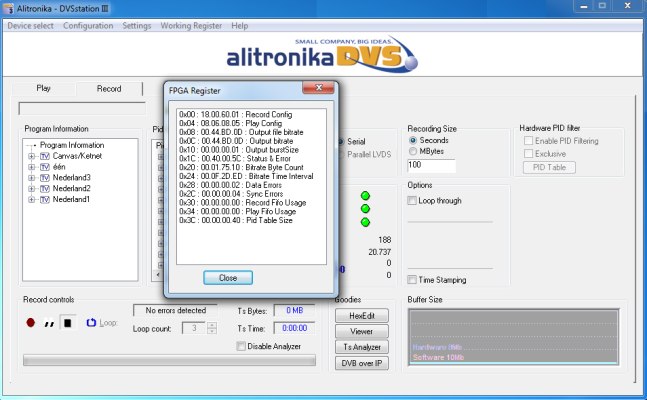

Hardware Working Regiters are accessable for monitoring

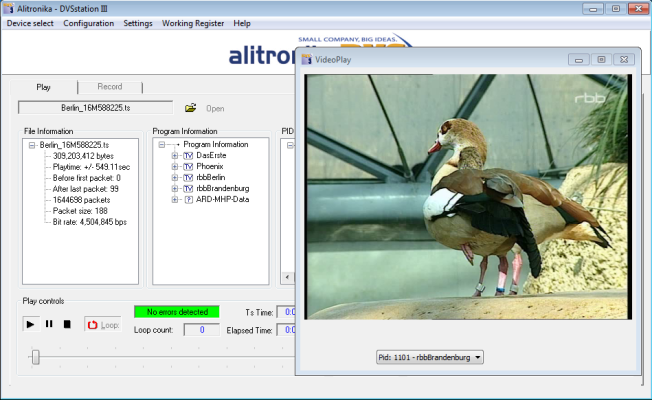

Among the “Goodies” are a Video Viewer

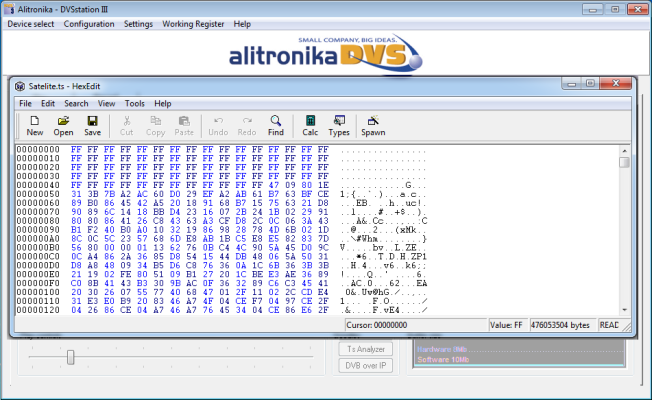

Hex Editor

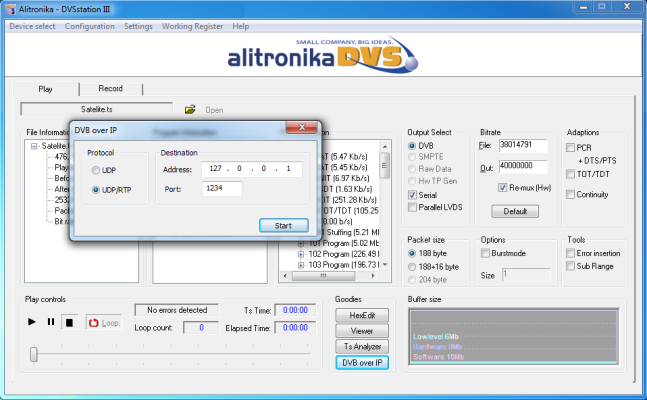

A DVB to IP Player/Converter

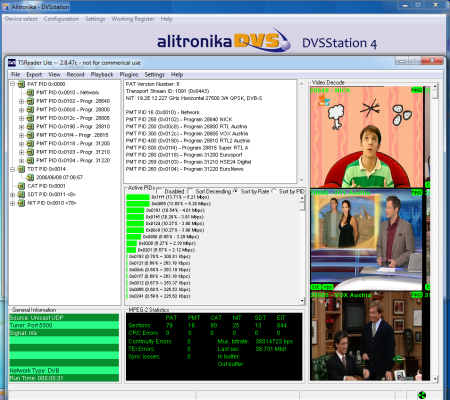

As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.
