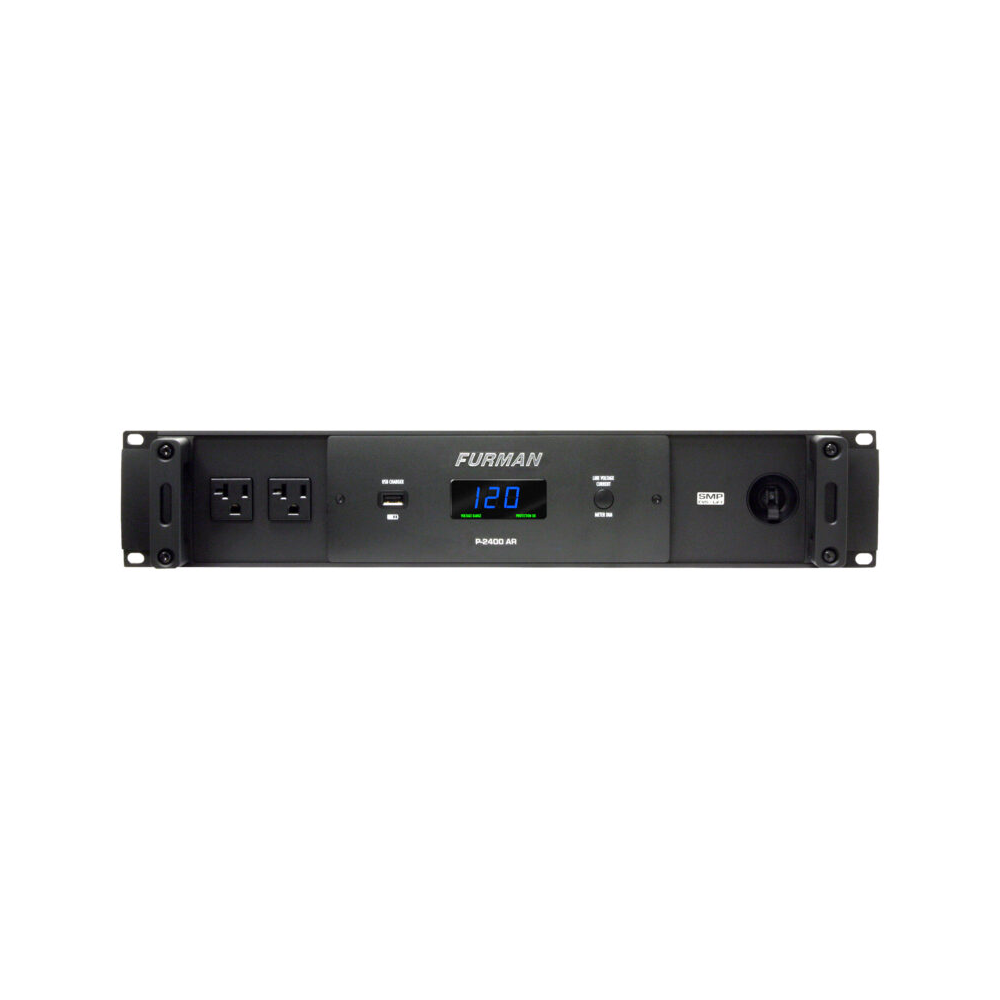

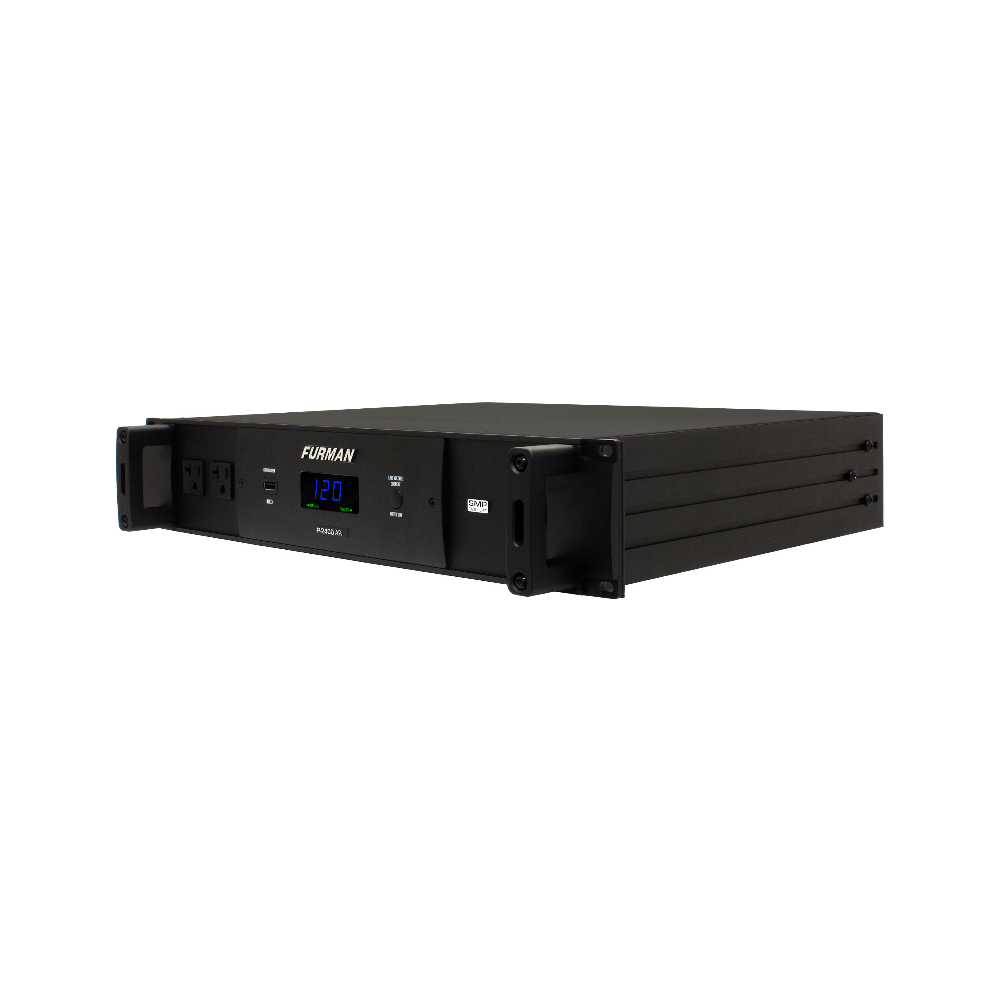

P-2400 AR
20A Prestige Voltage Regulator / Power Conditioner

The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages – all of which can cause sensitive electronic equipment to malfunction or sustain damage.

The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.

Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman’s Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

FEATURES

  • True RMS Voltage Regulation
    True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
  • Surge Protection
    Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
  • Noise Filtration
    LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
  • Voltage Protection
    Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
  • Diagnostic Lights
    LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
  • Voltmeter / Ammeter
    Large LED voltmeter/ammeter displays incoming voltage and output current draw .
  • Isolated Banks
    Isolated outlet banks minimize inter-component interference and noise contamination.
  • USB Charger
    Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
  • 20 Amp Rating
    20 Amp rating featuring a high inrush thermal circuit breaker for added protection.
  • 14 Total Outlets

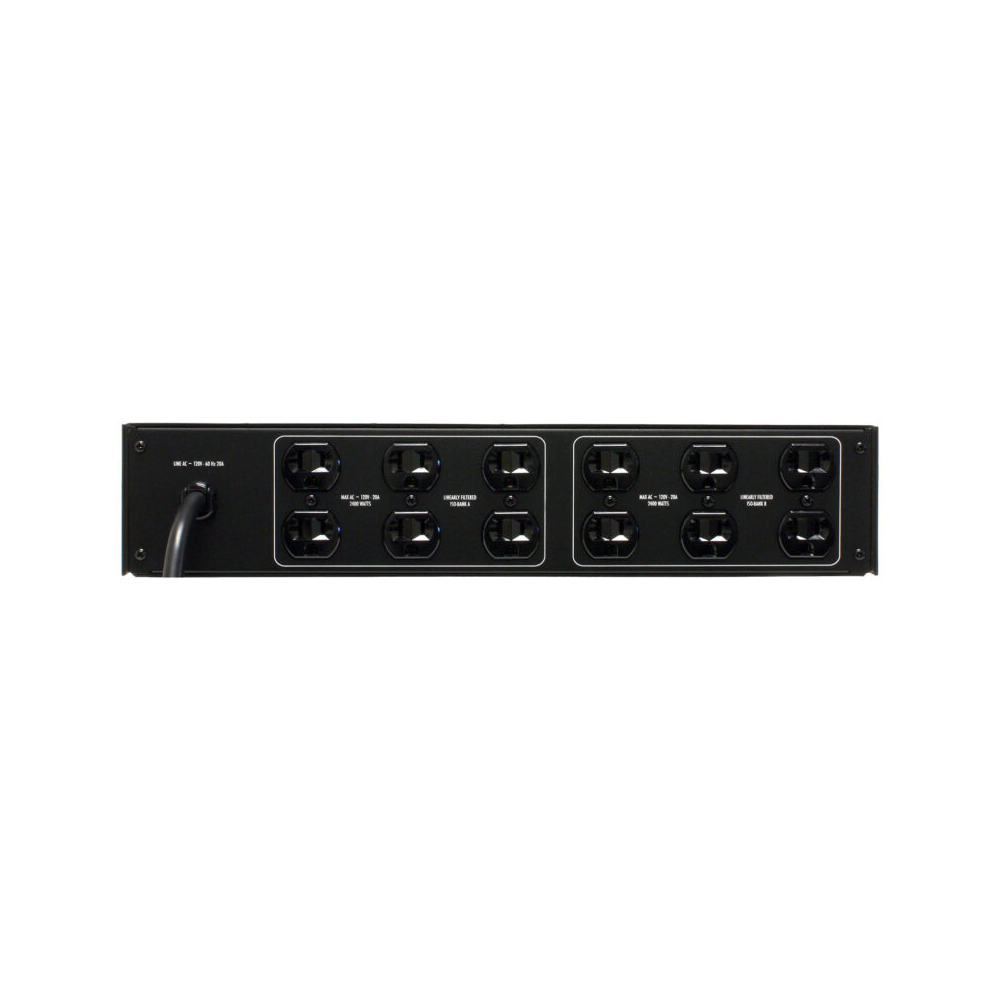

    14 total outlets (twelve rear panel outlets and two front panel convenience outlet).

SPECIFICATIONS

Response Time: 1 Nanosecond
Maximum Surge Current: 6,500 AMPS

OTHER SPECIFICATIONS

General

  • FamilyPrestige Series
  • Line Voltage120 (Volts)
  • Number of Outlets14
  • Number of Isolated Banks2
  • Outlet DescriptionsAll 14 outlets regulated and conditioned – 12 on the rear panel and 2 on the front
  • Rack MountableYes
  • Rack Ears IncludedYes
  • Front Panel Meter(s)LED voltmeter/ammeter displays incoming voltage and input current draw
  • Front Media Light(s)No
  • ControlFront panel:
    – On/Off switch
    – Voltage meter dimmer button
  • Voltage RegulationRegulation capture range:
    97 VAC to 137 VAC
  • CompliancecETLus
  • USB Charging1 front panel USB charger
  • Low Voltage TriggerN/A
  • AC Power Cord10 ft. captive 3/12 AWG, black cord with NEMA 20 plug
  • Dimensions19″ W x 12″ D x 3.5″ H
  • Weight39 lbs
  • Power Consumption13 Watts

AC Protection

  • AC Protection TechnologyTrue RMS Voltage Regulation
  • Extreme Voltage Shutdown
  • Non-sacrificial protection with zero ground contamination
  • Under-Voltage Shutoff90V
  • Over-Voltage Shutoff145 VAC
  • Maximum Current Rating20 (Amps)
  • Initial Clamping Level188 VAC peak @ 3,000 Amps

Filtration

  • Filtration TechnologyLiFT
  • Filtration Rating10 dB @ 10KHZ
    40 dB @ 100 KHZ
    50 dB @ 500KHZ
  • Signal Line ProtectionNo

Shipping Info

  • Length23.9 (Inches)
  • Width22.8 (Inches)
  • Height10.4 (Inches)
  • Weight45.4 (Lbs)
  • Unit of MeasureEach
  • UPC654061028192
  • Master Pack Qty1

Other Specifications

  • Response Time:1 Nanosecond
  • Maximum Surge Current:6,500 AMPS

Proposition 65 Warning

  • Warning:WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
