M-8S
15A Standard Power Conditioner with Sequencer

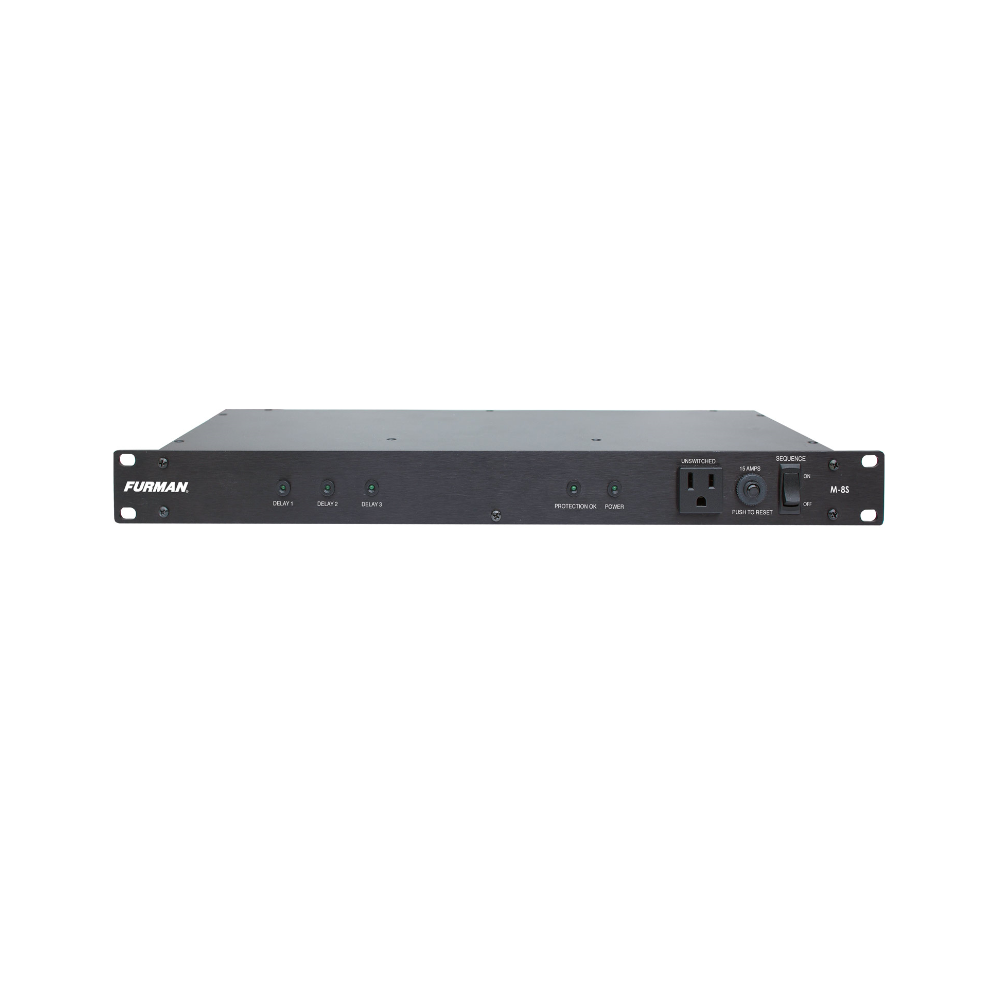

Install an M-8S in your rack, and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.

Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system where power sequencing is desired.

Install an M-8s in to the top slot of your rack, and the six delayed outlets in the rear panel will power up sequentially and protect all your equipment up to a 15-amp load.

Includes 3 delayed outlet banks – each with 2 outlets – plus 2 unswitched outlets.

FEATURES

Power Sequencing

  • Prevents excessive inrush currents.

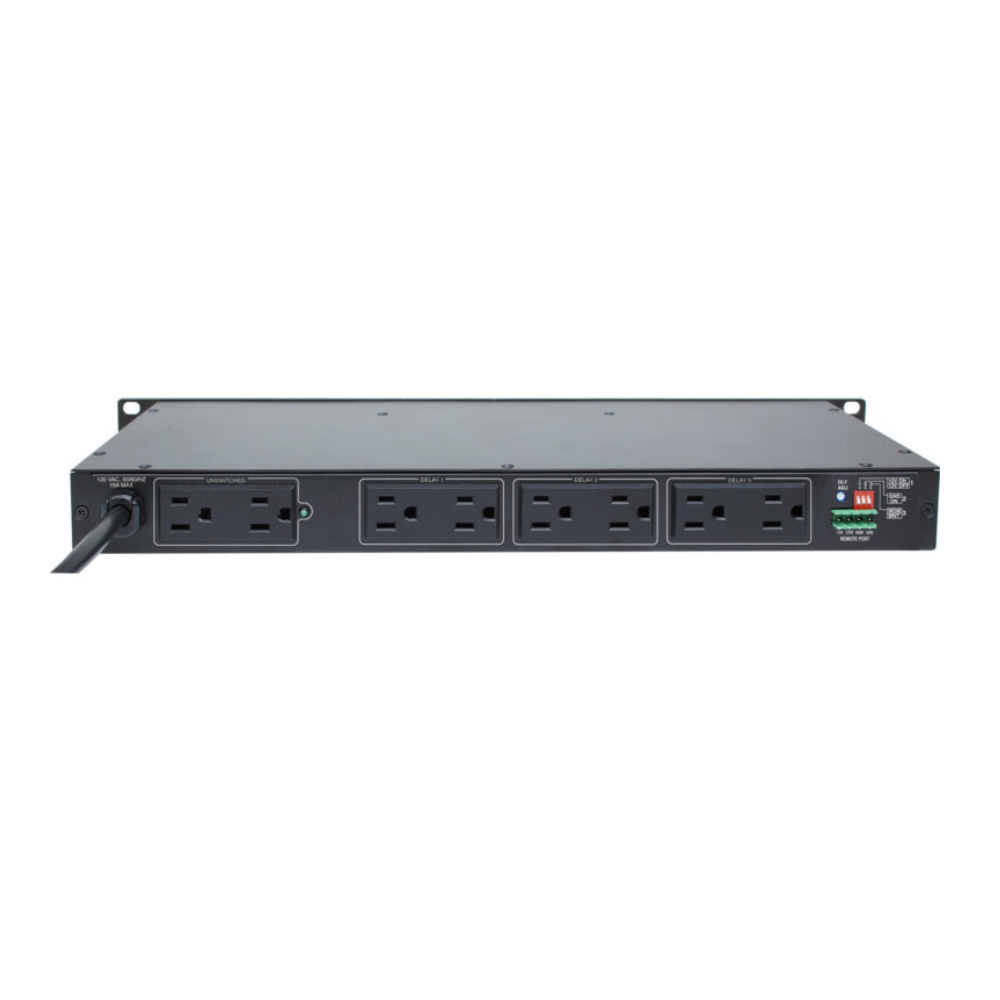

  • Six sequenced rear panel outlets (in three groups), two unswitched rear panel outlets, and one front panel unswitched outlet.
  • Momentary and maintained sequencing via rear panel terminal block or front panel switch (momentary only).

Noise Filtration

  • Noise filtering to reduce radio frequency and electromagnetic interference.

Surge Protection

  • Ensures equipment stays safe.

9 Total Outlets

  • Eight rear panel outlets and one front panel convenience panel outlet.

15 Amp Rating

  • 15 amp rating, with circuit breaker.

“Protection OK” Indicator

  • Front panel indicator LEDs for Outlet Banks, Protection OK and Power Status.

Wall Wart Spacing

  • Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters.
  • All settings and configurations available on rear panel.

SPECIFICATIONS

  • Maximum AC Current Rating 15 Amps, 120 VAC (Thermal breaker)
  • AC Cord 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
  • Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R
  • Rear Panel Outlets 2 Un-switched NEMA 5-15R (1 duplex)
  • 6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
  • AC Surge Protection Merit Class (sacrificial)
  • Spike Protection Mode Line to neutral, zero ground leakage
  • Max Continuous Operating Voltage 130V RMS
  • Max Clamp Voltage 500 Volts Peak
  • Peak Impulse Current 12,000 Amps
  • Energy Rating (2 X 820µS) 225 Joules
  • AC Filtering Pi LCR Filter
  • Noise Attenuation >26dB, 100 Khz to 1 MHz
  • Operating Temperature Range 5C (40F) to 40C (105F) degrees
  • Humidity Range <90% rH (Relative Humidity)
  • Rocker Switch Front panel, Sequence (ON, OFF)
  • Thermal Circuit Breaker Front panel, push to reset
  • Front panel indicators Delay 1, Delay 2, Delay 3, Power, Protection OK
  • Control/Status/Triggering (Rear Panel) Rear Panel DIP Switches: 12V Mode On/Off,
  • GND Mode On, Momentary/Maintained
  • Potentiometer Rear panel, time calibration fine tune delay adjust
  • Remote Terminal +5-30VDC In, 12VDC (12mA) Out
  • Remote Terminal Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Size 1.75” X 19.00” X 6.5” (HWD) – ANSI 1RU
  • Mass 5.3 lbs.
  • Power Consumption (No Load) 5 Watts
  • Safety Agency C/CSA/US

OTHER SPECIFICATIONS

General

  • FamilyMerit Series
  • Line Voltage120 (Volts)

Shipping Info

  • Length21.9 (Inches)
  • Width9.4 (Inches)
  • Height3.4 (Inches)
  • Weight7.65 (Lbs)
  • Unit of MeasureEach
  • UPC654061041078
  • Master Pack Qty6
