ITP-8-RBKT-BK
Flush Mount Retro Kit for ITP-8 in Black

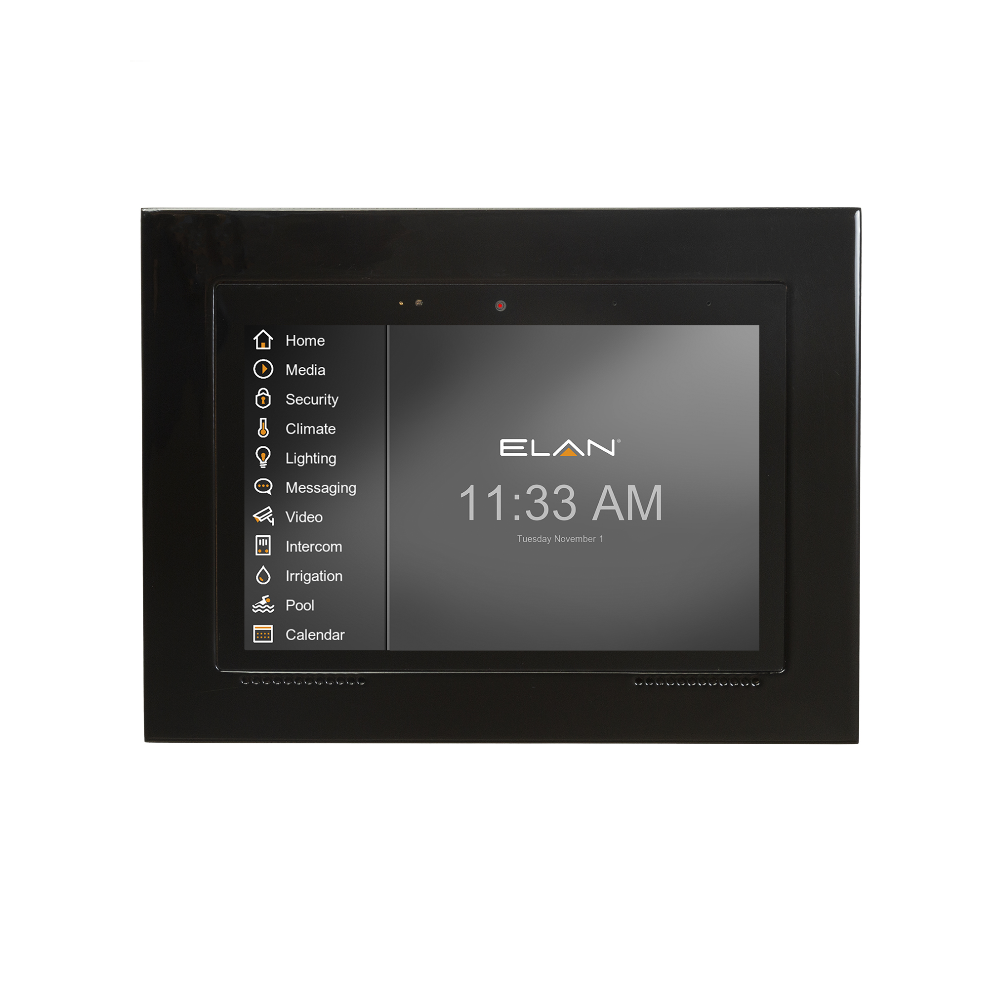

The ITP-8-RBKT flush mount/retro-fit installation kit allows for clean and smooth installation of the Nice/ELAN, 8″ Touch Panels.

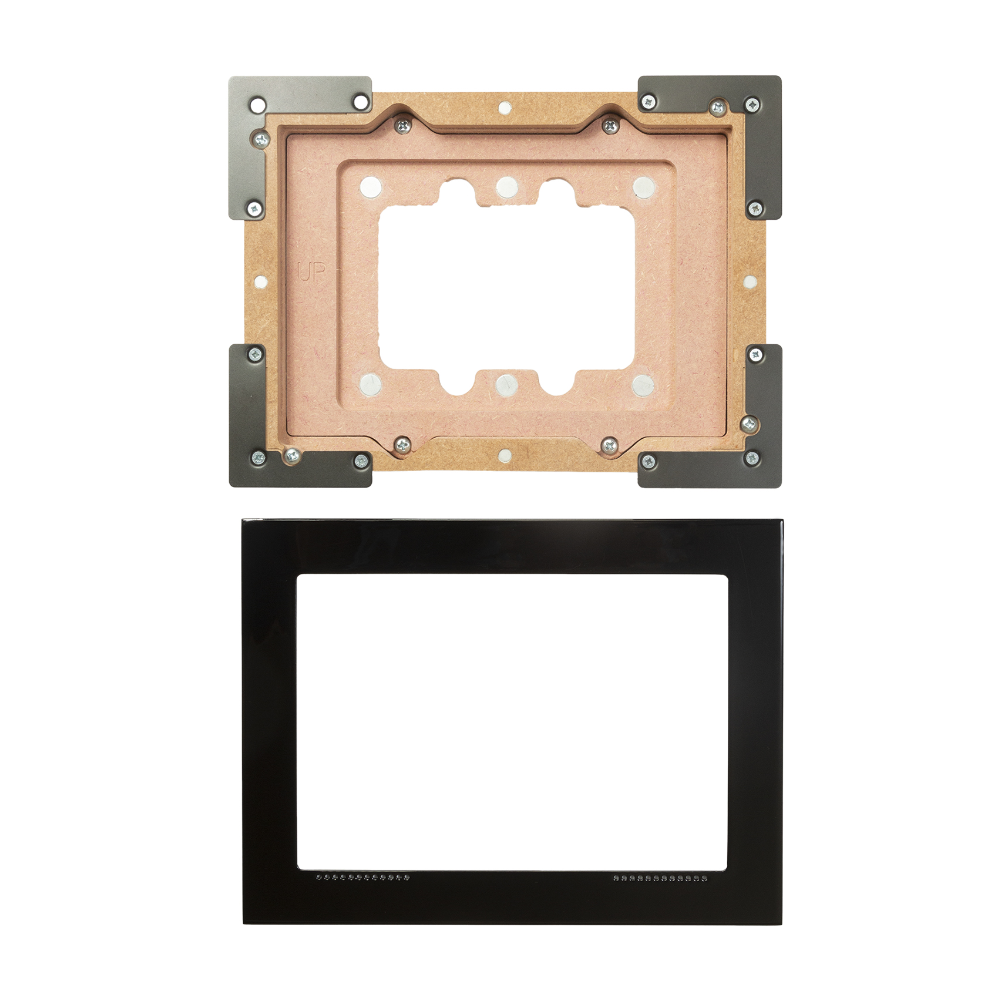

The ITP-8-RBKT-BK Retrofit Bracket is a black adapter for in-wall nearly flush retrofit installation of an ITP-8 touch screen. The ITP-8-RBKT-BKB Retrofit Bracket securely mounts the ITP-8 touch screen while allowing easy insertion, removal and operation.

FEATURES

  • Mounts nearly flush with the wall (4mm [0.16”] thick on-wall bezel).
  • Allows for easy insertion and removal of the touch screen.
  • Wall mount contains depth calibration screws.
  • Wall board thickness 10mm [0.39″”] up to 22mm [0.86″”].
  • Bezel attaches magnetically to the retrofit wall mount base.”

SPECIFICATIONS

Dimensions: (W/H/D): 257.2mm (10.12″”)/ 193.6mm (7.62″”)/48mm (1.89”)
Weight: 0.95Kg, 2.1lbs.
Material: Moisture resistant MDF (compliant with TSCA Title VI)”
