ITP-12-RBKT-WH
Flush Mount Retro Kit for ITP-12 in White

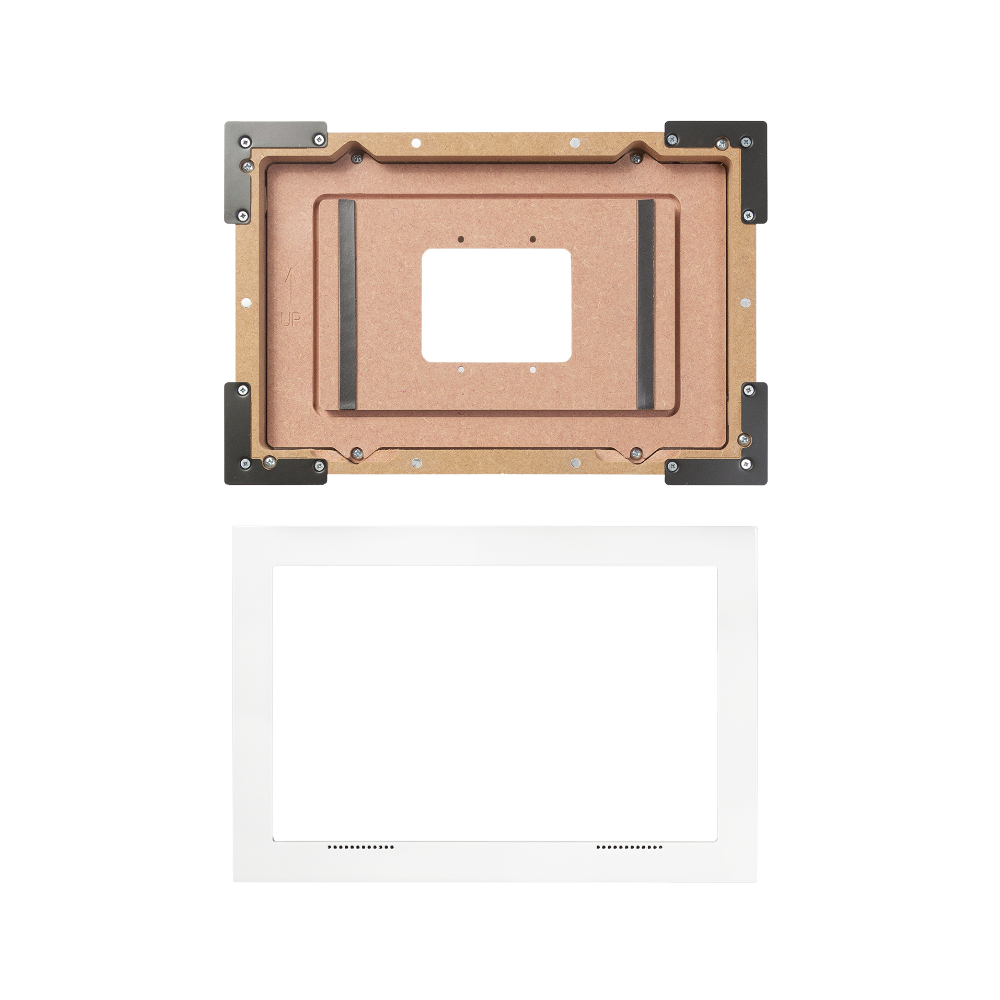

The ITP-12-RBKT flush mount/retro-fit installation kit allows for clean and smooth installation of the Nice/ELAN, 8″ Touch Panels.

The ITP-12-RBKT-WH Retrofit Bracket is a black adapter for in-wall nearly flush retrofit installation of an ITP-12 touch screen. The ITP-12-RBKT-WH Retrofit Bracket securely mounts the ITP-12 touch screen while allowing easy insertion, removal and operation.

FEATURES

  • Mounts nearly flush with the wall (4mm [0.16”] thick on-wall bezel).
  • Allows for easy insertion and removal of the touch screen.
  • Wall mount contains depth calibration screws.
  • Wall board thickness 10mm [0.39″”] up to 22mm [0.86″”].
  • Bezel attaches magnetically to the retrofit wall mount base.”

SPECIFICATIONS

Dimensions: (W/H/D): 350.5mm (13.8″)/ 237.8mm (9.36″)/50.2mm (1.976”)
Weight: 1.2Kg, 2.64lbs.
Material: Moisture resistant MDF (compliant with TSCA Title VI)”
