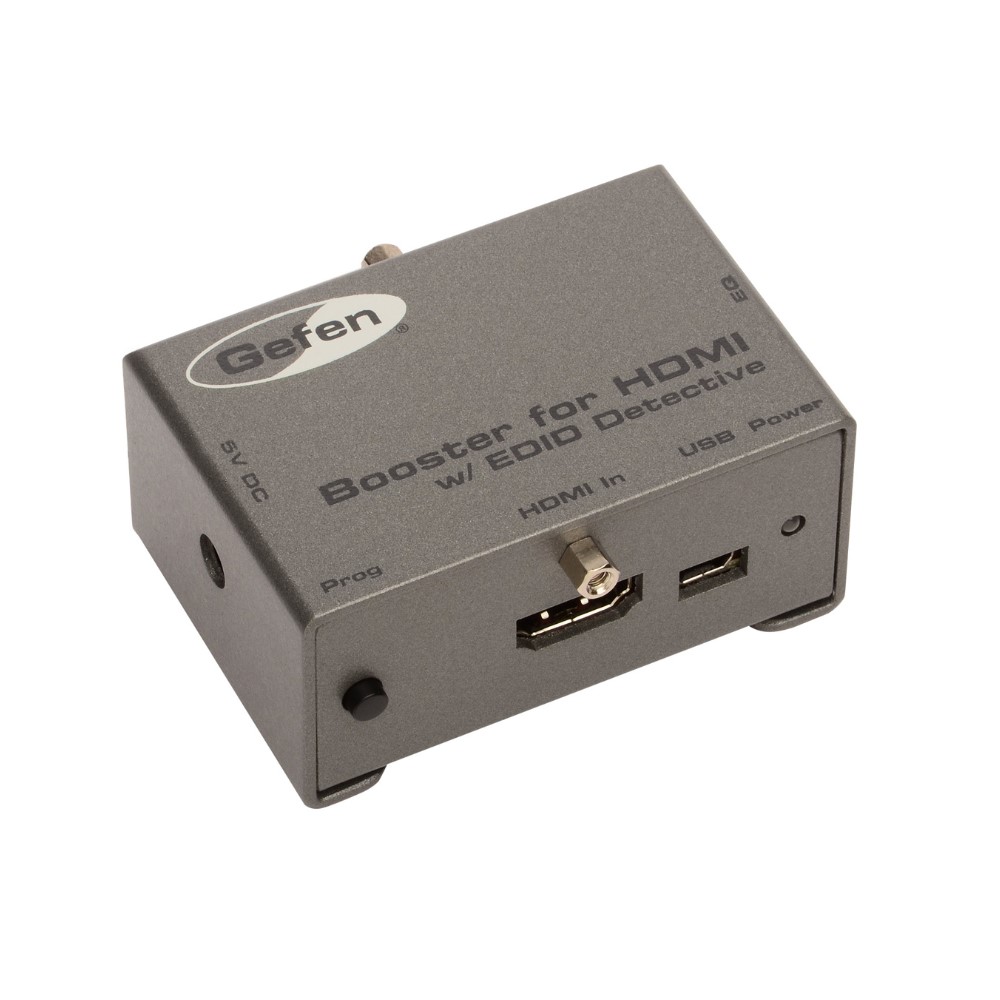

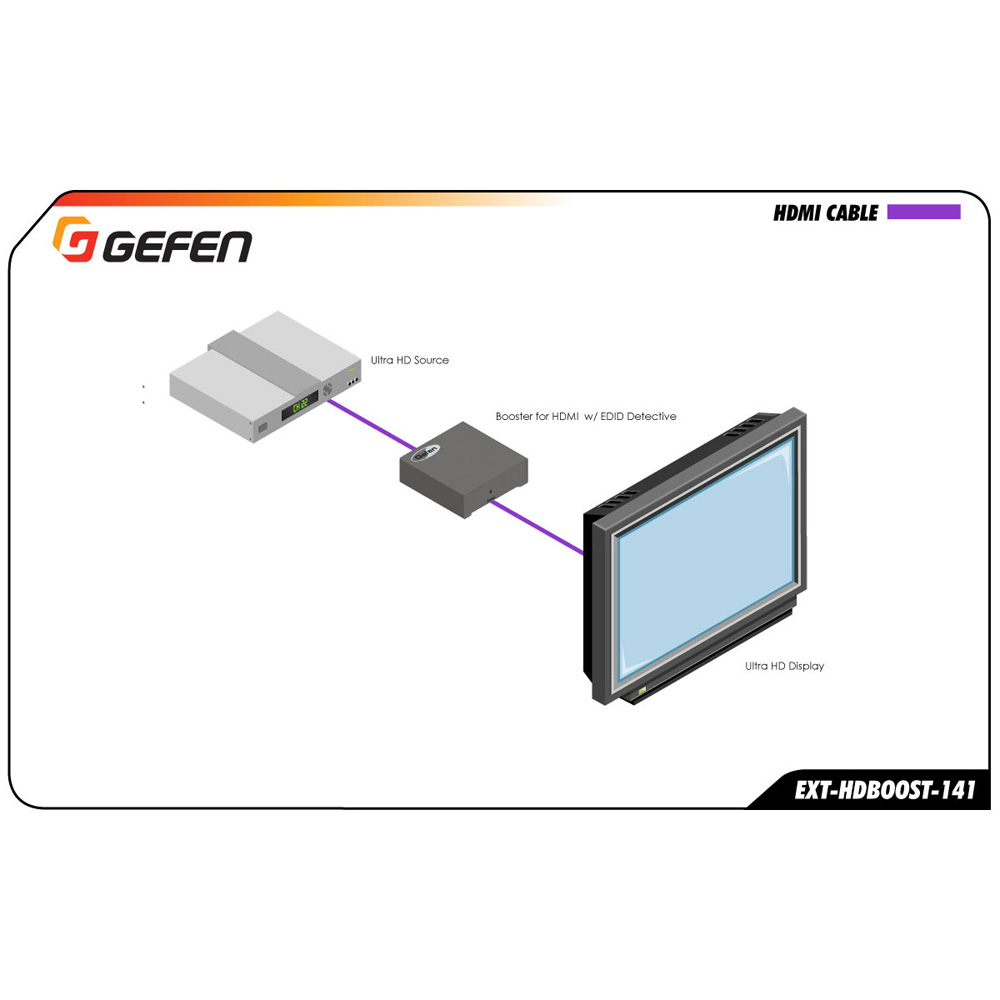

he Gefen Booster for HDMI with EDID Detective extends HDMI up to 150 feet (45 meters) at 1080p Full HD and up to 115 feet (35 meters) at 4K Ultra HD and 4K Cinema resolutions, using standard copper HDMI cables. HD and Ultra HD displays use EDID (Extended Display Identification Data) to ensure that a connected Hi-Def source sends compatible audio and video signals. In some scenarios, this data can be lost, resulting in an incorrect signal or complete loss of audio and/or video. With DDC re-clocking technology, the reliability of HDCP handshaking is improved, ensuring that the Hi-Def source always receives the correct EDID. Using the Gefen Syner-G™ software, the installer can also modify the EDID data to meet installation-specific requirements and resolve system-level compatibility issues. This Gefen Booster-Detective has been designed for quick and easy programming and installation
FEATURES
- Extends copper HDMI cables up to 115 feet (35 meters) at 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0 or 30 Hz 4:4:4), and 4K Cinema (DCI, @ 24 or 30 Hz 4:4:4)
- Extends copper HDMI cables up to 150 feet (45 meters) at 1080p Full HD
- Supported resolutions include 4K Ultra HD, 4K Cinema, 1080p Full HD, and 2048 x 1536 (QXGA)
- HDMI Features Supported:
- HDMI 2.0
- HDCP
- 12-bit Deep Color
- LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus,and DTS-HD® Master Audio™
- 3DTV pass-through
- Lip-Sync pass-through
- CEC pass-through
- USB port for advanced programming of features such as video equalization, pre-emphasis, and EDID management
- Configurable EDID using Gefen Syner-G™ software suite, downloadable from Gefen website.
- DDC Re-clocking
- EQ adjustment for best results with varying cable types and lengths
- Can record the EDID from a display
- 6 pre-programmed EDID profiles6 user-programmable EDID banks for
- copying/uploading EDIDs
- Selectable HDCP pass-through
- Field updatable firmware via USB port
- Compact and portable
SPECIFICATIONS
Maximum Pixel Clock: 340 MHz

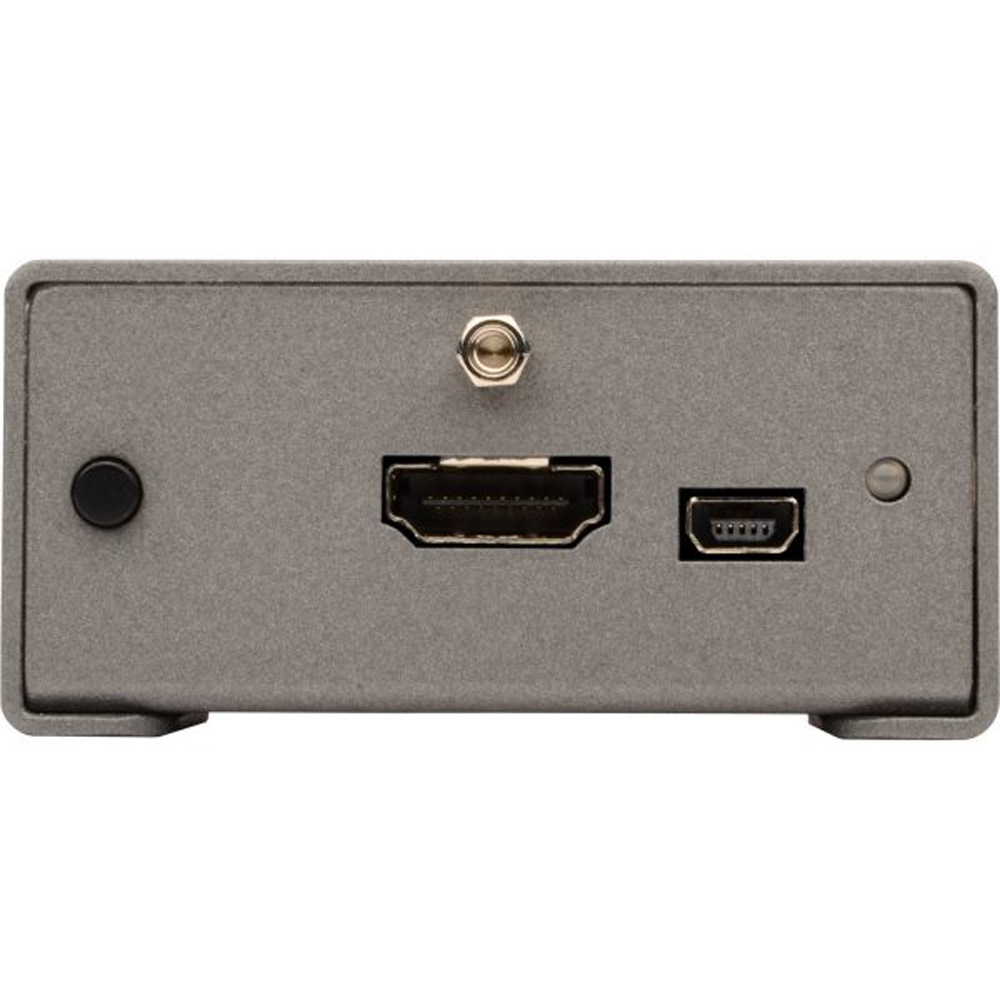

Video Input Connector: (1) HDMI Type A 19-pin, female, locking

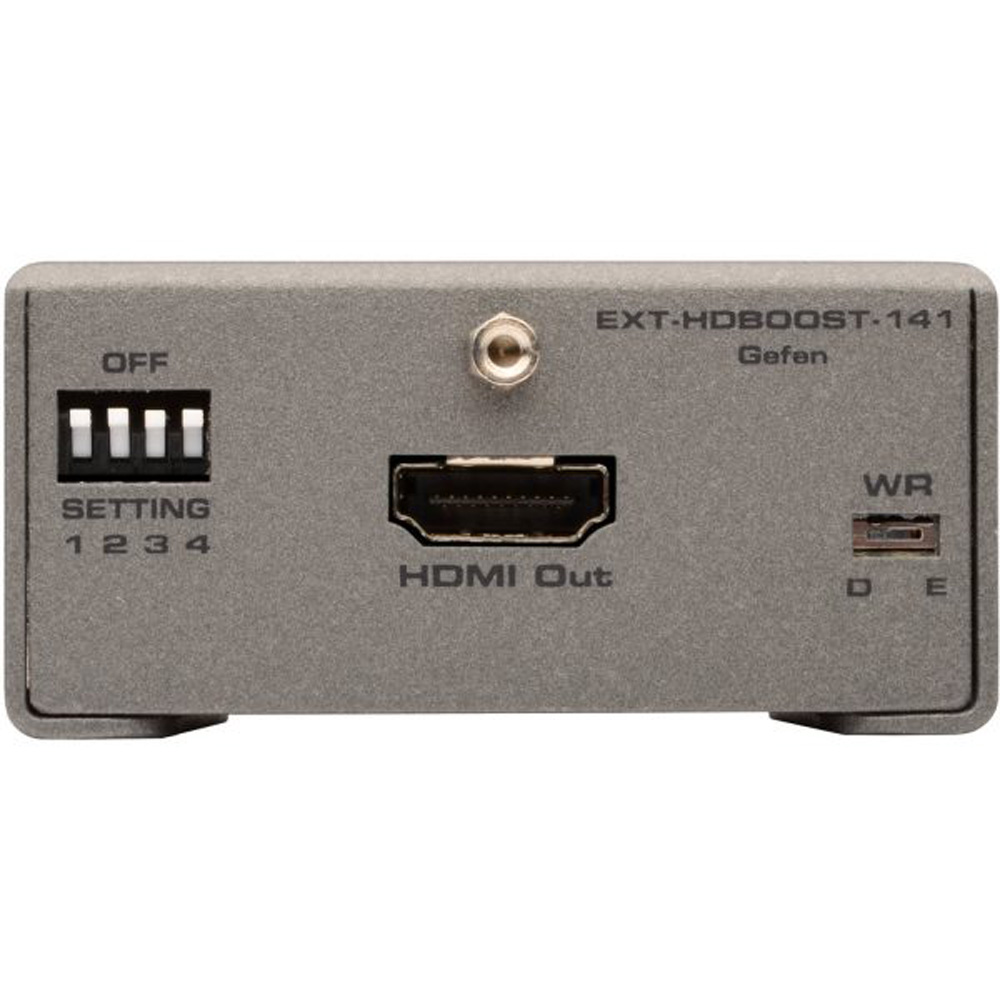

Video Output Connector: : (1) HDMI Type A 19-pin, female, locking
USB port: (1) Mini-B
EDID Memory Size: 256 Bytes
EDID Write Protect Switch: (1) slide-type
EDID Program Button: (1) tact-type
EDID programming switches: (3) DIP-type
HDCP pass-thru/block switch: (1) DIP-type
EQ Level Switch: (1), 8-position rotary-type

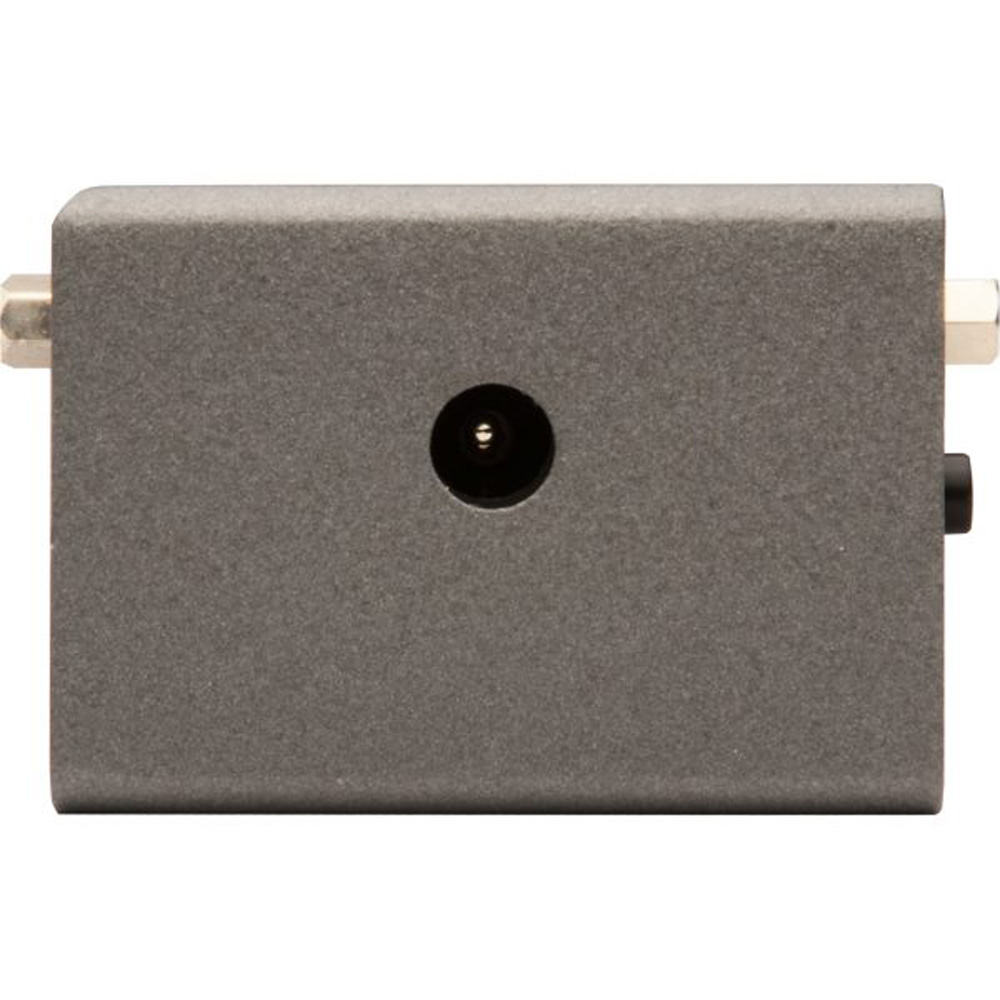

Power Supply : : 5V DC
Power Consumption: 5W (max.)
Dimensions (W x H x D): 2.7″ x 1.3″ x 1.8″ (68mm x 33mm x 46mm)
Shipping Weight: 2 lbs (0.9kg)
OTHER SPECIFICATIONS
Shipping Info
- Length10.7 (Inches)
- Width7.6 (Inches)
- Height2.7 (Inches)
- Weight1.4 (Lbs)
- UPC845344042626
Other Specifications
- Maximum Pixel Clock: 340 MHz
- Video Input Connector: (1) HDMI Type A 19-pin, female, locking
- Video Output Connector: (1) HDMI Type A 19-pin, female, locking
- USB port: (1) Mini-B
- EDID Memory Size: 256 Bytes
- EDID Write Protect Switch: (1) slide-type
- EDID Program Button: (1) tact-type
- EDID programming switches: (3) DIP-type
- HDCP pass-thru/block switch: (1) DIP-type
- Switch: (1), 8-position rotary-type
- Power Supply : 5V DC
- Power Consumption: 5W (max.)
Dimensions (W x H x D):2.7″ x 1.3″ x 1.8″ (68mm x 33mm x 46mm) - Shipping Weight: 2 lbs (0.9kg)
In The Box
- Booster for HDMI w/EDID Detective (EXT-HDBOOST-141)(1)
- 1 Ft. Locking HDMI Cable (CAB-HD-LCK-01MM)(1)
- USB Mini-B to Type A Cable (CAB-MUSB2USB-6-O)(1)
- 5V DC Power Supply (EXT-PS526AIPN)(1)
- Quick-Start Guide (QSG-HDBOOST-141)(1)
