CN-1800S
15A SmartSequencing Power Conditioner

SmartSequencing with advanced AC protection and noise filtration.

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adapter required, sold separately).

The new CN-1800S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the CN-1800S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP: connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

FEATURES

  • Surge Protection – Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration – Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection – Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
  • Diagnostic Lights – Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
  • 15 Amp Output Current – 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.
  • Remote Access (RS-232) – RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • BlueBOLT Compatible® – BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.
  • Nine Total Outlets – The CN-1800S contains eight rear panel NEMA 5-15R outlets and one front panel NEMA 5-15R outlet.

SPECIFICATIONS

AC Voltage Input Range 90-139VAC, 50/60Hz

Maximum AC Current Rating 15 amps (Thermal breaker)

AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

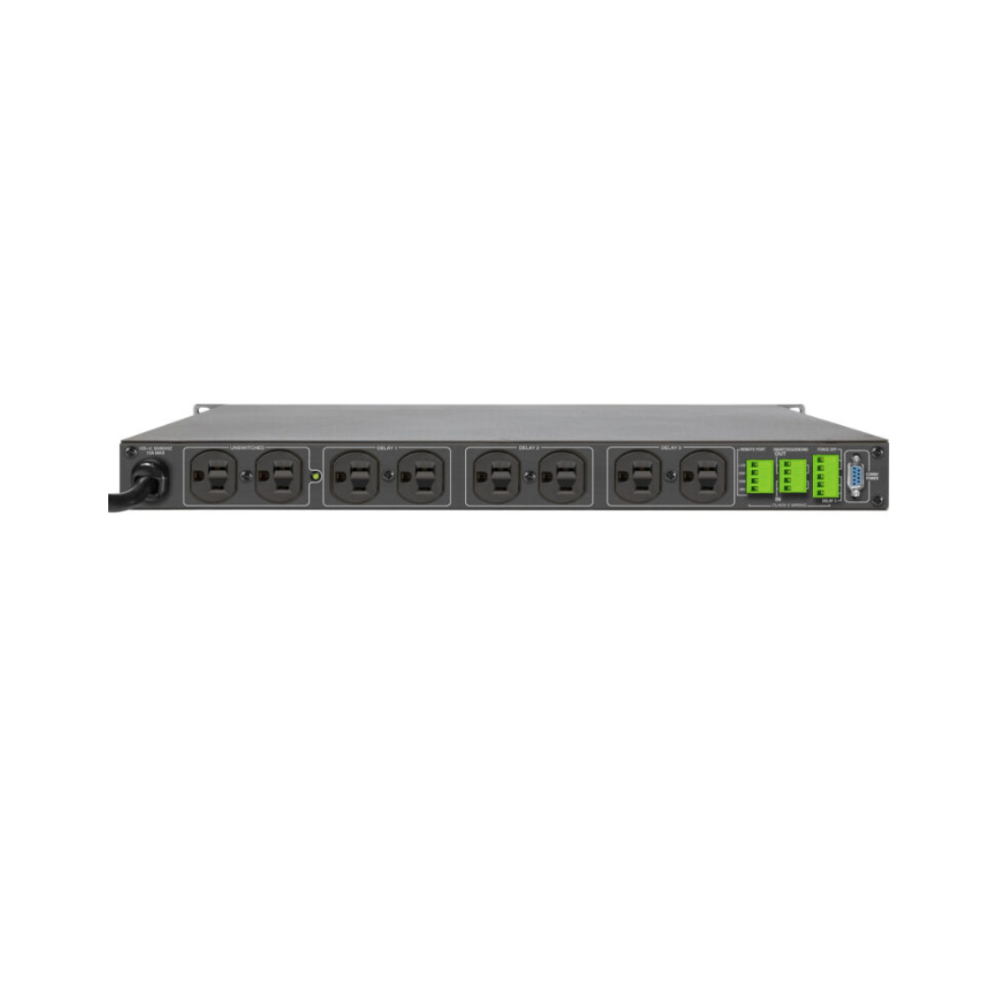

AC Receptacles Rear Panel Outlets 2 Unswitched NEMA 5 15R’s (1 duplex), 6 Sequenced NEMA 5-15R’s (3 duplexes each controlled by separate relay)
Front Panel One NEMA 5-15R Convenience Outlet, Unswitched
AC Surge Protection SMP
Spike Protection Mode Line to neutral, zero ground leakage
Spike Clamping Voltage 188VAC peak @ 6,000 volts/3,000 amps
Response Time 1 nanosecond
Maximum Surge Current 6,500 Amps
AC Undervoltage Protection EVS, 77VAC+/-3VAC
AC Overvoltage Protection EVS, 145VAC+/-5VAC
AC Overvoltage Reset Modes Manual and Auto-reset (configurable)

AC Filtering LiFT
Noise Attenuation Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating Temperature Range 5C (40F) to 40C (105F) degrees
Humidity Range <90% rH (Relative Humidity)
Key-switch Front panel, 3-position key-switch (On, Off, Remote)
Keys Included, 1 pair

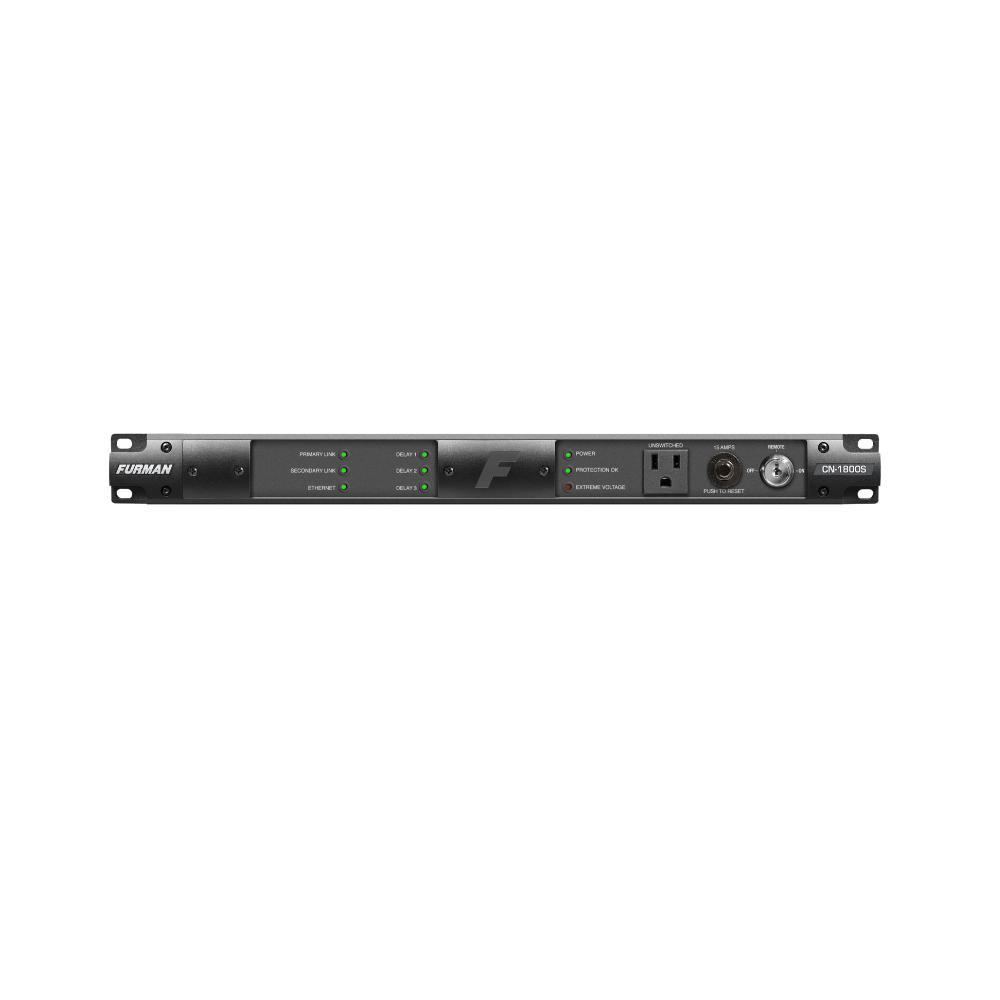

Push-button Switch Front panel, hidden by security cover
Circuit Breaker Front panel, push-button, 15A Thermal Breaker

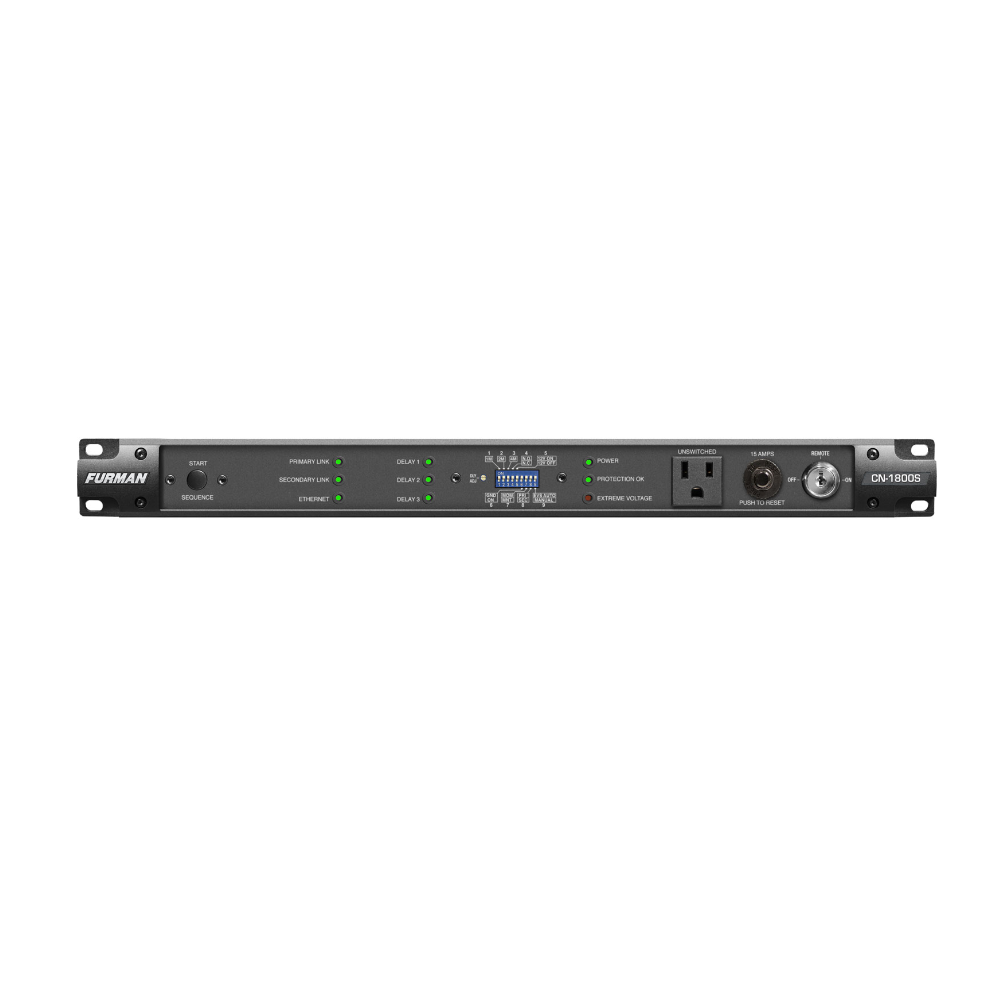

Front panel diagnostic indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
Front Panel DIP Switches Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer Front panel, hidden by security cover, fine tune delay adjust
Control/Status/Triggering (Rear Panel) Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
RS-232 Compatible Yes, DB-9 Connector
IP Addressability Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
Voltmeter Available with RS-232/Ethernet option, ± 2VAC accuracy
Ammeter Available with RS-232/Ethernet option, ±1A accuracy
Power Consumption (No Load) 10 Watts
Safety Agency NRTL-C, RoHS Compliant

OTHER SPECIFICATIONS

General

  • FamilyContractor Series
  • Line Voltage120 (Volts)

Shipping Info

  • Length21.9 (Inches)
  • Width15 (Inches)
  • Height4.2 (Inches)
  • Weight12.65 (Lbs)
  • Unit of MeasureEach
  • UPC654061028451

Master Pack Qty2Proposition 65 Warning
