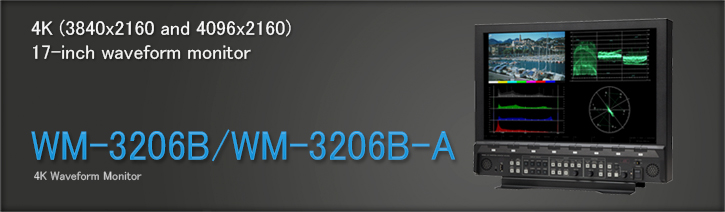

WM-3206/WM-3206B-A
4K Waveform Monitor

WM-3206B and WM-3206B-A are 4K (3840×2160 and 4096×2160) 17-inch waveform monitors with many useful functions such as waveform, vector scope, histogram, colorimetry, payload ID analysis, etc.

Features

  • Free layout
  • Dual Link and 3G-SDI(Level A/B) supported
  • Supports Square Division, Dual Link 2-sample interleave division and Quad Link 2-sample interleave division
  • Automatic format detection (resolution, frame rate and division)
  • Supports ITU-R BT.2020
  • DVI output for displayed image
  • Focus assist functions, maginify (Dot-by-Dot or x 2) and peaking with selectable color
  • Image capture function

Display Items

The following items are on pallets for which the position and size are freely adjustable.

  • Picture
  • Audio level meter
  • Waveform
  • Phase between input signals
  • Vector scope
  • Audio phase
  • Histogram
  • Input signal infomation
  • xy/uv Color space
  • Time code
  • Status (Digital value from an arbitrary line sample)
  • Tally

HDR FUNCTION

Features

  • Various HDR formats can be chosen.
    The RGB level of each scale is displayed.
  • Hybrid Log-Gamma (ITU-R BT.2020),
    Dolby PQ Curve (SMAPTE ST 2084),
    S-Log(1, 2, 3), Canon Log(2),
    V-Log(L) are supported.
  • IRE 100% position is displayed clearly so that
    the HDR area can be checked easily and intuitively.
  • Any section of a waveform can be magnified,
    in order to check details more precisely.

SPECIFICATIONS

Input Format
Input/
Output		 3G-SDI x 4
(Level A, B)		 Color Space YCBCR 4:2:2
Color Depth 10 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60p, 59.94p, 50p, 48p
3G-SDI x 4
(Level A, B)		 Color Space RGB 4:4:4, YCBCR 4:4:4
Color Depth 10 bits/12 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60i, 59.94i, 50i, 48i, 30p, 29.97p, 25p, 24p, 23.98p,
30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF
3G-SDI x 2
Level B
2-sample interleave
division		 Color Space RGB 4:4:4, YCBCR 4:2:2
Color Depth 10 bits
Resolution 4096/3840 × 1080 x 2ch
Frame Rate 30p, 29.97p, 25p, 24p, 23.98p
3G-SDI x 4
Level A/B
2-sample interleave
division		 Color Space YCBCR 4:2:2
Color Depth 10 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60p, 59.94p, 50p, 48p
3G-SDI x 4
Level A/B
2-sample interleave
division		 Color Space RGB 4:4:4, YCBCR 4:2:2
Color Depth 10 bits/12 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 30p, 29.97p, 25p, 24p, 23.98p
HD-SDI x 4 Color Space YCBCR 4:2:2
Color Depth 10 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60i, 59.94i, 50i, 48i, 30p, 29.97p, 25p, 24p, 23.98p,
30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF
HD-SDI x 8
(Dual Link SDI)		 Color Space YCBCR 4:2:2
Color Depth 10 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60p, 59.94p, 50p, 48p
HD-SDI x 8
(Dual Link SDI)		 Color Space RGB 4:4:4, YCBCR 4:4:4
Color Depth 10 bits/12 bits
Resolution 2048/1920 × 1080 x 4ch
Frame Rate 60i, 59.94i, 50i, 48i, 30p, 29.97p, 25p, 24p, 23.98p,
30PsF, 29.97PsF, 25PsF, 24PsF, 23.98PsF



LCD Panel Specıfıcatıon
Switching TFT-LCD
Color Depth 8bits (16.777.216 colors)
Contrast 700:1
Response Speed 16ms
(Typ:White 90%⇛Black 10%+Black 10%⇛White 90%)
Viewing Angle UD:140°, LR:160°
Brightness 450cd/㎡ (MAX)
Size 17 inch
Resolution 1280(H) x 768(V) Pixels
Pixel Pitch 0.289(W) x 0.289(H) mm



General Specıfıcatıon
Power Requirement WM-3206B:AC100 – 240V (50/60Hz)
WM-3206B-A:DC9 – 18V
Power Consumption 80W MAX
Operating Temperature Range 0 to 40°C
Operating Humidity Range 30 to 80% RH (No Condensation)
Dimensions 414(W)x320(H)x80(D)mm (Excluding Protrusions)
Weight Approx. 7.5 kg
