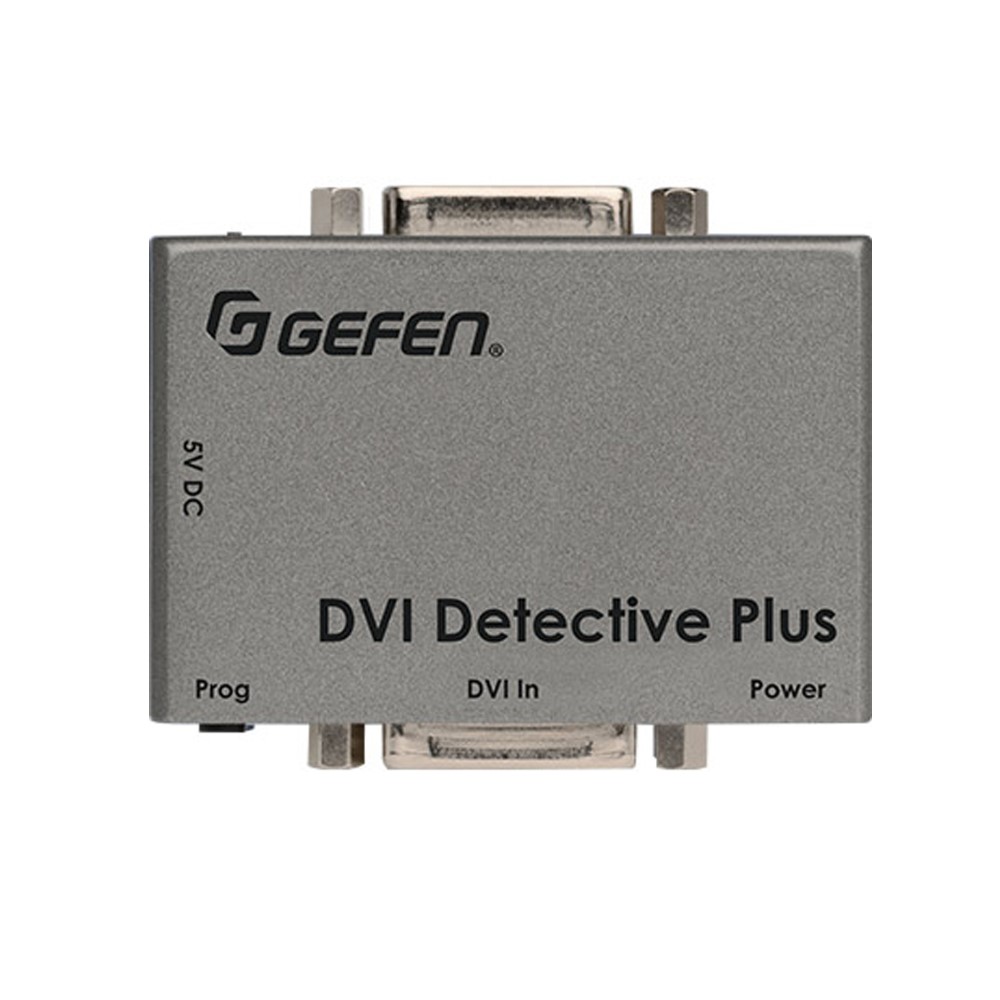

The Gefen DVI Detective Plus solves issues related to EDID that prevent signal passing from source to display in HDCP-enabled systems. EDID stands for Extended Display Identification Data. It is the standard table of characteristics of a display that is used by the source to optimize its output resolution, timing, and other operating parameters. When a display is switched off, de-selected by a matrix/switcher, or disconnected and then reconnected, the EDID can be lost. If this occurs, the video source device may lose its ability to output the correct image instantly. The Gefen DVI Detective Plus addresses this issue by recording the EDID from a display and making it available to a source at all times, as if the display is still connected. This product also passes through the communications between an HDCP-enabled source and display as necessary.
FEATURES
- Quick and easy way to store EDID information from any DVI display
- Provides a virtual EDID to maintain active monitor status when switching away from a source
- Supports resolutions up to 1920×1200, 2K, and 3840×2400 (Dual Link)

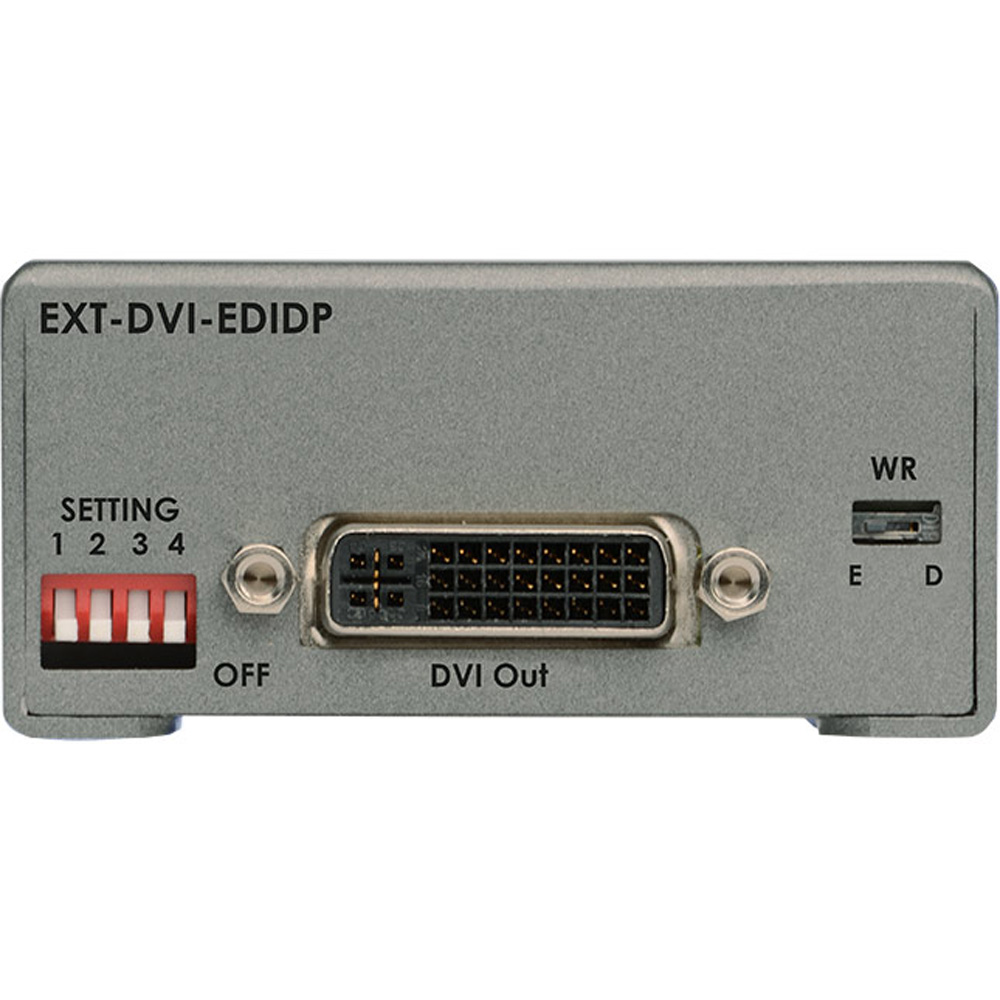

- Selection of 5 preset EDIDs are available for custom audio features and video resolutions through DIP switch selection
- EDID write protection switch
- No power is required after initial programming
- HDCP pass-through
SPECIFICATIONS
Maximum Pixel Clock: 2x 165 MHz
Video Input Connector: (1) DVI-I 29-pin, female
Video Output Connector: (1) DVI-I 29-pin, female
Power Supply: 5V DC (needed for programming only)
Power Consumption: 5W (max.)
Dimensions: 2.6″ W x 1.8″ D x 1.2″ H
Shipping Weight: 1 lb.
OTHER SPECIFICATIONS
Shipping Info
- Length0 (Inches)
- Width0 (Inches)
- Height0 (Inches)
- Weight0 (Lbs)
- UPC845344081953
Other Specifications
- Maximum Pixel Clock: 2x 165 MHz
- Video Input Connector: (1) DVI-I 29-pin, female
- Video Output Connector: (1) DVI-I 29-pin, female
- Power Supply: 5V DC (needed for programming only)
- Power Consumption: 5W (max.)
- Dimensions: 2.6″ W x 1.8″ D x 1.2″ H
Shipping Weight: 1 lb. - In The Box
- DVI Detective Plus(1)
- 1 ft. Dual-Link DVI Cable (M-M)(1)
- 5V DC Power Supply(1)
- User’s Manual(1)
