Main features
- Applicable scene
It is specially designed for small and medium-sized meeting rooms, for the Huddle Room with 4 to 6 person, to help enterprises re-tap the potential of using the small and micro meeting space inside. - Product value
It is convenient for small and medium-sized enterprises to conduct daily business negotiation and team cooperation in different places flexibly, so as to create a relaxed, free and smooth conversation environment, make decisions quickly and improve efficiency. - All-in-one design
The three-in-one design of 4K ultra HD camera, beamforming microphone and full-frequency loudspeaker reduces wiring and makes video communication easy. - 4K UHD
Using 1/2.5 inch, 8.51M pixel high quality UHD CMOS sensor, 4K (3840×2160) @60fps ultra high resolution clear image, and downward compatible with 1080P, 720P and other resolutions.Can meet the needs of users for different video experiences, and can provide clearer, real, smooth and accurate communication. - Wide FoV
121°wide field of view (110° horizontal field of view), 5x optical zoom lens customized for the conference scene, built-in electric head (horizontal and pitch ±15° motion range), participants can easily enter the scene clearly. - Beamforming microphone
Beam Forming (BF) microphone is built in, with a pickup distance of 6 meters. Low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker, with better sound, clearer communication, fuller and more authentic. - Audio 3A algorithm
Built-in audio 3A algorithm (AEC/AGC/ANS), full duplex dialogue, can meet the communication needs of different room structures, whether sitting at a conference table, sitting against the wall or standing, can have comfortable experience for calling. - Full frequency speaker
Full frequency Hi-Fi loudspeaker, professional acoustics design, reduce noise interference, provide outstanding sound effect. - Plug and play type
Through plug and play USB interface connect with the computer or business display screen, very easy to use. Less wiring, convenient video communication, reduce the user’s learning cost. - Intelligent analysis
Built-in intelligent analysis algorithm, listening to the speaker position, automatic framing of participants, automatic tracking of speakers, switching the speaker screen, to ensure that the speaker is always clearly in the picture. - Rich interfaces
Support HDMI 2.0 and USB 3.0 audio video output simultaneously. - Easy installation
Flexible installation options such as countertops, walls, and TV/display screens are available for quick installation and deployment in a crowded meeting room.

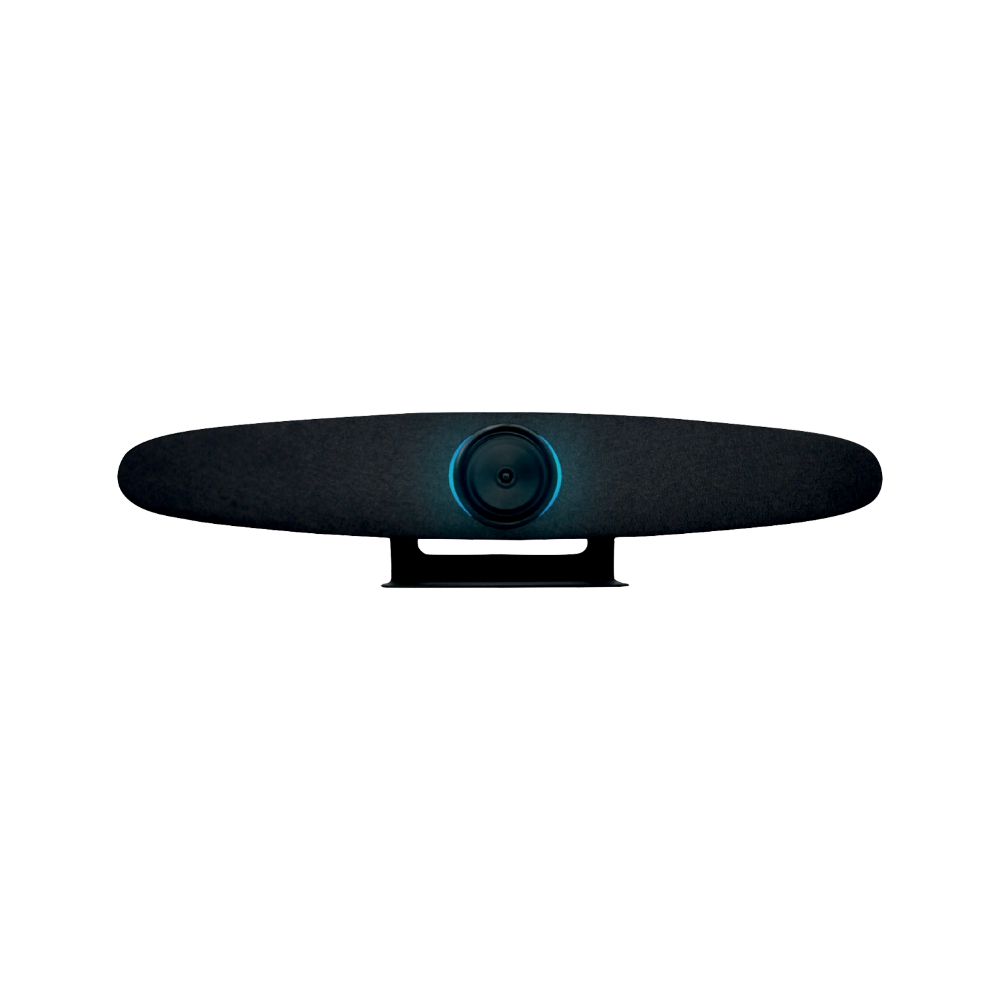

Model: EGE-CM4K-A
Name: 4K VideoBar
Camera
Video System: 4K@60fps, 4K@30fps, 1080P@60fps, 1080P@30fps, 720P@60fps, 720P@30fps
Sensor: 1/2.5 inch, CMOS, 8.51M pixel
Lens: 120° (DFOV) ，110° (HFOV) ，5x optical zoom，pan/tilt ±15°
PTZ: MPT + EPTZ
Digital Noise Reduction: 2D&3D digital noise reduction
Video S/N: ≥55dB
Backlight Compensation: Support
Audio
Full frequency speaker: 96 dB SPL in the case of 0.5 meter
Microphone array: Beamforming microphone, pick up distance up to 6 meters
External MIC: Support（Optional, extral cost）
USB features
Connection type: USB 3.0，downward compatible with USB2.0
Video Compression: H.264 / MJPEG /YUY2 /NV12
USB audio: 32K sampling rate, support UAC2.0
USB video communication protocol: UVC 1.1~1.5
UVC PTZ control: Support
System compatibility
OS
Windows 7 (only 1080p and below), Windows 8.1, Windows 10 or higher
macOS® 10.10 or higher
Google ChromebookTM Version 29.0.1547.70 or higher
Linux (requires support for UVC)
Android
Hardware platform
2.4 GHz Intel® Core 2TM Duo processor or higher
2 GB of memory or higher
USB 2.0 interface (4K video output need USB 3.0 interface)
Input/output interface
HD output
1 * HDMI 2.0 ;
USB interface
1 * USB3.0, Type C ;
1 * USB2.0, Type A ;
Wireless
BT （optional, extral cost）
Power jack
DC 12V, 2A (MAX)
Others
Control mode: 2.4G remote controller
Installation mode: Support for desktop, wall, TV, and other installation options
Standard cable: USB3.0（2 meters）
Safety protection: Security lock jack
Generic Specification
Remote: 2.4G remote controller
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C ~ 60°C
Size: 600mm * 140mm * 115mm （holder included）
Net Weight: 2.5 Kg
Certification
Certification CCC,CE,RoHS,FCC,etc.
Certified client application: Skype for Business
Compatible with Cisco (Jabber)
Cortana
Adaptable application: LCP （Zoom、BlueJeans、Broadsoft、Starleaf、Pexip、Vidyo）and all UVC application (Google Hangouts, Go to Meeting, etc）
