ez-MD+
HDMI/SDI Cross Converter with Audio Mux/Demux

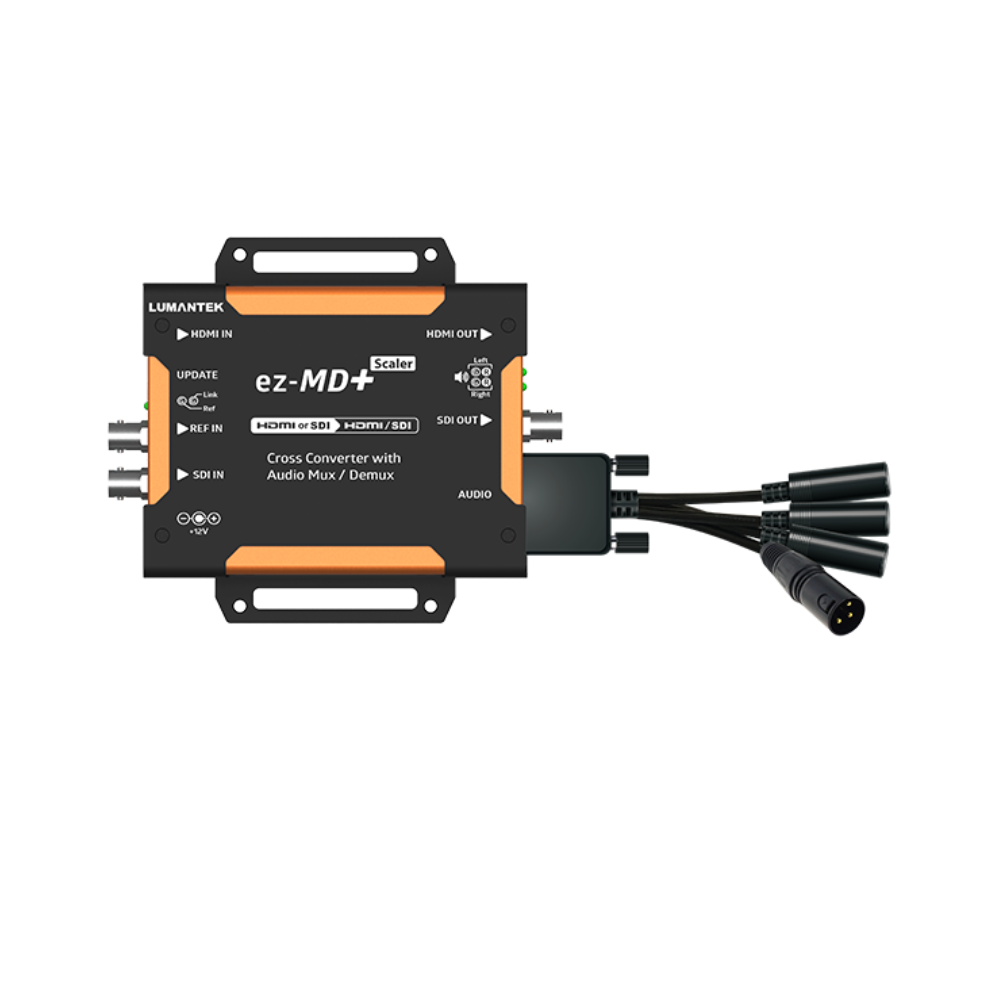

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.

ez-MD+

HDMI/SDI Cross Converter with Audio Mux/Demux

HDMI/SDI Cross-Converter

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.

HDMI and SDI Cross-Converting

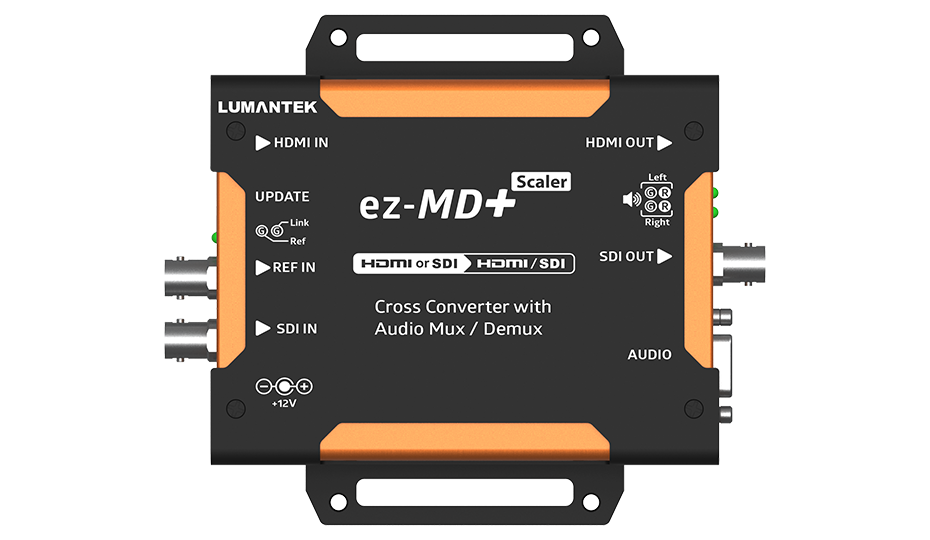

LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.

Up / Down Scaling and Screen Ratio Control

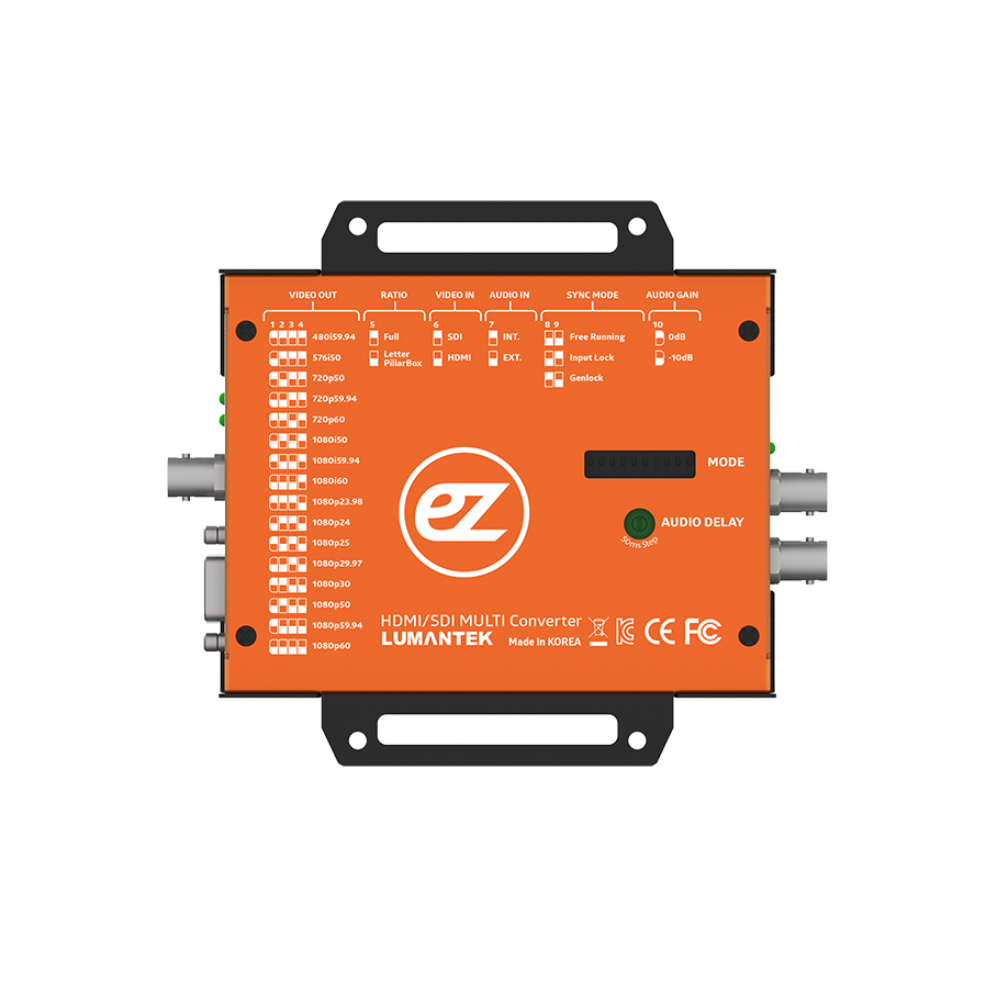

ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by ‘dip switch’

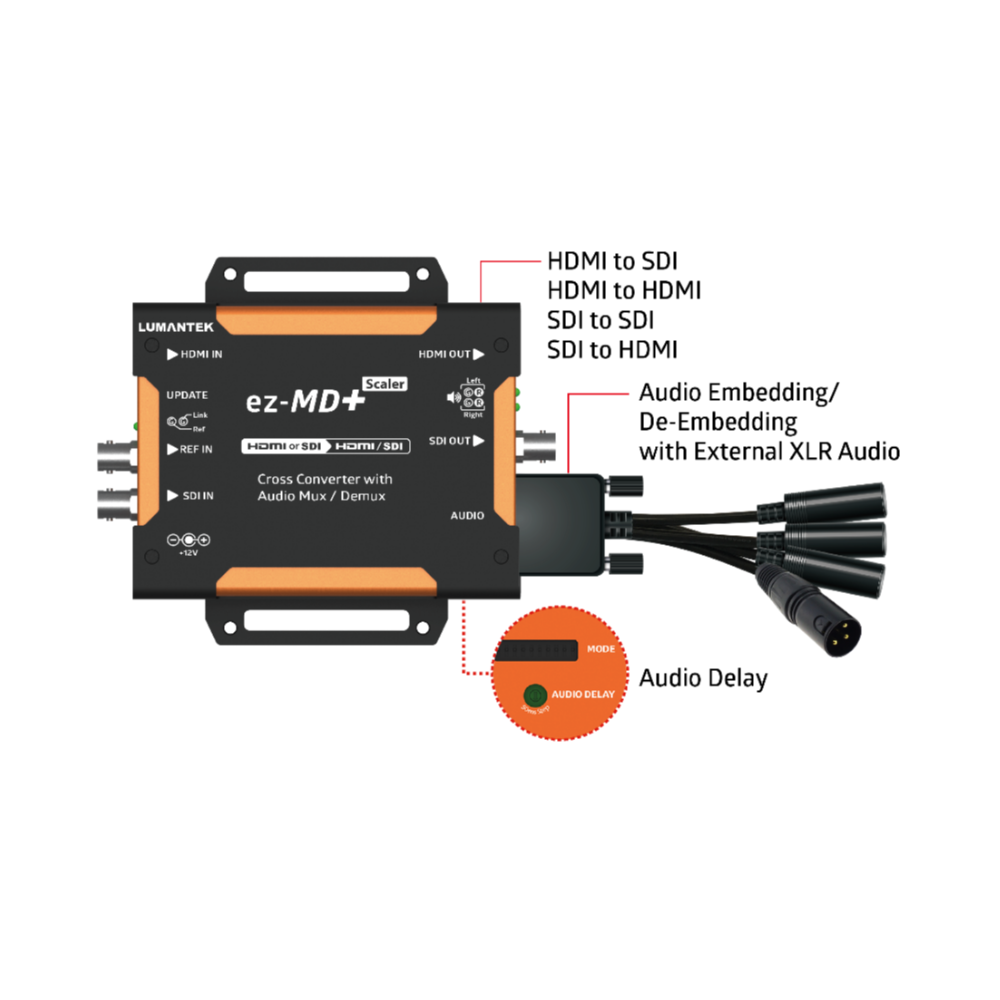

Audio embedding/De-embedding with external XLR Audio

9 pin serial port to XLR * 4 is complimentary.

Audio Delay control

Use the rotary switch to control the audio delay of the video source (50ms Step).

Frame Synchronization

There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.
With three different types of replaceable plugs, make your work easy wherever you are.

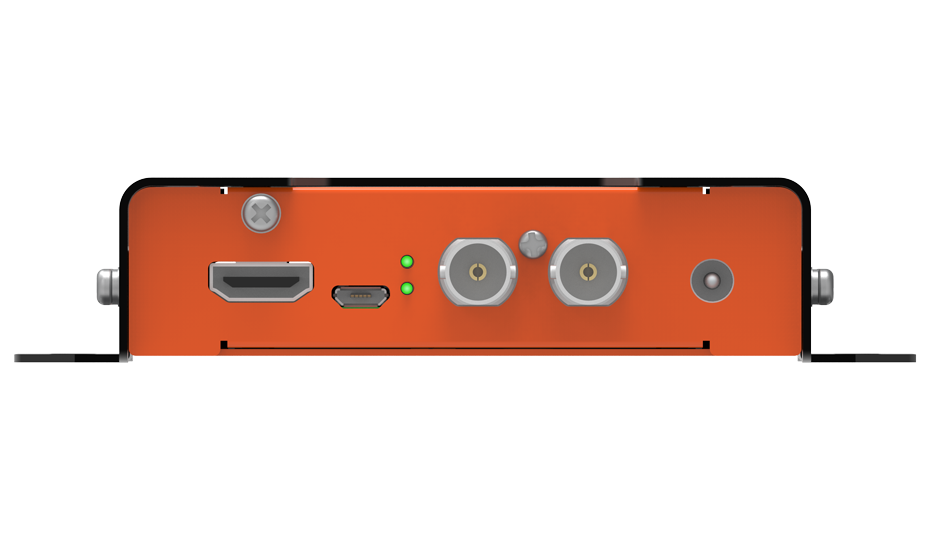

HDMI/SDI Cross Converter

Input

SDI Video Input x 1
HDMI Video Input x 1
Audio Input x 1

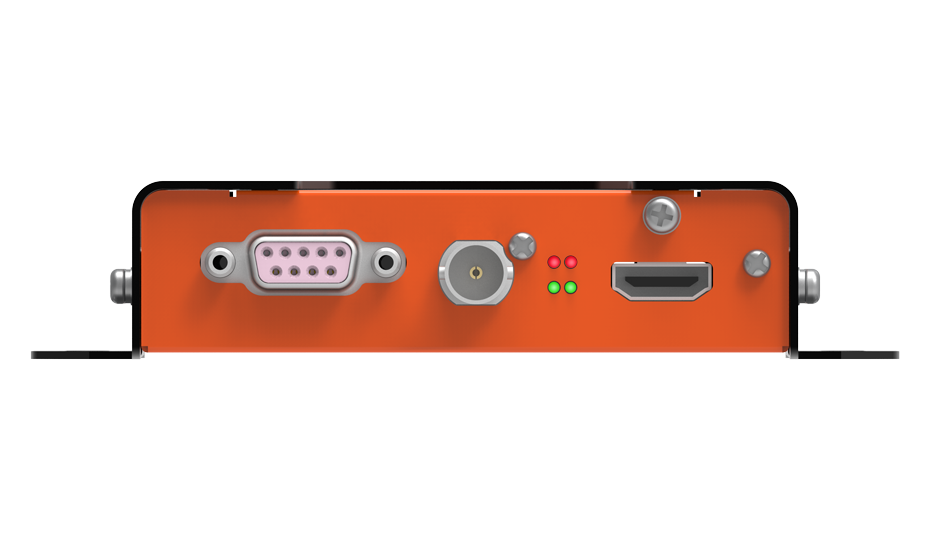

HDMI/SDI Cross Converter

Output

SDI Video Output x 1
HDMI Video Output x 1
Audio Output x 1

HDMI/SDI Cross Converter

TECH SPECS

ez-MD+

HDMI/SDI Cross Converter with Audio Mux/Demux

SPECS

Data Input
SDI Video Input  SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Input  SD/HD/3G (HDMI Type A) x1
Reference Input  B.B , TRI (BNC 75Ω) x1
 Audio Input  D-SUB 9PIN (Female) x1
 Video Formats   – 720x480i@59.94/60
– 720x576i@50
– 1280x720p@50/59.94/60
– 1920x1080i@50/59.94/60
– 1920x1080p@23.98/24/25/29.97/30
– 1920x1080p@50/59.94/60
 Data Output
SDI VIdeo Output  SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Output  SD/HD/3G (HDMI Type A) x1
 Audio Output  D-SUB 9PIN (Female) x1
 Video Formats  – 720x480i@59.94 (DIP SW : 1111)
– 720x576i@50 (DIP SW : 0111)
– 1280x720p@50 (DIP SW : 1011)
– 1280x720p@59.94 (DIP SW : 0011)
– 1280x720p@60 (DIP SW : 1101)
– 1920x1080i@50 (DIP SW : 0101)
– 1920x1080i@59.94 (DIP SW : 1001)
– 1920x1080i@60 (DIP SW : 0001)
– 1920x1080p@23.98 (DIP SW : 1110)
– 1920x1080p@24 (DIP SW : 0110)
– 1920x1080p@25 (DIP SW : 1010)
– 1920x1080p@29.97 (DIP SW : 0010)
– 1920x1080p@30 (DIP SW : 1100)
– 1920x1080p@50 (DIP SW : 0100)
– 1920x1080p@59.94 (DIP SW : 1000)
– 1920x1080p@60 (DIP SW : 0000)
 Connections
 Power  DC Power Input (DC Jack) x1
 Update  Debus (Micro-USB) x 1
 DIP Switch  (10 Pole) x 1

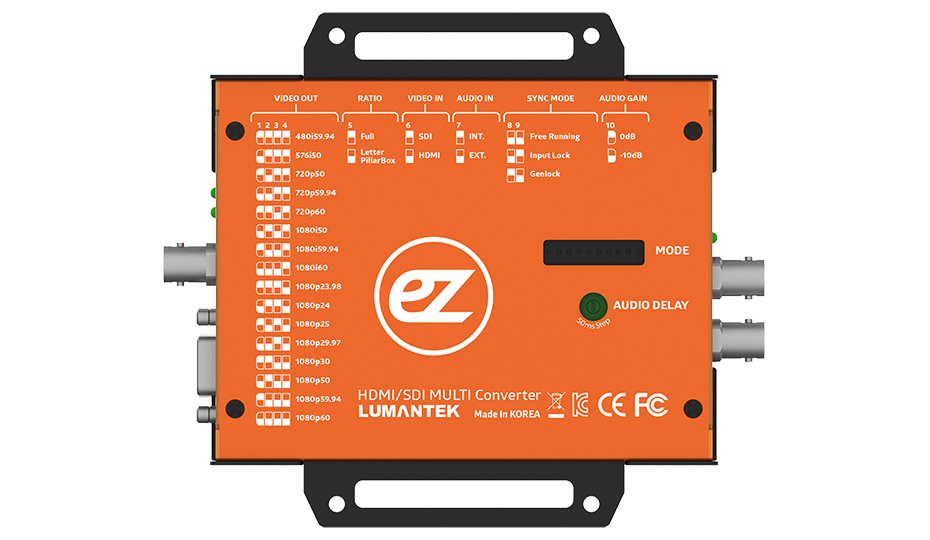

Video Output Resolution, Video Output Ratio, Video Input(SDI or HDMI),Audio(INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain(0 or -10dB)
 Rotary Switch  (10 step) x 1
Audio Delay Control  (50ms Step)
 Display
 Link (Green x 1)  HDMI or SDI Input video Detect
 Ref (Green x 1)  REF Input Signal Detect
 Left (Green x 1, Red x 1)  Input Audio Level Meter (Left)
Right (Green x 1, RED x 1)  Input Audio Level Meter (Right)
 Electrical
Power Input  DC +11V to +13V

0.67A(667mA) when it’s +12V
Power consumption  8W (max.)
Operation Temperature  0~45℃
 Physical
Dimension 130 x 100.4 x 26.9 mm (include connector)
 Weight  0.4kg (0.88 lbs)
