Now you can monitor HDMI video with ez-HSV+. Features you can check are audio bar, incoming resolution and scaled out resolution. The ez-HSV+ comes with the capability to embed external audio as well to give you a more convenient way to plan your production scheme.

ez-HSV+

Save your live event

HDMI to SDI Converter with Display

Now you can monitor HDMI video with ez-HSV+. Features you can check are audio bar, incoming resolution and scaled out resolution. The ez-HSV+ comes with the capability to embed external audio as well to give you a more convenient way to plan your production scheme.

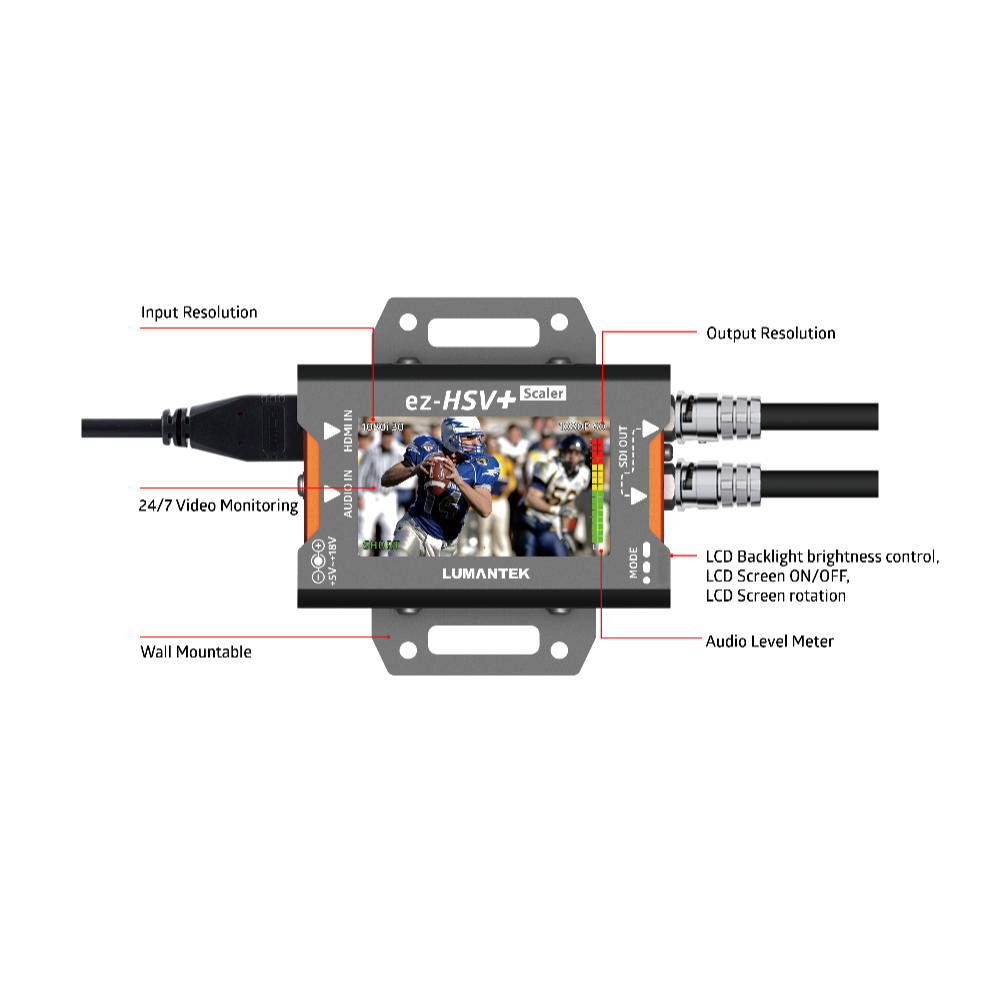

24/7 Video Monitoring

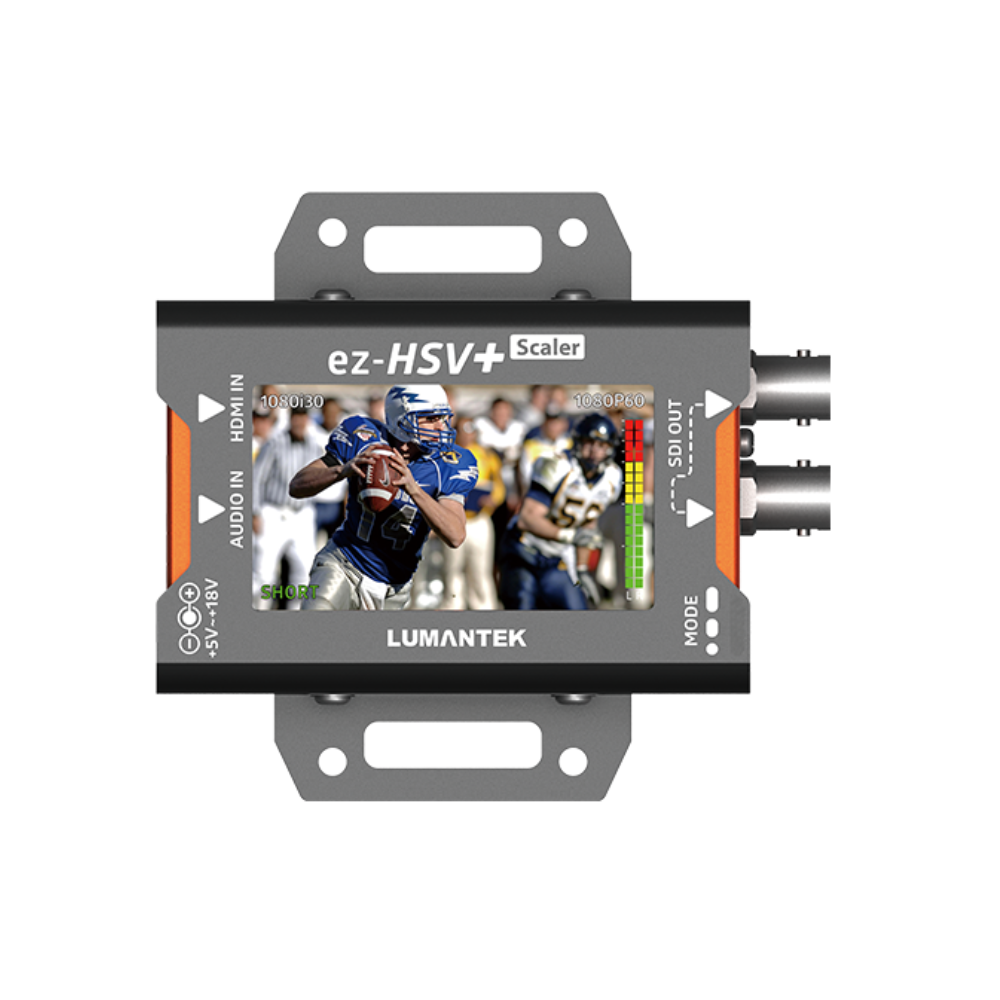

Through the 2.7 inch TFT LCD screen, you can monitor the incoming video and in/output source resolution.

Audio Level Meter

You can also check the sound through the audio level meter on the screen. No more worries with audio!

Low Power Consumption

The Maximum power consumption of ez-HSV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility in connecting power. You can also use a power bank to use this coverter.

Global Power Adaptor

All ez-Converters come with AC/DC power adaptor.
With three different types of replaceable plugs, make your work easy wherever you are.

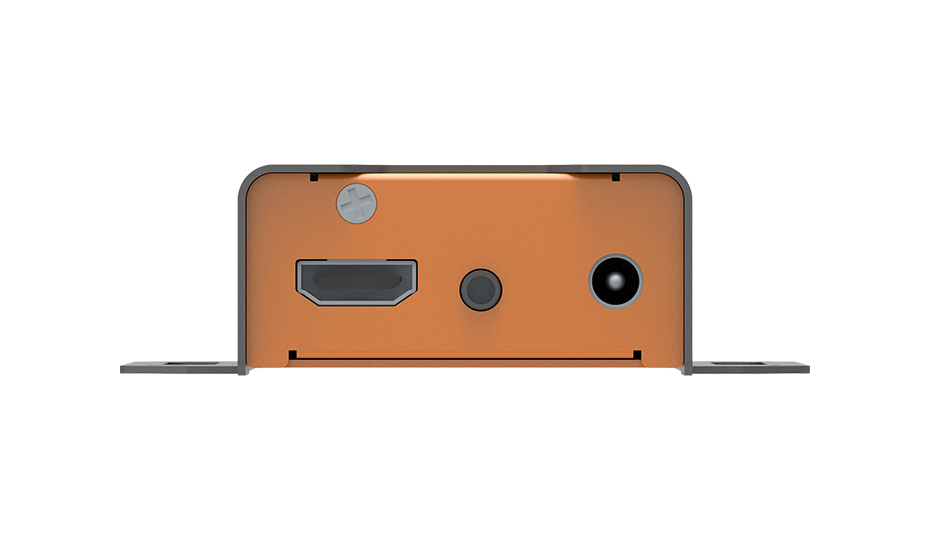

Input Ports

Video

1 x HDMI

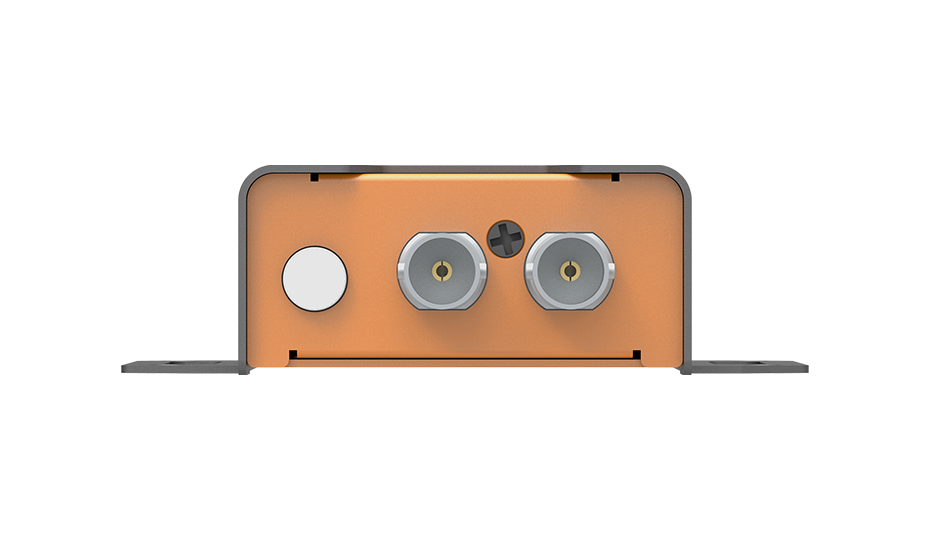

Output ports

Video

2 x SDI OUT

TECH SPECS

ez-HSV+

HDMI to SDI Converter with Display

SPECS

Data Input
 Analog Audio Input  Stereo Jack x 1
 HDMI Video Input  SD/ HD/ 3G (HDMI Type A) x 1
 Video Formats   – 720x480i@59.94/60
– 720x576i@50
– 1280x720p@50/59.94/60
– 1920x1080i@50/59.94/60
– 1920x1080p@23.94/24/25/29.97/30
– 1920x1080p@50/59.94/60
  Data Output
 SDI Video Output  SD/HD/3G-SDI (BNC 75Ω) x1

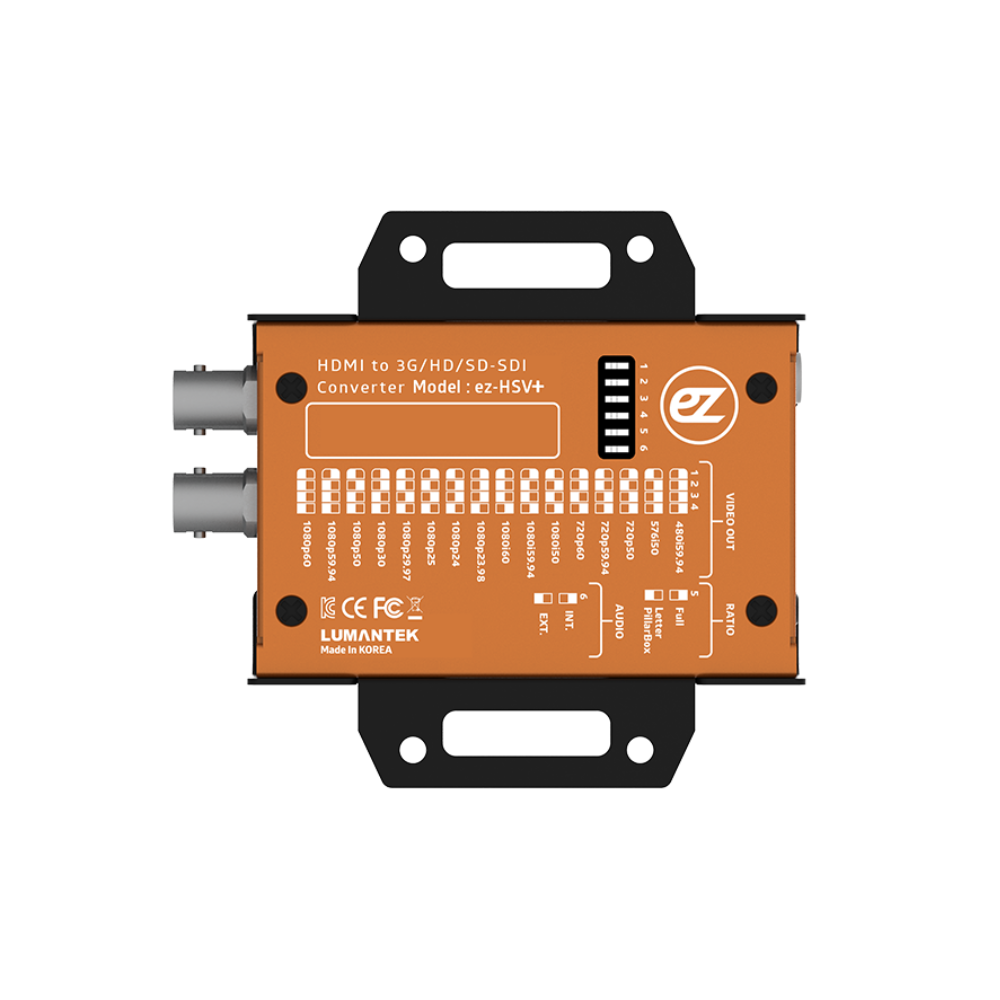

 Video Formats   – 720x480i@59.94 (DIP SW : 1111)
– 720x576i@50 (DIP SW : 0111)
– 1280x720p@50 (DIP SW : 1011)
– 1280x720p@59.94 (DIP SW : 0011)
– 1280x720p@60 (DIP SW : 1101)
– 1920x1080i@50 (DIP SW : 0101)
– 1920x1080i@59.94 (DIP SW : 1001)
– 1920x1080i@60 (DIP SW : 0001)
– 1920x1080p@23.98 (DIP SW : 1110)
– 1920x1080p@24 (DIP SW : 0110)
– 1920x1080p@25 (DIP SW : 1010)
– 1920x1080p@29.97 (DIP SW : 0010)
– 1920x1080p@30 (DIP SW : 1100)
– 1920x1080p@50 (DIP SW : 0100)
– 1920x1080p@59.94 (DIP SW : 1000)
– 1920x1080p@60 (DIP SW : 0000)
 Connections
 Power  DC Power Input (OD: 5.5mm, ID:2.1mm) x1

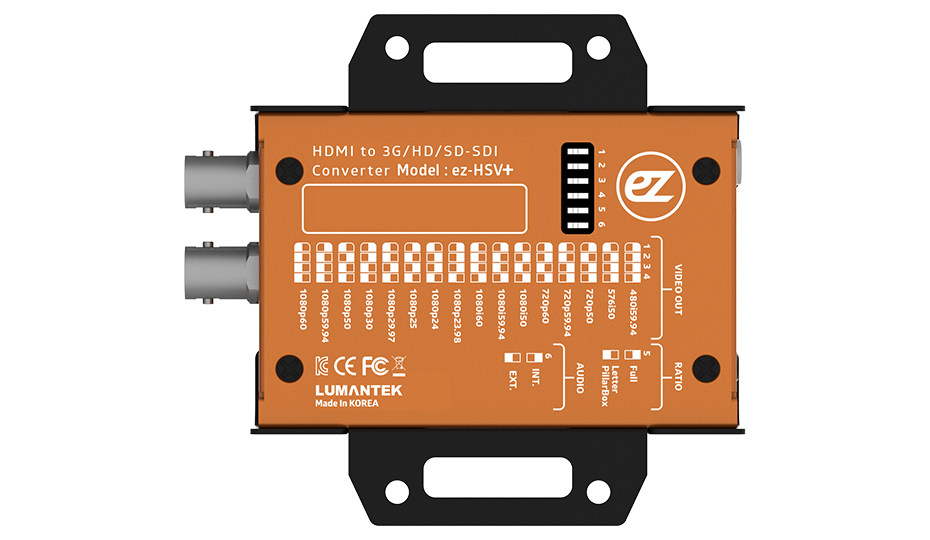

 DIP Switch  (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. or EXT.)
 MODE  (Push Switch) x 1 LCD ON/OFF, Menu Selection
 Display
 2.7 inch TFT LCD Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display
 Electrical
 Power Input  DC +5V to +18V

0.33A(333mA) when it’s +12V
 Power Consumption  4W (max.)
 Operation Temperature  0~45℃
 Physical
 Dimension  86.3 x 57.2 x 26.6 mm (include connector)
 Weight  0.3 kg (0.66 lbs)
